HQD Spindle Motor Systems and High-Speed CNC Machining Solutions

CINKR supplies HQD spindle motors for CNC machine builders, retrofit projects and maintenance teams. Compare tool interfaces, rated output power, rotational speed ranges, and physical enclosure dimensions to configure an exact model match for new machinery or existing equipment replacement.

Find My SpindleI Know My Model
Browse Spindle Models

SPINDLE SERIES

Browse HQD Spindle Motors by Series.

Compare the four HQD series by tool-change method, cooling, tool interface and mounting arrangement. Verify tool change, cooling, and mounting parameters for your machine.

GDL

GDL ATC Spindles

Automatic tool change with a defined taper interface. Check the air supply, sensing, toolholder and release sequence for the exact model.

Browse GDL →

GDF

GDF Air-Cooled Spindles

Air-cooled spindle configurations with different housing and mounting arrangements. Match the interface, speed and installation drawing.

Browse GDF →

GDZ

GDZ Water-Cooled Spindles

Water-cooled spindle configurations for engraving and routing machines. Confirm the collet, winding, cooling circuit and clamp dimensions.

Browse GDZ →

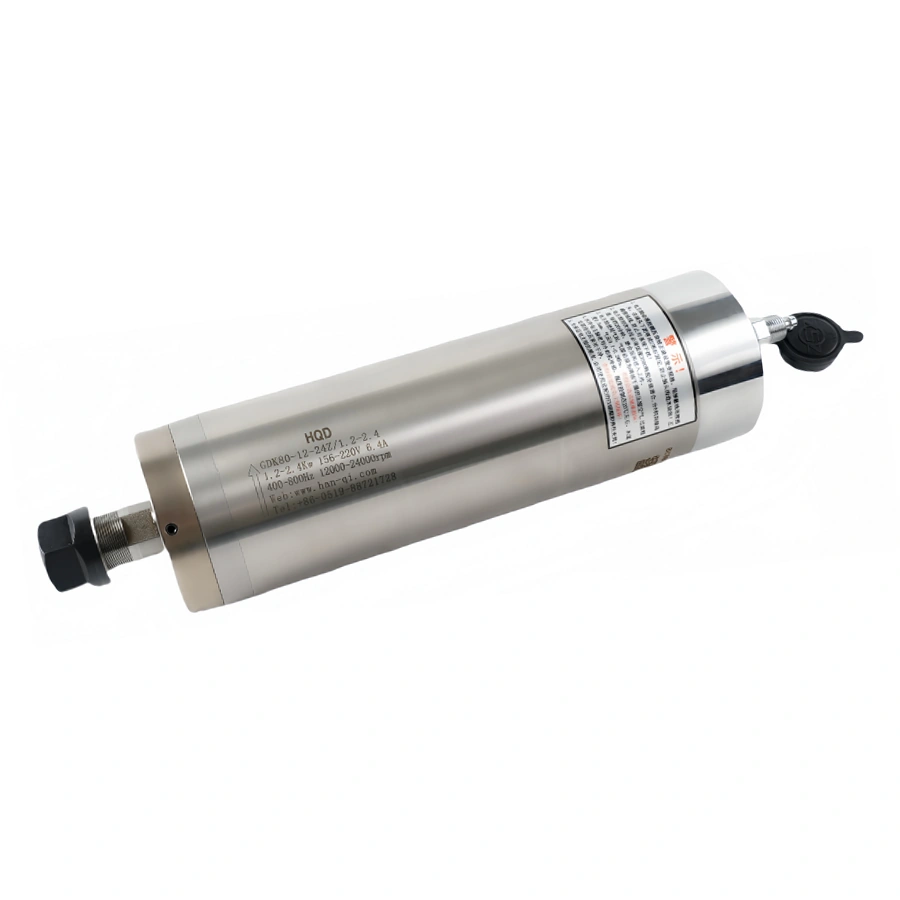

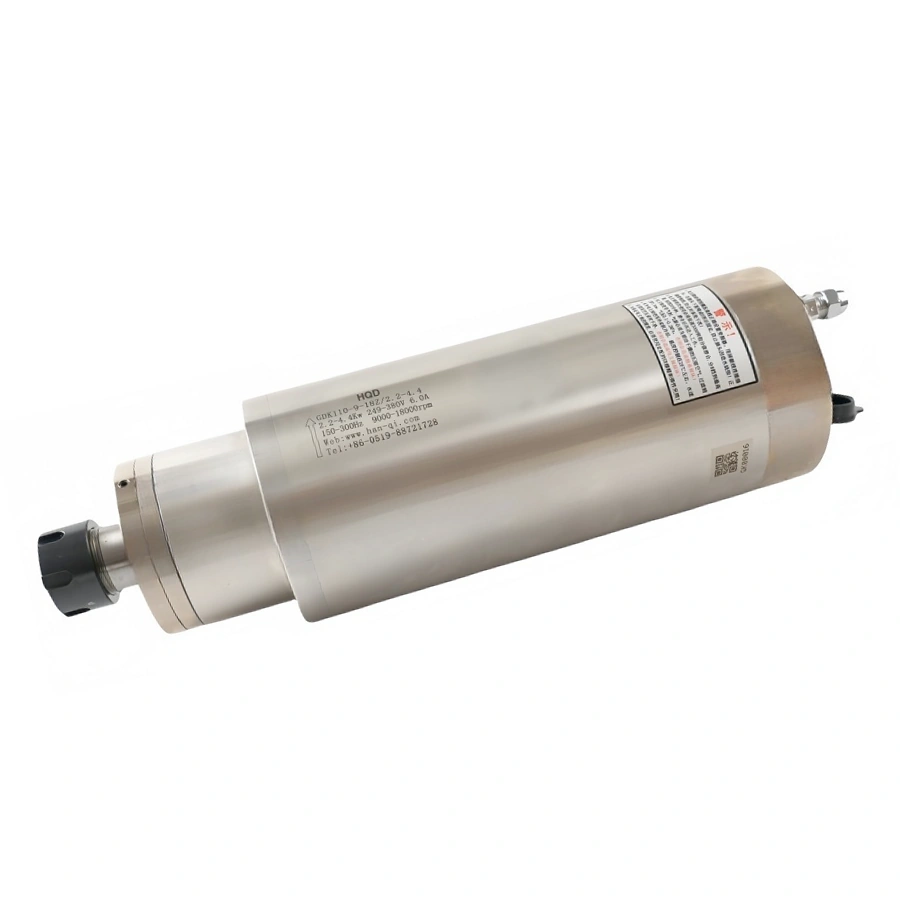

GDK

GDK Engraving & Milling Spindles

Spindles with model-specific operating ranges and power ratings. Read the duty conditions and VFD curve before choosing by power.

Browse GDK →

ATC SELECTION

HQD ATC Spindle Models for Automatic Tool Change.

Compare GDL ATC spindles by taper, toolholder retention, winding, cooling and mounting envelope. The range includes ISO20, ISO25, ISO30, BT30 and BT40 configurations. Confirm the supplied unit’s release-air requirements, sensor connections and controller interlocks before commissioning. Compare each assembly’s drawing against the machine frame, tool magazine and rear service space, allowing for hose bends and access to connections. Keep the nose version and selected winding with the model code in an inquiry. A shared taper does not settle holder retention, spindle support or sensor wiring; review these interfaces with the machine controller and tool magazine requirements.

Browse HQD ATC SpindlesCheck ATC Installation Requirements

ALL SPINDLES

HQD CNC Spindle Models, Side by Side.

Compare tooling, cooling and operating ratings, then open the exact configuration for your machine.

FILTER SPINDLES

Showing 43 configurations

Tool change
Cooling
Series
More filters

Choose a winding voltage, not a voltage shown on a power curve. Ask us if the voltage you need is not listed.

GDL ATC Spindles · 9 configurations

Automatic tool change with a defined taper interface. Check the air supply, sensing, toolholder and release sequence for the exact model.

GDF Air-Cooled Spindles · 7 configurations

Air-cooled spindle configurations with different housing and mounting arrangements. Match the interface, speed and installation drawing.

GDZ Water-Cooled Spindles · 14 configurations

Water-cooled spindle configurations for engraving and routing machines. Confirm the collet, winding, cooling circuit and clamp dimensions.

GDK Engraving & Milling Spindles · 13 configurations

Spindles with model-specific operating ranges and power ratings. Read the duty conditions and VFD curve before choosing by power.

Find an HQD CNC Spindle for Your Application.

Compare the material, cutter, working speed, load cycle and machine stiffness with the spindle’s documented operating data.

Routing & EngravingCompare manual ER spindle configurations for wood carving, signage and acrylic profiling. Check the selected model’s speed, collet interface, mounting and duty against the actual cutter and process.Browse manual spindles →
Automatic Tool ChangeCompare ISO and BT ATC configurations for the required holders and production sequence. Confirm release air, sensing, controller interlocks and any air-seal service for the supplied unit.Check ATC requirements →
Milling & Operating DutyCompare water-cooled spindle configurations using the actual cutter speed, load cycle and available operating curve. Retain the stated S1/S6 and temperature conditions when assessing aluminum or profiling work.Work through the selection guide →

Configuration Checks Before Ordering an HQD Spindle

Bring the machine requirements, existing nameplate and mounting details into the configuration review. Check mechanical fit, drive compatibility and required services together before confirming the proposed supply.

01

Model & Configuration Matching

Verify full model codes, configuration suffixes, and physical mountings. A shared designation can describe distinct base-mount, housing-mount, or nose variants.

02

Mounting & Clearance Review

Compare the outline drawing for the exact configuration with the machine’s mounting dimensions, support surfaces, nose position and rear service clearance before manufacturing the mount.

03

Drive & Connection Checks

Keep winding voltage and current paired correctly, aligning motor base frequencies (300 Hz, 400 Hz, 800 Hz) with variable frequency drive parameters.

04

Technical Documents & Supply Enquiries

Review the available model-specific drawings and technical files. Include any additional document and delivery requirements in your quotation request.

SUPPORT & DOWNLOADS

Drawings, Technical PDFs & Installation Guides.

Use the drawing and available technical files for the exact model, winding and mounting configuration. Confirm document applicability before using dimensions, wiring information or service connections for installation.

Dimension Drawings

View the full-size installation drawing for the selected configuration to compare mounting dimensions and clearances.

Choose a spindle drawing

Technical PDFs

Browse the available technical PDFs and check each file’s model, winding and configuration label. Request additional wiring or operating information for the selected unit when needed.

Browse available PDFs

Installation & Drive Guides

Review practical technical guides addressing spindle replacement, VFD inverter tuning, ATC sensor interfacing, and cooling circuit maintenance.

Read installation guides

Need 3D CAD models or additional engineering files? Include the exact spindle code and physical configuration in your inquiry. Request a document →

Available model-specific PDFs

GDF46-18Z/2.2

Base mount · Dimensions and technical references

View files →

GDF65-24Z/0.8

ER11 · Dimensions and technical references

View files →

GDF80-24Z/1.5

ER11 · Dimensions and technical references

View files →

GDF80-24Z/2.2

ER16 · Dimensions and technical references

View files →

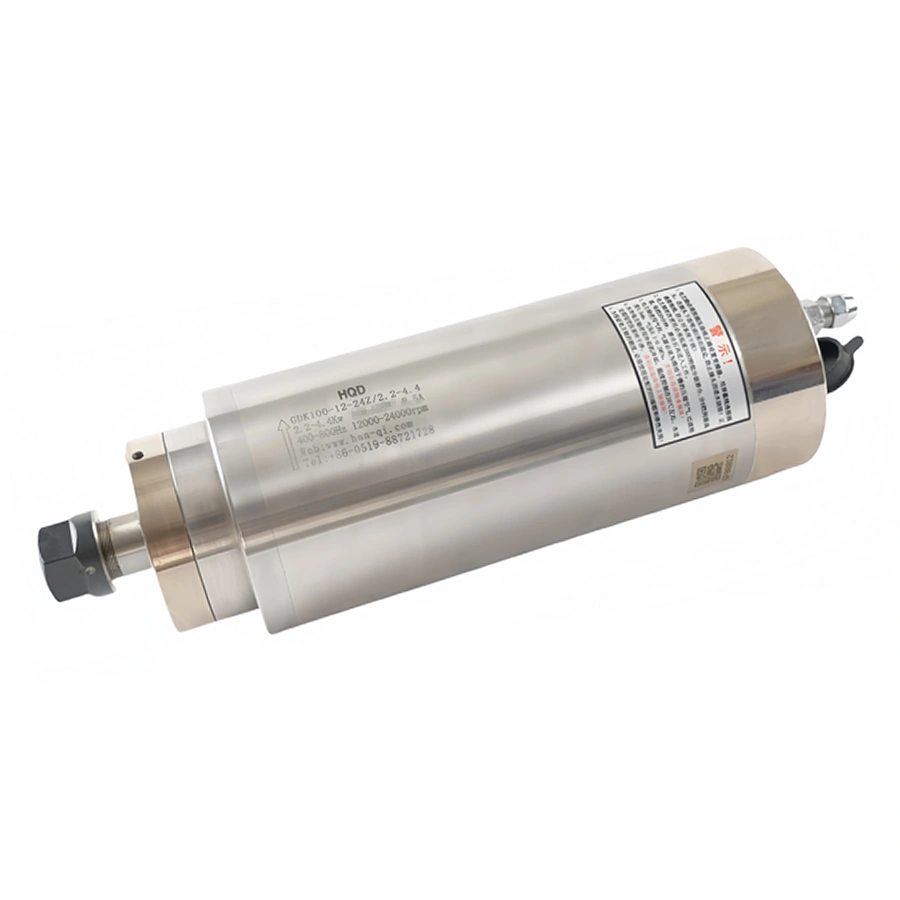

GDK100-12-24Z/2.2-4.4

ER20 · Dimensions and technical references

View files →

GDL120-30-24Z/5.5

BT30 · Dimensions and technical references

View files →

GDL40.5-ISO20-24Z/2.2

ISO20 · Dimensions and technical references

View files →

GDL70-24Z/9.0

ISO30 · Long nose · Dimensions and technical references

View files →

GDL70-24Z/9.0

ISO30 · Short nose · Dimensions and technical references

View files →

GDL70-24Z/9.0B

ISO30 · Dimensions and technical references

View files →

GDZ-23

ER20 · Dimensions and technical references

View files →

A Starting Point for Each Buying Task.

Machine Builders

For a new machine, compare the selected spindle’s dimensions, tooling, cooling requirements and drive data with the proposed installation.

Discuss a New Installation

Replacement & Maintenance

Compare the existing nameplate, mounting dimensions and connections with the proposed replacement’s applicable drawing and electrical specification before ordering.

Check a Replacement

Known-Model Sourcing

Search printed model designations, verify specific physical mounting options and electrical winding pairs, and submit targeted procurement requests.

Find My Model

From Machine Requirement to Spindle Selection.

  1. 1

    Define the Machine Requirements

    Provide existing motor nameplate photos or define target workpiece materials, cutting tool shank diameters, and available gantry mounting space.

  2. 2

    Narrow the Configurations

    Filter by manual or automatic tool change, air or water cooling, collet interface, and operating speed range while preserving model suffixes.

  3. 3

    Verify Physical and Electrical Fit

    Check the applicable outline drawing, selected winding’s voltage/current pair, required VFD output frequency and model-specific air-service requirements.

  4. 4

    Request a Competitive Quotation

    Submit exact model codes, preferred electrical windings, target quantities, destination postal codes, and technical documentation requirements.

Start a Spindle Check

BEFORE YOU CHOOSE

Questions before you choose an HQD spindle.

Compare mechanical mounting dimensions, electrical drive requirements, and tooling interfaces before selecting an electrospindle for your machine.

Choosing a spindle

Which HQD CNC spindle series suits my machine?

Start with tool change, cooling, tooling and mounting. The listed GDL configurations use ISO or BT automatic tooling; GDF configurations use air cooling and manual ER tooling; GDZ and GDK configurations use water cooling and manual ER tooling. Compare GDK rated points or operating curves for the actual working speed and duty. Then check the exact model’s drawing, winding and service requirements.

Compare the four HQD spindle series

What should I check when replacing a spindle?

Record the complete model designation from the motor nameplate, tool collet interface, outer body diameter, usable clamping band length, nose projection, and rear terminal clearance. Always verify electrical winding data: matching kilowatt power alone is insufficient. For instance, the GDF46-18Z/2.2 and GDZ-23 are both rated at 2.2 kW, but their rated operating points are 18,000 rpm at 300 Hz and 24,000 rpm at 400 Hz, respectively.

Use the spindle replacement checklist

Can I order a replacement using only the model code?

Use the printed code as a starting point, then verify the physical mounting configuration. For example, GDF46-18Z/2.2 is manufactured in both Base Mount and Housing Mount versions with completely different fixing bolt arrangements. Retain every suffix in the model code, photograph the existing mounting bracket and terminal plug, and compare dimensions against the applicable configuration drawing to check mounting compatibility.

Compare the GDF46 base-mount version and housing-mount version.

Should I choose an air-cooled or water-cooled spindle?

Choose cooling around the supplied spindle’s requirements, working duty and machine environment. Air-cooled configurations need an unobstructed air path and any specified fan service. Water-cooled configurations need a suitable circuit, fittings and coolant conditions. Compare dust exposure, enclosure space, maintenance and the documented duty before selecting either method.

Compare air vs water cooling

Can an HQD spindle connect directly to utility mains power?

No. Use a compatible VFD with the documented motor-output voltage, current and frequency for the selected spindle. Do not connect the listed high-frequency spindle configurations directly to 50 Hz or 60 Hz mains power. Confirm motor data and protection settings from the supplied-unit nameplate and applicable drive instructions before commissioning.

Read the VFD matching guide

Mounting and ordering

How do I identify the correct electrical winding?

Check the motor nameplate for marked voltage and current pairs (e.g., 220 V / 8 A vs 380 V / 4.4 A). Many HQD models are manufactured in separate 220 V and 380 V configurations. The variable frequency drive output voltage and full-load current rating must match the specific winding supplied with your motor.

What air pressure is required for an HQD ATC spindle?

Confirm the release-air and any air-seal requirements for the exact supplied GDL configuration. Use its pneumatic connection information and service instructions to specify pressure, air quality and connections. Keep tool release and air sealing separate, and check sensing and controller interlocks before commissioning.

Check ATC installation requirements

What information should a quotation request include?

Specify the complete spindle model code, required winding voltage (220 V or 380 V), target order quantity, and delivery destination with postal code. For replacement units, attach photos of the existing motor nameplate and mounting bracket to verify mechanical fitment.

Where can I find drawings and technical files?

View the full-size installation drawing for the selected spindle to check mounting dimensions and connection locations. Browse the technical files available for that model and confirm each file’s winding and configuration label. If a PDF, wiring detail or CAD file is needed, include the complete model and the installation question in your inquiry so its applicability can be checked before use.

How do I choose the right collet chuck size?

Select an individual collet whose marked gripping range matches the cutter shank. ER11, ER16, ER20, ER25 and ER32 identify collet families; confirm the available sizes, matching nut and spindle nose, permitted speed and tooling instructions for the actual assembly. Specify the runout requirement for the process and verify it using an appropriate measurement method.

Review ER collet selection rules

REQUEST A QUOTE

Tell us what your machine needs.

Share a model or describe what you need to match. Unknown technical details can be left blank.

Useful details to have ready
  • Exact code and readable nameplate
  • Mounting dimensions and available clearance
  • Tool interface and required speed
  • Drive output, cooling and ATC connections

Attach photographs or drawings in your email application.

Machine and technical details (optional)
Review your inquiry
Include your spindle model, machine requirements and questions in your email.
Open email

Open your email application to review and send the inquiry, or copy the text into a message to info@cinkr.com. Quotes and availability are confirmed by email.

HQD GUIDES

HQD Spindle Motor Selection & Installation Guides.

Practical guides for HQD spindle selection, tooling, cooling, VFD matching, replacement and ATC installation.

View All Guides

ABOUT HQD

HQD Spindle Motor Options for CNC Machines

Choose an HQD spindle motor around the cutting tool interface, rotational speed envelope, and mechanical installation your CNC machinery requires. For routing, engraving or milling, begin with the actual workpiece, cutter geometry, tool projection and working speed. Compare the required load cycle with the selected spindle’s rated point and any available operating curve. Material type alone cannot establish the required output, surface finish or replacement compatibility. The portfolio spans GDL automatic tool change spindles with ISO and BT tapers, GDF air-cooled spindles with base-mounted and round bodies, GDZ water-cooled spindles across standardized clamp diameters, and GDK engraving and milling spindles with model-specific operating points, curves and duty conditions.

Selecting an electrospindle requires evaluating continuous S1 kilowatt ratings alongside documented S6 intermittent duty cycles, winding voltage and current pairs, body clamping zones, and thermal cooling circuits. For an HQD ATC spindle, confirm the holder retention arrangement, release-air requirements, sensing, controller interlocks and any air-seal service for the exact supplied assembly. Automatic tool change describes the machine toolholding architecture; it requires precise mechanical and pneumatic integration rather than assuming universal interchangeability. Review the ATC installation requirements before finalizing machine engineering designs.

CINKR supplies HQD spindle motors and helps machine builders, retrofit integrators and maintenance teams compare configurations and request quotations. Explore the four specialized spindle series, consult our practical spindle selection guides, and review the available outline drawings and technical PDFs for the selected model and configuration. Include your existing motor nameplate photographs, machine mechanical constraints, target quantities, and delivery destination when requesting a formal quotation.
