HQD GDK58-24Z/0.8 ER11 spindle motor

0.8 kW ratedER11Water-cooled24,000 rpm ratedØ58 mm220.5 mm overall

HQD GDK58-24Z/0.8 is a water-cooled ER11 spindle rated at 0.8 kW and 24,000 rpm. Its 58 mm body, 220.5 mm assembly and 3 kg listed weight distinguish it from the larger GDK80 configurations. Check the 220 V / 3 A winding, 400 Hz drive requirement and actual collet and mounting arrangement before ordering.

Browse the GDK spindle range →

MODEL SELECTION

Is this the right GDK58-24Z/0.8 configuration?

BEST FIT

Choose this configuration if:

  • The intended operation uses manual ER11 tooling and the documented 24,000 rpm point.
  • The machine can accommodate the 58 mm body, actual support arrangement and rear water connections.
  • A suitable 220 V motor drive and water circuit can be provided for the intended duty.

CHECK BEFORE ORDERING

Confirm these details first:

  • Check 220 V / 3 A and 400 Hz as motor-output requirements, separate from mains supply.
  • Use the drawing for support surfaces and nose references; no clamp length is inferred from overall length.
  • Confirm the cutter's actual collet range, nut arrangement and access in the mounted position.

COMPARE ALTERNATIVES

Consider another model when:

  • GDK80-24Z/1.5 changes to ER16, an 80 mm body and 259 mm assembly.
  • The GDK80 ER20 configurations change tooling and mounting as well as rated output or operating range.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER11 tooling. Power: 0.8 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 58 mm body diameter, 220.5 mm overall length, 3 kg weight. Winding options: 220 V / 3 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)0.8
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER11
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)58
Overall length (mm)220.5
Weight (kg)3
Cooling and feedback
CoolingWater-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 3 A

0.8 kW at 24,000 rpm

The reviewed operating point is 0.8 kW at 24,000 rpm with 400 Hz listed. Keep those values with GDK58-24Z/0.8 when checking the drive. The larger GDK80 range model has different speed-frequency information despite sharing a 24,000 rpm endpoint. Its curve is not additional operating data for this smaller spindle.

Describe the actual cutting speeds and duty before selecting from the power headline. The rated point does not establish full output across an assumed lower-speed region. A compact machine or a small cutter can make this configuration worth investigating, but those labels alone do not establish a machining result. If the process depends on output at another speed, request the relevant supplied-unit information before deciding.

One documented 220 V / 3 A winding

The reviewed winding is 220 V / 3 A. Check it with the VFD's output voltage, current and 400 Hz capability. The drive's incoming supply is a separate specification; an available 220 V machine supply alone does not identify the complete motor/drive arrangement. A nominal power label also leaves frequency and output-current capability unresolved.

Include the actual drive model when asking whether existing equipment can be retained. Use the supplied-unit nameplate and applicable drive instructions for motor data and protection. A 380 V winding is not established here simply because larger GDK models offer it. If another electrical configuration is required, state the requirement for confirmation rather than borrowing a winding from a nearby product.

ER11 is a collet family, not one cutter diameter

This spindle uses manual ER11 collet tooling. Choose the actual collet by the cutter shank and the collet's marked gripping range. Check the nut and spindle nose together, including clearance and wrench access. ER11 does not by itself establish every nut thread, one universal shank diameter or the suitability of an accessory sold for another spindle.

The ER16 and ER20 comparisons below concern different tooling families. A larger spindle is not a way to retain every part of an existing ER11 installation unchanged. If automated magazine changes are required, this manual configuration does not supply the ISO/BT taper and release architecture used by GDL. Keep the actual tool and retention arrangement visible when comparing options.

58 mm body with a 220.5 mm complete assembly

The verified dimensions list a 58 mm body diameter and 220.5 mm overall length, with 3 kg weight. Use the drawing to locate permitted support surfaces and nose references. The complete length is not a clamping-length statement, and the smaller housing does not establish a universal mount. Compare the actual machine clamp and spindle drawing before finalizing support.

Review rear fittings, tool projection, nut clearance and access for manual tool changes throughout the relevant axis travel. Moving from a larger GDK80 changes body diameter and complete envelope, not just weight or power. If replacing another 58 mm unit, matching diameter still leaves nose location, support position and water connections to be checked. Provide clear mount and connection photographs when dimensions are unavailable.

Water cooling remains part of the small-spindle installation

GDK58-24Z/0.8 is water cooled. Confirm the supplied spindle's connections and operating requirements against the proposed circuit. A lower power rating does not establish a universal flow, coolant temperature or pump setting, and it is not evidence that cooling can be omitted. Include the existing equipment and intended duty if a circuit will be reused.

Route water hoses and motor cable with the rear connection area and machine movement in view. Confirm any additional service shown for the actual unit rather than assuming that pressure values from a larger GDK apply. Check access for fitting and servicing. The compact assembly is useful for an envelope comparison, but it does not resolve circuit suitability or connector clearance on its own.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

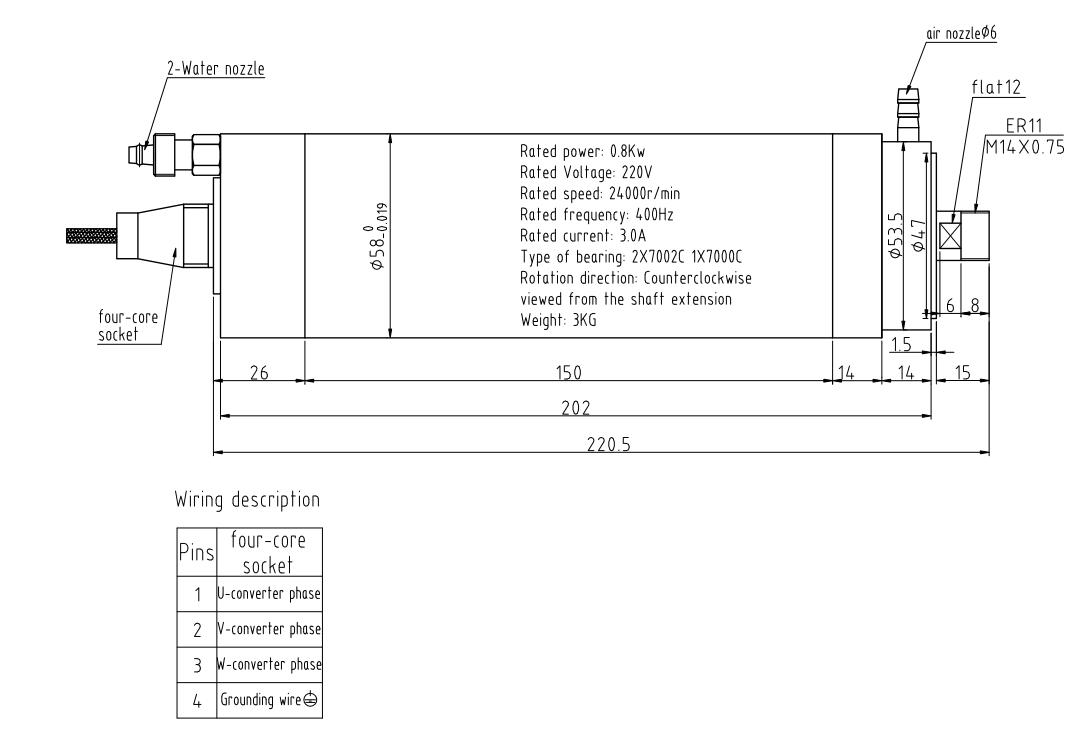

GDK58-24Z/0.8 dimensions and specifications drawing
Installation drawing. View the drawing at full size.

Evaluate the actual ER11 operation

This model is a candidate when manual ER11 tooling, water cooling and the 24,000 rpm operating point address the process requirement. Link that choice to the cutter, load cycle and machine stiffness before checking the drive and mounting. The 58 mm body and 3 kg weight can be relevant to a compact installation, while performance still depends on the complete machine and cutting conditions.

For engraving or milling, include material, tool geometry, shank size, normal working speeds and duty. Assess feed rate and surface finish using the actual cutter, machine stiffness, cutting conditions and working speed; the 0.8 kW rating alone is insufficient. If the existing process requires larger tooling or another speed region, assess the GDK80 configurations against their own facts. A higher power option can also change mount, nose hardware and drive requirements.

Start from the nameplate and complete drawing

Provide the current spindle code, readable label, mount drawing and nose/connection photos. Compare the 58 mm body, support surfaces, nose datum, 220.5 mm assembly and ER11 nut arrangement, then the drive output and cooling. Keep the intended cutting cycle in the discussion. A similar 0.8 kW rating cannot establish dimensional or electrical compatibility.

GDK80-24Z/1.5 changes to ER16 and a larger body, while the GDK80/2.2 and range model use ER20. Those are substantive tooling and mounting changes, not accepted substitutes for this compact unit. Ask for current availability for an older installation and apply the same complete checklist to a proposed successor. Retaining original nameplate and mount evidence helps identify differences that an abbreviated model reference may hide.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDK58-24Z/0.8Current configuration0.8 kW rated24,000 rpm ratedER11Water-cooledØ58 mm · 220.5 mm overall
GDK80-12-24Z/1.2-2.41.2 kW rated12,000–24,000 rpmER20Water-cooledØ80 mm · 284 mm overall · 135 mm clamp

The GDK80 range model changes ER11 to ER20, body diameter from 58 mm to 80 mm and assembly length from 220.5 mm to 284 mm. Compare its 12,000–24,000 rpm curve and mounting separately from this 220 V / 3 A fixed-point configuration.

GDK80-24Z/1.51.5 kW rated24,000 rpm ratedER16Water-cooledØ80 mm · 259 mm overall · 118 mm clamp

GDK80-24Z/1.5 uses ER16, an 80 mm body, a 259 mm assembly and two winding choices. Compare its 1.5 kW point and documented 118 mm support region with the tool and mount requirements of this 0.8 kW ER11 model.

GDK80-24Z/2.22.2 kW rated24,000 rpm ratedER20Water-cooledØ80 mm · 284 mm overall · 135 mm clamp

GDK80-24Z/2.2 changes to ER20, an 80 mm body and a 284 mm assembly, with a 135 mm clamp region and separate winding choices. Review cutter, support and drive requirements before moving from this smaller ER11 configuration.

Quote the compact ER11 configuration

Request GDK58-24Z/0.8 with the documented 220 V / 3 A winding, quantity and destination country with postal code. List the actual ER11 collets, nut or documents required. Describe the existing mount, drive and water circuit if this is a replacement. A request for “0.8 kW spindle” leaves body diameter, tooling and electrical scope unclear.

Compare the exact configuration and included accessories when reviewing quotations. Another ER11 spindle can have different mounting and connection details despite a similar headline. CINKR confirms proposed supply and current availability by email. Keep the agreed drawing and winding information with the quotation so purchasing and installation use the same compact GDK58 configuration.

  • Winding: 220 V / 3 A
  • Configuration: GDK58-24Z/0.8
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the exact compact-spindle drawing

The full-size installation drawing below supports the dimensional and connection review. Request additional PDF, CAD or electrical information by GDK58-24Z/0.8 if needed. A file for another 0.8 kW or ER11 spindle is not evidence of the same body, nose or water arrangement and should not replace the identified drawing by assumption.

Confirm that any additional document applies to the supplied unit before using it to finalize support or drive settings. Keep the label and applicable instructions associated with the quotation. State which installation question remains open when asking for files; the outline, electrical instructions and machine procedures answer different parts of the review.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDK58-24Z/0.8

Is a 380 V winding documented?

The reviewed configuration lists 220 V / 3 A. A different winding needs confirmation; choices on a larger GDK do not establish an option for this model.

Does ER11 mean one tool-shank size?

No. Use the marked gripping range of the actual selected collet and confirm the nut and nose arrangement for the supplied spindle.

What support length is specified here?

The verified facts list a 58 mm body and 220.5 mm overall assembly. Use the drawing for support surfaces; no clamping length is inferred from the complete dimension.

Can I omit water cooling because it is only 0.8 kW?

The configuration is water cooled. Confirm the supplied-unit circuit requirements instead of inferring that the lower rating removes the cooling requirement.

Is a GDK80 a simple power upgrade?

It changes body size, assembly and ER tooling. Compare exact drawings, drive requirements and connections before selecting a larger configuration.

What should a quotation include?

State the exact model, winding, quantity, destination and tooling/document needs. For replacement, add the old nameplate, mount and connection evidence.
