HQD GDZ-17B ER16 spindle motor

1.5 kW ratedER16Water-cooled24,000 rpm ratedØ80 mm241 mm overall

HQD GDZ-17B is a water-cooled manual ER16 spindle rated at 1.5 kW and 24,000 rpm. Compare its 80 mm body, 241 mm assembly and 5 kg weight with the mount. Select 220 V / 6 A or 380 V / 3.5 A, then check the 400 Hz drive output, nose position and supplied-unit cooling connections.

Browse the GDZ spindle range →

MODEL SELECTION

Is this the right GDZ-17B configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER16 tooling at the documented 1.5 kW / 24,000 rpm point.
  • The machine supports the 80 mm body and accommodates the 241 mm assembly.
  • The selected winding and water-cooling arrangement can be integrated with the machine.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 6 A and 380 V / 3.5 A as separate complete winding pairs.
  • Use the drawing to locate support surfaces; the overall length does not specify clamp length.
  • Check 400 Hz capability, 5 kg weight, nose hardware and rear connection access.

COMPARE ALTERNATIVES

Consider another model when:

  • GDZ-18B retains ER16 but uses a 65 mm body and another support arrangement.
  • GDZ-23 and GDZ-23-2 use ER20 and 2.2 kW with different assemblies and winding pairs.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER16 tooling. Power: 1.5 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 80 mm body diameter, 241 mm overall length, 5 kg weight. Winding options: 220 V / 6 A or 380 V / 3.5 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)1.5
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER16
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)80
Overall length (mm)241
Weight (kg)5
Cooling and feedback
CoolingWater-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 6 A
  • 380 V · 3.5 A

1.5 kW at 24,000 rpm on the 80 mm ER16 model

The documented rated point is 1.5 kW at 24,000 rpm, with 400 Hz listed. Keep that point with the complete GDZ-17B code. GDZ-18B shares power, rated speed and ER16 but uses another body diameter, assembly and electrical data. Matching the headline motor point therefore leaves several installation questions open.

Describe the cutter, working speeds and load cycle before choosing the spindle. The rated figures do not establish full 1.5 kW output at every lower speed. Ask for applicable operating information if sustained work away from the rated point is decisive. Tool projection, support stiffness and the actual cooling circuit remain part of selection even when the motor point matches the previous spindle.

Use the currents documented for GDZ-17B

The supplied winding choices are 220 V / 6 A and 380 V / 3.5 A. Select one complete pair and keep it with the model in the quotation. The choices describe separate motor configurations rather than one unit automatically accepting both voltages. Review the VFD input supply separately from the voltage and current available at its motor output.

Check the drive model, usable output current, output voltage and 400 Hz capability. Use the supplied-unit nameplate and applicable drive instructions for motor parameters and protection. GDZ-18B lists 220 V / 5 A, so a shared 1.5 kW and ER16 label does not justify copying its current to this model. Retain the exact electrical pair throughout a replacement and commissioning discussion.

Review the manual ER16 nose and accessories

This spindle uses manual ER16 tooling. Choose the collet according to its marked gripping range and the actual tool shank, then verify nut and nose hardware against the supplied unit. ER16 identifies the family, not a single shank size or a complete accessory-thread specification. Include existing accessory details if a reused tooling set must fit the new spindle.

Check wrench access, nut clearance and cutter projection in the installed position. GDZ-23 comparisons move to ER20, so a change in output also requires a tooling review. If automatic magazine changes are needed, evaluate a suitable ATC spindle with its release services, mounting and machine controls separately. The B suffix and this manual ER16 configuration do not establish an automatic release system.

Locate support on the 241 mm assembly

The verified dimensions are an 80 mm body and 241 mm overall assembly, with 5 kg listed weight. Use the installation drawing to identify permitted support surfaces and their position relative to the nose. The overall dimension is not available clamp length. A bracket selected by 80 mm diameter alone still needs the support and nose comparison.

Review rear clearance, hose and cable routing, service access and relevant machine travel. GDZ-18B uses a 65 mm body, while GDZ-23 and GDZ-23-2 share an 80 mm diameter but have other assembly lengths and tooling. Include both exact drawings in a replacement assessment so the support position and tool projection are located in the actual machine rather than inferred from the family name.

Match the supplied water connections and working duty

Water cooling is the documented method. Review the supplied-unit fittings and applicable circuit requirements with the intended duty and cooling equipment. The 1.5 kW rating does not provide a universal flow, temperature or pump setting. Include existing circuit details if the machine's cooling equipment will be retained.

Check hose routing and connection access with the bracket and moving axes. Keep service areas available for inspection and maintenance, alongside the motor cable and nose access. A shared water-cooling label does not establish identical fittings on every GDZ. Confirm additional connection and service details against the supplied configuration rather than importing a pressure or fitting specification from a nearby model.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

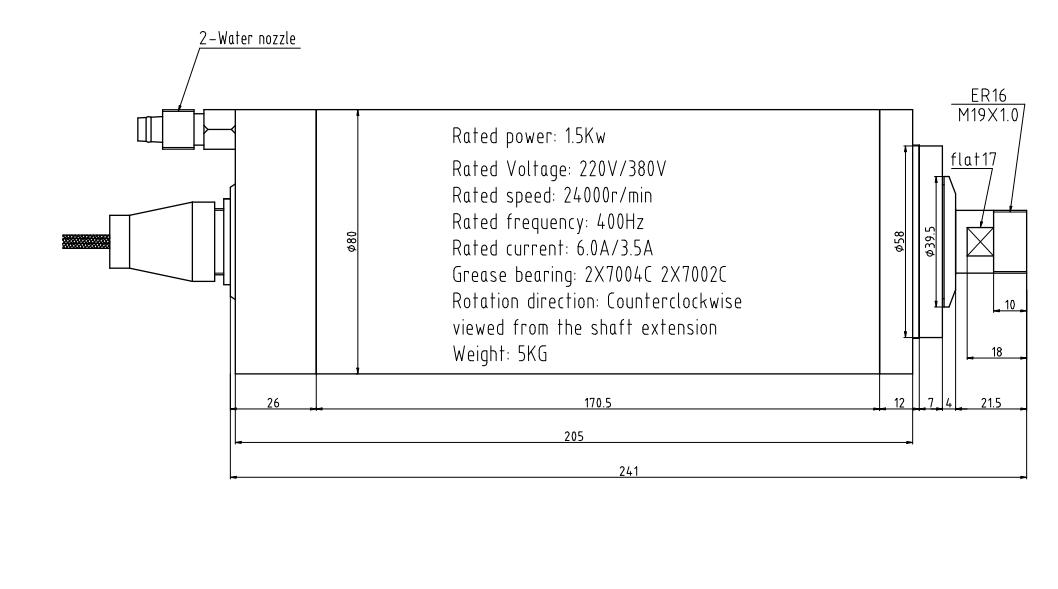

GDZ-17B dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 6 A; 380 V / 3.5 A. Match the block or PDF for the winding you intend to order. View the drawing at full size.

Assess ER16 with the actual cutter and cycle

GDZ-17B is a candidate when manual ER16 tooling, water cooling and the documented 24,000 rpm point fit the process, and the machine supports its 80 mm body. Begin with cutter and working speeds, then assess the winding, drive, support and cooling circuit. Another tooling family or working requirement may lead to a different comparison despite an apparently suitable power label.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. These details support a conditional suitability assessment. The motor and outline figures alone do not promise feed rate or surface finish. Include mounting and cooling constraints so the technical review considers the complete installation, rather than treating an electrical match as a performance result.

Compare GDZ-18B by diameter and current as well as ER16

Send the existing code, nameplate, mounting drawing and clear nose and connection photos. Compare the 80 mm body, support surfaces, 241 mm assembly and nose datum, followed by ER16 hardware, winding, VFD output and water circuit. A shared ER16 family or 1.5 kW rating narrows the comparison but leaves mounting and electrical applicability unresolved.

GDZ-18B changes to a 65 mm body, another support region and a 220 V / 5 A specification. GDZ-23 alternatives use ER20 with different output, assembly and winding pairs. Treat these as comparison candidates rather than accepted substitutes. For an older unit, request current availability and apply the complete checklist to any proposed successor, retaining exact drawing and supplied-nameplate evidence.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDZ-17BCurrent configuration1.5 kW rated24,000 rpm ratedER16Water-cooledØ80 mm · 241 mm overall
GDZ-18B1.5 kW rated24,000 rpm ratedER16Water-cooledØ65 mm · 254.5 mm overall · 110 mm clamp

GDZ-18B retains 1.5 kW and ER16 but uses a 65 mm body, 254.5 mm assembly and 110 mm clamp region, with 220 V / 5 A. Compare those with this 80 mm, 241 mm assembly and its separate winding pairs.

GDZ-232.2 kW rated24,000 rpm ratedER20Water-cooledØ80 mm · 268.5 mm overall · 120 mm clamp

GDZ-23 changes to 2.2 kW and ER20 with a 268.5 mm assembly and 120 mm clamp region. Compare tooling, support and winding currents despite the shared 80 mm diameter.

GDZ-23-22.2 kW rated24,000 rpm ratedER20Water-cooledØ80 mm · 252 mm overall

GDZ-23-2 retains an 80 mm body but uses ER20 at 2.2 kW with a 252 mm assembly and different winding pairs. Review its support and nose drawing before considering an output or tooling change.

Specify the GDZ-17B winding and included scope

Request GDZ-17B with 220 V / 6 A or 380 V / 3.5 A, quantity and destination country with postal code. List collets, nut, accessories and additional document needs. Include the existing mount, VFD and cooling information for replacement. A request for a 1.5 kW ER16 water-cooled spindle leaves the 80 mm support and electrical pair unclear.

Compare quotations for the same winding and included scope. Confirm accessory applicability and unresolved mounting or connection details before finalizing installation. CINKR confirms proposed configuration and current availability by email. Keep the exact drawing and selected winding information with the quote so purchasing and installation refer to the same GDZ-17B assembly.

  • Winding: 220 V / 6 A or 380 V / 3.5 A
  • Configuration: GDZ-17B
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the exact drawing and request additional files by winding

Open the full-size installation drawing below to inspect support surfaces, nose geometry and connection layout. Request additional PDF, CAD or wiring information by exact GDZ-17B model and selected winding. A document for another 1.5 kW GDZ is not automatically applicable even when rated speed, cooling and ER16 tooling are similar.

Confirm extra files against the supplied configuration before using them to locate support or set drive parameters. The outline, nameplate and service instructions address different installation questions, while the drive and machine procedures guide commissioning. Describe the unresolved support, cooling or electrical issue when requesting another document so the technical response can address the actual machine requirement.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDZ-17B

Which currents apply to GDZ-17B?

The documented choices are 220 V / 6 A and 380 V / 3.5 A. Keep each current with its voltage when requesting the unit and checking the drive.

Does GDZ-18B have the same body?

GDZ-18B uses a 65 mm body; GDZ-17B uses 80 mm. Compare support, nose position, assembly and electrical data even though both use ER16.

Is the 241 mm length available for clamping?

It is the overall assembly dimension. Use the exact drawing to identify permitted support surfaces rather than treating it as clamp length.

Does the B suffix mean automatic tool changing?

This configuration uses manual ER16 tooling. Evaluate a suitable ATC spindle and machine integration separately if automatic changes are required.

Can water-cooling settings be taken from the power rating?

Confirm circuit and fitting requirements for the supplied unit with the intended duty. The rating does not specify a universal pump, flow or temperature setting.

What should a replacement quote include?

Send the exact model, winding, quantity, destination and accessories, plus the current nameplate, mount, nose, connections, VFD and cooling evidence.
