HQD GDZ-24-3 ER20 spindle motor

2.2 kW ratedER20Water-cooled24,000 rpm ratedØ100 mm288.5 mm overall

HQD GDZ-24-3 is a water-cooled manual ER20 spindle rated at 2.2 kW and 24,000 rpm. Check its 100 mm body, 120 mm clamp region, 288.5 mm assembly and 10 kg weight against the machine. Select 220 V / 9 A or 380 V / 5 A, then review the 400 Hz drive and exact nose/support drawing.

Browse the GDZ spindle range →

MODEL SELECTION

Is this the right GDZ-24-3 configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER20 tooling at the documented 2.2 kW / 24,000 rpm point.
  • The machine supports a 100 mm body and specified 120 mm clamp region.
  • The selected winding and water circuit can be integrated with the machine.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 9 A and 380 V / 5 A as separate complete supplied pairs.
  • Do not copy GDZ-23-family currents from the shared 2.2 kW / ER20 labels.
  • Check the 288.5 mm assembly, 10 kg weight, nose datum and 400 Hz capability.

COMPARE ALTERNATIVES

Consider another model when:

  • GDZ-23-1 uses an 85 mm body and different electrical pairs at the same rated output.
  • GDZ-24-1C changes output and motor architecture; GDZ-24-2 changes body, support and winding choices.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER20 tooling. Power: 2.2 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 100 mm body diameter, 120 mm clamping length, 288.5 mm overall length, 10 kg weight. Winding options: 220 V / 9 A or 380 V / 5 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)2.2
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)100
Overall length (mm)288.5
Clamping length (mm)120
Weight (kg)10
Cooling and feedback
CoolingWater-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 9 A
  • 380 V · 5 A

2.2 kW with the 100 mm GDZ24 outline

The documented rated point is 2.2 kW at 24,000 rpm with 400 Hz. Keep the complete GDZ-24-3 code and body configuration with those figures. The GDZ-23 family shares the headline output and ER20 tooling but lists another outline and current pairs. A power-and-speed match therefore leaves consequential mechanical and electrical choices unresolved.

Describe cutter, actual working speeds and load cycle when selecting the spindle. The rated point does not establish full output at every lower speed. Ask for applicable operating information if sustained work elsewhere is decisive. Tool projection, support stiffness and cooling remain part of assessment. Moving to a higher-output GDZ24 model also requires its support and drive data to be considered rather than choosing solely from rated power.

Use 220 V / 9 A or 380 V / 5 A for this model

The documented winding choices are 220 V / 9 A and 380 V / 5 A. Select one complete pair and keep it with GDZ-24-3 in the quote. They describe separate supplied configurations rather than one unit automatically accepting both voltages. Review VFD input supply separately from its usable motor-output voltage and current.

Check the drive model, output voltage, usable output current and 400 Hz capability. Use the supplied-unit nameplate and applicable drive instructions for motor parameters and protection. GDZ-23-1 lists 220 V / 8 A and 380 V / 4.4 A despite sharing rated output. GDZ-24-1C uses another frequency and pole specification. Keep those distinctions visible rather than copying settings from the nearest model by name or power.

Verify manual ER20 nose hardware and access

The tooling configuration is manual ER20. Match the cutter shank to the selected collet's marked gripping range, then confirm nut and nose hardware against the supplied unit. ER20 identifies a family rather than one shank size or a complete accessory-thread specification. Include existing accessory details when retaining a tooling set.

Check wrench access, nut clearance and cutter projection after locating the spindle in its support. A common ER20 family on GDZ-23 or another GDZ24 does not establish the same installed nose datum. If automatic magazine changes are required, assess a suitable ATC spindle with its release services, mounting and controls separately. This manual model does not establish an automatic release system through its tooling designation.

Locate the 120 mm support on the 288.5 mm assembly

The verified dimensions are a 100 mm body, 120 mm clamp region and 288.5 mm overall assembly, with 10 kg listed weight. Use the exact drawing to locate permitted support surfaces and nose references. The full assembly length is not available clamp length. Compare the support position and tool projection with the bracket and relevant machine travel.

Review rear fittings, hose and cable access and service clearance. GDZ-24-1C uses the same nominal diameter but a 303.5 mm assembly and 138 mm support. GDZ-24-2 changes to a 105 mm body, while GDZ-23-1 uses 85 mm. Compare both exact drawings before changing configurations. A shared diameter or rated output narrows the comparison but does not establish compatible support and nose geometry.

Match the supplied water circuit to the duty

Water cooling is the documented method. Review supplied-unit fittings and applicable circuit requirements with the working duty and proposed equipment. The 2.2 kW rating does not specify a universal pump, flow or temperature setting. Include existing circuit details if the machine's installation is to be retained rather than assuming a related water-cooled spindle establishes the same connection arrangement.

Route hoses and motor cable while retaining support and connection access through movement. Confirm additional service requirements against the supplied drawing and instructions. Another model's fitting or pressure data do not establish applicability here. Keep cooling with the bracket and enclosure review so inspection and maintenance remain practical around the 120 mm support region and rear connections.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

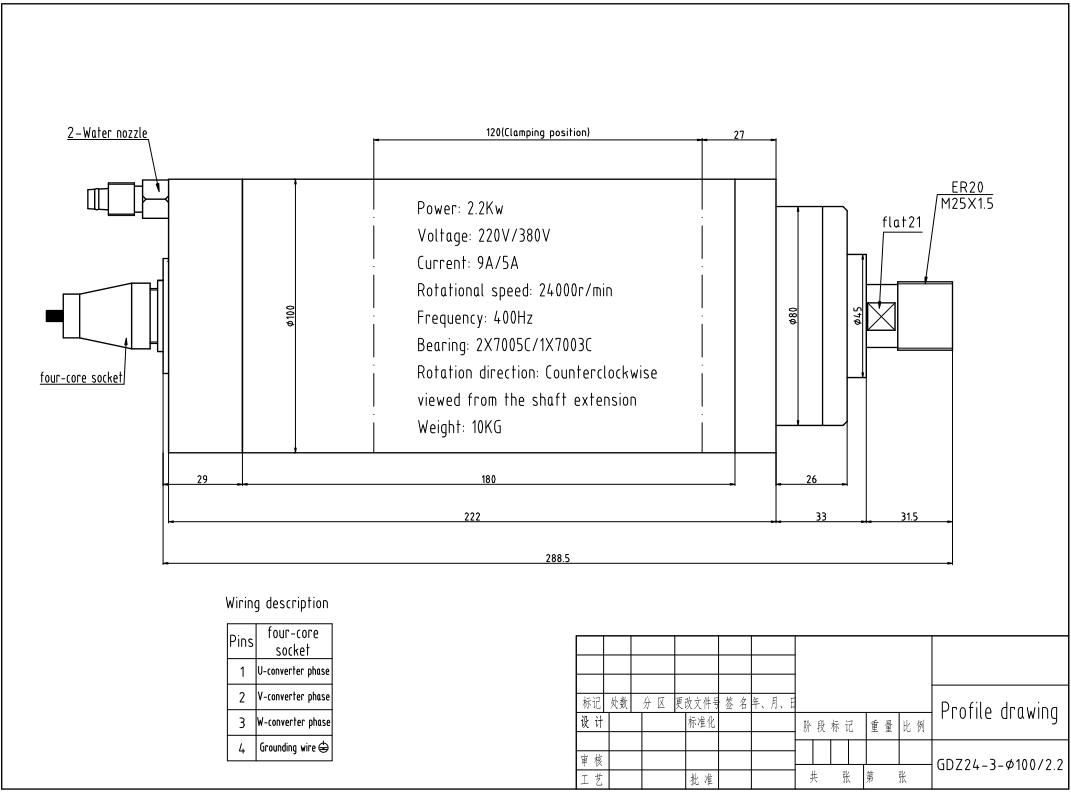

GDZ-24-3 dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 9 A; 380 V / 5 A. Match the block or PDF for the winding you intend to order. View the drawing at full size.

Assess the process with the 100 mm support

GDZ-24-3 is a candidate when manual ER20 tooling, water cooling and the documented point fit the process, and the machine supports its 100 mm body. Begin with cutter and working speeds, then review winding, drive, support and cooling. A machine intended for an 85 mm GDZ needs its own mount assessment before this larger body is considered for installation.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. These conditions support a suitability discussion. The motor and outline figures alone cannot promise feed rate or finish. Include bracket, drive and circuit constraints so the technical review considers the complete installation rather than treating the shared 2.2 kW label as a complete performance or compatibility result.

Compare currents and support against the GDZ-23 family

Send the current code, nameplate, support drawing and clear nose and connection photos. Compare the 100 mm body, 120 mm support region, 288.5 mm assembly and nose datum, followed by ER20 hardware, selected winding, VFD output and water circuit. Keep the full -3 code visible when other 2.2 kW GDZ assemblies are being considered.

GDZ-23-1 changes diameter, length and current pairs; GDZ-24-1C changes support, output and motor architecture. GDZ-24-2 changes body and offers different electrical pairs. These alternatives identify checks rather than accepted substitutions. For an older unit, confirm current availability and apply the complete checklist to a successor, retaining exact drawing and nameplate evidence instead of selecting from one matching power or tooling label.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDZ-24-3Current configuration2.2 kW rated24,000 rpm ratedER20Water-cooledØ100 mm · 288.5 mm overall · 120 mm clamp
GDZ-23-12.2 kW rated24,000 rpm ratedER20Water-cooledØ85 mm · 270.5 mm overall · 120 mm clamp

GDZ-23-1 shares nominal 2.2 kW and ER20 but uses an 85 mm body and 270.5 mm assembly, with 220 V / 8 A or 380 V / 4.4 A. Compare those with this 100 mm model’s own current pairs.

GDZ-24-1C3.7 kW rated24,000 rpm ratedER20Water-cooledØ100 mm · 303.5 mm overall · 138 mm clamp

GDZ-24-1C retains a 100 mm body but changes to 3.7 kW, a 303.5 mm assembly and 138 mm support, with four-pole / 800 Hz motor data. Compare mount and drive requirements together.

GDZ-24-23.2 kW rated24,000 rpm ratedER20Water-cooledØ105 mm · 303.5 mm overall · 138 mm clamp

GDZ-24-2 uses a 105 mm body, 3.2 kW and 303.5 mm assembly with a 138 mm clamp region and different winding currents. Check the wider support and complete electrical pair rather than relying on ER20.

Specify the -3 model and its own electrical pair

Request GDZ-24-3 with 220 V / 9 A or 380 V / 5 A, quantity and destination country with postal code. List collets, nut, accessories and extra files required. Add the current mount, VFD and cooling evidence for replacement. A request for a “2.2 kW ER20 GDZ spindle” leaves several body, support and electrical configurations unclear.

Compare quotations for the same exact model, winding and included scope. Confirm accessory applicability and unresolved mounting or connection issues before installation is finalized. CINKR confirms proposed configuration and current availability by email. Retain the -3 drawing and selected electrical pair with the quote so purchasing and commissioning refer to the same 100 mm, 120 mm-support assembly.

  • Winding: 220 V / 9 A or 380 V / 5 A
  • Configuration: GDZ-24-3
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the -3 support drawing and request applicable extra files

Open the full-size installation drawing below for support surfaces, nose geometry and connection layout. Request extra PDF, CAD or wiring information by complete GDZ-24-3 code and selected winding. A GDZ-23 PDF or another GDZ24 drawing does not establish this outline or electrical applicability because rated output or body diameter happens to match.

Confirm additional files against the supplied configuration before using them for a support interface or drive setting. The outline, actual nameplate and service instructions address different questions, while machine and drive procedures guide commissioning. Describe the unresolved mounting, cooling or electrical issue when requesting another document so the response addresses the actual installation requirement.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDZ-24-3

Which winding currents apply to GDZ-24-3?

The documented choices are 220 V / 9 A and 380 V / 5 A. Keep each current with its voltage in the quotation and VFD review.

Can GDZ-23-family currents be used because output is also 2.2 kW?

Retain GDZ-24-3's own pairs. Shared power and ER20 labels do not establish interchangeable motor parameters.

What is the clamp region?

It is 120 mm on a 100 mm body. Use its location on the exact drawing rather than treating the 288.5 mm assembly as available support.

Does GDZ-24-1C have the same assembly?

It has a 303.5 mm assembly and 138 mm support, with different output and four-pole / 800 Hz data. Compare the complete configuration.

Does an 85 mm GDZ-23-1 bracket establish a fit?

This body is 100 mm. Compare actual support geometry, nose position and connections before considering a mounting change.

What belongs in a replacement quote?

Send the complete -3 model, winding, quantity, destination and accessories, plus current nameplate, support, nose, connections, drive and cooling evidence.
