GDL70-24Z/9.0B spindle
GDL70-24Z/9.0B spindle

GDL SERIES · ATC

HQD GDL70-24Z/9.0B ISO30 ATC spindle

9 kW at S1, TA20°CISO30Water-cooled24,000 rpm rated483.5 mm overall

HQD GDL70-24Z/9.0B is the water-cooled ISO30 ATC configuration with a documented 9 kW point at 24,000 rpm, S1, TA20°C. Its 483.5 mm overall assembly and 31 kg weight distinguish it from the air-cooled long- and short-nose GDL70 versions. Check the 380 V / 20 A winding, water circuit and complete tool-change installation.

Browse the GDL spindle range →

MODEL SELECTION

Is this the right GDL70-24Z/9.0B configuration?

BEST FIT

Choose this configuration if:

  • The design requires ISO30 automatic tooling and can be assessed against the documented S1 point at TA20°C.
  • The mount and moving axis can accommodate the 483.5 mm assembly and 31 kg spindle.
  • A suitable 380 V spindle drive, water circuit and ATC services can be provided.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep the B suffix and water-cooled configuration in drawings, comparisons and inquiries.
  • Check 9 kW at 24,000 rpm, S1, TA20°C with 380 V / 20 A and 800 Hz.
  • Compare nose and mounting datums, water connections, release air and controller signals for the exact assembly.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ISO30 tooling. Power: 9 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 483.5 mm overall length, 31 kg weight.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)9
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceISO30
Tool changeAutomatic tool change
Electrical
Spindle winding (V)380
Rated current (A)20
Frequency (Hz)800
Poles4
Dimensions and weight
Overall length (mm)483.5
Weight (kg)31
Cooling and feedback
CoolingWater-cooled

Power curve: 9 kW at 24,000 rpm, S1, TA20°C.

The documented S1 condition belongs to the B version

The applicable curve identifies 9 kW at 24,000 rpm, S1, TA20°C for GDL70-24Z/9.0B. The reviewed motor information also lists 800 Hz and four poles. Keep all of those conditions with the output description. This is the specific water-cooled B configuration; its S1 curve must not be transferred to the air-cooled GDL70 pages, whose 9 kW value is documented under S6-60% conditions.

The S1 description still belongs to the documented operating point and ambient condition. It does not establish full power at every lower commanded speed or under every cooling arrangement. Describe the intended working-speed range and production cycle when requesting the drive and cooling review. If the process requires sustained low-speed output, obtain the relevant curve information instead of extending the 24,000 rpm point by assumption.

380 V and 20 A are the motor configuration

The verified winding is 380 V / 20 A. Check the proposed VFD's motor output against voltage, current and 800 Hz capability, while considering its input supply separately. A drive's nominal kW designation alone cannot establish the required high-frequency output. Include the drive model and output specifications if an existing drive will be retained, together with the machine's available supply.

This reviewed B configuration does not list a 220 V winding option. The 220 V / 32 A option on the air-cooled GDL70 versions must not be presented as a confirmed choice here. If a different electrical arrangement is required, state it as a requirement to be checked. Use the supplied-unit label and applicable drive instructions before entering motor data or protection settings, retaining the B suffix in the documentation and quotation.

The PDF contains voltage, power and torque curves for the identified water-cooled version. Read changing voltage along the curve as operating information, not additional winding choices. Keep the document's applicability and duty conditions with any output comparison. A file labeled only with a similar GDL70 base name needs confirmation before it can be used for this spindle's drive review.

ISO30 tooling with the water-cooled assembly

ISO30 identifies the taper interface, but holder retention, release travel and magazine geometry still need a complete check. Compare the actual holders and machine tool-change layout with the GDL70 B drawing. The shared ISO30 label on the air-cooled versions is not evidence of the same mounting position or rear connections. Retain the exact configuration when requesting pneumatic and electrical information.

Request clamp-state sensing, release connection and controller interface details for the supplied unit. The machine sequence must confirm the relevant states before rotation, release and magazine movement. Do not copy a pressure setting or timing sequence from an air-cooled GDL70 without checking applicability. Describe any orientation or feedback-dependent requirement explicitly; neither the S1 curve nor the ATC taper establishes that such a function is included.

Review the 483.5 mm, 31 kg assembly

The verified overall length is 483.5 mm and the listed weight is 31 kg. Use the drawing to locate mounting surfaces, nose references, the rear release assembly and connection area. The overall dimension describes the complete assembly, not a usable clamp length or a guaranteed machine clearance. Do not derive a universal 70 mm round clamp from the model name; the actual mounting form must be compared with the machine drawing.

The air-cooled short-nose and long-nose versions list 471 mm and 551 mm overall respectively. Those dimensions help distinguish configurations, but subtracting them does not establish a specific tool-tip or mounting offset. Check the drawing datums and intended holder projection. Review rear access, water and air hose routing, motor cable movement and the machine envelope throughout the relevant travel and tool-change cycle.

Water cooling is a substantive configuration difference

GDL70-24Z/9.0B needs a water-cooling installation suited to the supplied spindle. Confirm fittings, circuit arrangement and operating requirements with the proposed equipment and production duty. The documented S1 point does not supply a universal pump capacity, flow or coolant temperature. Those requirements need the applicable supplied-unit information rather than settings copied from another water-cooled spindle.

Plan water hoses alongside the rear pneumatic and electrical connections. Check access for fitting and servicing, and whether the route remains clear as the axis moves. If replacing an air-cooled GDL70, the water circuit is a new installation requirement that must be resolved separately from the shared taper. If replacing another water-cooled spindle, provide the existing circuit and connection details so suitability can be checked rather than inferred from the cooling label.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

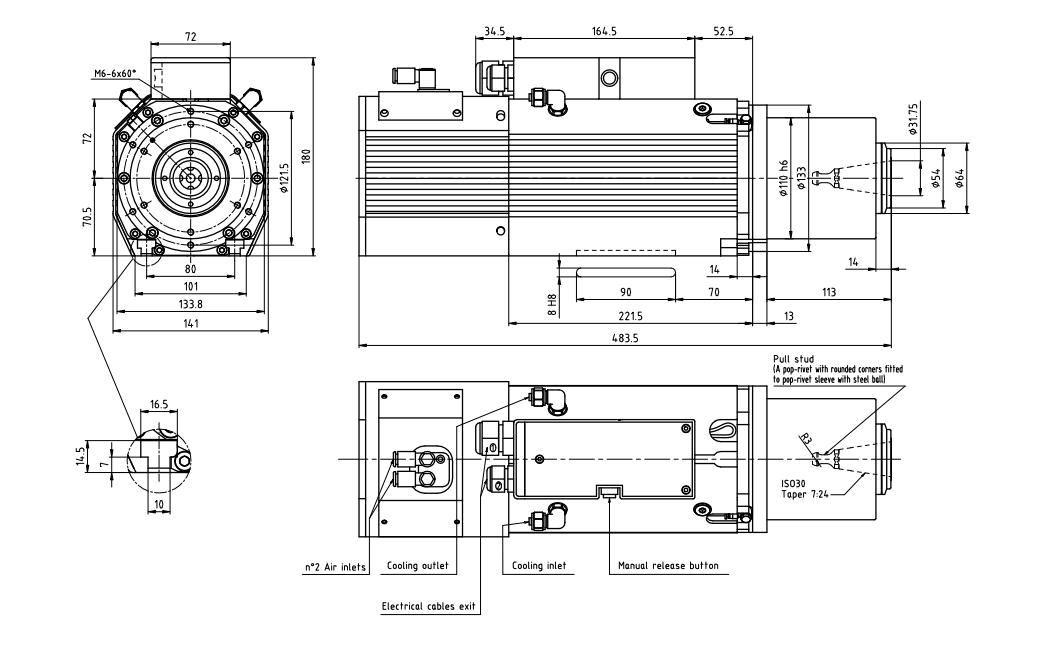

GDL70-24Z/9.0B dimensions and specifications drawing
Installation drawing. View the drawing at full size. Choose the PDF labeled for your configuration below.

Evaluate the S1 water-cooled choice for the actual cycle

This configuration is a candidate when the machine requires ISO30 automatic tooling, water cooling and an operating point that can be assessed against the documented S1 curve at TA20°C. Start with working speed and duty, then compare tooling, drive output and mounting. The B suffix is meaningful in that discussion because the air-cooled versions publish a different duty description and use different assemblies.

For routing, engraving or milling, describe the material, tool geometry, holder arrangement, working-speed requirement and machine stiffness. The 9 kW point helps compare spindle configurations, but it does not guarantee a particular feed rate, finish or production capacity. Sustained operation at another speed needs the relevant output information, and the proposed cooling installation must be reviewed before the curve is used to accept the spindle for the production cycle.

Compare cooling and duty before accepting a GDL70 proposal

Collect the current spindle's full code, nameplate, mounting drawing and photographs of tooling and services. Identify whether it is the B water-cooled version or an air-cooled long- or short-nose configuration. Compare nose and mount datums, complete assembly, holder retention, winding, drive output, cooling and clamp/release control. Similar base codes and a shared ISO30 taper leave several important installation questions unresolved.

The long- and short-nose alternatives below are air cooled and document S6-60%, TA20°C rather than this B version's S1 condition. GDL125 changes to BT40 and a 12,000 rpm operating point. Use these differences to identify the appropriate next drawing; the comparison is not an approval of interchangeability. Ask for current availability for an older installation and apply the same mechanical, electrical and control checklist to any proposed successor.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDL70-24Z/9.0BCurrent configuration9 kW at S1, TA20°C24,000 rpm ratedISO30Water-cooled483.5 mm overall
GDL70-24Z/9.0 ISO30 · Long nose9 kW at S6-60%, TA20°C24,000 rpm ratedISO30Air-cooledISO30 · Long nose · 551 mm overall

Compare a 551 mm air-cooled long-nose assembly and S6-60%, TA20°C against this water-cooled S1 B configuration.

GDL70-24Z/9.0 ISO30 · Short nose9 kW at S6-60%, TA20°C24,000 rpm ratedISO30Air-cooledISO30 · Short nose · 471 mm overall

Compare a 471 mm air-cooled short-nose assembly and S6-60%, TA20°C against the 483.5 mm water-cooled B version.

GDL125-40-12Z/7.57.5 kW rated12,000 rpm ratedBT40Water-cooledØ125 mm · 618 mm overall · 172 mm clamp

Compare BT40 at 7.5 kW and 12,000 rpm with ISO30 and the documented 9 kW S1 point at 24,000 rpm; GDL125 lists 618 mm overall.

Request the B version with its water-cooling requirement

State GDL70-24Z/9.0B, ISO30, water cooled and the documented 380 V / 20 A winding. Include quantity, destination country and postal code, required holders or accessories and additional documents. Describe the intended working speeds and production cycle if further curve information is needed. A request that omits the B suffix can leave the cooling method and duty description unclear even when the base model and power are recognizable.

Compare quotation scope with the exact configuration in view. Check the winding, supplied documents and accessories, and identify any cooling equipment or installation work that needs a separate scope. Request a quotation for the B configuration, required accessories, documents, quantity and destination. CINKR confirms the proposed supply, price and current availability by email. Retain the agreed drawing and S1 curve with the quotation so purchasing and installation continue to refer to the same water-cooled assembly.

  • Winding: confirm the supplied-unit electrical specification
  • Configuration: GDL70-24Z/9.0B
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Keep the water-cooled S1 curve with the drawing

The English PDF below is labeled for the water-cooled GDL70-24Z/9.0B under S1, TA20°C conditions. It contains voltage, power and torque curves. Use that applicability label when comparing output and keep it with the selected spindle's documentation. An air-cooled GDL70 curve cannot be substituted merely because it also displays a 9 kW point.

Open the full-size installation drawing for the mechanical and connection review. Request additional CAD, pneumatic, wiring or cooling documents by exact B configuration. Confirm that each document applies to the supplied unit before using it to finalize the machine. The operating curve, outline drawing and commissioning instructions answer different questions and should remain associated with the same confirmed spindle.

DOWNLOADS

Files for this configuration.

PDF · 634 KB

Voltage, power and torque curves

GDL70-24Z/9.0B · water cooled · S1, TA 20°C

English

Download PDF

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDL70-24Z/9.0B

How does the B version differ from the air-cooled GDL70?

It is water cooled, lists 483.5 mm overall and 31 kg, and documents 9 kW at 24,000 rpm under S1, TA20°C. The air-cooled versions have different lengths and S6-60% conditions.

Does S1 mean full 9 kW at any speed?

The documented value belongs to its stated operating point and conditions. Obtain the applicable curve information for the actual working speed instead of extending the rating across an assumed range.

Is a 220 V version established here?

The reviewed configuration lists 380 V / 20 A. The 220 V winding on the air-cooled GDL70 does not establish a confirmed option for this B version.

Can I retain an air-cooled GDL70 installation unchanged?

Compare the complete drawing and services. Water cooling, assembly dimensions, winding and duty differ, and the shared ISO30 taper does not resolve the mount or control interfaces.

Which PDF applies to this duty rating?

Use the file labeled GDL70-24Z/9.0B, water cooled, S1, TA20°C. Keep its conditions with any power comparison and request additional documents by the exact configuration.

What should be included in the price inquiry?

State the B suffix, winding, quantity, destination, actual duty and required accessories or documents. Add the current spindle evidence and cooling-circuit details for a replacement.
