HQD GDK80-12-24Z/1.2-2.4 ER20 spindle motor

1.2 kW ratedER20Water-cooled12,000–24,000 rpmØ80 mm284 mm overall

HQD GDK80-12-24Z/1.2-2.4 is a water-cooled ER20 range spindle with 1.2 kW rated output and a 12,000–24,000 rpm operating region. Its original graph shows a separate 2.4 kW line with duty conditions. Check the 80 mm body, 135 mm clamp region and 156–220 V U/f relationship instead of treating it as the fixed-point GDK80/2.2.

Browse the GDK spindle range →

MODEL SELECTION

Is this the right GDK80-12-24Z/1.2-2.4 configuration?

BEST FIT

Choose this configuration if:

  • The process needs the documented working range and can be checked against the applicable power graph.
  • The mount can support an 80 mm body over the 135 mm clamp region and accommodate the 284 mm assembly.
  • Manual ER20 tooling, water cooling and a drive capable of the required relationship can be integrated.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 1.2 kW rated separate from the 2.4 kW graph line and S1/S6-20%, TA20°C notes.
  • 156–220 V describes operating-curve endpoints, not selectable windings or a mains-input range.
  • Check 400–800 Hz, 6.4 A, 8 kg and the supplied nose and service details with the machine.

COMPARE ALTERNATIVES

Consider another model when:

  • GDK80-24Z/2.2 shares broad mounting dimensions but has a different rated point and separate winding pairs.
  • GDK85-24Z/2.2D changes the body and clamp region; GDK100 range changes body size and curve relationship.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER20 tooling. Power: 1.2 kW rated. Speed: 12,000–24,000 rpm. Installation dimensions and weight: 80 mm body diameter, 135 mm clamping length, 284 mm overall length, 8 kg weight.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)1.2
Operating range (rpm)12,000–24,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Electrical
Rated current (A)6.4
Frequency range (Hz)400–800
Curve voltage endpoints (V)156–220
Dimensions and weight
Body diameter (mm)80
Overall length (mm)284
Clamping length (mm)135
Weight (kg)8
Cooling and feedback
CoolingWater-cooled

1.2 kW rated with a separate higher curve line

The reviewed rated output is 1.2 kW and the documented operating range is 12,000–24,000 rpm. The original graph displays 1.2 kW and 2.4 kW lines with S1/S6-20%, TA20°C and water-cooling notes. Preserve those conditions when comparing output. The “1.2-2.4” code does not establish unconditional continuous 2.4 kW or two independently selectable spindle versions.

Describe normal working speeds and the load cycle before deciding from the larger number. A requirement for sustained cutting needs the applicable duty information, not only a speed endpoint. The fixed-point GDK80/2.2 is a separate configuration and cannot supply an assumed power envelope for this range model. Keep the graph and exact model together when requesting operating information for a particular production requirement.

156 V and 220 V are curve points

The original U/f graph identifies 156 V at 400 Hz / 12,000 rpm and 220 V at 800 Hz / 24,000 rpm. Those values describe a voltage-frequency relationship, not alternative windings. The reviewed current is 6.4 A. Check the complete relationship with the VFD's motor-output capability, keeping its incoming mains supply as a separate specification.

Provide the exact drive model, output current and frequency capability if it is already installed. A nominal power designation cannot establish the correct high-frequency relationship. Use the supplied-unit label, applicable curve and drive instructions for motor data and protection. The 220 V / 380 V winding pairs listed on GDK80-24Z/2.2 must not be copied to this configuration; ask for confirmation if another electrical arrangement is needed.

Manual ER20 tooling on the range model

Choose the actual ER20 collet from the cutter shank and its marked gripping range. Confirm the nut and nose arrangement, tool projection and wrench access. ER20 names a family rather than one shank diameter or universal accessory thread. A shared ER20 label on GDK80/2.2 or GDK85 does not settle hardware applicability for the supplied range spindle.

This is a manual-tool-change configuration. If a magazine-driven sequence is required, assess the relevant automatic taper-and-release architecture separately. For this ER20 installation, the actual tool and mounted clearance should be checked with the working speed and duty. Keeping the complete range-model code in the accessory inquiry helps avoid mixing hardware or documents from another 80 mm GDK.

Similar GDK80 dimensions need exact drawings

The verified body is 80 mm, clamp region 135 mm and overall assembly 284 mm, with 8 kg listed weight. Use their drawing references to check support surfaces, nose position and rear clearance. The full length is not available clamping length. A mount that accepts the housing still needs the correct support arrangement and service access.

GDK80-24Z/2.2 shares these broad dimensions, but its electrical description differs. Compare nose and connection details from both exact drawings before concluding that the same installation can be retained. Include nut clearance, tool projection and axis movement. The 85 mm GDK85 has a different clamp region despite the same listed overall length, showing why one matching envelope dimension is insufficient.

Water cooling with the published graph conditions

Water cooling is explicitly stated on the original graph. Confirm supplied-unit fittings and operating requirements with the circuit and intended cycle. Neither graph line specifies a universal pump, coolant flow or temperature. Include existing cooling equipment if it will be reused so suitability can be assessed from the actual arrangement.

Review any front-end air-seal service and its supplied-unit requirements separately. The 0.1–0.2 MPa value on a fixed-point GDK80 does not automatically establish the setting for this range model. Plan hoses and cable with the permitted support region, rear connections and machine travel. Keep access for fitting and servicing rather than assuming that a common 80 mm body implies the same connection layout.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

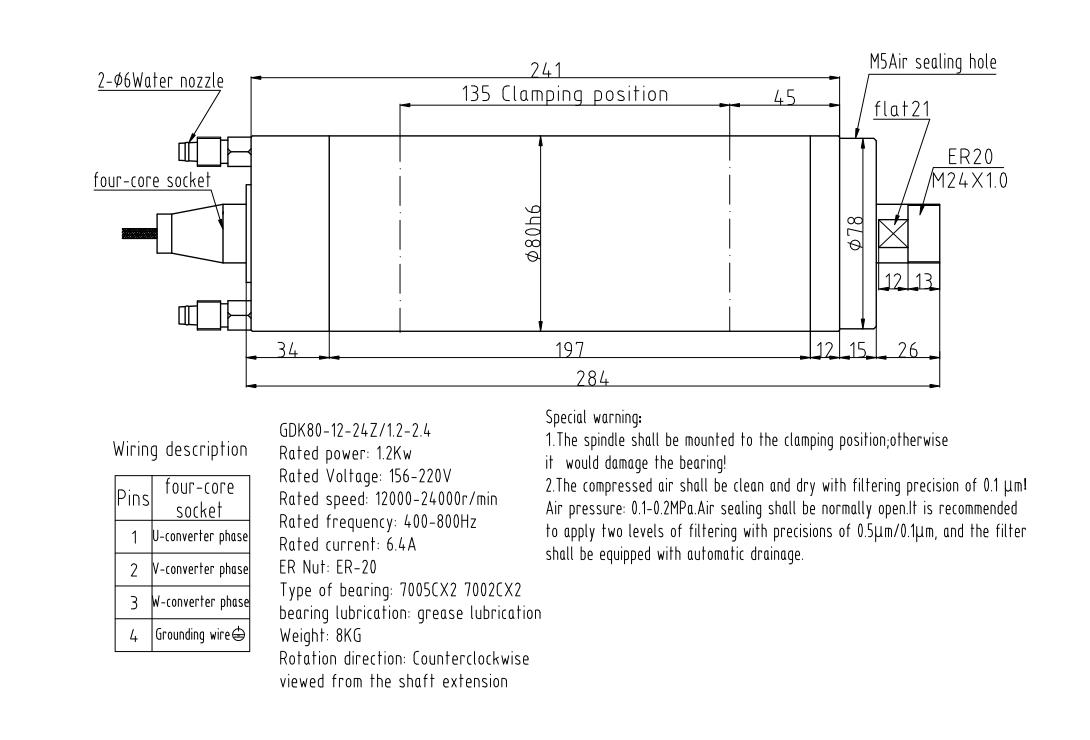

GDK80-12-24Z/1.2-2.4 dimensions and specifications drawing
