HQD GDK80-24Z/1.5 ER16 spindle motor

1.5 kW ratedER16Water-cooled24,000 rpm ratedØ80 mm259 mm overall

HQD GDK80-24Z/1.5 is a water-cooled ER16 spindle rated at 1.5 kW and 24,000 rpm. Compare its 80 mm body, 118 mm clamp region and 259 mm overall assembly with the mount. Select 220 V / 5.6 A or 380 V / 3 A before the drive check, and retain the documented front air-seal service in the installation plan.

Browse the GDK spindle range →

MODEL SELECTION

Is this the right GDK80-24Z/1.5 configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER16 tooling at the documented 24,000 rpm point.
  • The mount supports the 80 mm body and 118 mm clamp region with rear access.
  • Water cooling, the selected winding and the required front air-seal service can be integrated.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 5.6 A and 380 V / 3 A as complete separate winding pairs.
  • Check 400 Hz, 7 kg, nose hardware and permitted support surfaces against the exact drawing.
  • The 0.1–0.2 MPa air-seal range is separate from water cooling and is not an ATC release specification.

COMPARE ALTERNATIVES

Consider another model when:

  • GDK80-24Z/2.2 uses ER20 with a 135 mm clamp region and 284 mm assembly.
  • The GDK80 range model has another electrical curve; GDK85 changes body diameter and winding currents.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER16 tooling. Power: 1.5 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 80 mm body diameter, 118 mm clamping length, 259 mm overall length, 7 kg weight. Winding options: 220 V / 5.6 A or 380 V / 3 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)1.5
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER16
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)80
Overall length (mm)259
Clamping length (mm)118
Weight (kg)7
Cooling and feedback
CoolingWater-cooled
Air-seal pressure (MPa)0.1–0.2

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 5.6 A
  • 380 V · 3 A

1.5 kW at 24,000 rpm with ER16 tooling

The reviewed rated point is 1.5 kW at 24,000 rpm with 400 Hz listed. Keep it with the exact GDK80-24Z/1.5 code when selecting the drive. The adjacent 2.2 kW model uses ER20 and a different assembly, so the choice concerns tooling and mounting as well as rated output. The range model's 800 Hz endpoint is not operating information to be transferred to this configuration.

Describe the working speeds and load cycle rather than choosing from one power number. The rated point does not establish full output across an assumed lower-speed region. If sustained operation at another point is required, ask for applicable operating information. The intended cutter, machine stiffness and duty remain part of selection even when 1.5 kW and ER16 appear to match the old spindle's headline.

Select the complete voltage/current pair

The documented winding choices are 220 V / 5.6 A and 380 V / 3 A. They describe separate supplied motor configurations. Compare the selected pair with the VFD output, keeping drive input supply separate. A spindle is not established as automatically accepting either voltage merely because both choices are listed.

Check the drive's actual output current, voltage and 400 Hz capability. Include its model if existing equipment will be reused. Use the supplied-unit label and applicable drive instructions for motor data and protection; 3 A belongs with the 380 V winding and must not replace 5.6 A for a 220 V order. Winding choices and current values on the ER20 GDK80 are separate facts and cannot overwrite these pairs.

Choose ER16 collets for the actual cutter

This is a manual ER16 configuration. Use the selected collet's marked gripping range to match the tool shank, then verify nut and nose details with the supplied spindle. ER16 is a family designation, not one shank diameter or proof of every accessory thread. Include any reused nut or collet hardware in the applicability discussion rather than assuming that another ER16 unit establishes the same arrangement.

Check wrench access, nut clearance and tool projection in the mounted position. Changing to the ER20 2.2 kW model requires its own tooling review, not just a drive-power adjustment. If automatic magazine changes are required, the GDL taper-and-release architecture needs separate evaluation; this manual ER installation does not provide that control and pneumatic system.

118 mm clamping differs from the ER20 GDK80

The verified body is 80 mm, clamping length 118 mm and overall assembly 259 mm, with 7 kg listed weight. Read the drawing's support region and nose references. The full length is not available clamping length, and a common 80 mm diameter cannot establish the correct support position for every GDK80.

The 2.2 kW ER20 model lists a 135 mm clamp region and 284 mm overall assembly. Compare both exact drawings if changing output or tooling. Check rear fittings, nut access, tool projection and relevant axis travel. A mount that accepts the diameter can still leave a changed nose position or insufficient service access. Include the current mount and connections when requesting a replacement assessment.

Air sealing and water cooling have different roles

This spindle is water cooled. Confirm the supplied-unit circuit requirements and fittings with the proposed equipment and duty. The 1.5 kW rating does not specify a universal flow, temperature or pump setting. Provide existing circuit details if it is to be retained rather than inferring suitability from a common cooling label.

The documented front air-seal pressure is 0.1–0.2 MPa. Confirm its connection and applicable instructions for the supplied unit. It is not an ATC release pressure and does not replace water cooling. Plan air, water and motor cable together, preserving access to the support and connection areas throughout machine movement. Keep the separate services visible in the installation and quotation discussion.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

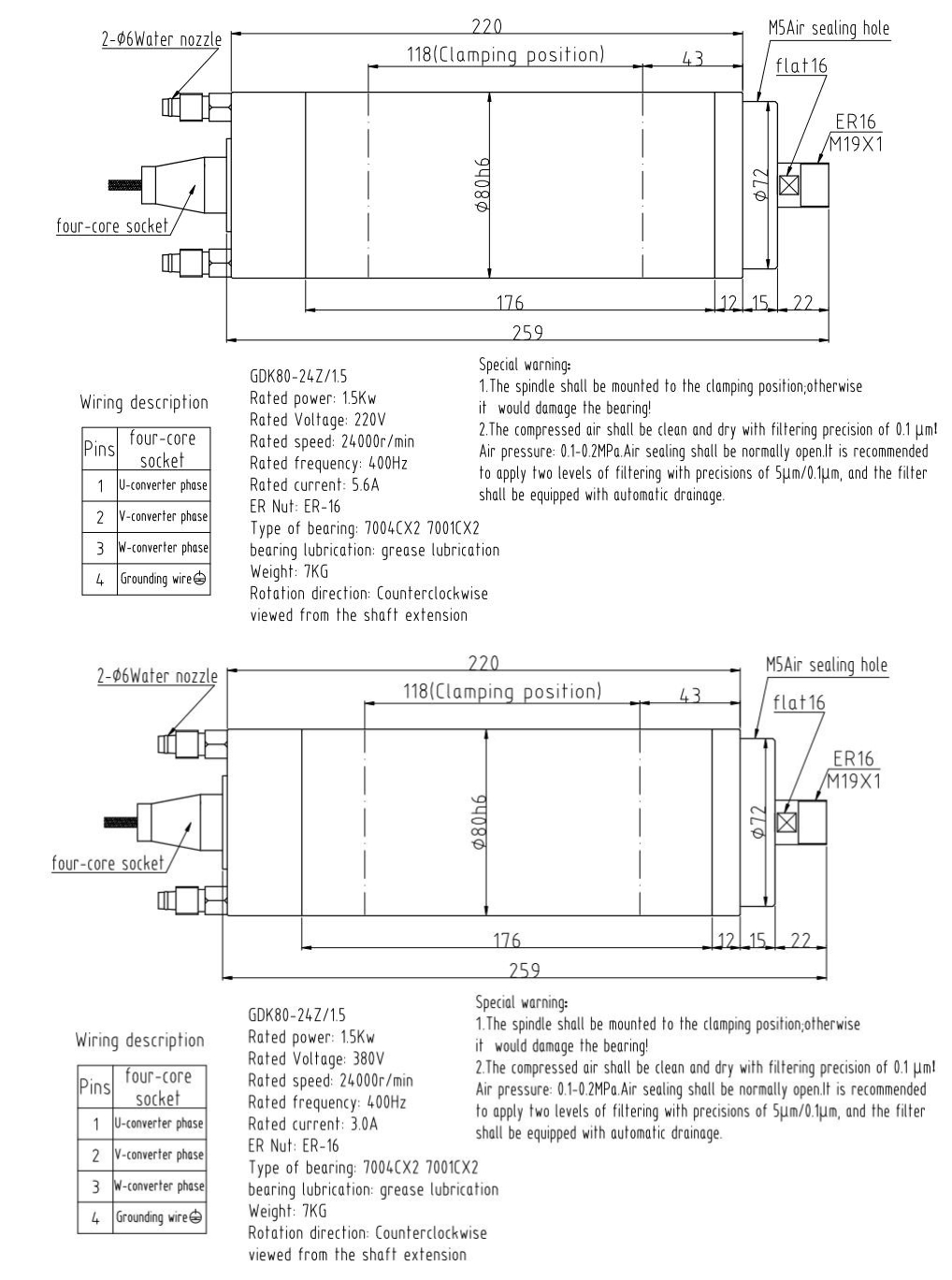

GDK80-24Z/1.5 dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 5.6 A; 380 V / 3 A. Match the block or PDF for the winding you intend to order. View the drawing at full size.

Evaluate ER16 and the actual cycle

GDK80-24Z/1.5 is a candidate when manual ER16 tooling, water cooling and the documented 24,000 rpm point match the process. Begin with cutter and working speed, then assess the winding, cooling and mounting. If a different tooling family or working region is required, inspect the appropriate GDK comparison rather than assuming that a larger power label retains the same installation.

For engraving or milling, provide material, tool geometry, shank size, speeds, load cycle and machine stiffness. The specifications support a conditional discussion, not a promised feed rate or finish. The air-seal and cooling services also need to be available in the actual machine. An apparent electrical match does not settle tooling performance or mounting suitability.

Retain the ER16 assembly dimensions

Provide the current code, nameplate, mount drawing and nose/connection photos. Compare the 80 mm body, 118 mm support region, 259 mm assembly and nose datum, then the collet/nut hardware, winding, drive and water/air services. Keep current winding evidence with the exact code. A matching 1.5 kW or ER16 label leaves several mechanical and connection questions open.

The ER20 GDK80/2.2 and range model change tooling and assembly, while GDK85 uses an 85 mm body. These comparisons explain design differences, not accepted substitutions. For an older spindle, request availability and apply the same complete checklist to a proposed successor, including the supplied-unit service and accessory information.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDK80-24Z/1.5Current configuration1.5 kW rated24,000 rpm ratedER16Water-cooledØ80 mm · 259 mm overall · 118 mm clamp
GDK80-12-24Z/1.2-2.41.2 kW rated12,000–24,000 rpmER20Water-cooledØ80 mm · 284 mm overall · 135 mm clamp

The range model changes ER16 to ER20 and lists a 284 mm assembly / 135 mm clamp region instead of 259 mm / 118 mm. Its separate operating curve must be compared with this model’s 1.5 kW / 24,000 rpm point and winding pairs.

GDK80-24Z/2.22.2 kW rated24,000 rpm ratedER20Water-cooledØ80 mm · 284 mm overall · 135 mm clamp

Both have an 80 mm body, but GDK80-24Z/2.2 uses ER20, a 284 mm assembly and 135 mm clamp region. Check tooling and support along with the different rated output and winding currents.

GDK85-24Z/2.2D2.2 kW rated24,000 rpm ratedER20Water-cooledØ85 mm · 284 mm overall · 125 mm clamp

GDK85 uses ER20, an 85 mm body and a 284 mm assembly with a 125 mm clamp region. Compare the changed tooling, mount and 2.2 kW winding pairs with this 1.5 kW ER16 configuration.

State the ER16 configuration and required services

Request GDK80-24Z/1.5 with 220 V / 5.6 A or 380 V / 3 A, quantity and destination country with postal code. List collets, nut, accessories or documents required. Include the current drive and water/air arrangement for a replacement. An inquiry for “GDK80 spindle” leaves the separate ER20 and range configurations unclear.

Compare the same electrical pair and included scope when reviewing quotations. Confirm accessory applicability and any remaining connection question before finalizing the installation. CINKR confirms proposed configuration and current availability by email. Retain the matching drawing and winding information with the quote so purchasing and installation refer to the 118 mm-support ER16 assembly.

  • Winding: 220 V / 5.6 A or 380 V / 3 A
  • Configuration: GDK80-24Z/1.5
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the drawing for the ER16 support and services

Open the full-size installation drawing below to review support surfaces, nose position and air/water connections. Request additional PDF, CAD or wiring information by exact model and selected winding. A drawing for another 80 mm GDK is not automatically applicable even when cooling and rated speed are similar.

Confirm an additional document's applicability before using it for support or drive settings. The outline, supplied-unit label and service instructions answer different questions, while the drive and machine procedures guide commissioning. State the unresolved issue when asking for another file so the technical discussion can supply the appropriate configuration information.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDK80-24Z/1.5

Which currents belong to the windings?

Select 220 V / 5.6 A or 380 V / 3 A as complete pairs. Keep the choice with the model, quotation and VFD review.

Is this the ER20 GDK80?

This model uses ER16. GDK80-24Z/2.2 uses ER20 and different clamp and overall dimensions; check tooling and mount before changing models.

What does the air pressure describe?

The 0.1–0.2 MPa range is for the front air seal. It is not an automatic tool-release pressure and does not replace water cooling.

Can the whole 259 mm assembly be clamped?

The documented support region is 118 mm. Use its drawing location rather than treating the complete length as available support.

Does a common 80 mm diameter prove a replacement match?

No. Compare support surfaces, nose datum, tooling, winding, drive output, cooling and air connections using both exact drawings.

What should the quote request include?

State the exact model, winding, quantity, destination, tooling and document needs. Add existing spindle, mount and service evidence for replacement.
