GDF46-18Z/1.5 Base Mount spindle
GDF46-18Z/1.5 Base Mount spindle

GDF SERIES · MANUAL

HQD GDF46-18Z/1.5 Base Mount · ER20 spindle motor

1.5 kW ratedER20Air-cooled18,000 rpm rated258.5 mm overall

Base Mount

HQD GDF46-18Z/1.5 Base Mount is an air-cooled manual ER20 spindle rated at 1.5 kW and 18,000 rpm. Check the base fixing arrangement, 258.5 mm overall assembly and 6 kg weight against the machine. Select 220 V / 5.6 A or 380 V / 3 A, then review the 300 Hz drive requirement and airflow clearance.

Browse the GDF spindle range →

MODEL SELECTION

Is this the right GDF46-18Z/1.5 configuration?

BEST FIT

Choose this configuration if:

  • The installation uses the base-mount fixing arrangement shown on this model's drawing.
  • The process calls for manual ER20 tooling and the documented 18,000 rpm point.
  • The selected winding and required air-cooling path can be accommodated in the machine.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep the 220 V / 5.6 A and 380 V / 3 A winding choices separate.
  • Check the base interfaces, fastener access, 258.5 mm assembly and 6 kg weight.
  • Air cooling requires its own installation review; a water circuit is not the documented cooling arrangement here.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This air-cooled spindle uses ER20 tooling. Power: 1.5 kW rated. Speed: 18,000 rpm rated. Installation dimensions and weight: 258.5 mm overall length, 6 kg weight. Winding options: 220 V / 5.6 A or 380 V / 3 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)1.5
Rated speed (rpm)18,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Mountingbase mount
Electrical
Frequency (Hz)300
Dimensions and weight
Overall length (mm)258.5
Weight (kg)6
Cooling and feedback
CoolingAir-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 5.6 A
  • 380 V · 3 A

1.5 kW and 18,000 rpm on the base-mount assembly

The documented rated point is 1.5 kW at 18,000 rpm, with 300 Hz listed. Keep that point with the complete GDF46-18Z/1.5 Base Mount description. A higher-output GDF46 can share ER20 and cooling while changing the assembly length, winding and mass. Choose from the working requirement rather than treating the 1.5 kW label as the sole distinction.

Describe the cutter, working speeds and load cycle if the process spends significant time away from the rated point. The figures do not establish full output at every lower speed. Ask for applicable operating information when sustained low-speed work is important, and include the machine's support and tool projection. A motor selection still depends on how the tool is used in the actual installation.

Select the electrical pair for this 1.5 kW model

The documented winding options are 220 V / 5.6 A and 380 V / 3 A. They describe separate supplied configurations. Select one complete pair and keep it with the exact model in the quotation. The drive input supply and its motor output are different checks; neither an input-voltage label nor a list of winding options establishes that a supplied spindle accepts both voltages.

Review the proposed VFD's output voltage, usable output current and 300 Hz capability. Identify the current drive model when reusing machine equipment. Use the supplied-unit nameplate and applicable drive instructions for motor data and protection. The 2.2 kW GDF46 has different currents, so its values should not overwrite the 5.6 A or 3 A specified for this model.

Retain manual ER20 tooling and access

This spindle uses manual ER20 tooling. Select the collet for the tool shank using its marked gripping range, then confirm the nut and nose hardware for the supplied spindle. The ER20 designation is a tooling family, not one shank diameter or a complete accessory-thread specification. Include details of a reused collet or nut if the installation must retain an existing tooling set.

Check wrench access and tool projection with the spindle installed on its base. Fastener position and the surrounding machine structure can affect access even when the tooling family matches the old unit. If automatic magazine changes are required, a suitable ATC spindle and its release, mounting and machine-control requirements need separate evaluation. This manual base-mount configuration does not establish that system.

Match the base fixing arrangement and nose position

The documented assembly length is 258.5 mm and listed weight is 6 kg. Use the drawing to locate the base interfaces, fixing geometry and nose references. Do not infer a circular clamping diameter from the number in the model code. Base mounting requires the actual fixing surfaces and fastener arrangement to be compared with the machine, rather than selecting a bracket from a family name.

Check support rigidity, fastener access, tool projection and rear clearance in the proposed position. GDF46-18Z/2.2 Base Mount lists 288.5 mm and 7 kg, so upgrading output can change the surrounding installation. Its Housing Mount version requires another fixing comparison even though it shares the 2.2 kW printed code. Include the current base and spindle drawing in any replacement discussion.

Plan the air path around the base-mounted unit

Air cooling is the documented method for this GDF46. Review the supplied-unit cooling arrangement and preserve the applicable air path through the machine enclosure. The output rating does not establish a universal enclosure clearance or thermal setting. Provide the intended duty and enclosure layout when the cooling path is a deciding installation issue.

Check whether guards, brackets or nearby equipment restrict the relevant cooling openings and maintenance access. Consider the work environment and the supplied service instructions rather than treating removal of a water circuit as the entire cooling decision. An air-cooled spindle still needs a suitable installation. Routing the motor cable and providing access to the fixing and cooling areas should be part of the same machine layout review.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Allow unobstructed cooling airflow and confirm any fan wiring.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

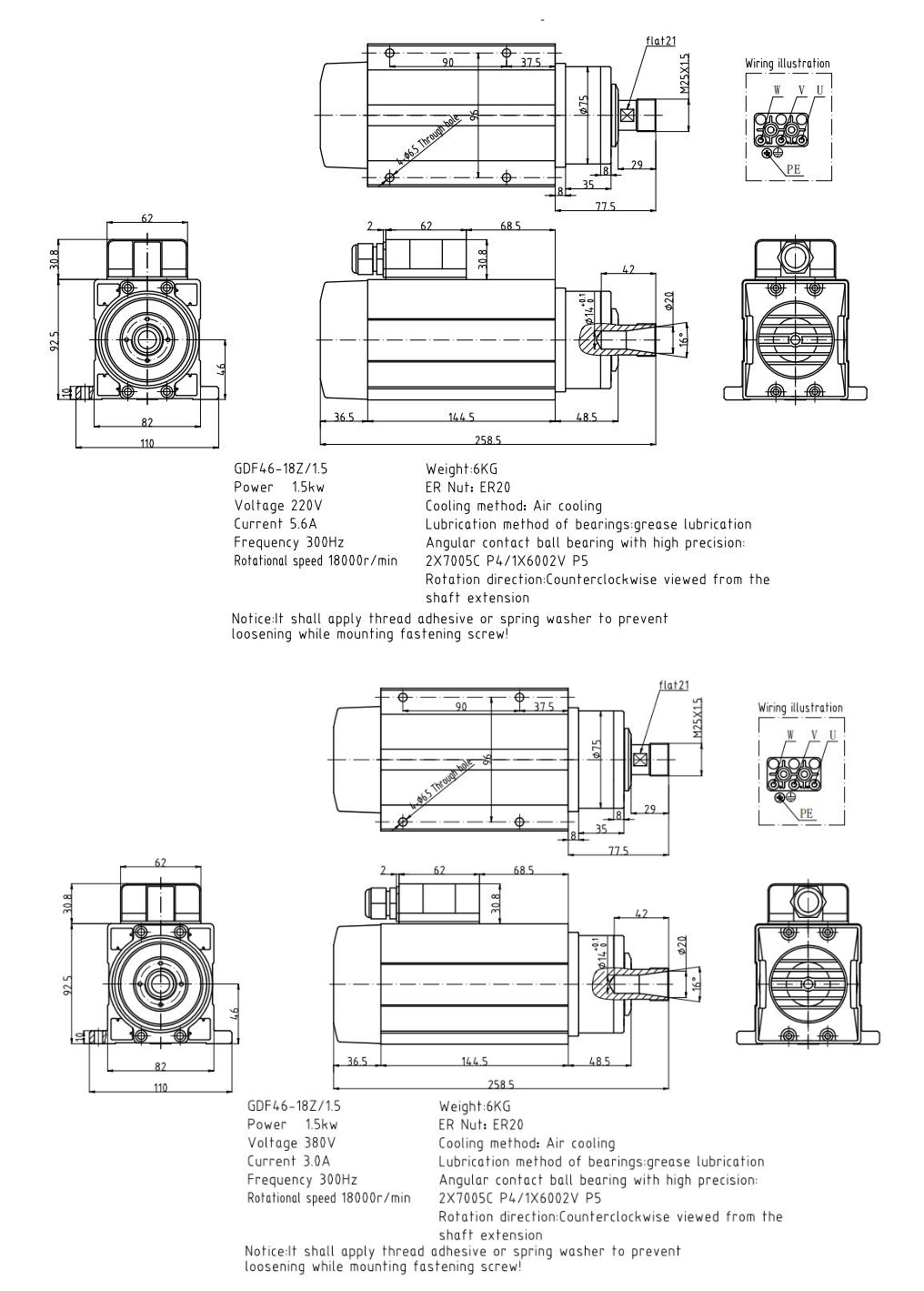

GDF46-18Z/1.5 Base Mount dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 5.6 A; 380 V / 3 A. Match the block or PDF for the winding you intend to order. View the drawing at full size.

Assess the process with base support and airflow

GDF46-18Z/1.5 Base Mount is a candidate when manual ER20 tooling, the 18,000 rpm point and base fixing arrangement fit the process. Begin with the cutter and actual working speed, then review the winding, drive, assembly space and cooling path. A different support architecture may change the selection even when an adjacent model appears suitable by output alone.

For engraving or milling, provide material, cutter geometry, shank diameter, tool projection and load cycle. Those conditions support a suitability discussion, not a promised feed rate or surface finish. The model's motor and outline data cannot establish the result independently of machine stiffness and cooling. Include the mounting and enclosure details if the spindle must operate in a confined machine space.

Compare the fixing interfaces before changing power

Send the existing model code, nameplate, fixing drawing and clear nose and connection photos. Compare base interfaces, hole geometry, nose datum and the 258.5 mm assembly, followed by ER20 hardware, winding, drive output and cooling path. A matching ER20 label or general GDF46 code leaves several replacement questions open, particularly if the existing unit uses housing support.

The 2.2 kW Base Mount model changes electrical pairs, length and listed weight. The 2.2 kW Housing Mount changes fixing architecture, while GDF80/2.2B uses a different body support and rated speed. These alternatives identify specific comparisons rather than accepted substitutions. For an older spindle, request current availability and retain the same complete checklist when a successor is proposed.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDF46-18Z/1.5 Base MountCurrent configuration1.5 kW rated18,000 rpm ratedER20Air-cooledBase Mount · 258.5 mm overall
GDF46-18Z/2.2 Base mount2.2 kW rated18,000 rpm ratedER20Air-cooledBase mount · 288.5 mm overall

The 2.2 kW Base Mount shares ER20 and the 18,000 rpm point but changes winding currents, listed weight to 7 kg and assembly length to 288.5 mm from 258.5 mm here. Compare both fixing drawings and the drive before changing output.

GDF46-18Z/2.2 Housing Mount2.2 kW rated18,000 rpm ratedER20Air-cooledHousing Mount · 288.5 mm overall

The 2.2 kW Housing Mount changes fixing architecture as well as rated output, electrical pairs and assembly length. Compare its actual support interfaces with this 1.5 kW base arrangement rather than choosing by the GDF46 code.

GDF80-24Z/2.2B2.2 kW rated24,000 rpm ratedER20Air-cooledØ80 mm · 269.5 mm overall · 125 mm clamp

GDF80/2.2B uses ER20 at 24,000 rpm with an 80 mm body, 269.5 mm assembly and 125 mm clamp region. Compare its body support and 400 Hz point with this base-mounted 18,000 rpm / 300 Hz assembly.

Specify Base Mount and the selected winding

Request GDF46-18Z/1.5 Base Mount with 220 V / 5.6 A or 380 V / 3 A, quantity and destination country with postal code. List collets, nut, accessories and additional files required. Include the current fixing and drive information for a replacement. A request described only as a GDF46 spindle leaves both rated output and mounting configuration unclear.

Compare quotations for the same electrical pair and included scope. Confirm accessory applicability and unresolved fixing or cooling details before finalizing installation. CINKR confirms proposed configuration and current availability by email. Keep the base-mount drawing and selected winding information with the quotation so purchasing and machine installation refer to the same 1.5 kW assembly.

  • Winding: 220 V / 5.6 A or 380 V / 3 A
  • Configuration: Base Mount
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Review the drawing for the base interfaces

Open the full-size installation drawing below for base geometry, nose references, assembly space and connection layout. Request additional PDF, CAD or wiring information by exact model, Base Mount description and winding. A 2.2 kW Base Mount document is not automatically applicable to the 1.5 kW unit, and a housing drawing does not establish the same fixing arrangement.

Confirm an additional file's applicability before using it for a machine interface or drive setting. The outline, supplied-unit nameplate and service instructions answer different questions, while the machine and VFD procedures guide commissioning. Identify the unresolved fixing, cooling or electrical issue when requesting another document so the technical discussion can address the actual installation requirement.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDF46-18Z/1.5

Which electrical pairs are listed?

The documented options are 220 V / 5.6 A and 380 V / 3 A. Choose one complete supplied configuration and keep it with the model in the drive review.

Is this an air-cooled or water-cooled spindle?

This configuration is air cooled. Review the applicable cooling path and enclosure arrangement with the supplied service instructions.

Does GDF46-18Z/2.2 have the same assembly length?

The 2.2 kW Base Mount model lists 288.5 mm; this model lists 258.5 mm. Compare fixing geometry and nose position as well as overall space.

Can the model number be used as a clamp diameter?

Use the actual base-mount drawing. The code alone does not establish a circular body-clamp interface or compatible hole pattern.

Does ER20 prove the existing tooling will fit?

Verify the selected collet range, nut and nose hardware as well as wrench access and tool projection. A shared family label leaves accessory checks open.

What should a replacement quote include?

Send the complete model and Base Mount description, winding, quantity, destination, current fixing and nameplate evidence, plus tooling and document needs.

REQUEST A QUOTE

Request a quote for GDF46-18Z/1.5

Include the winding, quantity and installation details for this configuration. Unknown technical details can be left blank.

Useful details to have ready
  • Exact code and readable nameplate
  • Mounting dimensions and available clearance
  • Tool interface and required speed
  • Drive output, cooling and ATC connections

Attach photographs or drawings in your email application.

Machine and technical details (optional)
Review your inquiry
Include your spindle model, machine requirements and questions in your email.
Open email

Open your email application to review and send the inquiry, or copy the text into a message to info@cinkr.com. Quotes and availability are confirmed by email.
