GDF SERIES · MANUAL

HQD GDF46-18Z/2.2 Housing Mount · ER20 spindle motor

2.2 kW ratedER20Air-cooled18,000 rpm rated288.5 mm overall

Housing Mount

HQD GDF46-18Z/2.2 Housing Mount is an air-cooled manual ER20 spindle rated at 2.2 kW and 18,000 rpm. Use the Housing Mount drawing for the support arrangement rather than the same-code Base Mount files. Check the 288.5 mm assembly, 7 kg weight and nose position, then select 220 V / 7.8 A or 380 V / 4.4 A.

Browse the GDF spindle range →

MODEL SELECTION

Is this the right GDF46-18Z/2.2 configuration?

BEST FIT

Choose this configuration if:

  • The machine supports the Housing Mount arrangement shown on this configuration's drawing.
  • The process uses manual ER20 tooling at the documented 18,000 rpm point.
  • The selected winding, 300 Hz drive requirement and air-cooling path can be accommodated.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep Housing Mount with the shared printed code in drawing and quotation requests.
  • Select 220 V / 7.8 A or 380 V / 4.4 A as a complete supplied winding pair.
  • Check the actual support surfaces, 288.5 mm assembly and 7 kg weight; Base Mount PDFs have different applicability.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This air-cooled spindle uses ER20 tooling. Power: 2.2 kW rated. Speed: 18,000 rpm rated. Installation dimensions and weight: 288.5 mm overall length, 7 kg weight. Winding options: 220 V / 7.8 A or 380 V / 4.4 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)2.2
Rated speed (rpm)18,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Mountinghousing mount
Electrical
Frequency (Hz)300
Dimensions and weight
Overall length (mm)288.5
Weight (kg)7
Cooling and feedback
CoolingAir-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 7.8 A
  • 380 V · 4.4 A

Keep Housing Mount with the 2.2 kW rated point

This configuration is rated at 2.2 kW and 18,000 rpm, with 300 Hz listed. Keep the Housing Mount description attached to the GDF46-18Z/2.2 code. The Base Mount version shares those headline motor figures, but choosing the machine interface requires the corresponding fixing drawing. A shared printed code does not identify the mounting assembly by itself.

Describe the cutter and load cycle along with the intended working speeds. The rated point does not establish full output across an assumed lower-speed region. Request applicable operating information if sustained work away from that point is important. The 24,000 rpm GDF80 comparison also changes its support and tooling configuration, so compare the complete working requirement rather than treating rated power as the only selection criterion.

Keep both current and voltage with the housing configuration

The documented supplied winding choices are 220 V / 7.8 A and 380 V / 4.4 A. Select one complete pair and include Housing Mount in the order description. These are separate configurations, not evidence that a supplied spindle accepts both voltages. The VFD input supply and motor-output requirements need separate review.

Check the proposed drive's output voltage, usable current and 300 Hz capability; include its model if existing equipment will be retained. Use the supplied-unit nameplate and applicable drive instructions for motor parameters and protection. The Base Mount downloads are labeled for that assembly. Request applicable housing wiring information when needed instead of silently extending the files' stated applicability to this configuration.

Check ER20 tooling in the housing support arrangement

The tooling configuration is manual ER20. Match the tool shank to the collet's marked gripping range, then verify the nut and nose hardware for the supplied spindle. ER20 identifies a tooling family rather than one shank size or a complete accessory-thread specification. Include reused accessory details if existing tooling must be retained.

Review nut clearance, wrench access and cutter projection after locating the spindle in the proposed housing support. Surrounding brackets can change access even when the existing spindle also uses ER20. If the machine requires automatic magazine changes, evaluate a suitable ATC spindle with its release services, mounting and controls separately. The Housing Mount description concerns fixing architecture and does not establish an automatic release system.

Use the housing drawing to locate support surfaces

The documented overall assembly is 288.5 mm, with 7 kg listed weight. Identify the housing support surfaces and nose references on this configuration's installation drawing. Compare those actual interfaces with the machine. Do not infer a clamp diameter, permissible support length or hole pattern solely from the model code or from another GDF46's base drawing.

Check support rigidity, tool projection, rear clearance, fastener access and relevant axis travel in the proposed position. Base Mount can share the same overall length while requiring a different fixture. Keep both exact drawings available if a mounting change is being considered. The installation comparison must locate the nose and support in the machine rather than stopping at the shared 288.5 mm envelope.

Keep housing support clear of the applicable air path

This spindle is air cooled. Review the supplied cooling arrangement with the actual housing support and enclosure layout. A suitable fixture must also allow the applicable cooling path and maintenance access. The output rating does not establish a universal guard clearance or thermal setting, so provide intended duty and enclosure details when they constrain the installation.

Check the relevant openings and connections against brackets, guards and nearby equipment. Follow applicable service information for the supplied unit and account for the work environment. A previous water-cooled installation needs a new cooling assessment when changing architecture. Retain the documented air-cooled method for this model rather than borrowing a contradictory description from a similarly named listing.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Allow unobstructed cooling airflow and confirm any fan wiring.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

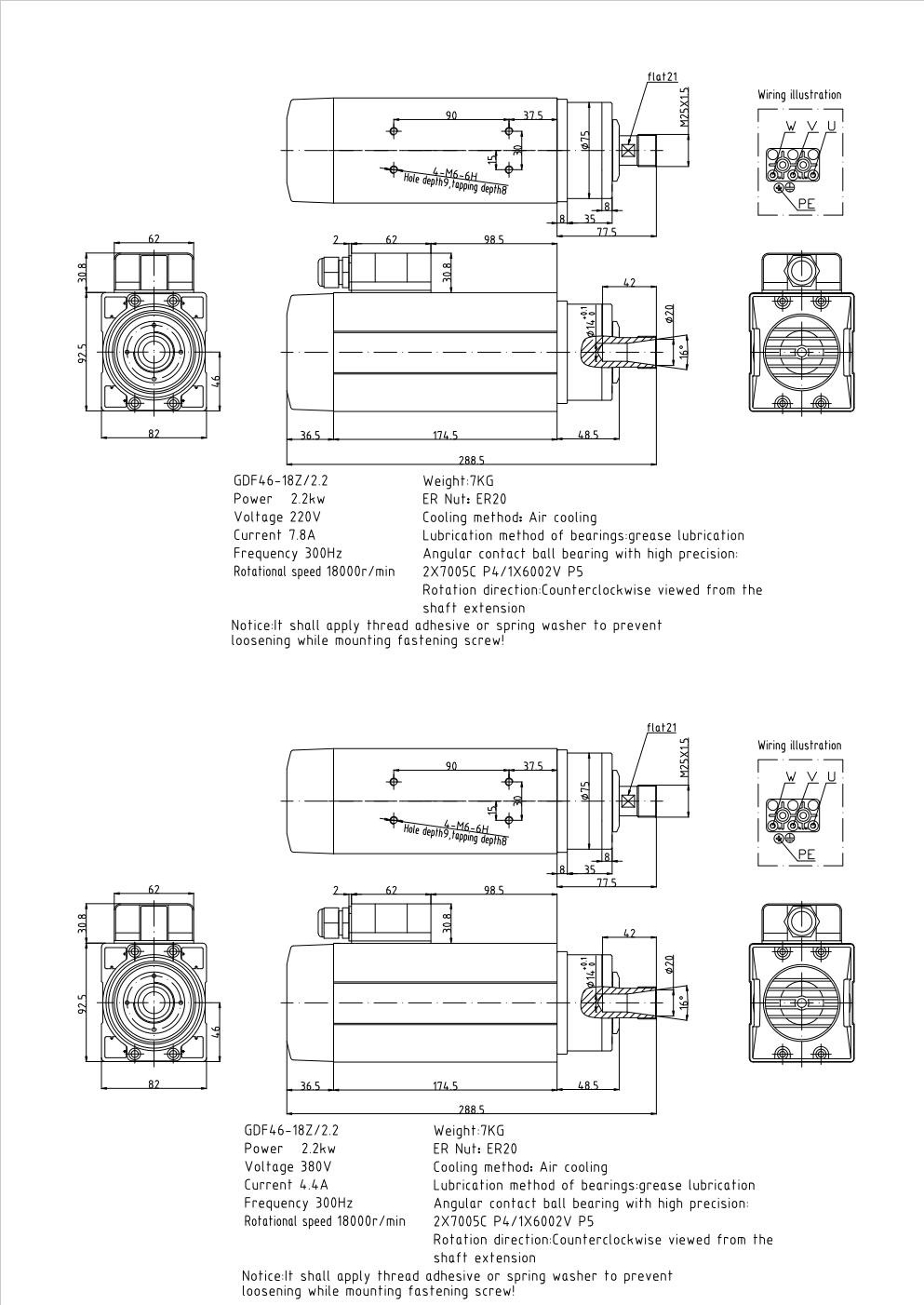

GDF46-18Z/2.2 Housing Mount dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 7.8 A; 380 V / 4.4 A. Match the block or PDF for the winding you intend to order. View the drawing at full size.

Evaluate housing support alongside the cutting process

GDF46-18Z/2.2 Housing Mount is a candidate when manual ER20 tooling and the documented 18,000 rpm point fit the process, and the machine accommodates its housing support. Begin with the tool and working speed, then review winding, drive, nose position and airflow. The same-code base configuration is a separate mechanical choice even where the motor requirements match.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. Those details support a conditional suitability discussion. Motor figures and assembly length alone cannot promise feed rate or surface finish. Include the support and enclosure evidence when adapting an existing machine so the assessment considers the actual installation and cooling path.

Resolve the support architecture before treating the code as a match

Send the existing nameplate, full mounting description, support drawing and clear nose and connection photos. Compare housing interfaces, support location, nose datum, assembly space and tooling, followed by the complete winding pair, drive output and air-cooling path. An inquiry containing only GDF46-18Z/2.2 leaves a consequential support question unresolved.

The Base Mount version has different fixing architecture despite sharing output, speed, weight and listed length. GDF80/2.2B changes working speed and body support; the 1.5 kW Base Mount changes electrical pairs and assembly dimensions as well as power. These alternatives provide comparisons, not approved substitutions. For an older unit, confirm availability and apply the complete checklist to any proposed successor.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDF46-18Z/2.2 Housing MountCurrent configuration2.2 kW rated18,000 rpm ratedER20Air-cooledHousing Mount · 288.5 mm overall
GDF46-18Z/2.2 Base mount2.2 kW rated18,000 rpm ratedER20Air-cooledBase mount · 288.5 mm overall

Base Mount shares the printed code, motor figures and 288.5 mm assembly length but changes fixing architecture. Use both exact drawings to compare support and nose position; its winding-specific PDFs do not establish housing installation applicability.

GDF80-24Z/2.2B2.2 kW rated24,000 rpm ratedER20Air-cooledØ80 mm · 269.5 mm overall · 125 mm clamp

GDF80/2.2B uses an 80 mm body and 125 mm clamp region, with ER20 at 24,000 rpm / 400 Hz. Compare its support and 269.5 mm assembly with this housing-mounted 18,000 rpm / 300 Hz configuration.

GDF46-18Z/1.5 Base Mount1.5 kW rated18,000 rpm ratedER20Air-cooledBase Mount · 258.5 mm overall

The 1.5 kW Base Mount changes fixing architecture, rated output, winding currents and assembly length to 258.5 mm. Compare the actual support and working requirements rather than assuming the GDF46 family preserves the installation.

Put Housing Mount in the quotation request

Request GDF46-18Z/2.2 Housing Mount with 220 V / 7.8 A or 380 V / 4.4 A, quantity and destination country with postal code. List collets, nut, accessories and extra files required. Include the current support and VFD information for a replacement. The mounting description is necessary because the printed code alone also identifies a Base Mount configuration.

Compare quotations for the same electrical pair, mounting arrangement and included scope. Confirm accessory applicability and any unresolved support or cooling issue before finalizing installation. CINKR confirms proposed configuration and current availability by email. Retain the Housing Mount drawing and selected winding evidence with the quotation so purchasing and installation refer to the same assembly.

  • Winding: 220 V / 7.8 A or 380 V / 4.4 A
  • Configuration: Housing Mount
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Request housing-specific documents when needed

Use the full-size Housing Mount installation drawing below to review support surfaces, nose references, assembly space and connections. Request additional PDF, CAD or wiring information with the exact model, Housing Mount description and selected winding. The downloadable Base Mount files on the related page are explicitly limited to that mounting assembly.

Check an additional file's stated applicability before using it to adapt support or set the drive. A shared printed model is insufficient to establish that every dimension and connection applies. The supplied-unit nameplate, outline and service instructions answer different questions, while the drive and machine procedures guide commissioning. State the unresolved mechanical or electrical issue in a document request so the technical response can address it directly.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDF46-18Z/2.2

How does the Housing Mount version differ from Base Mount?

GDF46-18Z/2.2 also has a Base Mount version. Housing Mount identifies the support arrangement required for this drawing and quotation.

Can the Base Mount PDFs be used as housing installation drawings?

Their applicability labels specify Base Mount. Use this Housing Mount drawing and request applicable extra documentation for the supplied winding when needed.

Which winding pairs are listed?

Select 220 V / 7.8 A or 380 V / 4.4 A as a complete supplied configuration. Check the motor output and nameplate separately from drive input supply.

Is this spindle water cooled?

It is documented as air cooled. Review the applicable air path with the housing support, enclosure and supplied service instructions.

Does the shared 288.5 mm assembly prove the base and housing mounts interchange?

No. Compare support interfaces, nose position, fastener access, tooling and connections using both exact configuration drawings.

What is needed for a replacement quote?

State the complete model with Housing Mount, winding, quantity, destination and accessories. Add nameplate, support, nose, connection and drive evidence.
