GDL110-30-18Z/3.2 spindle
GDL110-30-18Z/3.2 spindle

GDL SERIES · ATC

HQD GDL110-30-18Z/3.2 BT30 ATC spindle

3.2 kW ratedBT30Water-cooled18,000 rpm ratedØ110 mm

HQD GDL110-30-18Z/3.2 combines BT30 automatic tool change with water cooling and a 3.2 kW, 18,000 rpm operating point. Choose it around the required working speed and BT30 tooling, then check the 110 mm body, 132 mm clamp region and selected winding. The drawing states that no encoder is fitted.

Browse the GDL spindle range →

MODEL SELECTION

Is this the right GDL110-30-18Z/3.2 configuration?

BEST FIT

Choose this configuration if:

  • The machine requires BT30 automatic tooling and the documented 18,000 rpm operating point.
  • Its mount can accommodate the 110 mm body, 132 mm clamp region and rear release assembly.
  • Water cooling and a suitable 220 V or 380 V spindle drive can be integrated.

CHECK BEFORE ORDERING

Confirm these details first:

  • Select 220 V / 11.5 A or 380 V / 6.9 A as a complete winding pair.
  • Read the 435 mm body reference and 44 mm rear projection from their drawing datums.
  • Confirm clamp/release signals and any orientation requirement; no encoder is fitted in the documented configuration.

COMPARE ALTERNATIVES

Consider another model when:

  • GDL120 keeps BT30 but changes to 5.5 kW at 24,000 rpm and a larger assembly.
  • GDL100 and GDL80 use ISO25 and ISO20 respectively, requiring a tooling review as well as dimensional checks.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses BT30 tooling. Power: 3.2 kW rated. Speed: 18,000 rpm rated. Installation dimensions and weight: 110 mm body diameter, 132 mm clamping length, 23 kg weight. Winding options: 220 V / 11.5 A or 380 V / 6.9 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)3.2
Rated speed (rpm)18,000
Tooling and mounting
Tool interfaceBT30
Tool changeAutomatic tool change
Electrical
Frequency (Hz)600
Poles4
Dimensions and weight
Body diameter (mm)110
Clamping length (mm)132
Body reference length (mm)435
Rear projection (mm)44
Weight (kg)23
Cooling and feedback
CoolingWater-cooled
Encoder fittedNo

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 11.5 A
  • 380 V · 6.9 A

A BT30 spindle rated at 18,000 rpm

The verified GDL110 operating point is 3.2 kW at 18,000 rpm and 600 Hz. The drawing identifies four poles and three phases. Keep those values together when assessing the motor output required from the VFD. The model is not documented here as the 24,000 rpm GDL120 configuration. Do not carry the higher speed from a nearby product into the drive setup simply because both spindles use BT30 tooling.

Selection should follow the intended working speed and cutting duty. More rated speed or more headline power on another spindle may not resolve the actual requirement of the machine. For sustained cutting below the rated point, ask for the operating information needed at that speed; the 3.2 kW label does not establish a full-power envelope on its own. Include the normal and occasional working speeds so the drive and spindle discussion addresses the production cycle rather than only a maximum command.

Two documented electrical configurations

The 220 V winding is paired with 11.5 A, while the 380 V winding is paired with 6.9 A. These are separate supply choices. Use the winding selector to include the intended pair in your inquiry, and request the matching outline document if required. The input supply at the machine does not, by itself, identify the spindle winding: it must be considered with the VFD's output specification and the supplied-unit label.

Check the drive's continuous output current, output voltage and 600 Hz capability. A drive's nominal power designation is insufficient if its high-frequency output or current capability does not match the selected motor. If reusing the existing drive, provide its exact model and current settings as context, then verify the correct motor data for the proposed spindle. Do not assume that parameters from another BT30 model apply to the GDL110 merely because its power is close.

BT30 retention, release and feedback requirements

BT30 gives a specific starting point for the holder check. The complete automatic-tool-change installation still needs the correct retention arrangement, release travel, holder clearance and magazine alignment. Compare the holders and tool-change layout against the exact GDL110 assembly. A BT30 holder designation is useful evidence, but it does not confirm the rear actuator, clamp sensing or machine control sequence. Those interfaces must be reviewed before the installation is accepted.

The drawing states that no encoder is fitted. If spindle orientation or another feedback-dependent function is part of your tool-change sequence, describe that function in the inquiry. Confirm the proposed spindle and control arrangement can meet it instead of assuming that the controller can obtain feedback from an unspecified connector. The spindle's speed command and the machine's position or orientation requirement are different integration questions.

Obtain the supplied-unit pneumatic and sensor connection details before choosing release settings or wiring the control. Compare signal states with the controller and establish the interlocks needed before rotation, release and magazine movement. Confirm release pressure and the tool-change sequence from the supplied-unit instructions and the machine controller requirements. Where the existing machine uses a particular release method, include photographs and the current sequence so the technical discussion can address the actual differences.

Check the clamp region and drawing datums

The GDL110 has a 110 mm body diameter, 132 mm clamping length and 23 kg listed weight. The drawing also labels a 435 mm body reference and 44 mm rear projection. Those spans need to be read with their reference points. They are not a verified overall-length statement, and they should not be combined into one without checking the drawing. This distinction matters when comparing nose position and clearance behind the mounting face.

Check the permitted support region rather than gripping any convenient length of the housing. Review the mount, holder projection, rear cylinder and connector area as one moving assembly. A drawing comparison should show where the spindle nose will sit relative to the magazine and work envelope, as well as whether the rear services remain accessible. The GDL120's 120 mm body and different complete assembly are useful comparison points, but they do not establish a shared mount for the two BT30 models.

Water cooling alongside the release connections

Water cooling is required for this configuration. Confirm the supplied spindle's cooling connections and operating requirements with the proposed circuit. The drawing's mechanical dimensions and electrical rating do not specify a universal pump, coolant flow or temperature. State the existing equipment and intended duty in the inquiry so the cooling arrangement can be checked together with the motor and drive rather than assumed from the 3.2 kW rating.

The rear assembly needs space for water hoses, air connections and electrical services. Plan their routes before fixing the mounting position, including access for assembly and any movement of the machine axis. Reusing an existing circuit may be possible after the requirements are checked, but a water-cooled label on both old and new spindles is insufficient evidence of a complete match. Connection photos and hose information make that review more concrete.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

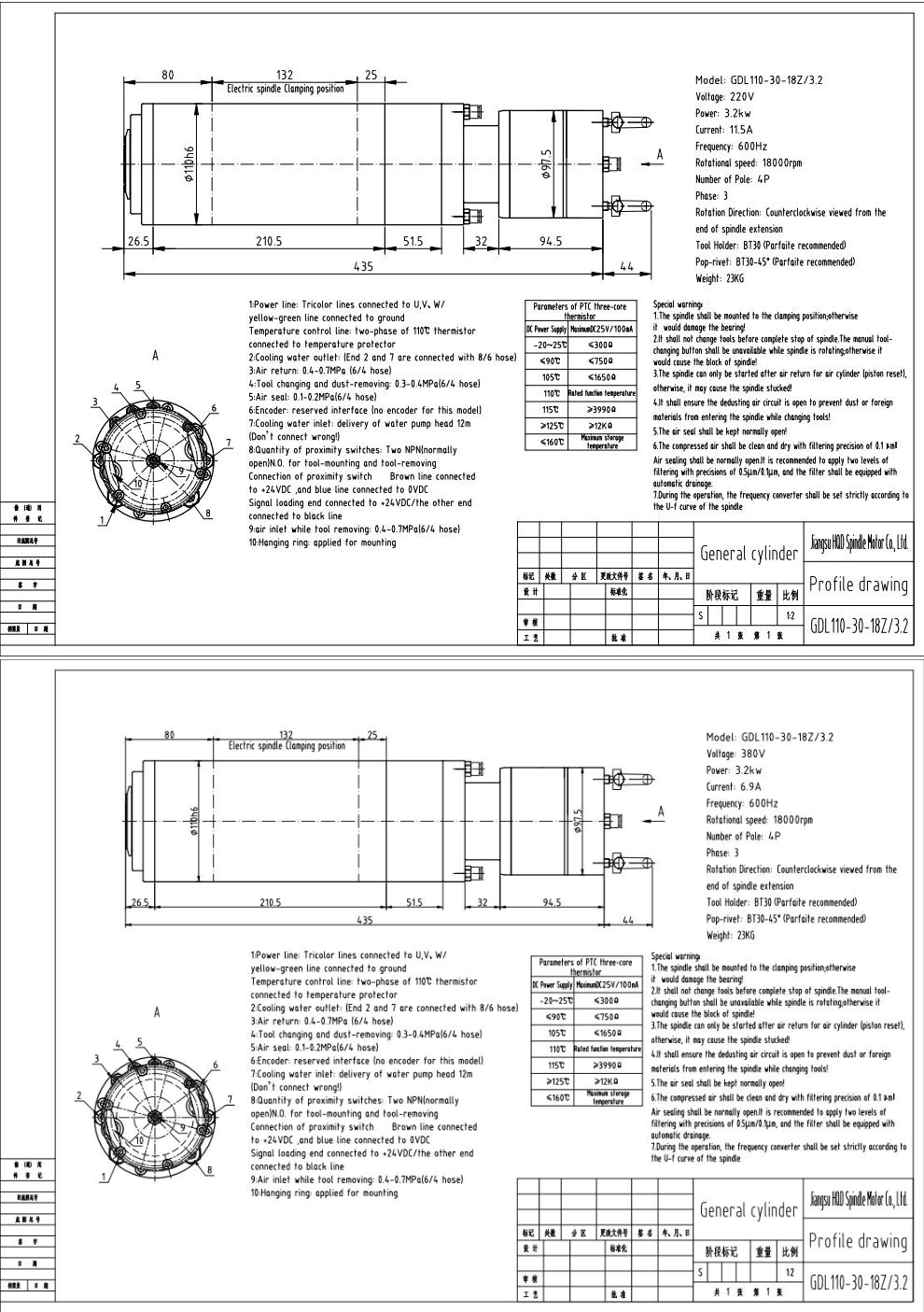

GDL110-30-18Z/3.2 dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 11.5 A; 380 V / 6.9 A. Match the block or PDF for the winding you intend to order. View the drawing at full size.

Choose from the working-speed and tooling requirement

For a machine designed around BT30 automatic tooling and an 18,000 rpm operating point, GDL110 offers a defined configuration to evaluate. Begin with the intended tools, holder arrangement and working-speed requirement, then compare the electrical and mechanical facts. If the machine requires 24,000 rpm, investigate GDL120 on its own terms rather than treating its higher operating point as an undocumented capability of this model.

Application suitability remains conditional on the complete machine. A material category such as wood or aluminum does not establish cutting performance by itself. Include the tool, cutting operation, working speed, duty and machine stiffness in the inquiry. The verified specifications help select a spindle candidate; they do not guarantee a feed rate, finish or production capacity. A requirement for orientation or feedback also deserves an explicit check because the documented GDL110 has no fitted encoder.

Separate a BT30 match from an installation match

Record the existing spindle's complete code and winding, then compare its mount drawing with the GDL110. Check the 110 mm body, 132 mm support region, drawing references, nose position and rear clearance. Next compare cooling, drive output, holder retention, release connections and clamp sensing. Keep the existing orientation requirement visible. A shared BT30 taper can coexist with differences that prevent the same mount or control setup from being used.

GDL120 is the closest listed BT30 comparison for a different output and speed, but it has a 120 mm body and different dimensions. GDL100 and GDL80 show ISO25 and ISO20 alternatives, which change tooling as well as mounting. Read the comparison reasons and matching drawings before choosing an alternative. For an older machine, include the original nameplate and ask for availability; any proposed successor needs the same evidence of mechanical, electrical and control fit.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDL110-30-18Z/3.2Current configuration3.2 kW rated18,000 rpm ratedBT30Water-cooledØ110 mm · 132 mm clamp
GDL120-30-24Z/5.55.5 kW rated24,000 rpm ratedBT30Water-cooledØ120 mm · 496.5 mm overall · 136 mm clamp

Retain BT30 in the comparison while changing from 3.2 kW at 18,000 rpm to 5.5 kW at 24,000 rpm and a 120 mm body.

GDL100-25-24Z/2.52.5 kW rated24,000 rpm ratedISO25Water-cooledØ100 mm · 130 mm clamp

Compare ISO25 at 24,000 rpm against BT30 at 18,000 rpm; the 100 mm body also changes the mounting check.

GDL80-20-24Z/2.2B2.2 kW rated24,000 rpm ratedISO20Water-cooledØ80 mm · 335 mm overall · 98 mm clamp

Compare ISO20 in an 80 mm water-cooled body against this 110 mm BT30 assembly; holder and mounting requirements differ.

Put the winding and feedback requirement in the inquiry

Request GDL110-30-18Z/3.2 with the selected 220 V / 11.5 A or 380 V / 6.9 A winding. Include quantity, destination country and postal code, plus the holders, accessories and documents required. If the machine needs orientation or feedback, state that before ordering. Leaving the requirement out can make an apparently straightforward BT30 quotation incomplete even when the voltage and rated power are correct.

Compare quotation scope as well as price. Check the exact model, selected winding, included accessories and technical documents, and retain the confirmed drawing with the order discussion. CINKR confirms the proposed configuration and current availability by email. This is especially useful for an older installation where the nameplate, release hardware or controller sequence may differ from the configuration pictured on a general product listing.

  • Winding: 220 V / 11.5 A or 380 V / 6.9 A
  • Configuration: GDL110-30-18Z/3.2
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Keep the selected winding drawing with the machine check

View the full-size drawing to inspect the clamp region, rear projection, installation dimensions and no-encoder note. Request additional outline files for the selected 220 V / 11.5 A or 380 V / 6.9 A winding, and confirm each file’s applicability before using its electrical data. Keep the matching document with the quotation and electrical drive review.

Ask for any additional wiring, pneumatic or CAD document by exact model and winding. A file for another BT30 spindle may describe different dimensions or connections even when the interface name is the same. The original drawing supports the configuration review; commissioning still needs the supplied-unit information and the machine's own control and drive procedures. Confirm any document's applicability before using it to finalize the installation.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDL110-30-18Z/3.2

Is GDL110 rated at 24,000 rpm?

Its documented rated point is 18,000 rpm at 600 Hz. GDL120-30-24Z/5.5 is the separate BT30 configuration listed at 24,000 rpm.

Which windings are documented?

Choose 220 V / 11.5 A or 380 V / 6.9 A. Keep the selected pair with its outline drawing and compare it with the VFD output requirements.

Is an encoder included?

The drawing states that no encoder is fitted. Describe any spindle-orientation or feedback requirement before ordering so the supplied configuration and controller arrangement can be checked.

What is the verified overall length?

The drawing labels a 435 mm body reference and a 44 mm rear projection separately. Check their datums and confirm the complete envelope before finalizing the mount and rear clearance.

Can I reuse a GDL120 mount?

Check the drawings. GDL110 has a 110 mm body and 132 mm clamp region, while GDL120 has different dimensions. BT30 tooling alone does not establish the same mount or clearance.

What information makes a quotation useful?

Include the full model, winding, quantity, destination, required holders or documents and any orientation requirement. For replacement, add the existing nameplate, mount drawing and connection photographs.
