HQD GDK125-30Z/7.5 ER32 spindle motor

7.5 kW ratedER32Water-cooled30,000 rpm ratedØ125 mm

HQD GDK125-30Z/7.5 is a water-cooled ER32 spindle rated at 7.5 kW and 30,000 rpm. Its 1,000 Hz drive requirement and 150 mm clamp region distinguish it from the other GDK125 configurations. Check the 380 V / 15 A winding, front air seal, water-hose dimensions and separate drawing reference lengths before finalizing the installation.

Browse the GDK spindle range →

MODEL SELECTION

Is this the right GDK125-30Z/7.5 configuration?

BEST FIT

Choose this configuration if:

  • The process specifically needs the documented 30,000 rpm point with manual ER32 tooling.
  • The mount can support the 125 mm body over the specified 150 mm clamp region.
  • The drive, water circuit and front air-seal service can meet the supplied-unit requirements.

CHECK BEFORE ORDERING

Confirm these details first:

  • Check 380 V / 15 A and 1,000 Hz as motor-output requirements, separate from drive input supply.
  • Read the 395.5 mm body reference and 85 mm rear projection separately from their drawing datums.
  • Confirm the 0.1–0.2 MPa air-seal service and 10 / 7 mm water-hose OD / ID with the actual connections.

COMPARE ALTERNATIVES

Consider another model when:

  • GDK125-12-24Z/7.5 has a lower speed range and a 190 mm support region.
  • GDK125-9-15Z/5.5-11 has different duty curves; GDK105-21Z/3.5 uses a smaller ER20 installation.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER32 tooling. Power: 7.5 kW rated. Speed: 30,000 rpm rated. Installation dimensions and weight: 125 mm body diameter, 150 mm clamping length.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)7.5
Rated speed (rpm)30,000
Tooling and mounting
Tool interfaceER32
Tool changeManual tool change
Electrical
Spindle winding (V)380
Rated current (A)15
Frequency (Hz)1,000
Dimensions and weight
Body diameter (mm)125
Clamping length (mm)150
Body reference length (mm)395.5
Rear projection (mm)85
Cooling and feedback
CoolingWater-cooled
Air-seal pressure (MPa)0.1–0.2
Water hose OD / ID (mm)10 / 7

30,000 rpm is a distinct high-speed requirement

The reviewed rated point is 7.5 kW at 30,000 rpm with 1,000 Hz listed. Keep those values with this exact model when discussing the drive and tooling. The other 7.5 kW GDK125 has a 12,000–24,000 rpm range and different frequency information. Its upper endpoint does not establish the rated point here, and this model's higher speed must not be transferred back to that range configuration.

Identify why the operation needs 30,000 rpm and which tools will be used there. The spindle rating does not establish a safe speed for every cutter, collet or nut. Check the tooling's own applicable speed and assembly instructions, along with the machine's condition and rigidity. If the process normally runs at lower speeds, request the operating information needed at those points rather than assuming full rated output throughout an unspecified range.

A 1,000 Hz motor-output check

The documented motor configuration is 380 V / 15 A. Check the proposed VFD's output voltage, current and 1,000 Hz capability together. A drive that accepts the machine's mains supply or carries a 7.5 kW label may still have an output-frequency limit that does not satisfy this spindle. Include the exact drive model and specifications before expecting existing equipment to work at the rated point.

The incoming supply, drive input and spindle winding are separate values in the electrical review. A 220 V winding is not established by this configuration. If a different arrangement is required, request confirmation rather than adopting an option from another GDK. Motor data, protection and commissioning should follow the supplied-unit label and applicable drive instructions, with the full GDK125-30Z/7.5 code retained in the documents.

ER32 tooling at the intended high speed

This is a manual ER32 collet installation. Select the actual collet for the cutter's shank and its marked gripping range, and verify the nut and spindle-nose arrangement. ER32 does not establish one shank diameter or every accessory thread. At the intended working speed, the cutter and tooling assembly also need their own suitability check; the spindle's 30,000 rpm rating cannot serve as permission to run any accessory at that speed.

Check tool projection, nut clearance and access for fitting and removal in the mounted position. Keep the supplied tooling instructions with that review. If automatic tool changes are required, this manual configuration does not supply the GDL taper-and-release architecture. Tooling and mounting should be settled with the actual working-speed requirement before the high-speed headline is used to accept the spindle for a machine.

Use the specified 150 mm clamp region

The verified body diameter is 125 mm and the clamping length is 150 mm. The drawing separately labels a 395.5 mm body reference and 85 mm rear projection. Check the drawing datums to establish the complete installation envelope; the two dimensions must not be assumed to form one overall length. The support region also must not be borrowed from the 190 mm clamp entry on the lower-speed range models.

Compare permitted support surfaces, nose position and the rear envelope with the actual mount. Include wrench access, tool projection, hose and cable routes, and the relevant machine travel. A clamp that accepts a 125 mm body does not establish the correct support location or rear clearance. If replacing another GDK125, retain both drawings and review the changed support region before using the old mounting position.

Water hoses and the front air seal are separate services

The reviewed water-hose dimensions are 10 / 7 mm outside/inside diameter. Check those dimensions with the actual fittings and supplied-unit connection information. They do not establish a universal coolant flow, temperature or pump capacity. Confirm the cooling equipment and operating requirements with the intended duty instead of treating hose size as a complete cooling specification.

The documented air-seal pressure range is 0.1–0.2 MPa. This is a front-end air-seal service, not an ATC release pressure or a substitute for water cooling. Confirm the connection, air arrangement and applicable supplied-unit instructions before commissioning. Plan water, air and electrical routing together so the support region and rear access remain usable throughout machine movement.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

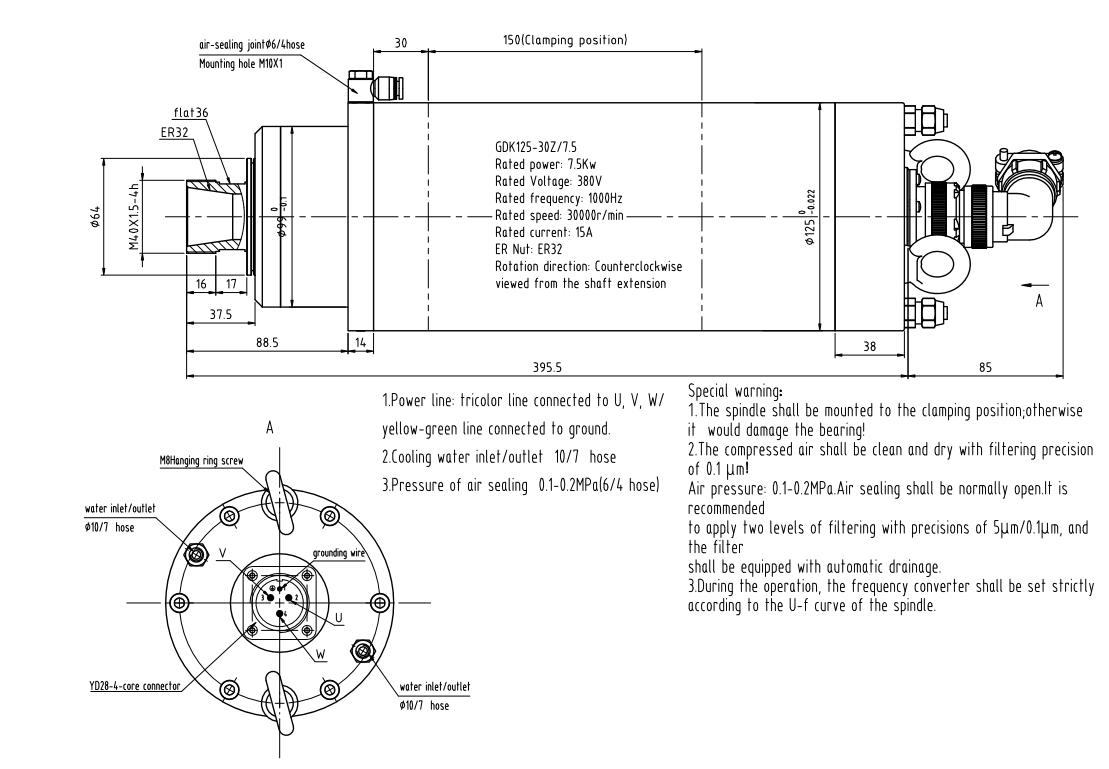

GDK125-30Z/7.5 dimensions and specifications drawing
