HQD GDK125-12-24Z/7.5 ER32 spindle motor

7.5 kW ratedER32Water-cooled12,000–24,000 rpmØ125 mm404.5 mm overall

HQD GDK125-12-24Z/7.5 is a water-cooled ER32 spindle with 7.5 kW rated output and a documented 12,000–24,000 rpm range. Check its 125 mm body, 190 mm clamp region and 404.5 mm assembly with the machine. The drive review must retain the 400–800 Hz range, 380 V curve endpoints and 15 A current.

Browse the GDK spindle range →

MODEL SELECTION

Is this the right GDK125-12-24Z/7.5 configuration?

BEST FIT

Choose this configuration if:

  • The process calls for manual ER32 tooling and the documented 12,000–24,000 rpm region.
  • The mounting and moving axis can accommodate the 125 mm body and 30 kg assembly.
  • The VFD and water circuit can meet the supplied-unit requirements for the actual production duty.

CHECK BEFORE ORDERING

Confirm these details first:

  • Check 7.5 kW rated, 15 A and the full 400–800 Hz relationship with the proposed drive.
  • Both documented curve endpoints are 380 V; they do not establish separate winding choices or an input supply specification.
  • Use the 190 mm support region and complete drawing to review nose position, rear services and tooling clearance.

COMPARE ALTERNATIVES

Consider another model when:

  • GDK125-30Z/7.5 has a 30,000 rpm point at 1,000 Hz and a different support region.
  • GDK125-9-15Z/5.5-11 has a lower working range and separate conditioned curve levels; GDK105-21Z/3.5 changes to ER20.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER32 tooling. Power: 7.5 kW rated. Speed: 12,000–24,000 rpm. Installation dimensions and weight: 125 mm body diameter, 190 mm clamping length, 404.5 mm overall length, 30 kg weight.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)7.5
Operating range (rpm)12,000–24,000
Tooling and mounting
Tool interfaceER32
Tool changeManual tool change
Electrical
Rated current (A)15
Frequency range (Hz)400–800
Curve voltage endpoints (V)380–380
Dimensions and weight
Body diameter (mm)125
Overall length (mm)404.5
Clamping length (mm)190
Weight (kg)30
Cooling and feedback
CoolingWater-cooled

7.5 kW rated with a defined working range

The reviewed rated output is 7.5 kW and the documented speed range is 12,000–24,000 rpm. Compare that range with the actual cutters and production cycle. A range entry is more useful than one isolated speed for identifying a candidate, but it does not independently establish every available load or duty at each working point. Request the applicable operating information when a specific sustained output is essential.

The GDK125-30Z/7.5 is a different configuration, not an undocumented extension to 30,000 rpm for this motor. Likewise, the 5.5-11 range model's larger curve line must not be imported as additional output here. Keep each configuration's rated entry and operating information together when comparing. Describe normal and occasional working speeds so the technical discussion addresses the production cycle rather than the largest number in the family.

400–800 Hz with the identified motor relationship

The verified frequency range is 400–800 Hz, with 380 V at both documented curve endpoints and 15 A listed. The equal endpoint values do not establish independently selectable windings, and they are different from the drive's incoming supply. Confirm the supplied motor configuration and the required output relationship with the VFD, considering input supply separately.

Check the drive's voltage, current and maximum output-frequency capability from its actual specifications. A nominal 7.5 kW designation alone cannot prove that existing equipment supports the 800 Hz endpoint. Include the drive model and intended load cycle in the inquiry. Motor data and protection settings should follow the supplied spindle label, applicable operating information and drive instructions rather than a setup copied from another ER32 spindle.

ER32 tooling and manual access

This model uses manual ER32 collet tooling. Choose the actual collet from the tool shank and its marked gripping range. Check the matching nut, nose arrangement and room for tightening and tool removal. ER32 is a family designation, not one cutter diameter or a guarantee of a particular nut thread. State required accessories when requesting the spindle so their applicability can be confirmed.

The tool-change arrangement is different from GDL's ISO or BT taper-and-release architecture. If automatic magazine changes are required, that must be addressed as a separate machine and spindle choice. For this manual configuration, tool projection and wrench access belong in the installation review alongside speed and power. A larger ER interface does not remove the need to check the actual tool and mounted clearance.

A 190 mm support region within a 404.5 mm assembly

The verified dimensions are 125 mm body diameter, 190 mm clamping length and 404.5 mm overall length, with 30 kg listed weight. Use the drawing's references to distinguish support surfaces from the complete envelope. The total assembly is not available clamping length, and the body diameter alone cannot locate the spindle nose in an existing mount.

Check nose position, nut and wrench clearance, rear fittings, service routes and relevant axis travel. The GDK125/5.5-11 lists a similar complete length, but that resemblance does not settle electrical or tooling-hardware fit. The 30,000 rpm GDK125 has a shorter documented support region and separate reference dimensions. Retain exact drawings for each comparison rather than accepting a generic 125 mm mount as proof of installation compatibility.

Match the water circuit to the actual cycle

Water cooling is required for this configuration. Confirm connections and operating requirements with the supplied spindle information and proposed equipment. The 7.5 kW rating does not specify a universal pump size, flow or coolant temperature. Include the planned load cycle and existing water circuit if it is to be reused so the technical discussion can address real cooling conditions.

Review any front-end air-seal service on the applicable drawing separately from water cooling. Do not transfer the 30,000 rpm model's pressure or hose details without confirmation. Plan services around the support region and rear connections, retaining access for fitting and servicing. Similar body size and cooling labels cannot establish identical fittings or service routes throughout machine movement.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

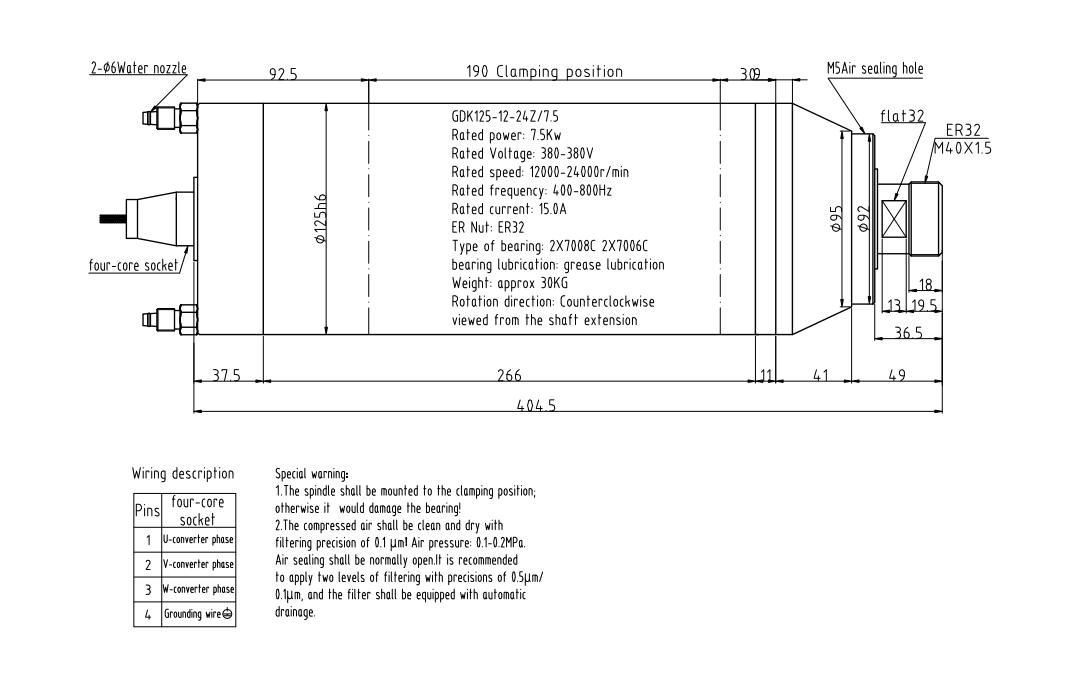

GDK125-12-24Z/7.5 dimensions and specifications drawing
Installation drawing. View the drawing at full size.

Evaluate ER32 and the working-speed region together

This spindle is a candidate when manual ER32 tooling, water cooling and the 12,000–24,000 rpm region match the operation. Start with the required cutter and working speed, then compare operating duty, drive output and the mounting envelope. Investigate the lower-range model when a 9,000 rpm starting point is material to the process, or the 30,000 rpm model when that higher point is specifically required.

For engraving or milling, provide material, tool geometry, shank size, actual duty and machine stiffness. The rated output supports a conditional selection discussion, not guaranteed feed rate, finish or removal capacity. A power designation cannot compensate for a tooling or working-speed mismatch. Where sustained output at one point governs the choice, obtain the relevant operating information before accepting the configuration.

Keep the complete ER32 configuration in view

Provide the current spindle's full model, label, mount drawing and nose/connection photographs. Compare the 125 mm body, 190 mm support region, 404.5 mm assembly and nose references, then the nut hardware, drive relationship, cooling and service requirements. Include the intended load cycle. A shared ER32 designation or close total length does not establish the same electrical setup.

GDK125-30Z/7.5 changes speed, frequency and support-region information. GDK125-9-15Z/5.5-11 changes range and published power-curve conditions. GDK105-21Z/3.5 uses ER20 in a smaller body. The reasons below indicate what to inspect next; they are not accepted substitutions. Ask for availability for an older installation and apply the same complete checklist to any proposed successor.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDK125-12-24Z/7.5Current configuration7.5 kW rated12,000–24,000 rpmER32Water-cooledØ125 mm · 404.5 mm overall · 190 mm clamp
GDK125-30Z/7.57.5 kW rated30,000 rpm ratedER32Water-cooledØ125 mm · 150 mm clamp

Both use a 125 mm body and ER32, but the 30,000 rpm model lists 1,000 Hz and a 150 mm clamp region. This range model lists 12,000–24,000 rpm, 400–800 Hz and a 190 mm clamp region; check operating and support requirements together.

GDK125-9-15Z/5.5-115.5 kW rated9,000–15,000 rpmER32Water-cooledØ125 mm · 405 mm overall · 190 mm clamp

Both have ER32 and a 190 mm clamp region, but GDK125-9-15Z/5.5-11 has a separate 9,000–15,000 rpm curve and S1/S6 conditions. Compare working speed and duty rather than treating its higher conditional output as a substitute rating.

GDK105-21Z/3.53.5 kW rated21,000 rpm ratedER20Water-cooledØ105 mm · 312 mm overall

GDK105 is an ER20 configuration rated at 3.5 kW and 21,000 rpm, with a 105 mm body and 312 mm assembly. Compare cutter size, output requirements and mounting with this 125 mm, 404.5 mm ER32 assembly.

Quote the range model rather than a generic 7.5 kW unit

State GDK125-12-24Z/7.5, quantity and destination country with postal code. Include working speeds, load cycle, drive information and required ER32 collets, accessories or documents. If a different electrical arrangement is required, describe it for confirmation rather than treating the curve endpoints as ordering options. Keep the full range code with the request.

Compare the exact configuration and included scope when reviewing quotations. A price for another 7.5 kW GDK125 may concern the 30,000 rpm assembly, with different drive and mounting requirements. CINKR confirms proposed supply and current availability by email. Retain the applicable drawing and operating information with the quotation so purchasing and installation do not lose the range-model distinction.

  • Winding: confirm the supplied-unit electrical specification
  • Configuration: GDK125-12-24Z/7.5
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the exact range-model drawing and operating information

Open the installation drawing below for the support surfaces, nose references and service locations. Request additional curve, CAD or connection information by GDK125-12-24Z/7.5. A document for another 125 mm spindle can show different support dimensions or frequency requirements despite a similar power and tooling description.

Confirm applicability before using another file to finalize the mount or motor setup. Keep the supplied-unit label, matching drawing and operating information associated with the same quotation. The outline supports dimensional comparison, while the drive and machine procedures are needed for commissioning. State the unresolved question when requesting a document so the technical discussion can identify the information actually needed.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDK125-12-24Z/7.5

Can this model be treated as the 30,000 rpm GDK125?

No. This configuration documents 12,000–24,000 rpm and 400–800 Hz. GDK125-30Z/7.5 is a separate operating point and installation.

Are two winding choices established by the endpoints?

Both reviewed curve endpoints are 380 V. They are operating information, not independently selectable windings or the VFD input supply; confirm the supplied motor configuration.

What drive details matter beyond kW?

Check output voltage, 15 A current requirement, frequency capability and the applicable motor relationship with the intended duty. The drive's input supply is a separate specification.

Is the full 404.5 mm length available for clamping?

No. The documented clamp region is 190 mm. Use the drawing to identify support surfaces and the nose and rear envelope within the complete assembly.

Does a similar ER32 assembly prove a replacement fit?

Compare exact drawings, nut hardware, nose datums, electrical relationship, cooling and services. A shared interface or near-identical total length settles only part of the check.

What should the quotation state?

Include the full range model, quantity, destination, working cycle, drive and required tooling or documents. Add current spindle evidence for a replacement.
