HQD GDZ-27-2 ER20 spindle motor

4.5 kW ratedER20Water-cooled30,000 rpm ratedØ100 mm333.5 mm overall

HQD GDZ-27-2 is a water-cooled manual ER20 spindle rated at 4.5 kW and 30,000 rpm, with 380 V / 9 A and 500 Hz documented. Check its 100 mm body, 158 mm clamp region, 333.5 mm assembly and 14 kg weight against the machine. Retain the -2 code when reviewing the drive and tooling; GDZ-27 has a separate 24,000 rpm point.

Browse the GDZ spindle range →

MODEL SELECTION

Is this the right GDZ-27-2 configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER20 tooling and the documented 4.5 kW / 30,000 rpm configuration.
  • The mount supports the 100 mm body and specified 158 mm clamp region.
  • The drive, tool assembly and water circuit can be assessed for the actual working speeds.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 380 V / 9 A, 30,000 rpm and 500 Hz with the -2 model.
  • The 220 V option listed for GDZ-27 is not an established winding choice here.
  • Check the 333.5 mm assembly, 14 kg weight, support/nose drawing and actual tooling applicability.

COMPARE ALTERNATIVES

Consider another model when:

  • GDZ-27 shares headline body dimensions but uses a 24,000 rpm / 400 Hz point and its own winding choices.
  • GDZ-24-1C changes output and four-pole motor data; GDZ-24-2 changes diameter and support arrangement.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER20 tooling. Power: 4.5 kW rated. Speed: 30,000 rpm rated. Installation dimensions and weight: 100 mm body diameter, 158 mm clamping length, 333.5 mm overall length, 14 kg weight.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)4.5
Rated speed (rpm)30,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Electrical
Spindle winding (V)380
Rated current (A)9
Frequency (Hz)500
Dimensions and weight
Body diameter (mm)100
Overall length (mm)333.5
Clamping length (mm)158
Weight (kg)14
Cooling and feedback
CoolingWater-cooled

30,000 rpm and 500 Hz distinguish the -2 model

The documented point is 4.5 kW at 30,000 rpm with 500 Hz. Keep the complete GDZ-27-2 code with those figures. GDZ-27 shares output and headline outline but lists 24,000 rpm and 400 Hz. A shared assembly length or body diameter does not identify the same operating configuration or establish that the drive and tooling checks can be retained unchanged.

Describe cutter, actual working speeds and load cycle before choosing the spindle. The rated point does not establish full output at every lower speed. Request applicable operating information if sustained work elsewhere matters. Evaluate the intended tooling assembly and machine support for the process rather than treating a higher rated speed as an automatic performance upgrade. Cooling and projection also remain part of selection.

Use the documented 380 V / 9 A and 500 Hz specification

This configuration lists 380 V / 9 A and 500 Hz. Keep the electrical pair with the -2 code and 30,000 rpm point in the quotation. The 220 V option on GDZ-27 is not an established choice for this model. Review drive input supply separately from usable motor-output voltage and current and identify the actual VFD when existing equipment will be retained.

Check output voltage, usable current and the required frequency capability against the supplied-unit nameplate. Use applicable drive instructions for motor parameters and protection. A shared 380 V / 9 A with GDZ-27 does not make its 400 Hz or 24,000 rpm data applicable here. GDZ-24-1C also has different pole and frequency information despite sharing a 100 mm body and ER20 family.

Check the complete ER20 assembly at the working speed

The tooling configuration is manual ER20. Select the collet from its marked gripping range and the actual tool shank, then verify nut and nose hardware for the supplied spindle. ER20 identifies the family rather than one shank size or a complete accessory-thread specification. Include reused accessories and their applicability if retaining existing tooling.

Assess the complete cutter, collet and nut assembly for the intended working speeds; the spindle's 30,000 rpm point does not by itself establish tooling approval. Check wrench access, nut clearance and projection in the mount. If automatic magazine changes are required, evaluate a suitable ATC spindle with its release, support and controls separately. This manual ER20 model does not establish an automatic release mechanism.

Use the 158 mm support and exact -2 drawing

The verified dimensions are a 100 mm body, 158 mm clamp region and 333.5 mm overall assembly, with 14 kg listed weight. Locate support surfaces and nose references on the exact drawing. The full assembly length is not available clamping length. Compare support position, projection and rear clearance with the actual bracket and relevant machine travel.

GDZ-27 shares headline dimensions, but both drawings still need inspection for actual support and connection applicability. GDZ-24-1C uses a 303.5 mm assembly and 138 mm clamp region; GDZ-24-2 also changes diameter to 105 mm. Review cable and hose routing and service access before changing configurations. The outline comparison is one installation check alongside the changed operating and tooling requirements.

Match water services to the supplied unit and cycle

Water cooling is the documented method. Review supplied-unit fittings and applicable circuit requirements with the intended duty and proposed equipment. The 4.5 kW rating does not specify a universal flow, pump or temperature setting. Include existing cooling details if a machine installation will be retained rather than assuming a related water-cooled model establishes the same circuit suitability.

Route hoses and motor cable while preserving support and rear access through machine movement. Confirm extra service details against the supplied drawing and instructions. Another model or speed configuration does not establish identical fitting or pressure data. Keep cooling with the bracket and enclosure review so inspection and maintenance remain practical around the longer assembly and 158 mm support region.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

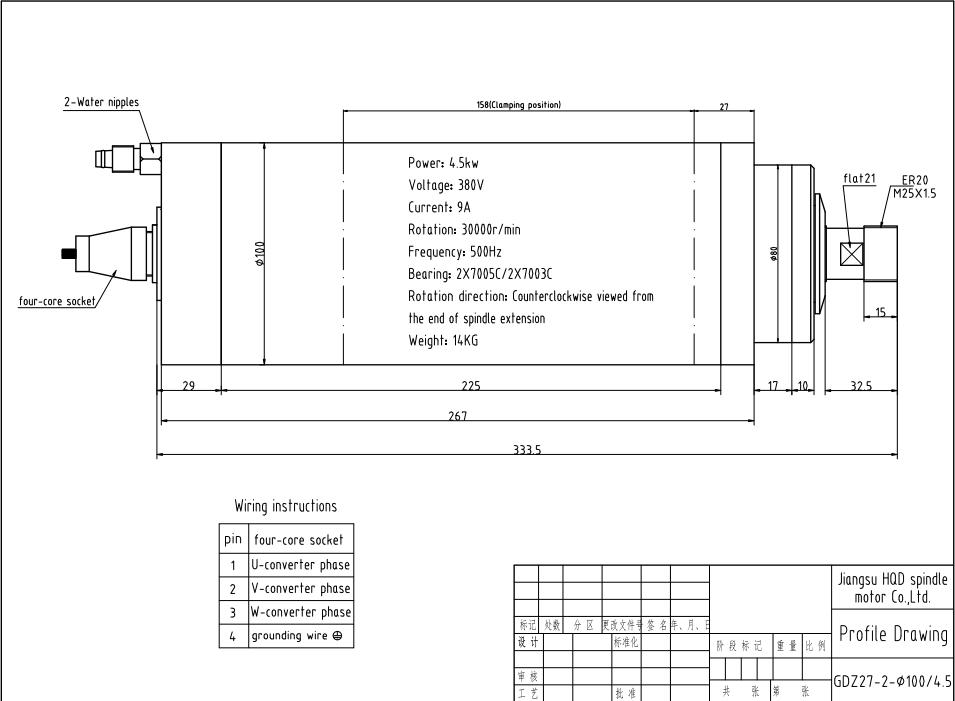

GDZ-27-2 dimensions and specifications drawing
Installation drawing. View the drawing at full size.

Assess the 30,000 rpm configuration against the actual process

GDZ-27-2 is a candidate when manual ER20 tooling, water cooling and the documented point fit the process, and the machine supports its 100 mm body. Begin with cutter and working speeds, then review electrical output, tool assembly, support and cooling. An existing 24,000 rpm setup needs its own assessment before a faster rated spindle is selected.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. Those conditions support a suitability discussion. The motor and outline figures alone cannot promise feed rate or finish. Include drive, bracket and circuit constraints so the technical review considers the full installation rather than treating 30,000 rpm or a 4.5 kW label as a guaranteed performance improvement.

Compare speed and frequency even where dimensions match

Send the existing code, nameplate, drive model, support drawing and clear nose and connection photos. Compare the 100 mm body, 158 mm support, 333.5 mm assembly and nose datum, followed by ER20 hardware, tooling applicability, 380 V / 9 A, 500 Hz capability and water circuit. Keep the -2 code and 30,000 rpm point visible throughout the inquiry.

GDZ-27 shares headline mechanical figures but changes rated speed, frequency and winding choices. GDZ-24-1C changes output, support and motor architecture; GDZ-24-2 changes diameter and electrical pairs. These alternatives identify checks rather than accepted substitutions. For an older unit, confirm availability and apply the complete checklist to a successor, retaining exact drawing and actual supplied-nameplate evidence.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDZ-27-2Current configuration4.5 kW rated30,000 rpm ratedER20Water-cooledØ100 mm · 333.5 mm overall · 158 mm clamp
GDZ-274.5 kW rated24,000 rpm ratedER20Water-cooledØ100 mm · 333.5 mm overall · 158 mm clamp

GDZ-27 shares headline dimensions and rated output but uses 24,000 rpm / 400 Hz with separate 220 V and 380 V winding choices. Compare the actual working speed, tooling and motor data with this 30,000 rpm / 500 Hz model.

GDZ-24-1C3.7 kW rated24,000 rpm ratedER20Water-cooledØ100 mm · 303.5 mm overall · 138 mm clamp

GDZ-24-1C retains a 100 mm body but uses 3.7 kW at 24,000 rpm with four-pole / 800 Hz data and shorter support. Compare operating point, motor architecture and outline rather than choosing by shared ER20.

GDZ-24-23.2 kW rated24,000 rpm ratedER20Water-cooledØ105 mm · 303.5 mm overall · 138 mm clamp

GDZ-24-2 changes to a 105 mm body, 3.2 kW / 24,000 rpm and 303.5 mm assembly with 138 mm support. Compare its winding pairs, mount and working requirement with this 30,000 rpm assembly.

State the -2 and 30,000 rpm configuration explicitly

Request GDZ-27-2 with the documented 380 V / 9 A, 30,000 rpm and 500 Hz specification, quantity and destination country with postal code. List collets, nut, accessories and extra files required. Add the current mount, VFD and cooling evidence for replacement. A request for a “GDZ27 4.5 kW spindle” leaves the operating version unclear.

Compare quotations for the same complete model and included scope. Confirm accessory applicability and outstanding support, drive or connection questions before finalizing installation. CINKR confirms proposed configuration and current availability by email. Retain the exact -2 drawing and supplied electrical information with the quote so purchasing and commissioning refer to the same 30,000 rpm assembly.

  • Winding: confirm the supplied-unit electrical specification
  • Configuration: GDZ-27-2
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Request documents for the complete -2 operating version

Open the full-size installation drawing below to inspect support surfaces, nose geometry and connections. Request additional PDF, CAD or wiring information by exact GDZ-27-2 code with 30,000 rpm and 500 Hz. A GDZ-27 file does not establish this model's electrical applicability simply because output and headline lengths match.

Confirm extra files against the supplied configuration before using them for support or drive parameters. The outline, actual nameplate and service instructions address different installation questions, while drive and machine procedures guide commissioning. State the unresolved mounting, cooling or electrical issue when requesting another document so the technical response addresses the actual requirement.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDZ-27-2

Which rated speed and frequency apply?

GDZ-27-2 lists 30,000 rpm and 500 Hz. Keep them with the full -2 code rather than using GDZ-27's 24,000 rpm / 400 Hz point.

Is a 220 V winding documented here?

This model lists 380 V / 9 A. The 220 V choice on GDZ-27 is not an established option for GDZ-27-2.

What is the clamp region?

It is 158 mm on a 100 mm body. Locate it on the exact drawing rather than treating the 333.5 mm assembly as available support.

Does the spindle rating approve existing tooling at 30,000 rpm?

Review the actual cutter, collet and nut assembly's applicability to working speed, along with projection and mounted access. The spindle point alone does not establish tooling approval.

Do shared GDZ-27 dimensions prove a replacement?

Compare actual support and nose geometry, rated speed, frequency, electrical specification, tooling and water connections using both applicable drawings.

What should a replacement quote include?

Send the complete -2 model and operating specification, quantity, destination and accessories, plus current nameplate, mount, nose, connections, VFD and cooling evidence.
