HQD GDZ-26-3 24,000 rpm configuration · ER11 spindle motor

1.2 kW ratedER11Water-cooled24,000 rpm ratedØ62 mm237 mm overall

24,000 rpm configuration

HQD GDZ-26-3 in this 24,000 rpm configuration is a water-cooled manual ER11 spindle rated at 1.2 kW, with 220 V / 5 A and 400 Hz documented. Compare its 62 mm body, 100 mm clamp region and 237 mm assembly with the machine. Retain the 24,000 rpm qualifier in the drawing, drive and quotation discussion.

Browse the GDZ spindle range →

MODEL SELECTION

Is this the right GDZ-26-3 configuration?

BEST FIT

Choose this configuration if:

  • The process uses the documented 24,000 rpm / 400 Hz configuration with manual ER11 tooling.
  • The machine supports the 62 mm body and specified 100 mm clamp region.
  • The drive and water circuit can support the documented 220 V / 5 A installation.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep the 24,000 rpm configuration qualifier with GDZ-26-3 in every drawing and quotation request.
  • Do not transfer 1.2 kW, 220 V / 5 A or 400 Hz to a 36,000 rpm configuration.
  • Check the 237 mm assembly, 3.7 kg weight, nose position and supplied-unit cooling connections.

COMPARE ALTERNATIVES

Consider another model when:

  • GDZ-18 uses ER11 but changes to a 65 mm body and 1.5 kW rated point.
  • GDZ-26-1 uses ER11B and a shorter assembly; GDZ-18B changes body and tooling to ER16.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER11 tooling. Power: 1.2 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 62 mm body diameter, 100 mm clamping length, 237 mm overall length, 3.7 kg weight.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)1.2
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER11
Tool changeManual tool change
Electrical
Spindle winding (V)220
Rated current (A)5
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)62
Overall length (mm)237
Clamping length (mm)100
Weight (kg)3.7
Cooling and feedback
CoolingWater-cooled

GDZ-26-3: 1.2 kW at 24,000 rpm and 400 Hz

The documented point for this configuration is 1.2 kW at 24,000 rpm with 400 Hz. Keep that qualifier attached to the printed GDZ-26-3 code. The original drawing also refers to another speed version; keep the specified 1.2 kW / 400 Hz point with the 24,000 rpm configuration and do not transfer it to a 36,000 rpm unit.

Describe the cutter, working speeds and load cycle when discussing suitability. The rated point does not establish full output across an assumed lower-speed region. Request applicable operating information if sustained operation elsewhere is decisive. Keep the supplied-unit nameplate and intended configuration in that discussion so a shared printed code does not silently change the operating point used to select the drive or machine arrangement.

Use 220 V / 5 A and 400 Hz for this version

The documented electrical specification is 220 V / 5 A with 400 Hz for the 24,000 rpm configuration. Keep all those values together in the quote and drive review. They do not establish an alternative winding or another speed version. The drive input supply and motor-output capability are separate checks, so identify the VFD model when reusing machine equipment.

Review output voltage, usable current and the required frequency against the actual supplied nameplate. Use the applicable drive instructions for motor parameters and protection. Do not copy this 400 Hz point or its current to a 36,000 rpm unit bearing the same printed model. A complete configuration description is required even where the drawing or nameplate family looks familiar.

Review ER11 accessories with the configuration drawing

The tooling configuration is manual ER11. Match the cutter shank to the chosen collet's marked gripping range, then confirm nut and nose hardware against the supplied spindle. ER11 identifies the family rather than one shank diameter or a complete accessory-thread specification. Include existing accessories if the installation must retain a tooling set.

GDZ-26-1 uses ER11B, so a shared 62 mm body does not establish the same nose hardware. GDZ-18B changes to ER16 and needs its own tooling review. Check wrench access, nut clearance and projection with the spindle mounted. If automatic magazine changes are required, evaluate a suitable ATC spindle and its release, support and controls separately from this manual ER11 configuration.

Locate the 100 mm clamp region on the 62 mm body

The verified dimensions are a 62 mm body, 100 mm clamp region and 237 mm overall assembly, with 3.7 kg listed weight. Use the exact drawing to locate the permitted support surfaces and nose references. The full assembly length is not available clamp length. Match the support position and tool projection to the current bracket and machine travel.

Review rear fittings, cable and hose access and service clearance in the proposed position. GDZ-18 uses a 65 mm body and 235.5 mm assembly, while GDZ-26-1 uses the same nominal diameter but a much shorter 188.5 mm assembly and another nose designation. Compare both exact drawings before changing models. Retain the speed-configuration qualifier when requesting an additional outline for the supplied unit.

Confirm the water circuit for the supplied 24,000 rpm unit

Water cooling is the documented method. Review supplied-unit fitting and circuit requirements with the intended duty and proposed cooling equipment. The 1.2 kW figure does not specify a universal flow, temperature or pump setting. Include the existing circuit details if the machine's cooling installation will be retained.

Route hoses and motor cable while preserving support and connection access through machine movement. Confirm additional service requirements against the supplied configuration's drawing and instructions. Another GDZ model or speed version does not establish identical fittings or cooling settings. Keep the cooling review with the mount and enclosure discussion so inspection and maintenance remain practical around the 100 mm support region.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

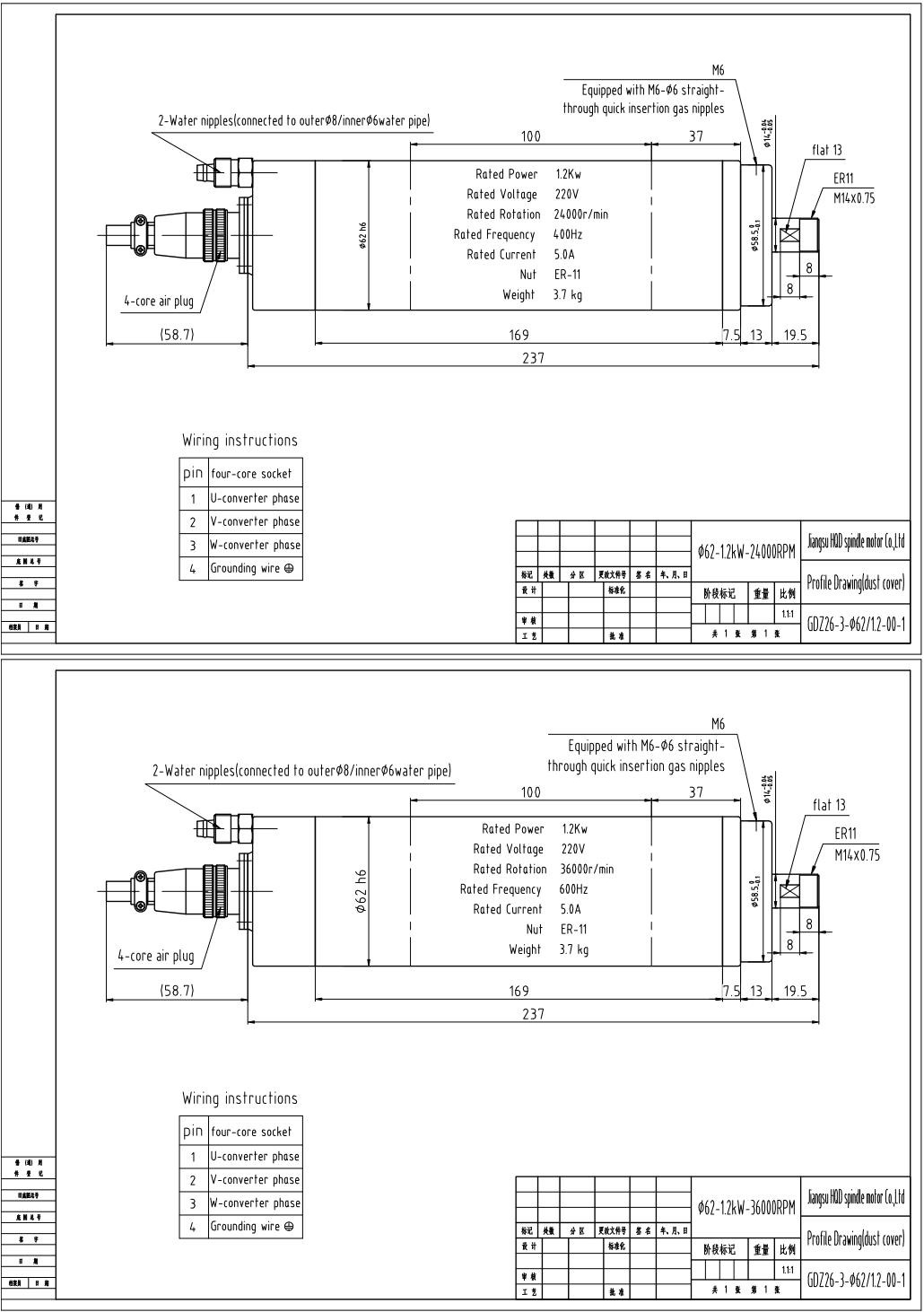

GDZ-26-3 24,000 rpm configuration dimensions and specifications drawing
Installation drawing. View the drawing at full size. The drawing also shows a 36,000 rpm version; the spindle shown here is the 24,000 rpm / 400 Hz version.

Assess the ER11 process at the stated configuration

GDZ-26-3 at 24,000 rpm is a candidate when manual ER11 tooling, water cooling and the documented point fit the process, and the machine supports its 62 mm body. Begin with cutter and working speed, then review electrical output, support and cooling. If a different speed version is required, request its own configuration information and confirm its own speed, frequency and electrical specification before selecting a drive or planning a replacement.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. These conditions support a suitability discussion. The motor and outline figures alone cannot promise feed rate or surface finish. Include bracket and circuit constraints and retain the intended speed version so the review considers the actual machine and supplied configuration.

Keep speed version with the mechanical and electrical comparison

Send the existing code, speed-configuration description, clear nameplate, support drawing and nose and connection photos. Compare the 62 mm body, 100 mm clamp region, 237 mm assembly and nose datum, followed by ER11 hardware, 220 V / 5 A, 400 Hz drive output and water circuit. A shared GDZ-26-3 code leaves the speed version unresolved.

GDZ-18 changes body diameter and rated output, GDZ-26-1 changes nose and assembly and has conflicting electrical markings, and GDZ-18B changes to ER16 and a 65 mm body. These comparisons identify checks rather than accepted substitutions. For an older unit, confirm current availability and apply the complete checklist to a successor, retaining the applicable supplied-unit nameplate and speed-version evidence.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDZ-26-3 24,000 rpm configurationCurrent configuration1.2 kW rated24,000 rpm ratedER11Water-cooled24,000 rpm configuration · Ø62 mm · 237 mm overall · 100 mm clamp
GDZ-181.5 kW rated24,000 rpm ratedER11Water-cooledØ65 mm · 235.5 mm overall

GDZ-18 uses ER11 at 1.5 kW with a 65 mm body and 235.5 mm assembly. Compare support and working requirements with this 62 mm, 1.2 kW model while retaining the 24,000 rpm configuration qualifier.

GDZ-26-10.8 kW rated24,000 rpm ratedER11BWater-cooledØ62 mm · 188.5 mm overall

GDZ-26-1 shares a 62 mm body but uses ER11B and a shorter 188.5 mm assembly with conflicting electrical markings. Compare the nose and actual supplied-unit evidence rather than transferring this model’s 100 mm support or 5 A.

GDZ-18B1.5 kW rated24,000 rpm ratedER16Water-cooledØ65 mm · 254.5 mm overall · 110 mm clamp

GDZ-18B changes to ER16 and a 65 mm body with a 254.5 mm assembly and 110 mm clamp region. Review tooling and support alongside the rated-output difference, keeping this model’s speed version explicit.

Include 24,000 rpm in the quotation request

Request GDZ-26-3 — 24,000 rpm configuration — with the documented 220 V / 5 A specification, quantity and destination country with postal code. List collets, nut, accessories and extra files required. Add the current mount, VFD and cooling evidence for replacement. The printed code alone is insufficient to distinguish the required speed version.

Compare quotations for the same complete speed configuration and included scope. Confirm accessory applicability and outstanding support or connection details before finalizing installation. CINKR confirms proposed configuration and current availability by email. Keep the exact drawing, applicable nameplate and electrical information with the quote so purchasing and commissioning refer to the same 24,000 rpm assembly.

  • Winding: confirm the supplied-unit electrical specification
  • Configuration: 24,000 rpm configuration
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Retain the speed qualifier when reviewing the drawing

Open the full-size installation drawing below to inspect support, nose and connection layout. The drawing includes information for more than one speed version, so keep the 24,000 rpm / 400 Hz configuration visible when interpreting electrical data. Request additional PDF, CAD or wiring information by complete model and intended speed version.

Confirm extra files against the supplied configuration before using them for support or drive parameters. A general GDZ-26-3 heading does not resolve speed-version applicability. The outline, actual nameplate and service instructions answer different questions, while the drive and machine procedures guide commissioning. State the unresolved mechanical, cooling or electrical issue when requesting another document.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDZ-26-3

Which speed configuration is specified for this GDZ-26-3?

It describes the 24,000 rpm / 400 Hz configuration, rated at 1.2 kW with 220 V / 5 A. Retain that qualifier in the inquiry and drive review.

Can these electrical figures be used for a 36,000 rpm unit?

Request that version's applicable data and nameplate. This page's 1.2 kW, 220 V / 5 A and 400 Hz figures belong to the 24,000 rpm configuration.

What is the documented clamp region?

It is 100 mm on a 62 mm body. Use its location on the drawing rather than treating the 237 mm assembly as available support.

Is the nose the same as GDZ-26-1?

This configuration uses ER11; GDZ-26-1 is designated ER11B. Compare the exact nose and accessory applicability as well as assembly dimensions.

Does a shared model code settle a replacement?

Compare the actual speed version, nameplate, support, nose, tooling, electrical output and cooling with both applicable drawings.

What should the quote request include?

State GDZ-26-3 with 24,000 rpm configuration, electrical specification, quantity, destination and accessories. Add existing nameplate, mount, connections, drive and cooling evidence for replacement.

REQUEST A QUOTE

Request a quote for GDZ-26-3

Include the winding, quantity and installation details for this configuration. Unknown technical details can be left blank.

Useful details to have ready
  • Exact code and readable nameplate
  • Mounting dimensions and available clearance
  • Tool interface and required speed
  • Drive output, cooling and ATC connections

Attach photographs or drawings in your email application.

Machine and technical details (optional)
Review your inquiry
Include your spindle model, machine requirements and questions in your email.
Open email

Open your email application to review and send the inquiry, or copy the text into a message to info@cinkr.com. Quotes and availability are confirmed by email.
