HQD GDF80-24Z/1.5 ER11 spindle motor

1.5 kW ratedER11Air-cooled24,000 rpm ratedØ80 mm256.5 mm overall

HQD GDF80-24Z/1.5 is an air-cooled manual ER11 spindle rated at 1.5 kW and 24,000 rpm. Compare the 80 mm body, 256.5 mm assembly and 4 kg weight with the machine. Select 220 V / 5.6 A or 380 V / 3 A, then check the 400 Hz drive and cooling path; the downloadable PDF is labeled for 220 V.

Browse the GDF spindle range →

MODEL SELECTION

Is this the right GDF80-24Z/1.5 configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER11 tooling at the documented 1.5 kW / 24,000 rpm point.
  • The machine supports the 80 mm body and accommodates the 256.5 mm assembly.
  • The selected winding and applicable air-cooling path can be integrated with the machine.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 5.6 A and 380 V / 3 A as complete separate winding pairs.
  • Check actual support surfaces, nose position, 4 kg weight and 400 Hz drive capability.
  • The downloadable file applies to 220 V; the 2.2 kW GDF80 models change tooling families.

COMPARE ALTERNATIVES

Consider another model when:

  • GDF65/0.8 shares ER11 but uses a 65 mm body, another assembly and lower rated output.
  • GDF80/2.2 uses ER16; GDF80/2.2B uses ER20 with a documented 125 mm clamp region.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This air-cooled spindle uses ER11 tooling. Power: 1.5 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 80 mm body diameter, 256.5 mm overall length, 4 kg weight. Winding options: 220 V / 5.6 A or 380 V / 3 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)1.5
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER11
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)80
Overall length (mm)256.5
Weight (kg)4
Cooling and feedback
CoolingAir-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 5.6 A
  • 380 V · 3 A

1.5 kW and ER11 on the 80 mm GDF

The documented rated point is 1.5 kW at 24,000 rpm, with 400 Hz listed. Keep that point with GDF80-24Z/1.5. The smaller GDF65/0.8 shares ER11 and rated speed but changes body diameter, assembly and electrical pairs. The 2.2 kW GDF80 versions also change tooling, so selecting a model requires more than comparing a power figure.

Describe the actual working speeds, cutter and load cycle before choosing the spindle. The rated figures do not establish full output at every lower speed. Request applicable operating information if sustained work away from the rated point is central to the process. Tool projection, machine stiffness and cooling remain part of the assessment even when 1.5 kW and ER11 appear to match an existing unit.

Select the pair and keep PDF applicability visible

The winding choices are 220 V / 5.6 A and 380 V / 3 A. They describe separate supplied motor configurations. Choose one complete pair and keep it with the exact model in the quote. A list of choices does not establish that one unit accepts both voltages. Review VFD input supply separately from the voltage and current it can deliver to the motor.

Check output voltage, usable output current and 400 Hz capability, and include the drive model if existing equipment will be retained. Use the supplied-unit label and applicable drive instructions for parameters and protection. The PDF below applies to the 220 V winding; request applicable 380 V information when needed. Do not copy currents from the adjacent 2.2 kW GDF80 merely because its diameter is also 80 mm.

Retain ER11 rather than assuming all GDF80 tooling matches

This model uses manual ER11 tooling. Select the collet using its marked gripping range and the actual cutter shank, then verify nut and nose hardware against the supplied spindle. ER11 identifies the tooling family, not one shank diameter or a complete specification for every accessory thread. Include existing accessory details if the tooling set must be retained.

GDF80-24Z/2.2 uses ER16 and the B-suffix version uses ER20. A power increase therefore requires a tooling review as well as mounting and drive checks. Check wrench clearance, nut access and cutter projection in the proposed installation. If automatic magazine changes are required, evaluate a suitable ATC spindle and its release services, support and controls separately from this manual ER11 arrangement.

Compare the support and 256.5 mm envelope

The verified body diameter is 80 mm, overall assembly length 256.5 mm and listed weight 4 kg. Use the exact drawing to identify support surfaces and nose references. Overall length is not a clamp-length specification, and the common 80 mm body does not establish identical support geometry for every GDF80 configuration.

Review the current bracket, nose position, cutter projection, rear clearance and cable/service access. The ER16 2.2 kW model lists 263.5 mm overall, while ER20 /2.2B lists 269.5 mm with a 125 mm clamp region. Compare their drawings if upgrading output or tooling. The assembly and nose differences need to be located in the actual machine rather than inferred from the shared diameter.

Review air cooling around the bracket and enclosure

Air cooling is the documented method. Check the supplied cooling arrangement and enclosure layout with the intended duty. Preserve the applicable air path and access to service areas. The 1.5 kW rating does not establish a universal clearance, temperature or enclosure setting, so provide any confined installation details when cooling constrains the selection.

Consider how brackets, guards and nearby equipment affect the relevant openings. Follow applicable service information and account for the work environment. Changing from a water-cooled spindle requires an assessment of the new cooling architecture, rather than treating removal of hoses as the full installation change. Route the motor cable while keeping fixing, cooling and tooling access available for maintenance.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Allow unobstructed cooling airflow and confirm any fan wiring.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

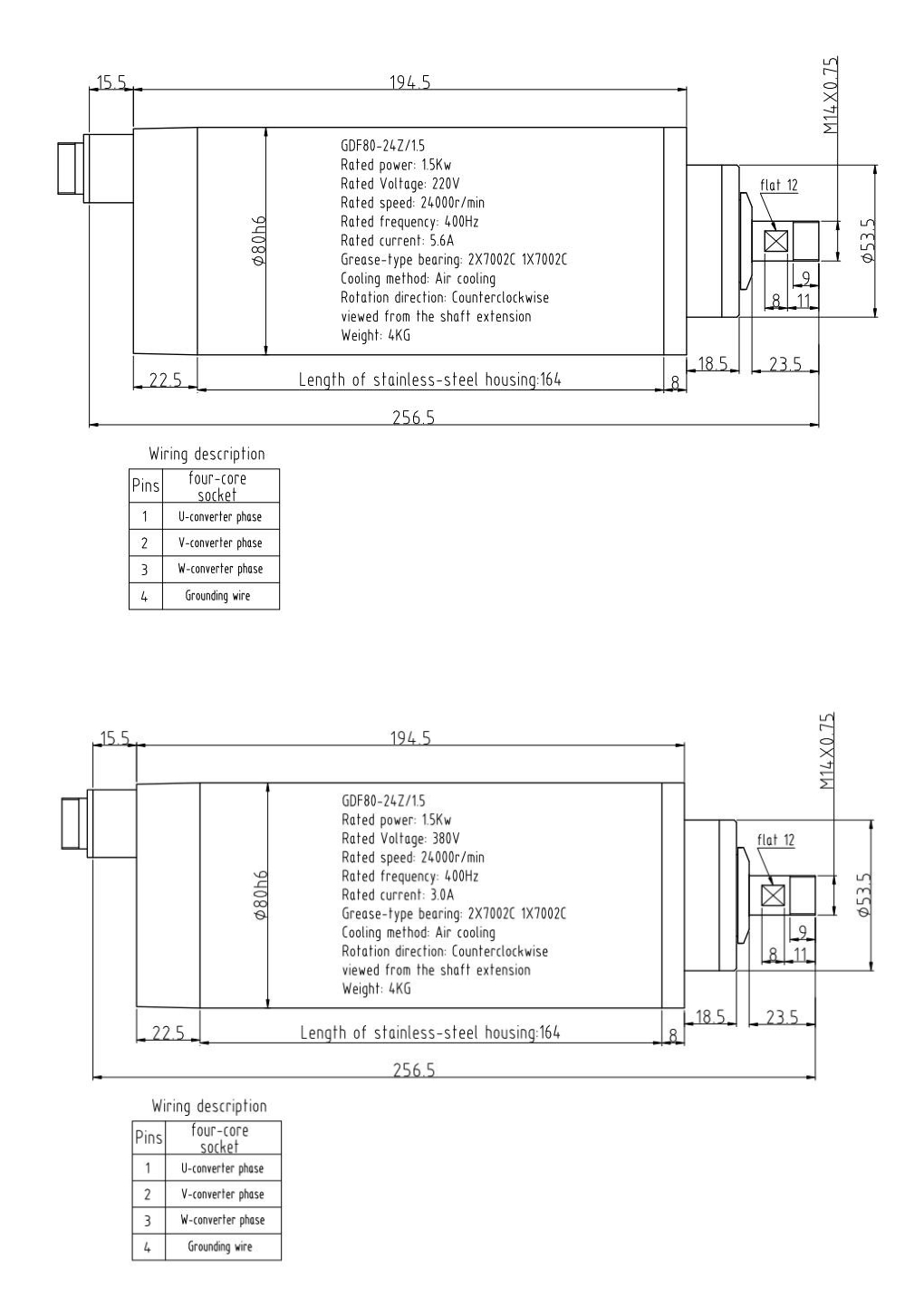

GDF80-24Z/1.5 dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 5.6 A; 380 V / 3 A. Match the block or PDF for the winding you intend to order. View the drawing at full size. Choose the PDF labeled for your configuration below.

Evaluate the ER11 cutter and actual cycle

GDF80-24Z/1.5 is a candidate when manual ER11 tooling, air cooling and the documented operating point fit the process, and the machine supports the 80 mm body. Begin with the cutter and working speeds, then assess the selected winding, drive, mount and airflow. A larger tool or changed operating load may require another comparison rather than a simple increase in the power label.

For engraving or milling, provide material, cutter geometry, shank diameter, projection and load cycle. Those conditions support a suitability discussion, not a promised feed rate or surface finish. Include machine stiffness and enclosure constraints as well. Matching the electrical pair leaves tooling performance and the support/cooling arrangement as separate requirements of the actual machine.

A common GDF80 body does not preserve ER11 automatically

Send the current code, nameplate, bracket drawing and clear nose and connection photos. Compare support surfaces, nose datum, 256.5 mm assembly and ER11 hardware, followed by the winding, VFD output and cooling path. A shared 80 mm diameter or 24,000 rpm label leaves the tooling and installation details unresolved.

GDF65/0.8 retains ER11 but changes body diameter, output, length and currents. The 2.2 kW GDF80 options use different tooling families and assemblies. These comparisons identify specific design differences rather than approved substitutions. For an older unit, request current availability and retain the same complete checklist when a successor is proposed, including exact drawing and supplied-winding evidence.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDF80-24Z/1.5Current configuration1.5 kW rated24,000 rpm ratedER11Air-cooledØ80 mm · 256.5 mm overall
GDF65-24Z/0.80.8 kW rated24,000 rpm ratedER11Air-cooledØ65 mm · 245 mm overall

GDF65/0.8 retains ER11 but uses a 65 mm body, 245 mm assembly and lower rated output with different winding currents. Compare the mount and process with this 80 mm, 256.5 mm configuration.

GDF80-24Z/2.22.2 kW rated24,000 rpm ratedER16Air-cooledØ80 mm · 263.5 mm overall

GDF80/2.2 changes ER11 to ER16 and assembly length from 256.5 mm to 263.5 mm, with different rated output and current pairs. A common 80 mm diameter leaves tooling, support and drive checks open.

GDF80-24Z/2.2B2.2 kW rated24,000 rpm ratedER20Air-cooledØ80 mm · 269.5 mm overall · 125 mm clamp

GDF80/2.2B uses ER20, a 269.5 mm assembly and documented 125 mm clamp region. Compare the tooling and support drawing along with rated output and winding currents before changing from this ER11 model.

Request the 1.5 kW ER11 configuration explicitly

State GDF80-24Z/1.5 with 220 V / 5.6 A or 380 V / 3 A, quantity and destination country with postal code. List collets, nut, accessories and additional files needed. Include the existing mount and VFD for replacement. A request for a GDF80 spindle without output and tooling details can refer to several different assemblies.

Compare quotations for the same winding and included scope. Confirm accessory applicability and unresolved support or cooling questions before finalizing the machine installation. CINKR confirms the proposed configuration and current availability by email. Keep the applicable drawing, selected winding and any extra 380 V information with the quote so purchasing and installation refer to the same ER11 spindle.

  • Winding: 220 V / 5.6 A or 380 V / 3 A
  • Configuration: GDF80-24Z/1.5
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the 220 V PDF within its labeled scope

The PDF below contains dimensions, specifications and wiring for the 220 V GDF80-24Z/1.5 configuration. Read its applicability label before using electrical details. The separate 380 V winding specified for this model does not change the file's stated scope; request applicable additional information when needed for that order. Confirm the supplied 380 V unit’s wiring and rated current independently before configuring the drive.

Open the full-size drawing to inspect support and nose references. Check additional PDF or CAD files against the exact model and winding before using them for an interface or drive setting. The outline, supplied-unit label and service instructions answer different questions, while the drive and machine procedures guide commissioning. Describe the unresolved installation issue when requesting another file.

DOWNLOADS

Files for this configuration.

PDF · 588 KB

Dimensions, specifications and wiring

GDF80-24Z/1.5 · 220 V winding

English

Download PDF

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDF80-24Z/1.5

Which tooling family does the 1.5 kW GDF80 use?

This configuration uses manual ER11. GDF80/2.2 uses ER16, and /2.2B uses ER20; a power change requires a tooling review.

Which winding pairs are listed?

Select 220 V / 5.6 A or 380 V / 3 A as a complete supplied configuration and retain it in the quotation and drive check.

Does the PDF cover both winding options?

Its applicability label specifies 220 V. Request corresponding 380 V information when it is needed for the supplied configuration.

Is every 80 mm GDF the same length?

This model lists 256.5 mm overall. The ER16 2.2 kW model lists 263.5 mm, and the ER20 B version 269.5 mm; compare the exact support and nose drawings.

Does air cooling remove installation checks?

Review the applicable air path, bracket and enclosure with the intended duty and supplied service instructions. Cooling still needs to suit the actual machine.

What belongs in a replacement inquiry?

Send the model, winding, quantity, destination, accessories and document needs, plus existing nameplate, mount, nose, connection and VFD evidence.
