HQD GDK105-21Z/3.5 ER20 spindle motor

3.5 kW ratedER20Water-cooled21,000 rpm ratedØ105 mm312 mm overall

HQD GDK105-21Z/3.5 is a water-cooled ER20 spindle rated at 3.5 kW and 21,000 rpm. It has a 105 mm body and 312 mm overall assembly, with separate 220 V / 12.1 A and 380 V / 7 A winding choices. Check that operating point, actual mounting region and nose hardware with the machine before comparing it with a GDK range model.

Browse the GDK spindle range →

MODEL SELECTION

Is this the right GDK105-21Z/3.5 configuration?

BEST FIT

Choose this configuration if:

  • The process needs the documented 21,000 rpm operating point with manual ER20 tooling.
  • The mount and moving axis can accommodate the 105 mm body, 312 mm assembly and 12 kg spindle.
  • Water cooling and a drive matching the selected winding and 350 Hz point can be provided.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 12.1 A and 380 V / 7 A as separate electrical pairs.
  • Check permitted support surfaces, nose position and rear fittings from the actual drawing; no clamp length is inferred from total length.
  • Compare the cutter's collet and nut arrangement, cooling circuit and any front-end service requirements for the supplied unit.

COMPARE ALTERNATIVES

Consider another model when:

  • GDK100-24Z/3.2 changes to a 100 mm body and a 24,000 rpm point, with its own nose-hardware confirmation.
  • GDK105-9-21Z/2.2-5.0 shares the body diameter but has a different 344 mm assembly and operating-curve description.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER20 tooling. Power: 3.5 kW rated. Speed: 21,000 rpm rated. Installation dimensions and weight: 105 mm body diameter, 312 mm overall length, 12 kg weight. Winding options: 220 V / 12.1 A or 380 V / 7 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)3.5
Rated speed (rpm)21,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Electrical
Frequency (Hz)350
Dimensions and weight
Body diameter (mm)105
Overall length (mm)312
Weight (kg)12
Cooling and feedback
CoolingWater-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 12.1 A
  • 380 V · 7 A

3.5 kW at 21,000 rpm and 350 Hz

The reviewed operating point is 3.5 kW at 21,000 rpm with 350 Hz listed. Keep those values together when checking the motor output required from the drive. They distinguish this fixed-point configuration from the GDK105-9-21Z/2.2-5.0 range model, which has its own U/f and duty-curve information. A shared 105 mm body does not make the electrical descriptions interchangeable.

Describe the working speeds and load cycle the process actually uses. The rated point does not establish full output across an assumed lower-speed region. If sustained cutting at another speed is required, ask for the applicable operating information before choosing the spindle or reusing a drive. The 21,000 rpm point can be useful for comparing the machine requirement, but it is not a guarantee of a particular cutting result from the 3.5 kW headline.

Select 220 V / 12.1 A or 380 V / 7 A

The two documented winding choices are distinct motor configurations. Select one complete voltage/current pair, then compare it with the VFD output. The machine's mains supply and the drive's input rating are separate from the motor winding. A spindle ordered for one pair should not be treated as automatically accepting the other voltage; confirm the selected winding against the supplied-unit nameplate before connecting the drive.

Check the actual drive's output voltage, continuous current and 350 Hz capability. Include its model and output specifications when requesting a reuse check. Nominal drive power alone is insufficient if current or frequency capability differs. Use the supplied-unit label and applicable drive instructions when setting motor data and protection; 7 A belongs with the 380 V winding and must not replace the 12.1 A requirement of the 220 V configuration.

The range model's 249–380 V curve relationship is not a third winding option for GDK105-21Z/3.5. Retain the exact “21Z/3.5” code and chosen electrical pair in the quotation and documents. If the old unit's winding is uncertain, provide its nameplate and existing drive information rather than guessing from a similar housing or the supply voltage available at the machine.

Manual ER20 tooling and accessory fit

This configuration uses manual ER20 collet tooling. Choose the actual collet by the cutter's shank and the collet's marked gripping range. Check the nut, nose arrangement, tool projection and wrench access in the proposed mounting position. ER20 identifies a tooling family; it does not establish one supported shank diameter or every nose-thread and nut dimension.

Keep accessory information with the exact supplied spindle. A nut used on GDK100 or another ER20 unit is not sufficient evidence of fit here. Ask for confirmation if tooling hardware will be reused. This manual configuration also differs from the ISO/BT taper-and-release architecture of GDL ATC spindles. If automatic changes are required, that needs a separate spindle and machine-integration decision rather than an accessory assumption based on power or body size.

Read the 312 mm assembly and actual support surfaces

The verified dimensions list a 105 mm body diameter and 312 mm overall length, with 12 kg weight. Use the drawing to identify the support surfaces, nose datum and rear connection area. A numerical clamp length is not inferred here from the total length or from another GDK105 drawing. The overall assembly describes the envelope, while permitted support needs the exact mounting information.

The GDK105 range model lists a 344 mm assembly and different support information despite sharing the 105 mm diameter. Compare both drawings before expecting the nose or rear services to occupy the same position. Check tool and nut clearance, wrench access, service routes and relevant axis travel. A housing that fits the clamp can still leave a changed working position or connection area that needs attention before installation.

Check the water circuit for the supplied configuration

GDK105-21Z/3.5 is water cooled. Confirm the supplied spindle's connections and operating requirements against the proposed cooling equipment and production duty. The 3.5 kW rating does not establish a universal pump, flow or coolant temperature. Provide the old circuit details if it will be retained so the installation can be assessed from actual equipment rather than a common cooling label.

Review any front-end air-seal service separately, using the applicable drawing and supplied-unit information. Do not transfer a pressure setting from another GDK without checking it. Route water, air where required and electrical services with the support region and rear fittings in view. Check access for fitting, servicing and machine movement, and include connection photos if the current installation documents are incomplete.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

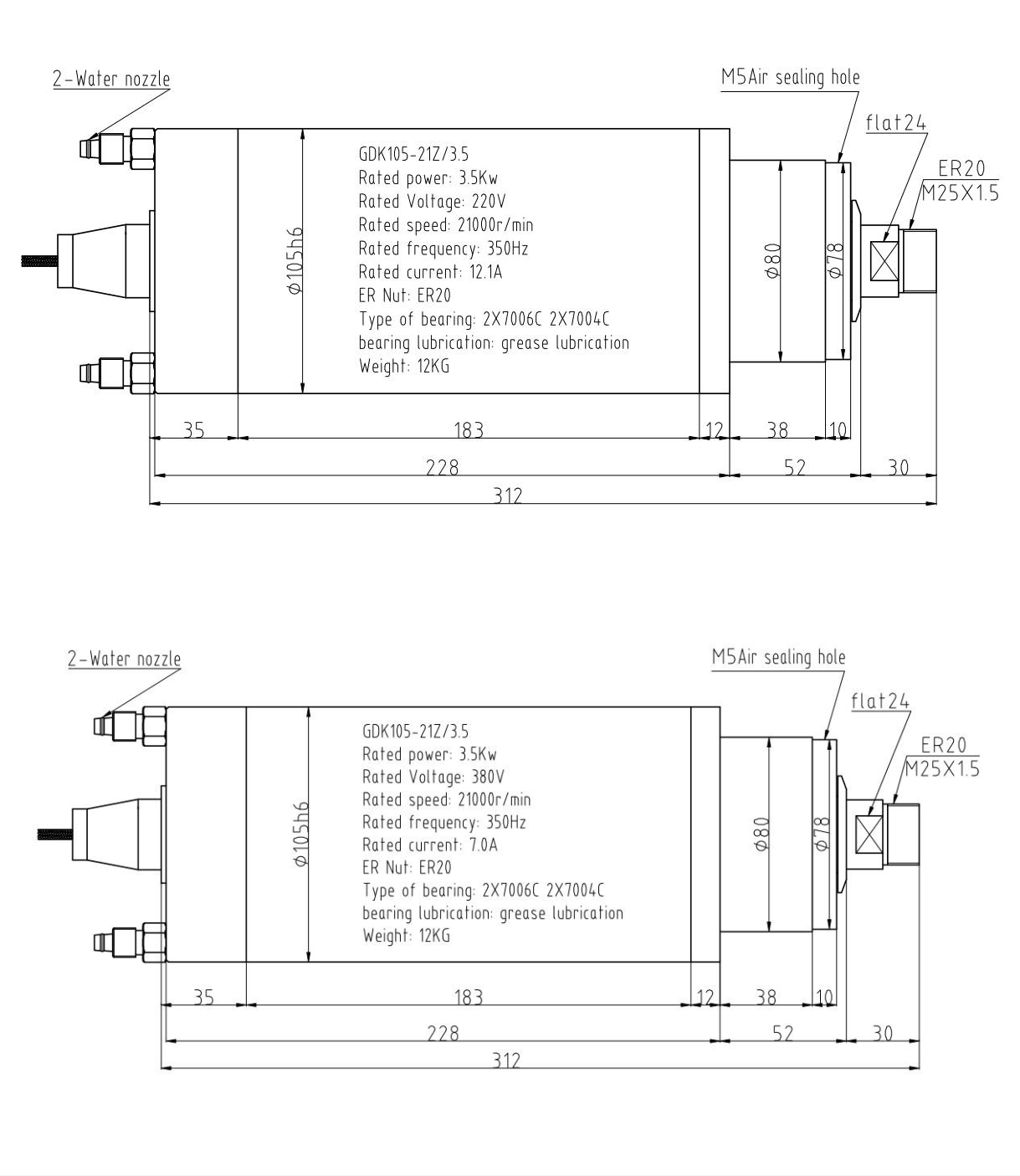

GDK105-21Z/3.5 dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 12.1 A; 380 V / 7 A. Match the block or PDF for the winding you intend to order. View the drawing at full size.

Choose the 21,000 rpm point for the actual operation

Evaluate this model when manual ER20 tooling, water cooling and the documented 21,000 rpm point match the process requirement. Compare the cutter and working speed first, then assess the winding, drive and mounting. If the operation needs a broader lower-speed region, investigate the range model with its own graph and duty conditions rather than treating that information as an undocumented capability of this fixed-point spindle.

For engraving or milling, include material, cutter geometry, shank size, normal speed, load cycle and machine stiffness. The facts support a conditional selection discussion, not guaranteed feed rate, finish or production capacity. A higher rated-power number or a shared ER20 family cannot establish the result without the rest of the machine and cutting information. Include any uncertain accessory or cooling requirement before the quotation is accepted.

Similar GDK names can hide different assemblies

Provide the current spindle code, readable winding label, mount drawing and photographs of the nose and services. Compare the 105 mm body, 312 mm assembly, actual support surfaces and nose datum, then the collet/nut arrangement, drive output, cooling and connections. Keep the selected winding explicit. A shared diameter or ER20 interface does not establish the same complete mounting or electrical arrangement.

GDK100-24Z/3.2 changes the body and rated speed, while GDK105-9-21Z/2.2-5.0 changes assembly length and operating-curve description. GDK100-12-24Z/2.2-4.4 uses another range and frequency relationship. Read the comparison reasons as guidance to separate configurations, not accepted replacement conclusions. Ask for current availability for an older unit and check any proposed successor against the same complete mechanical and electrical evidence.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDK105-21Z/3.5Current configuration3.5 kW rated21,000 rpm ratedER20Water-cooledØ105 mm · 312 mm overall
GDK100-24Z/3.23.2 kW rated24,000 rpm ratedER20Water-cooledØ100 mm · 295 mm overall · 140 mm clamp

Compare 3.2 kW at 24,000 rpm in a 100 mm body and 295 mm assembly; the GDK100 nose/nut detail also needs supplied-unit confirmation.

GDK105-9-21Z/2.2-5.02.2 kW rated9,000–21,000 rpmER20Water-cooledØ105 mm · 344 mm overall · 155 mm clamp

Retain the 105 mm diameter but compare a 9,000–21,000 rpm range, 2.2 kW rated output and 344 mm assembly instead of this fixed-point 312 mm unit.

GDK100-12-24Z/2.2-4.42.2 kW rated12,000–24,000 rpmER20Water-cooledØ100 mm · 295 mm overall · 140 mm clamp

Compare a 100 mm body and 12,000–24,000 rpm range with a 400–800 Hz U/f relationship against this 105 mm, 21,000 rpm point at 350 Hz.

Quote the fixed-point model and selected winding

Include GDK105-21Z/3.5, the chosen 220 V / 12.1 A or 380 V / 7 A winding, quantity and destination country with postal code. List the required collets, accessories and technical documents. Describe the old spindle and drive if this is a replacement. A request for “GDK105 ER20” leaves a different range model under the same body-size reference.

Compare quotations for the same exact model, electrical pair and supply scope. Check which accessories and documents are included and identify any installation requirement that still needs confirmation. Request a quotation for the selected winding, quantity, destination and accessories. CINKR confirms the proposed configuration, price and current availability by email. Keep the agreed drawing and winding with the quotation so purchasing and installation continue to refer to the same 21,000 rpm configuration.

  • Winding: 220 V / 12.1 A or 380 V / 7 A
  • Configuration: GDK105-21Z/3.5
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Keep the drawing with the selected electrical pair

The full-size installation drawing below supports the body, overall assembly and connection review. Request any additional PDF, CAD, winding or connection document by the exact GDK105-21Z/3.5 model and intended electrical pair. A file for GDK105-9-21Z/2.2-5.0 may describe different dimensions and operating information and should not silently replace it.

Confirm applicability before using additional documents to establish the mount, motor settings or service connections. The supplied-unit label and drive instructions are needed for commissioning, while the outline helps compare the mechanical installation. Retain the same model and winding across the quotation, documents and installation discussion so a shared 105 mm housing does not obscure the separate configurations.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDK105-21Z/3.5

Is this the GDK105 range model?

No. GDK105-21Z/3.5 lists a 3.5 kW, 21,000 rpm point at 350 Hz. GDK105-9-21Z/2.2-5.0 has a separate range, curve and 344 mm assembly.

Which current belongs to each voltage?

The documented winding pairs are 220 V / 12.1 A and 380 V / 7 A. Keep the chosen pair together in the inquiry, drive check and supplied-unit documents.

What clamp length is established here?

The reviewed facts list 105 mm body and 312 mm overall length. Use the exact drawing to check support surfaces; no clamp length is inferred from the total or another GDK105 model.

Can I reuse another ER20 collet nut?

Confirm the nose and nut arrangement for the supplied spindle. ER20 identifies a collet family and does not establish every accessory thread or clearance dimension.

Is a 105 mm mount enough to confirm replacement fit?

It establishes only a body-size check. Compare nose datum, support surfaces, complete assembly, tooling hardware, winding, drive output, cooling and services.

What should the price inquiry include?

State the full model, winding, quantity, destination and required accessories or documents. For replacement, include the old nameplate, mount drawing and nose/connection photos.
