HQD GDZ-18-2 ER11B spindle motor

0.8 kW ratedER11BWater-cooled24,000 rpm ratedØ65 mm224 mm overall

HQD GDZ-18-2 is a water-cooled manual ER11B spindle rated at 0.8 kW and 24,000 rpm, with 220 V / 3.5 A documented. Check the 65 mm body, 224 mm assembly and 4.5 kg weight against the mount. Retain the -2 code and ER11B nose when comparing GDZ-18 or GDZ-18B, then review the 400 Hz drive and water connections.

Browse the GDZ spindle range →

MODEL SELECTION

Is this the right GDZ-18-2 configuration?

BEST FIT

Choose this configuration if:

  • The process uses the documented manual ER11B configuration at 24,000 rpm.
  • The machine supports the 65 mm body and accommodates the 224 mm assembly.
  • The drive and water circuit can support the documented 220 V / 3.5 A configuration.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep the -2 model code and ER11B designation with the drawing and accessory request.
  • The documented point is 0.8 kW and 400 Hz, distinct from the 1.5 kW GDZ-18.
  • Use the exact support and nose drawing; overall length does not establish clamp length.

COMPARE ALTERNATIVES

Consider another model when:

  • GDZ-26-1 uses a 62 mm body and shorter assembly, with its own supplied-unit electrical checks.
  • GDZ-18 uses ER11 at 1.5 kW; GDZ-18B uses ER16 and another support region.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER11B tooling. Power: 0.8 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 65 mm body diameter, 224 mm overall length, 4.5 kg weight.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)0.8
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER11B
Tool changeManual tool change
Electrical
Spindle winding (V)220
Rated current (A)3.5
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)65
Overall length (mm)224
Weight (kg)4.5
Cooling and feedback
CoolingWater-cooled

0.8 kW on the -2 configuration

The documented rated point is 0.8 kW at 24,000 rpm, with 400 Hz listed. Keep the -2 suffix attached to GDZ-18 when choosing the spindle. GDZ-18 and GDZ-18B list 1.5 kW and different noses, so a shortened inquiry description can change the configuration even where the body diameter is similar.

Describe the intended working speeds, cutter and load cycle before choosing the unit. The rated figures do not establish full output at every lower speed. Request applicable operating information if sustained work away from the rated point is decisive. The smaller output label also does not remove mounting, tooling or cooling checks; selection still depends on the actual machine and cutting conditions.

Retain 220 V / 3.5 A with the exact code

The documented electrical specification is 220 V / 3.5 A. Keep the pair with GDZ-18-2 in the quotation and drive review. It does not establish a 380 V alternative or automatic dual-voltage operation. Check the VFD input supply separately from its motor-output voltage and current, and identify the drive model when existing equipment will be reused.

Review usable output current, output voltage and 400 Hz capability. Use the supplied-unit label and applicable drive instructions for motor parameters and protection. GDZ-26-1 has conflicting current markings on its drawing and nameplate photo, so its electrical evidence must not be used to overwrite this model's documented 3.5 A. Similar output and tooling designation do not make the units electrically interchangeable.

Keep the ER11B designation in accessory requests

The documented tooling designation is manual ER11B. Retain that complete designation and use the exact nose drawing when confirming collet, nut and accessory applicability. Match the cutter shank to the selected collet's marked gripping range. Do not reduce the designation to ER11 and assume that every nut or nose detail from GDZ-18 applies.

Check wrench access, nut clearance and cutter projection in the installed position. Include reused accessories when the existing tooling set must be retained. GDZ-18B uses ER16 and requires its own tooling review. If automatic magazine changes are required, assess a suitable ATC spindle and its release, support and control requirements separately; this manual ER11B configuration does not establish an automatic release system.

Review the 224 mm assembly and support position

The verified body diameter is 65 mm, overall assembly 224 mm and listed weight 4.5 kg. Use the exact installation drawing to locate permitted support surfaces and nose references. Overall length is not available clamp length. A bracket selected by diameter still needs a comparison of support location, nose position and clearance.

GDZ-18 lists a 235.5 mm assembly, while GDZ-18B lists 254.5 mm and a 110 mm clamp region. That clamp dimension belongs to the B version and must not be transferred here. Review both drawings when changing configurations, including rear fittings, cable and hose access, tool projection and relevant machine travel. The support needs to be located in the actual machine envelope.

Confirm the supplied-unit water circuit details

Water cooling is the documented method. Review applicable fitting and circuit requirements with the intended duty and cooling equipment. The 0.8 kW rating does not specify a universal flow, temperature or pump setting. Include existing circuit details if the machine's cooling arrangement is to be retained, rather than assuming that another water-cooled GDZ establishes the same connections.

Route hoses and the motor cable while retaining support and connection access through machine movement. Confirm any additional service requirement against the supplied-unit drawing and instructions. Keep cooling and mechanical access in the same layout review so inspection and maintenance remain practical. Neither a smaller output label nor a common water-cooling description settles the actual installation requirements.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

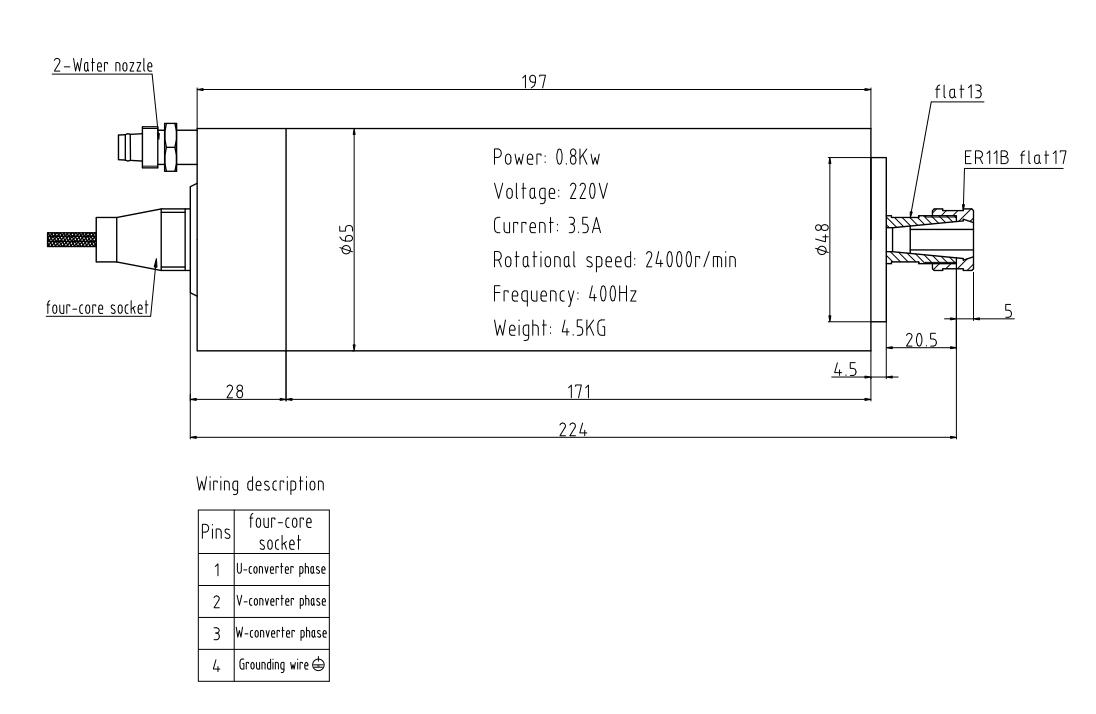

GDZ-18-2 dimensions and specifications drawing
Installation drawing. View the drawing at full size.

Assess the ER11B configuration with the working cycle

GDZ-18-2 is a candidate when its manual ER11B tooling, water cooling and documented operating point match the process, and the machine supports the 65 mm body. Begin with cutter and working speeds, then review electrical output, support and cooling. If a different tooling family or output is needed, compare the complete adjacent model rather than using a family name as an upgrade choice.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. Those conditions support a suitability discussion. The motor and outline figures alone cannot establish feed rate or surface finish. Include bracket and circuit constraints so the technical assessment considers the actual installation rather than treating the documented electrical pair as a complete performance guarantee.

Compare the -2 nose and shorter assembly explicitly

Send the existing code, nameplate, support drawing and clear nose and connection photos. Compare the 65 mm body, support surfaces, 224 mm assembly and nose datum, followed by ER11B hardware, 220 V / 3.5 A, VFD output and the water circuit. The exact -2 code is necessary evidence when several similarly named GDZ assemblies are being compared.

GDZ-26-1 changes to a 62 mm body and 188.5 mm assembly, with unresolved supplied-unit electrical markings. GDZ-18 and GDZ-18B change rated output and nose configuration as well as assembly length. These comparisons identify checks rather than accepted substitutions. For an older unit, confirm current availability and apply the same complete checklist when considering a proposed successor.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDZ-18-2Current configuration0.8 kW rated24,000 rpm ratedER11BWater-cooledØ65 mm · 224 mm overall
GDZ-26-10.8 kW rated24,000 rpm ratedER11BWater-cooledØ62 mm · 188.5 mm overall

GDZ-26-1 retains ER11B and a documented 0.8 kW point but uses a 62 mm body and 188.5 mm assembly. Resolve its conflicting current markings with supplied-unit evidence rather than applying this model’s 3.5 A.

GDZ-181.5 kW rated24,000 rpm ratedER11Water-cooledØ65 mm · 235.5 mm overall

GDZ-18 uses 1.5 kW, ER11 and 220 V / 5 A, with a 235.5 mm assembly. Compare nose hardware, working requirements and support rather than choosing from the shared 65 mm body.

GDZ-18B1.5 kW rated24,000 rpm ratedER16Water-cooledØ65 mm · 254.5 mm overall · 110 mm clamp

GDZ-18B changes to 1.5 kW and ER16, with a 254.5 mm assembly and 110 mm clamp region. Compare its exact support and electrical specification with this shorter ER11B model.

Include the -2 code, ER11B and required accessories

Request GDZ-18-2 with the documented 220 V / 3.5 A specification, quantity and destination country with postal code. List collets, nut, accessories and extra files needed. Add the current mount, VFD and cooling evidence for replacement. A request for a “GDZ-18 spindle” leaves both output and tooling configuration unclear.

Compare quotations for the same complete model and included scope. Confirm accessory applicability and any unresolved support or connection question before finalizing installation. CINKR confirms proposed configuration and current availability by email. Keep the exact drawing and electrical information with the quote so purchasing and installation refer to the same 0.8 kW ER11B assembly.

  • Winding: confirm the supplied-unit electrical specification
  • Configuration: GDZ-18-2
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the -2 drawing for the nose and support

Open the full-size installation drawing below to inspect support surfaces, nose geometry and connection layout. Request additional PDF, CAD or wiring information by complete GDZ-18-2 code and electrical specification. Another GDZ-18-family drawing is not automatically applicable even when cooling, speed or body diameter is similar.

Confirm extra files against the supplied configuration before using them for mounting or drive settings. The outline, nameplate and service instructions address different questions, while the machine and drive procedures guide commissioning. Describe the unresolved support, cooling or electrical issue when requesting another document so the technical response can address the actual installation requirement.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDZ-18-2

What power and current are documented for GDZ-18-2?

This model lists 0.8 kW and 220 V / 3.5 A at 24,000 rpm, with 400 Hz. Keep the -2 code with those figures.

Is the tooling designation simply ER11?

The documented designation is ER11B. Retain it and the exact nose drawing when confirming collet, nut and accessory applicability.

Does GDZ-18 have the same assembly?

GDZ-18 lists 1.5 kW, ER11 and a 235.5 mm assembly. GDZ-18-2 lists 0.8 kW, ER11B and 224 mm; compare both exact drawings.

Can GDZ-18B's 110 mm clamp length be used here?

That dimension belongs to GDZ-18B. Use the GDZ-18-2 drawing to locate the actual support surfaces rather than transferring it.

Can GDZ-26-1 establish this model's motor current?

Retain GDZ-18-2's own documented 3.5 A. GDZ-26-1 has conflicting current markings and requires supplied-unit confirmation.

What belongs in a replacement quote?

Send the complete -2 code, electrical specification, quantity, destination and accessories, plus nameplate, support, nose, connections, VFD and cooling evidence.
