HQD GDK80-24Z/2.2 ER20 spindle motor

2.2 kW ratedER20Water-cooled24,000 rpm ratedØ80 mm284 mm overall

HQD GDK80-24Z/2.2 is a water-cooled manual ER20 spindle rated at 2.2 kW and 24,000 rpm. Check its 80 mm body, 135 mm clamp region and 284 mm assembly against the mount. Choose 220 V / 7.6 A or 380 V / 4.4 A, then confirm the drive, water circuit and front air-seal connection.

Browse the GDK spindle range →

MODEL SELECTION

Is this the right GDK80-24Z/2.2 configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER20 tooling at the documented 24,000 rpm rated point.
  • The machine supports an 80 mm body with the specified 135 mm clamp region.
  • The selected winding, water circuit and front air seal can be integrated with the machine.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 7.6 A and 380 V / 4.4 A as separate supplied winding choices.
  • Check 400 Hz, the 284 mm assembly, 8 kg weight and nose position with the drawing.
  • The documented 0.1–0.2 MPa pressure belongs to the air seal, not an automatic tool-release mechanism.

COMPARE ALTERNATIVES

Consider another model when:

  • GDK85-24Z/2.2D changes body diameter, clamp length and the 380 V winding current.
  • The GDK80 range model has a different operating curve; GDK100 changes the mount and assembly dimensions.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER20 tooling. Power: 2.2 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 80 mm body diameter, 135 mm clamping length, 284 mm overall length, 8 kg weight. Winding options: 220 V / 7.6 A or 380 V / 4.4 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)2.2
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)80
Overall length (mm)284
Clamping length (mm)135
Weight (kg)8
Cooling and feedback
CoolingWater-cooled
Air-seal pressure (MPa)0.1–0.2

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 7.6 A
  • 380 V · 4.4 A

2.2 kW at the documented 24,000 rpm point

The rated point is 2.2 kW at 24,000 rpm, with 400 Hz listed for this configuration. Assess it alongside the cutter and working speed. A spindle label with the same output does not establish identical tooling, mounting or cooling, and the range-model curve should not be used to describe this fixed-point GDK80.

Provide the intended speed range and load cycle if the machine spends much of its time away from the rated point. The listed figures do not promise constant 2.2 kW output at every lower speed. Ask for applicable operating information when low-speed load or sustained operation is decisive. The cutter, tool projection and machine stiffness remain part of selection even after the headline motor figures match.

Select 220 V / 7.6 A or 380 V / 4.4 A

The two documented winding choices are complete voltage/current pairs. Keep 7.6 A with 220 V and 4.4 A with 380 V when requesting the spindle and checking the VFD. These choices describe separate supplied motor configurations. They do not establish that one supplied unit automatically accepts either voltage, and the drive's input supply is a separate question from its motor output.

Check the proposed drive model, output voltage, usable output current and 400 Hz capability. Use the supplied-unit nameplate and applicable drive instructions for motor parameters and protection. The 380 V current on GDK85-24Z/2.2D is 5.5 A, so a comparison with that model must retain its own electrical data. Sharing ER20 tooling and a 2.2 kW rating does not make the winding currents interchangeable.

Use ER20 collets and verify the nose hardware

This configuration uses manual ER20 tooling. Match the tool shank to the selected collet's marked gripping range, then check the nut, nose geometry and accessory applicability. ER20 is a tooling family, not a single accepted shank size or a complete specification for every accessory thread. Include reused collet or nut details if the new spindle must retain an existing tooling set.

Check wrench access, nut clearance and tool projection in the proposed mount. GDK80-24Z/1.5 uses ER16 and a shorter assembly; changing from that model involves tooling as well as output. An automatic magazine system requires a separate assessment of a suitable ATC spindle, release services and machine controls. The air seal on this manual model does not provide automatic tool release.

Use the 135 mm support region on the drawing

The verified dimensions are an 80 mm body, a 135 mm clamping region and a 284 mm overall assembly, with 8 kg listed weight. Identify the permitted support surfaces and their position on the installation drawing. The full assembly length cannot be treated as available clamp length. Match the nose datum and tool projection to the machine's travel and work envelope.

Compare rear connections, cable routing and service access in the installed position. The GDK80 range model shares these headline body and length figures, but its operating data are different; a mechanical comparison is only one part of selection. GDK85 uses an 85 mm body and 125 mm clamp region. Review both exact drawings before adapting a mount, including where the support falls relative to the spindle nose.

Keep the water circuit and air seal separate

Water cooling is the documented cooling method. Confirm the supplied-unit connection details and circuit requirements with the intended duty and existing cooling equipment. The 2.2 kW rating does not specify a universal flow, pump or temperature setting. Provide circuit details when reusing a machine installation, and keep the water hoses accessible for inspection and service.

The front air-seal pressure is documented as 0.1–0.2 MPa. Confirm its connection and applicable service instructions for the supplied unit. Air sealing and water cooling serve different purposes, so one does not replace the other. Route both services with the motor cable and check clearance through machine movement. Do not apply this seal pressure as a tool-release setting or transfer it to another model without matching documentation.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

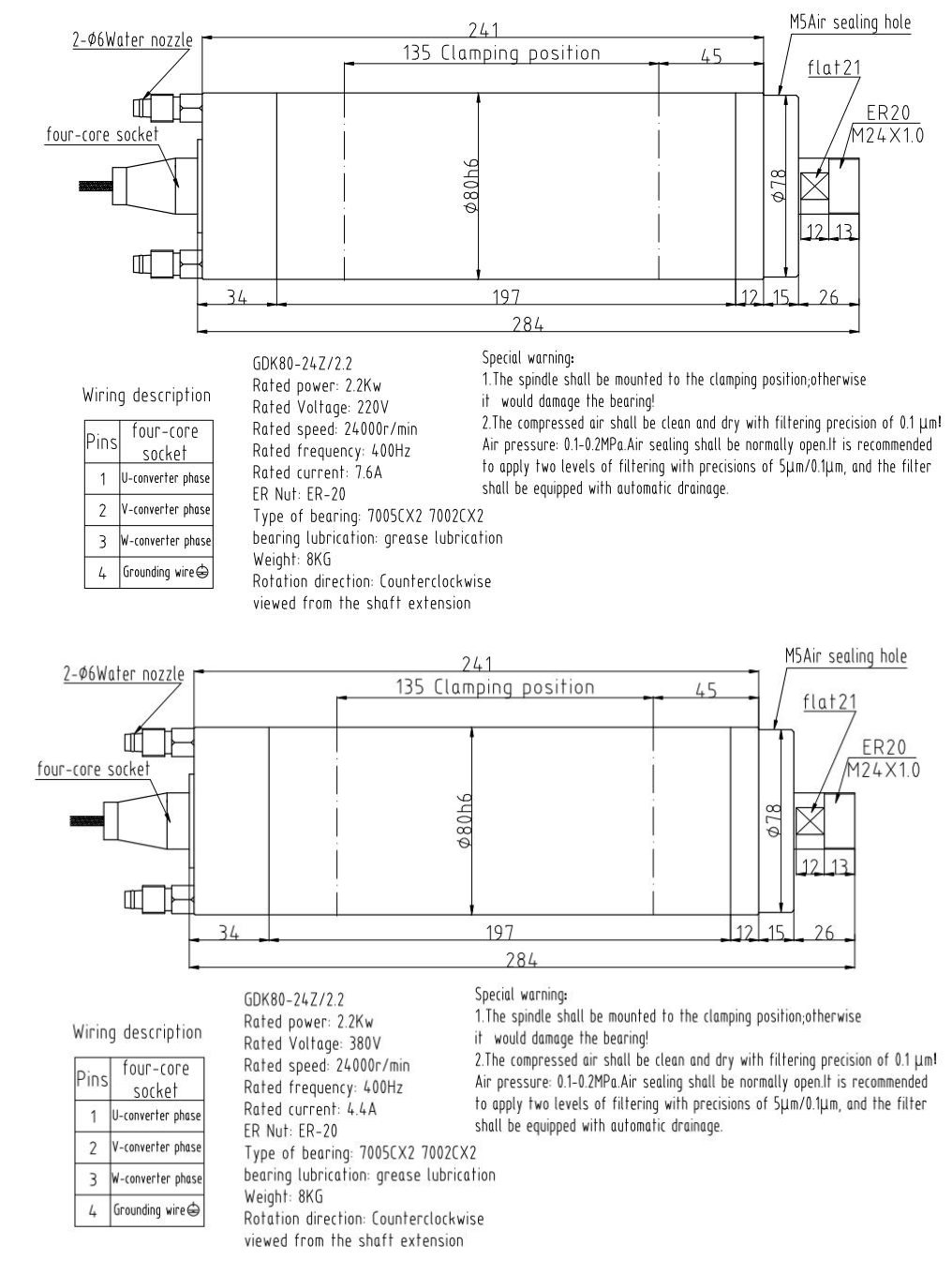

GDK80-24Z/2.2 dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 7.6 A; 380 V / 4.4 A. Match the block or PDF for the winding you intend to order. View the drawing at full size.

Assess ER20 against the cutter and working cycle

GDK80-24Z/2.2 is a candidate when manual ER20 tooling, water cooling and the documented operating point fit the process. Begin with the tool shank and required working speeds, then review the winding, drive, support and cooling. If a different speed region is central to the job, compare the appropriate range model using its own operating information rather than choosing from the 2.2 kW label alone.

For engraving or milling, provide material, cutter geometry, shank diameter, tool projection and load cycle. Those details support a conditional suitability assessment. The model specifications alone cannot establish a feed rate, finish or material-removal result. An installation with matching electrical output still needs adequate machine support, tooling access and the documented water and air services.

Compare the electrical pair as well as the 80 mm mount

Provide the existing model code, nameplate, mount dimensions and clear nose and connection photos. Compare the 80 mm body, 135 mm support region, 284 mm assembly and nose datum, followed by ER20 hardware, winding, drive output, water circuit and air seal. A shared body diameter or tool family narrows the comparison but leaves several replacement checks open.

GDK85-24Z/2.2D shares 2.2 kW, 24,000 rpm and ER20 but changes diameter, clamp length and its 380 V current. The GDK80 range model has different electrical and duty information. Treat each as a comparison candidate, then assess both exact configurations. For an older unit, request current availability and retain the complete installation checklist when discussing a proposed successor.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDK80-24Z/2.2Current configuration2.2 kW rated24,000 rpm ratedER20Water-cooledØ80 mm · 284 mm overall · 135 mm clamp
GDK85-24Z/2.2D2.2 kW rated24,000 rpm ratedER20Water-cooledØ85 mm · 284 mm overall · 125 mm clamp

GDK85 shares 2.2 kW, 24,000 rpm and ER20 but changes the body from 80 mm to 85 mm and clamp region from 135 mm to 125 mm. Its 380 V winding is 5.5 A rather than 4.4 A; check both mount and drive.

GDK80-12-24Z/1.2-2.41.2 kW rated12,000–24,000 rpmER20Water-cooledØ80 mm · 284 mm overall · 135 mm clamp

The GDK80 range model shares ER20 and headline assembly dimensions but has a separate 12,000–24,000 rpm curve and duty conditions. Compare those operating requirements with this fixed-point model’s complete 220 V / 380 V winding pairs.

GDK100-12-24Z/2.2-4.42.2 kW rated12,000–24,000 rpmER20Water-cooledØ100 mm · 295 mm overall · 140 mm clamp

GDK100 changes the body to 100 mm, assembly to 295 mm and clamp region to 140 mm. It also uses a separate operating curve; compare support, nose position and electrical requirements rather than choosing by the shared ER20 label.

Request the complete ER20 and winding configuration

State GDK80-24Z/2.2 with 220 V / 7.6 A or 380 V / 4.4 A, quantity and destination country with postal code. List required collets, nut, accessories and additional documents. Include the existing drive and water/air arrangement for a replacement inquiry. An order described only as an 80 mm water-cooled spindle leaves the electrical pair and tooling configuration unresolved.

Compare quotations for the same winding and included scope. Confirm accessory applicability and any remaining mounting or connection question before finalizing the installation. CINKR confirms configuration and current availability by email. Keep the applicable drawing and electrical information with the quotation so purchasing and installation refer to the same 135 mm-support ER20 assembly.

  • Winding: 220 V / 7.6 A or 380 V / 4.4 A
  • Configuration: GDK80-24Z/2.2
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Review the support surfaces and service connections

Use the full-size installation drawing below for support position, nose geometry and the air/water connections. Request additional PDF, CAD or wiring information by exact model and selected winding. A drawing for another GDK80 can have similar headline dimensions while describing a different electrical configuration or tooling arrangement.

Confirm the applicability of an additional document before using it for mounting or drive settings. The outline, supplied-unit label and service instructions answer different questions, while the drive and machine procedures guide commissioning. State the unresolved issue when requesting another file so the technical discussion can address the actual support, connection or operating question.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDK80-24Z/2.2

Which winding currents apply to this model?

The documented choices are 220 V / 7.6 A and 380 V / 4.4 A. Select one complete pair and retain it in the quotation and drive check.

Does GDK85-24Z/2.2D use the same 380 V current?

No. That model lists 380 V / 5.5 A, an 85 mm body and a 125 mm clamp region. Compare its own electrical pair and drawing.

Is the whole 284 mm length available for clamping?

No. The documented clamp region is 135 mm. Use the drawing to locate its support surfaces and nose datum.

What does 0.1–0.2 MPa describe?

It describes the front air seal. It is separate from water cooling and is not an automatic tool-release pressure.

Can the GDK80 range-model curve be used for this spindle?

The range model has separate operating and duty information. Use documentation applicable to GDK80-24Z/2.2 rather than transferring its curve.

What should a replacement inquiry include?

Send the existing code, nameplate, mount and connection evidence, selected winding, quantity and destination. Include tooling, drive and water/air service details.

REQUEST A QUOTE

Request a quote for GDK80-24Z/2.2

Include the winding, quantity and installation details for this configuration. Unknown technical details can be left blank.

Useful details to have ready
  • Exact code and readable nameplate
  • Mounting dimensions and available clearance
  • Tool interface and required speed
  • Drive output, cooling and ATC connections

Attach photographs or drawings in your email application.

Machine and technical details (optional)
Review your inquiry
Include your spindle model, machine requirements and questions in your email.
Open email

Open your email application to review and send the inquiry, or copy the text into a message to info@cinkr.com. Quotes and availability are confirmed by email.
