HQD GDK85-24Z/2.2D ER20 spindle motor

2.2 kW ratedER20Water-cooled24,000 rpm ratedØ85 mm284 mm overall

HQD GDK85-24Z/2.2D is a water-cooled manual ER20 spindle rated at 2.2 kW and 24,000 rpm. Its 85 mm body and 125 mm clamp region distinguish it from the 80 mm GDK. Select 220 V / 7.6 A or 380 V / 5.5 A, then check the 284 mm assembly, nose position and drive output against the machine.

Browse the GDK spindle range →

MODEL SELECTION

Is this the right GDK85-24Z/2.2D configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER20 tooling at the documented 2.2 kW and 24,000 rpm point.
  • The mount accepts the 85 mm body and the specified 125 mm support region.
  • The selected winding and water-cooling arrangement can be integrated with the machine.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 7.6 A and 380 V / 5.5 A as separate supplied winding choices.
  • Check 400 Hz, 8 kg weight, the 284 mm assembly and nose datum using the exact drawing.
  • Confirm supplied-unit fittings and service instructions; do not borrow another model's air-seal pressure.

COMPARE ALTERNATIVES

Consider another model when:

  • GDK80-24Z/2.2 has an 80 mm body, 135 mm clamp region and a different 380 V current.
  • GDK100 changes support and assembly dimensions; the GDK80 range model also changes operating information.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER20 tooling. Power: 2.2 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 85 mm body diameter, 125 mm clamping length, 284 mm overall length, 8 kg weight. Winding options: 220 V / 7.6 A or 380 V / 5.5 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)2.2
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)85
Overall length (mm)284
Clamping length (mm)125
Weight (kg)8
Cooling and feedback
CoolingWater-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 7.6 A
  • 380 V · 5.5 A

Keep the D-suffix model with its rated point

The documented point is 2.2 kW at 24,000 rpm, with 400 Hz listed. Keep the complete GDK85-24Z/2.2D code in the technical discussion and quotation. The adjacent GDK80 fixed-point model shares output, rated speed and ER20 tooling, but those shared labels do not remove the differences in body, support region and winding current.

Describe the intended working speeds and load cycle when selecting the spindle. The rated point does not establish full output throughout an assumed lower-speed range. If sustained operation away from the rated point matters, ask for applicable operating information. The GDK80 range curve describes a different model and cannot establish the usable region of this D-suffix configuration.

The 380 V winding is listed at 5.5 A

The two documented winding pairs are 220 V / 7.6 A and 380 V / 5.5 A. Select one pair for the supplied spindle and keep it with the model code. A list of two winding choices does not establish a dual-voltage supplied unit. Check the drive's motor output separately from its input supply and identify the actual VFD model if existing equipment will be retained.

Verify output voltage, usable output current and 400 Hz capability against the selected winding. Use the supplied-unit label and applicable drive instructions for motor data and protection. GDK80-24Z/2.2 lists 380 V / 4.4 A; that value must not replace this model's 5.5 A. Similar rated power and tooling are insufficient grounds to copy another spindle's motor parameters into the drive.

Review ER20 accessories and wrench access

The tooling configuration is manual ER20. Select the collet according to its marked gripping range and the actual tool shank. Verify the nut, nose geometry and any reused accessory against the supplied spindle. The ER20 family designation does not specify every accessory thread or guarantee that all hardware from another ER20 installation fits the same nose.

Review wrench clearance, nut access and cutter projection with the spindle mounted. Those details affect whether a tool change can be performed in the available machine space. If automatic magazine changes are required, evaluate a suitable ATC spindle and the corresponding mechanical, pneumatic and control requirements separately. This manual ER20 model's tooling designation does not provide a release mechanism or establish an ATC conversion.

An 85 mm body needs its own support comparison

The verified dimensions are an 85 mm body, a 125 mm clamping region and a 284 mm overall assembly, with 8 kg listed weight. Use the exact installation drawing to identify the support surfaces and their location relative to the nose. The overall dimension is not available clamp length. Check tool projection, rear access and the relevant axis travel in the proposed installation.

GDK80-24Z/2.2 has an 80 mm body and a 135 mm clamp region despite sharing the 284 mm overall length. These differences require a separate mount assessment. A matching overall dimension cannot establish compatible support or the same nose position. Include the current bracket and spindle drawing in a replacement inquiry so the comparison considers actual support geometry rather than a diameter label alone.

Confirm the supplied-unit water connections

Water cooling is the documented cooling method. Review the connection layout and applicable circuit requirements with the proposed cooling equipment and working duty. The 2.2 kW rating does not provide a universal flow, temperature or pump setting. If an existing circuit will be reused, provide its details and check the supplied-unit fittings rather than assuming that all water-cooled GDK models have an identical connection arrangement.

Plan hose and cable routing with rear service access and machine movement in mind. Confirm any additional connection shown on the applicable drawing and request the corresponding service instruction. The GDK80 fixed-point model's documented air-seal pressure is not a specification for this GDK85. Keep each service requirement with the exact supplied configuration instead of transferring a pressure or fitting detail from a nearby model.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

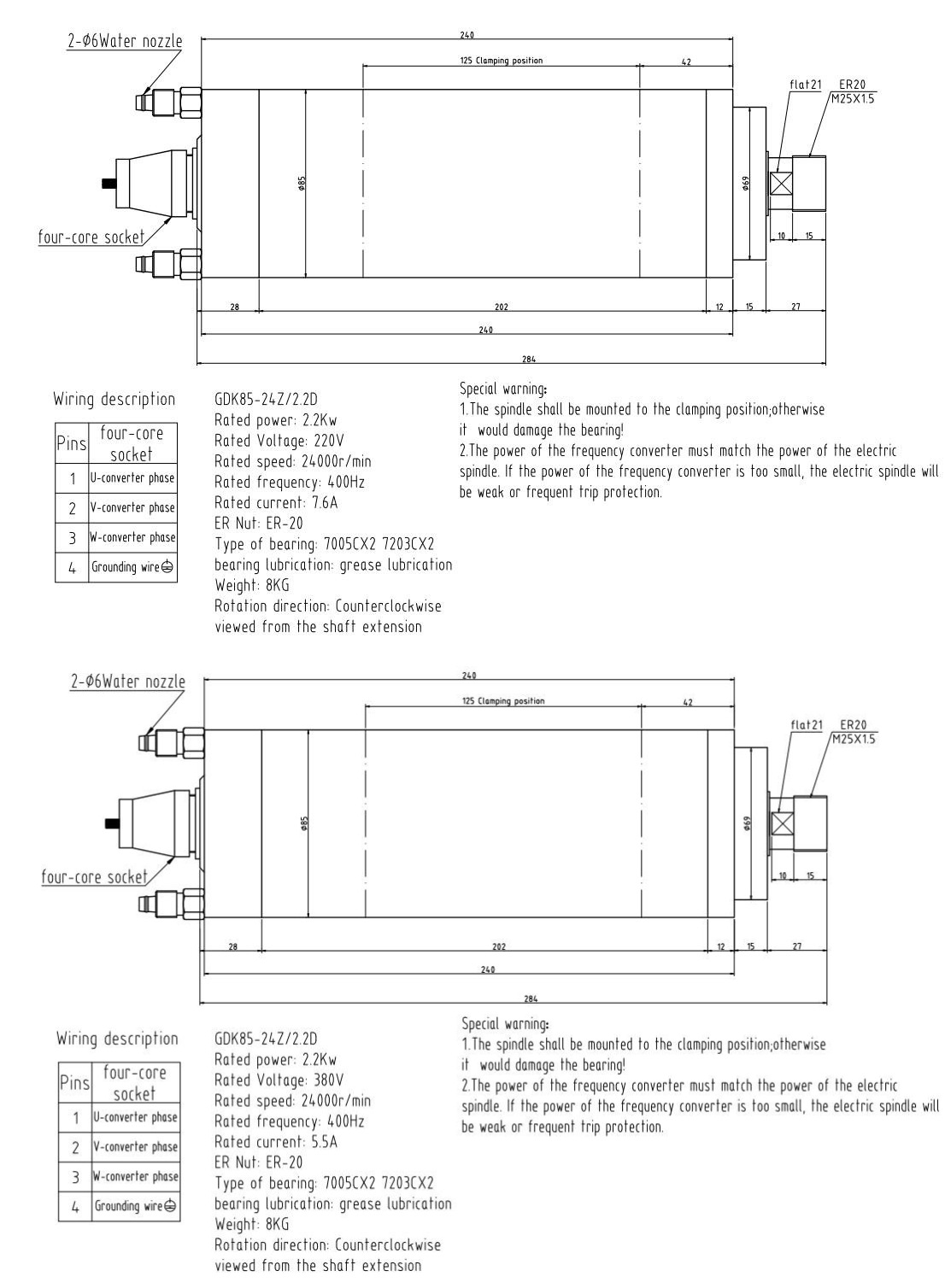

GDK85-24Z/2.2D dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 7.6 A; 380 V / 5.5 A. Match the block or PDF for the winding you intend to order. View the drawing at full size.

Assess the working cycle and the 85 mm mount together

GDK85-24Z/2.2D is a candidate when manual ER20 tooling, water cooling and the documented operating point fit the process, and the machine accommodates the 85 mm body. Start with the cutter and working speed, then check the winding, drive and support. A machine designed around an 80 mm spindle needs a mount assessment before this model can be considered for installation.

For engraving or milling, provide material, cutter geometry, shank diameter, tool projection, load cycle and machine stiffness. These conditions support a suitability discussion; the model figures alone do not promise feed rate, surface finish or material-removal performance. A compatible electrical pair is one selection condition, while the support, cooling and tooling access remain separate requirements of the actual machine.

Compare diameter, support and the 380 V current

Send the existing code, nameplate, installation drawing and clear connection and nose photos. Compare the 85 mm body, 125 mm support region, 284 mm assembly and nose datum, then ER20 hardware, winding, drive output and water circuit. Keep the complete D-suffix model visible in the evidence so a similarly named spindle does not silently take its place in the discussion.

When comparing GDK80-24Z/2.2, retain its 80 mm body, 135 mm clamp region and 380 V / 4.4 A winding as separate differences. For GDK100 or the GDK80 range model, review the corresponding support and operating changes as well. These comparisons identify questions to resolve rather than accepted substitutions. For an older installation, request current availability and apply the same full checklist to any proposed successor.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDK85-24Z/2.2DCurrent configuration2.2 kW rated24,000 rpm ratedER20Water-cooledØ85 mm · 284 mm overall · 125 mm clamp
GDK80-24Z/2.22.2 kW rated24,000 rpm ratedER20Water-cooledØ80 mm · 284 mm overall · 135 mm clamp

GDK80-24Z/2.2 has an 80 mm body and 135 mm clamp region instead of 85 mm / 125 mm here. Its 380 V winding is 4.4 A rather than 5.5 A, so a shared output, speed and ER20 label still leaves mounting and drive differences.

GDK100-12-24Z/2.2-4.42.2 kW rated12,000–24,000 rpmER20Water-cooledØ100 mm · 295 mm overall · 140 mm clamp

GDK100 changes the body to 100 mm, assembly to 295 mm and clamp region to 140 mm, with a separate range-model curve. Compare support and the actual electrical specification with this fixed-point D-suffix configuration.

GDK80-12-24Z/1.2-2.41.2 kW rated12,000–24,000 rpmER20Water-cooledØ80 mm · 284 mm overall · 135 mm clamp

The GDK80 range model uses an 80 mm body and 135 mm clamp region, with a duty-conditioned 12,000–24,000 rpm curve. Compare the mount and working region separately from this 2.2 kW / 24,000 rpm model’s winding pairs.

Specify the D suffix and complete winding pair

Request GDK85-24Z/2.2D with 220 V / 7.6 A or 380 V / 5.5 A, quantity and destination country with postal code. Include collets, nut, accessories and additional document needs. For a replacement, add the current mount, drive and cooling arrangement. Describing the request only as a 2.2 kW ER20 spindle leaves the 85 mm support configuration and electrical pair unclear.

Compare quotations with the same model, winding and included scope. Resolve accessory applicability and outstanding support or connection details before finalizing installation. CINKR confirms the proposed configuration and current availability by email. Retain the applicable drawing and electrical information with the quotation so purchasing and commissioning refer to the same D-suffix spindle.

  • Winding: 220 V / 7.6 A or 380 V / 5.5 A
  • Configuration: GDK85-24Z/2.2D
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the exact GDK85 drawing for the mount

Open the full-size installation drawing below to inspect the 85 mm body, support region, nose geometry and connection layout. Request additional PDF, CAD or wiring information by complete model code and selected winding. A GDK80 drawing is not a substitute merely because the output, overall length or ER20 tooling appears similar.

Confirm the applicability of additional files before using them to locate support or set motor parameters. The outline, supplied-unit label and service instructions answer different questions, while the drive and machine procedures guide commissioning. State whether the unresolved issue concerns mounting, cooling connections or electrical operation so the additional document can address the actual installation need.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDK85-24Z/2.2D

Which 380 V current applies to GDK85-24Z/2.2D?

The documented pair is 380 V / 5.5 A. The alternative winding is 220 V / 7.6 A; keep each current with its voltage.

Does this model fit an 80 mm spindle bracket?

The documented body is 85 mm. Compare the actual bracket and the 125 mm support region using the exact drawing before considering a mount change.

Why does the common 284 mm length not prove a GDK80 replacement?

GDK80-24Z/2.2 has a different body diameter and clamp region. Nose position, tooling, winding and connections also need comparison.

Can another GDK model's air-seal pressure be used?

Confirm service requirements for the supplied GDK85. A pressure documented for GDK80 is not evidence for this model.

Does the D suffix establish automatic tool changing?

This configuration uses manual ER20 tooling. Do not infer an automatic release system from the suffix; assess a suitable ATC model separately if needed.

What information is needed for a quote?

Send the complete D-suffix model, selected winding, quantity, destination and accessory needs. Add nameplate, mount, drive and cooling evidence for replacement.
