HQD GDK100-24Z/3.2 ER20 spindle motor

3.2 kW ratedER20Water-cooled24,000 rpm ratedØ100 mm295 mm overall

HQD GDK100-24Z/3.2 is a water-cooled ER20 spindle rated at 3.2 kW and 24,000 rpm. Compare its 100 mm body, 140 mm clamp region and 220 V or 380 V winding with the machine. Confirm the supplied nose and collet nut before ordering accessories: the drawing contains differing thread notations that do not establish one unique thread value.

Browse the GDK spindle range →

MODEL SELECTION

Is this the right GDK100-24Z/3.2 configuration?

BEST FIT

Choose this configuration if:

  • The machine uses manual ER20 tooling and needs the documented 24,000 rpm operating point.
  • Its mount can support a 100 mm body over the 140 mm clamp region and accommodate the 295 mm assembly.
  • Water cooling and a drive matching the chosen 220 V or 380 V winding can be provided.

CHECK BEFORE ORDERING

Confirm these details first:

  • Select 220 V / 11 A or 380 V / 6.4 A as a complete electrical pair and check 400 Hz output capability.
  • Confirm the nose and nut from the supplied unit; M25×1.5 and M24×1.0 both appear in the original drawing.
  • Compare the 12 kg assembly, nose position, service connections and permitted support region with the machine.

COMPARE ALTERNATIVES

Consider another model when:

  • GDK105-21Z/3.5 has a 105 mm body, 21,000 rpm point and different winding currents.
  • The GDK100 and GDK105 range models require their own U/f and duty-curve review rather than inheriting this model's winding pairs.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER20 tooling. Power: 3.2 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 100 mm body diameter, 140 mm clamping length, 295 mm overall length, 12 kg weight. Winding options: 220 V / 11 A or 380 V / 6.4 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)3.2
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)100
Overall length (mm)295
Clamping length (mm)140
Weight (kg)12
Cooling and feedback
CoolingWater-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 11 A
  • 380 V · 6.4 A

3.2 kW at the documented 24,000 rpm point

The reviewed specification lists 3.2 kW at 24,000 rpm with 400 Hz information. Keep that operating point with the exact GDK100-24Z/3.2 code when checking the drive. It is a different configuration from GDK100-12-24Z/2.2-4.4, which publishes a working range and U/f relationship. A shared 100 mm body does not make the two electrical descriptions interchangeable.

State the actual working speeds and load cycle in the inquiry. The 3.2 kW rated point does not independently establish output across an assumed lower-speed range. If the process depends on sustained cutting at another speed, ask for the applicable operating information before selecting from the headline. A nearby range model may be worth assessing for that requirement, but its separate curve and duty conditions must remain part of the comparison.

Keep voltage and current paired

The documented winding pairs are 220 V / 11 A and 380 V / 6.4 A. Select one complete pair in the inquiry and compare it with the proposed VFD output. They describe different motor configurations, not one spindle that automatically switches between the two voltages. The machine supply alone does not identify which winding should be supplied; the drive's input and motor output need separate checks.

Verify output voltage, current and 400 Hz capability from the actual drive specification. If reusing a VFD, include its exact model and output information rather than only a nominal kW label. Before commissioning, use the supplied spindle label and applicable drive instructions for motor data and protection settings. The 6.4 A current belongs with the 380 V winding and must not be used for a 220 V / 11 A order.

The curve endpoints on GDK100-12-24Z/2.2-4.4 are not additional winding options for this fixed-point model. Keep the full model and selected electrical pair with the quotation and documents. Where the old unit's label is unreadable, provide a clear photograph and drive information so the supply can be confirmed without guessing from the surrounding machine or a similar GDK listing.

Confirm the nose thread before choosing an ER20 nut

ER20 is consistent in the reviewed specification, but the original drawing contains both M25×1.5 and M24×1.0 thread notations in different locations. Those notations do not establish one unique nose-thread value for ordering accessories. Confirm the supplied spindle's nose and matching nut with the actual unit or applicable supplied-unit drawing. Confirm the nose thread and matching nut for the supplied spindle before ordering accessories. An ER20 designation alone does not specify the nut thread.

Choose the actual collet by the cutter shank and its marked gripping range. Check the nose, nut clearance, tool projection and wrench access in the mounted position. The ER20 family name does not describe one shank diameter or every retention dimension. This is a manual-tool-change spindle, so it does not provide the taper, release actuator and machine sequence of a GDL ATC configuration.

If replacing an existing spindle, provide clear nose and nut photographs alongside the model and nameplate. Keep the accessory confirmation with the quotation instead of postponing it until installation. A verified body and winding match can still leave the nut interface unresolved, and a spare nut from a different ER20 model is not proof of compatibility with the supplied GDK100 assembly.

Use the 140 mm support region on the drawing

The verified body diameter is 100 mm, clamping length 140 mm and overall length 295 mm, with a listed weight of 12 kg. Compare those facts from their drawing references. The body diameter concerns the clamp fit; the support region concerns how the assembly is held; the overall length concerns the complete nose and rear envelope. Do not use the total length as a permitted clamping dimension.

Check nose position, collet-nut and wrench clearance, rear service access and the relevant axis travel. The GDK100 range model shares several broad dimensions, but that similarity cannot resolve the thread notation or electrical setup of this unit. Retain both exact drawings during a comparison and include the intended tool projection. A mount that accepts the housing can still leave the working position or accessories unsuitable for the machine.

Water circuit and service applicability

This configuration is water cooled. Confirm the supplied spindle's fittings and circuit requirements with the proposed equipment and actual duty. The 3.2 kW rating does not specify a universal pump, coolant flow or temperature. If an existing circuit is to be reused, provide its details and connection photos so the requirement can be checked from the real installation.

Review any front air-seal service and the exact supplied-unit requirements separately from water cooling. Do not borrow a pressure value from another GDK when its applicability has not been established here. Route hoses and cables with the support region, rear fittings and axis movement in mind. Cooling and service access need their own check even when the 100 mm body fits the old mount.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

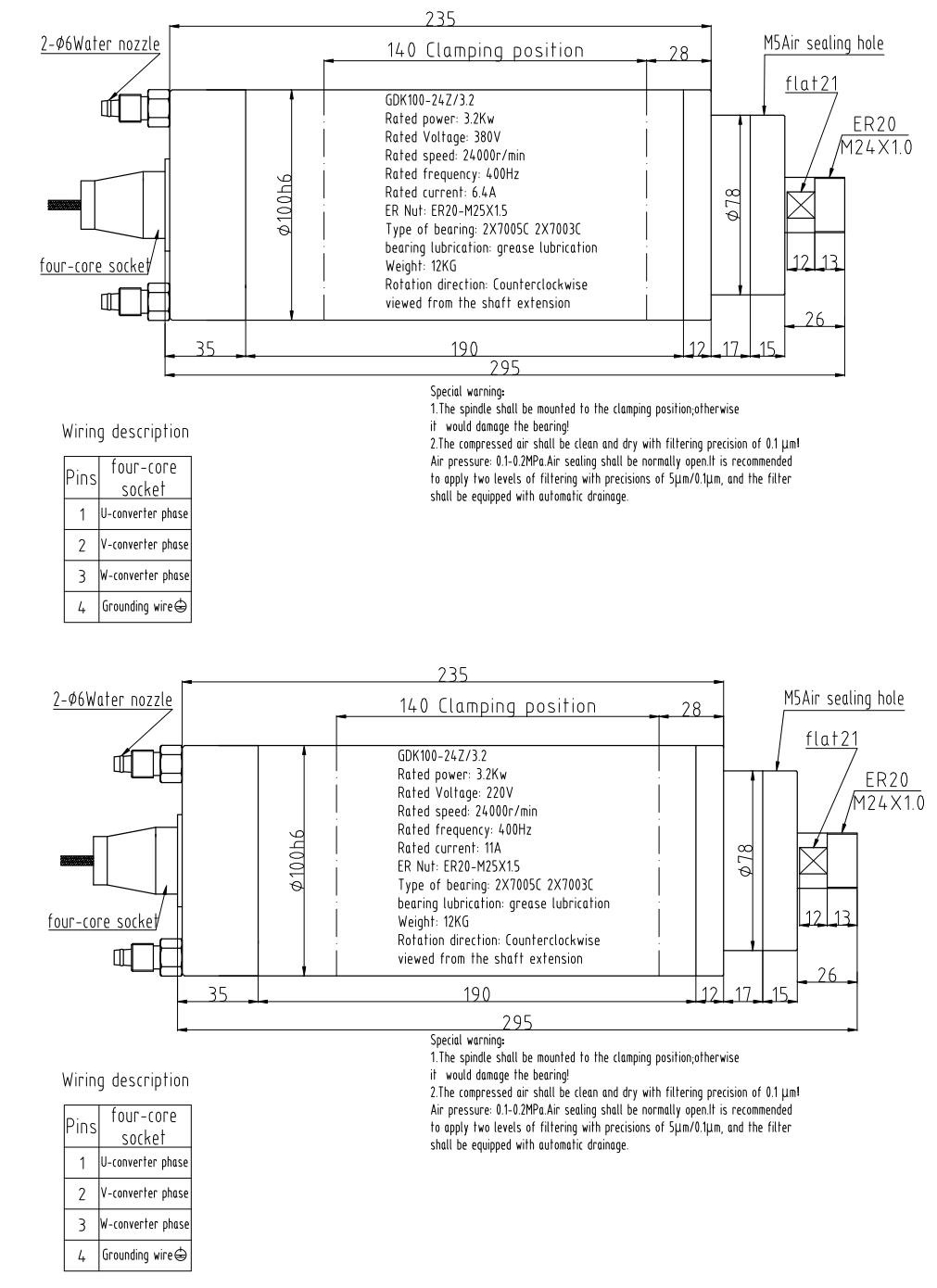

GDK100-24Z/3.2 dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 11 A; 380 V / 6.4 A. Match the block or PDF for the winding you intend to order. View the drawing at full size.

Evaluate the rated point and actual ER20 tooling

GDK100-24Z/3.2 is a candidate when the process calls for water-cooled manual ER20 tooling and the documented 24,000 rpm point. Begin with the cutter, working speed and intended duty, then review the winding, drive and mounting. The accessory-thread confirmation is part of that selection because tooling hardware must suit the supplied spindle rather than only the ER family name.

For engraving or milling, include material, cutter geometry, shank size, cutting cycle and machine stiffness. The specifications support a conditional configuration discussion, not a guaranteed feed rate or finish. If a wider speed region is required, assess the range models against their own operating curves. Choosing a larger rated power or a similar body size alone does not establish suitability for the actual process.

Resolve the nose hardware alongside the mount and drive

Provide the current spindle's full code, winding label, mounting drawing and nose/connection photos. Compare the 100 mm body, 140 mm support region, 295 mm assembly and nose datum, then the ER20 collet and nut, electrical pair, drive output and cooling. The differing thread notations must remain an explicit confirmation item. A shared power or collet family cannot settle the accessory fit.

GDK105-21Z/3.5 changes the body to 105 mm and the operating point to 21,000 rpm. GDK100-12-24Z/2.2-4.4 and GDK105-9-21Z/2.2-5.0 use range and U/f descriptions rather than this model's separate winding pairs. These are useful comparison choices, not approved substitutions. For an older installation, request availability and apply the same complete checklist to any proposed successor, retaining supplied-unit nose evidence.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDK100-24Z/3.2Current configuration3.2 kW rated24,000 rpm ratedER20Water-cooledØ100 mm · 295 mm overall · 140 mm clamp
GDK105-21Z/3.53.5 kW rated21,000 rpm ratedER20Water-cooledØ105 mm · 312 mm overall

Compare 3.5 kW at 21,000 rpm in a 105 mm body and 312 mm assembly with this 3.2 kW, 24,000 rpm, 100 mm spindle.

GDK100-12-24Z/2.2-4.42.2 kW rated12,000–24,000 rpmER20Water-cooledØ100 mm · 295 mm overall · 140 mm clamp

Compare a 12,000–24,000 rpm range and 2.2 kW rated output in a similarly sized body; its U/f and duty curve replace this model's separate winding description.

GDK105-9-21Z/2.2-5.02.2 kW rated9,000–21,000 rpmER20Water-cooledØ105 mm · 344 mm overall · 155 mm clamp

Compare a 9,000–21,000 rpm range with 2.2 kW rated output, a 105 mm body and 344 mm assembly; review its curve and duty separately.

Include the winding and accessory confirmation

Request GDK100-24Z/3.2 with 220 V / 11 A or 380 V / 6.4 A, quantity and destination country with postal code. List the collets, nut or other accessories needed and ask for their applicability to be confirmed. Include the existing nose photos if replacing a spindle or reusing tooling hardware. That makes the supply scope more precise than an inquiry for “3.2 kW ER20” alone.

When comparing quotations, check that the same model, electrical pair and confirmed accessory arrangement are included. A similar price for an unspecified GDK100 does not establish equivalent supply. CINKR confirms configuration and current availability by email, including the unresolved nose detail for the proposed unit. Keep the agreed documentation and accessory confirmation with the quotation before finalizing the installation.

  • Winding: 220 V / 11 A or 380 V / 6.4 A
  • Configuration: GDK100-24Z/3.2
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the drawing without selecting a disputed thread

The full-size drawing below provides the verified dimensions and specification block. It also retains the original thread notations, so it should be used to frame the accessory confirmation rather than to choose one value without further evidence. Request the applicable supplied-unit nose or connection information with the exact model and winding when ordering a nut or finalizing the installation.

No additional PDF or CAD file is presented as applicable unless it is identified for this configuration. Ask for the document required and confirm that it matches the proposed supply. A drawing for another GDK100 or another ER20 spindle cannot settle this unit's nose interface. Keep the confirmed model, winding and accessory information together with the machine's own drive and commissioning procedures.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDK100-24Z/3.2

Which nose-thread value should I order against?

The original drawing shows both M25×1.5 and M24×1.0. Confirm the actual nose thread and matching nut for the supplied spindle before ordering accessories.

Is ER20 itself in doubt?

ER20 is consistent in the reviewed specification. The separate issue is the nose/nut thread detail, which still needs supplied-unit confirmation before ordering accessories.

Which current belongs to each winding?

The documented pairs are 220 V / 11 A and 380 V / 6.4 A. Keep the selected pair together with the exact model in the inquiry and VFD check.

Is the range-model U/f curve applicable here?

GDK100-12-24Z/2.2-4.4 is a different configuration. This model lists 3.2 kW at 24,000 rpm and 400 Hz with separate winding choices.

Do matching 100 mm bodies prove a replacement fit?

They establish only one dimensional check. Compare support region, nose datum, nut hardware, complete assembly, drive output, cooling and services using both exact drawings.

What should I send with a quote request?

Include the model, winding, quantity, destination and accessory requirements. Add a readable nameplate, mounting drawing and nose/connection photos for a replacement or nut confirmation.
