HQD GDZ-18B ER16 spindle motor

1.5 kW ratedER16Water-cooled24,000 rpm ratedØ65 mm254.5 mm overall

HQD GDZ-18B is a water-cooled manual ER16 spindle rated at 1.5 kW and 24,000 rpm, with 220 V / 5 A documented. Its 65 mm body, 110 mm clamp region and 254.5 mm assembly distinguish it from GDZ-17B and the ER11 GDZ-18. Review the exact support and nose drawing with the 400 Hz drive and cooling installation.

Browse the GDZ spindle range →

MODEL SELECTION

Is this the right GDZ-18B configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER16 tooling at the documented 1.5 kW / 24,000 rpm point.
  • The mount supports a 65 mm body with the specified 110 mm clamp region.
  • The drive and water circuit can support the documented 220 V / 5 A configuration.

CHECK BEFORE ORDERING

Confirm these details first:

  • Retain the B suffix and ER16 designation in the quote and accessory request.
  • Use the drawing to locate the 110 mm support region and nose datum within the 254.5 mm assembly.
  • Check 400 Hz, 4.5 kg weight and supplied-unit water fittings; a 380 V alternative is not established here.

COMPARE ALTERNATIVES

Consider another model when:

  • GDZ-17B retains ER16 but uses an 80 mm body and different winding pairs.
  • GDZ-18 uses ER11 and a shorter assembly; GDZ-26-3 at 24,000 rpm changes to a 62 mm body and ER11.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER16 tooling. Power: 1.5 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 65 mm body diameter, 110 mm clamping length, 254.5 mm overall length, 4.5 kg weight.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)1.5
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER16
Tool changeManual tool change
Electrical
Spindle winding (V)220
Rated current (A)5
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)65
Overall length (mm)254.5
Clamping length (mm)110
Weight (kg)4.5
Cooling and feedback
CoolingWater-cooled

1.5 kW at 24,000 rpm with the B-suffix ER16 nose

The documented rated point is 1.5 kW at 24,000 rpm, with 400 Hz listed. Keep the B suffix and ER16 configuration visible in the selection. The non-B GDZ-18 shares power and rated speed but changes tooling and assembly length. GDZ-17B also uses ER16 while changing the body and electrical data, so headline motor figures do not identify the complete installation.

Describe actual working speeds, cutter and load cycle before choosing the spindle. The rated point does not establish full output at every lower speed. Request applicable operating information if sustained work elsewhere is decisive. Tool projection, support stiffness and the water circuit remain part of the process assessment even when the 1.5 kW point and ER16 family appear to match the old unit.

Review the documented 220 V / 5 A configuration

The listed electrical specification is 220 V / 5 A. Keep that pair with GDZ-18B in the quotation and drive review. It does not establish a 380 V alternative or automatic dual-voltage operation. Check the drive input supply separately from its motor-output capability and identify the VFD model when existing equipment will be retained.

Review output voltage, usable output current and 400 Hz capability. Use the supplied-unit nameplate and applicable drive instructions for motor parameters and protection. GDZ-17B lists different winding currents despite sharing ER16 and 1.5 kW, while the smaller GDZ-26-3 has its own 24,000 rpm configuration. Keep each electrical specification with its complete model rather than copying values from a similar name or nose.

Retain ER16 when comparing the non-B GDZ-18

This configuration uses manual ER16 tooling. Match the cutter shank to the chosen collet's marked gripping range, then confirm the nut and nose hardware against the supplied spindle. ER16 identifies the family rather than one shank diameter or a complete accessory-thread specification. Include existing accessory details when a tooling set must be reused.

GDZ-18 uses ER11, so removing the suffix from an inquiry can change the required tooling despite matching output and speed. Review wrench access, nut clearance and cutter projection after locating the spindle in its support. If automatic magazine changes are needed, assess a suitable ATC spindle and corresponding release, mounting and controls separately; the B suffix does not establish that system.

Locate the 110 mm support region on the 65 mm body

The verified dimensions are a 65 mm body, 110 mm clamp region and 254.5 mm overall assembly, with 4.5 kg listed weight. Use the exact drawing to locate the permitted support surfaces and nose references. The full assembly length is not available clamp length. Match the support position to the bracket rather than treating diameter alone as a complete mounting interface.

Review rear clearance, hose and cable routing, tool projection and relevant axis travel. GDZ-17B uses an 80 mm body and a 241 mm assembly; GDZ-18 has another nose and a 235.5 mm assembly. The 24,000 rpm GDZ-26-3 uses a 62 mm body and 100 mm clamp region. Compare both exact drawings before changing configurations so the support and nose are located in the actual machine envelope.

Confirm water connections with the intended duty

Water cooling is the documented method. Review the supplied-unit fittings and circuit requirements with the working duty and proposed cooling equipment. The 1.5 kW rating does not specify a universal flow, temperature or pump setting. Provide existing circuit details if the machine's installation will be retained rather than assuming that a similar water-cooled model settles suitability.

Route hoses and motor cable while preserving support and connection access through machine movement. Confirm additional service details against the supplied drawing and instructions. Another model's fitting or pressure data do not establish this configuration's requirement. Keep cooling with the mechanical layout review so inspection and maintenance remain practical around the 110 mm support region.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

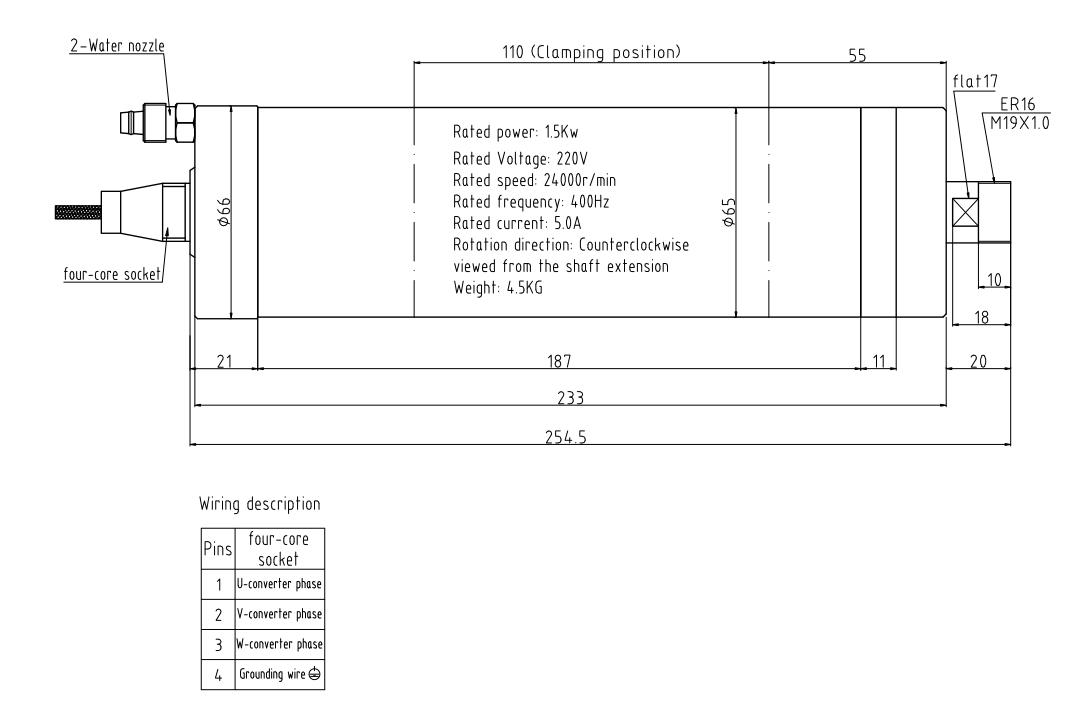

GDZ-18B dimensions and specifications drawing
Installation drawing. View the drawing at full size.

Assess the ER16 cycle and 65 mm support together

GDZ-18B is a candidate when manual ER16 tooling, water cooling and the documented operating point fit the process, and the machine supports its 65 mm body. Begin with cutter and working speed, then review electrical output, support and cooling. If another tooling family or body architecture is required, compare the corresponding exact model rather than choosing from the shared 1.5 kW label.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. Those conditions support a suitability discussion. The motor and outline figures alone cannot promise feed rate or surface finish. Include bracket and circuit constraints so the review considers the complete installation instead of treating a 220 V match as a complete performance assessment.

Keep the clamp region and B suffix in the evidence

Send the existing code, nameplate, mount drawing and clear nose and connection photos. Compare the 65 mm body, 110 mm support region, 254.5 mm assembly and nose datum, followed by ER16 hardware, 220 V / 5 A, VFD output and the water circuit. The complete B-suffix model is necessary when a similarly named GDZ-18 is being considered.

GDZ-17B retains ER16 but changes body, assembly and electrical pairs. GDZ-18 and the 24,000 rpm GDZ-26-3 use ER11 with their own dimensions and configurations. These comparisons identify checks rather than accepted substitutions. For an older unit, confirm current availability and apply the same complete checklist to any proposed successor, retaining exact drawing and supplied-nameplate evidence.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDZ-18BCurrent configuration1.5 kW rated24,000 rpm ratedER16Water-cooledØ65 mm · 254.5 mm overall · 110 mm clamp
GDZ-17B1.5 kW rated24,000 rpm ratedER16Water-cooledØ80 mm · 241 mm overall

GDZ-17B retains 1.5 kW and ER16 but changes the body from 65 mm to 80 mm and assembly from 254.5 mm to 241 mm, with different winding pairs. Compare support and drive requirements together.

GDZ-181.5 kW rated24,000 rpm ratedER11Water-cooledØ65 mm · 235.5 mm overall

GDZ-18 shares the 65 mm body and 220 V / 5 A but uses ER11 and a 235.5 mm assembly. Compare its nose and support drawing with this ER16, 110 mm-clamp configuration.

GDZ-26-3 24,000 rpm configuration1.2 kW rated24,000 rpm ratedER11Water-cooled24,000 rpm configuration · Ø62 mm · 237 mm overall · 100 mm clamp

The 24,000 rpm GDZ-26-3 uses ER11 at 1.2 kW with a 62 mm body and 100 mm clamp region. Compare the complete speed-qualified configuration, tooling and support rather than treating shared water cooling as compatibility.

Specify the ER16 B-suffix assembly

Request GDZ-18B with its documented 220 V / 5 A specification, quantity and destination country with postal code. List collets, nut, accessories and extra files required. Include the current mount, VFD and cooling information for replacement. A request for a “GDZ-18-family spindle” leaves several output and tooling arrangements unclear.

Compare quotations for the same complete model and included scope. Confirm accessory applicability and unresolved support or connection issues before finalizing installation. CINKR confirms proposed configuration and current availability by email. Keep the exact B-suffix drawing and electrical information with the quote so purchasing and installation refer to the same 110 mm-support ER16 assembly.

  • Winding: confirm the supplied-unit electrical specification
  • Configuration: GDZ-18B
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the B-suffix drawing for support and tooling

Open the full-size installation drawing below to inspect the clamp region, nose geometry and connection layout. Request additional PDF, CAD or wiring information by complete GDZ-18B code and electrical specification. Another GDZ-18-family drawing is not automatically applicable even where cooling, power or body diameter is shared.

Confirm extra files against the supplied configuration before using them for support or drive parameters. The outline, nameplate and service instructions answer different installation questions, while the machine and drive procedures guide commissioning. Describe the unresolved mechanical, cooling or electrical issue when requesting another document so the technical response can address the actual requirement.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDZ-18B

What tooling does GDZ-18B use?

This model uses manual ER16. The non-B GDZ-18 uses ER11, so retain the suffix in accessory, drawing and quotation requests.

Which electrical specification is documented?

The listed pair is 220 V / 5 A at 400 Hz. Keep it with the exact model; a 380 V alternative is not established here.

What is the clamp length?

The documented clamp region is 110 mm on a 65 mm body. Use its location on the drawing rather than treating the 254.5 mm assembly as available support.

Does GDZ-17B fit the same mount?

GDZ-17B uses an 80 mm body and different electrical pairs. Compare support, nose position, assembly and connections even though both use ER16.

Does the B suffix imply automatic tool changes?

This configuration is manual ER16. Assess a suitable ATC spindle and machine integration separately if automatic changes are required.

What belongs in a replacement quote?

Send the complete B-suffix model, electrical specification, quantity, destination and accessories, plus nameplate, mount, nose, connections, drive and cooling evidence.
