HQD GDL70-24Z/9.0 Long nose · ISO30 ATC spindle

9 kW at S6-60%, TA20°CISO30Air-cooled24,000 rpm rated551 mm overall

ISO30 · Long nose

This is the long-nose, air-cooled ISO30 version of HQD GDL70-24Z/9.0, with a 551 mm overall assembly. Its 9 kW value is documented at 24,000 rpm under S6-60%, TA20°C conditions; continuous S1 output is not established. Identify the long-nose configuration and selected winding before comparing the drive, tool magazine and mounting envelope.

Browse the GDL spindle range →

MODEL SELECTION

Is this the right GDL70-24Z/9.0 configuration?

BEST FIT

Choose this configuration if:

  • The machine calls for the long-nose ISO30 ATC arrangement and can accommodate the 551 mm assembly.
  • Its intended cycle can be checked against the documented S6-60%, TA20°C power condition.
  • Airflow, release air, controller signals and the selected 220 V or 380 V winding can be integrated.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep “ISO30 · Long nose” with GDL70-24Z/9.0 in drawings and inquiries.
  • Select 220 V / 32 A or 380 V / 20 A; retain the 24,000 rpm / 800 Hz operating information.
  • Compare nose position, holder movement and rear clearance from the exact drawing, not just the total length.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This air-cooled spindle uses ISO30 tooling. Power: 9 kW at S6-60%, TA20°C. Speed: 24,000 rpm rated. Installation dimensions and weight: 551 mm overall length. Winding options: 220 V / 32 A or 380 V / 20 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Duty-conditioned power (kW)9
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceISO30
Tool changeAutomatic tool change
Electrical
Frequency (Hz)800
Poles4
Dimensions and weight
Overall length (mm)551
Cooling and feedback
CoolingAir-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 32 A
  • 380 V · 20 A

Power curve: 9 kW at 24,000 rpm, S6-60%, TA20°C. This is a duty-conditioned value; continuous S1 output is not established.

Keep S6-60% and TA20°C attached to 9 kW

The power curve for this configuration identifies 9 kW at 24,000 rpm under S6-60%, TA20°C conditions. The verified operating information also includes 800 Hz and four poles. Present those conditions together when specifying the spindle. The power value is not documented here as an unconditional continuous S1 rating, and it should not be compared with another spindle's continuous rating as though the duty descriptions were identical.

Give the intended production cycle in the inquiry, including working speed, periods of cutting load and the surrounding installation conditions. A spindle command that reaches 24,000 rpm does not establish that every desired load cycle matches the published curve. If sustained output is required, ask for the applicable duty information rather than relabeling the S6 value. The water-cooled GDL70 B version is a useful comparison because it documents S1 at TA20°C, but it also changes cooling and dimensions.

Choose one winding and its matching curve

The two documented winding pairs are 220 V / 32 A and 380 V / 20 A. Select the complete pair and retain the corresponding long-nose curve PDF. Neither voltage is a universal input requirement for every possible VFD. Check the machine supply separately from the drive's motor output, then compare output voltage, current and frequency capability with the chosen spindle winding.

A drive selected only from a “9 kW” description leaves several questions unresolved, including the S6 operating condition and high-frequency output capability. Provide the exact drive model and its output specifications if reusing equipment. Use the supplied-unit label and applicable drive instructions before setting motor data and protection. The current for the 380 V winding must not be transferred to the 220 V configuration merely because both have the same spindle model and power curve headline.

Read voltage curves as operating information for the identified winding. A changing voltage along a speed curve is not a list of freely interchangeable winding options. Keep the curve applicability label, long-nose configuration and electrical pair in the quotation discussion. This is particularly useful when older files use the same base GDL70-24Z/9.0 name for more than one mechanical version.

Long-nose ISO30 tooling in the magazine layout

ISO30 identifies the taper, while “long nose” identifies the supplied assembly’s specific mechanical configuration. Check holder retention, insertion movement and the spindle nose datum with the magazine design. A holder that matches the taper still needs the correct retention arrangement and release travel. Do not assume that the magazine position set for the short-nose version remains correct when the long-nose assembly is installed.

Review pneumatic release, clamp-state sensing and controller interlocks before commissioning. Request the supplied-unit connection information and compare it with the machine's available inputs and outputs. The intended control sequence must establish the necessary states before spindle rotation or tool-magazine movement. Confirm release pressure, sensor polarity and sequence timing for the supplied GDL70 assembly and machine controller before commissioning. Include any orientation or feedback-dependent function explicitly instead of assuming that it is supported from the ATC label.

Check the 551 mm assembly from the drawing datums

The verified overall length is 551 mm. Compare the drawing's mounting and nose reference points with the machine envelope, not merely the available end-to-end space. The clamp arrangement, rear release assembly and connection area need their own review. The model characters do not establish a universal 70 mm round clamp dimension, and an overall length does not tell you where the spindle nose will sit in an existing mount.

The short-nose version has a 471 mm overall length, an 80 mm difference in the complete listed assembly. That difference alone does not prove that the tool tip or one particular projection moves by 80 mm. Use both drawings to locate the relevant datums and support surfaces. Check the intended holder and tool length, magazine approach, rear connector clearance and axis movement before deciding which nose version suits the machine.

Leave room for the air path and rear services

This GDL70 long-nose configuration is air cooled. Preserve the cooling-air path in the mount and enclosure, and confirm the supplied-unit fan and connection requirements. Do not apply the water-circuit requirements of GDL70-24Z/9.0B to this version. The published TA20°C curve condition also deserves attention when assessing the real enclosure and operating environment; it must remain with the power description rather than disappear from the selection discussion.

Plan airflow alongside the release-air and electrical services. Describe dust exposure, extraction and any enclosed connection area so outstanding installation requirements can be checked. A nameplate and photographs of the old cooling arrangement are useful for a replacement review. The presence of an existing air-cooled spindle does not establish that the new assembly has the same airflow clearance, fan wiring or rear service layout.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Allow unobstructed cooling airflow and confirm any fan wiring.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

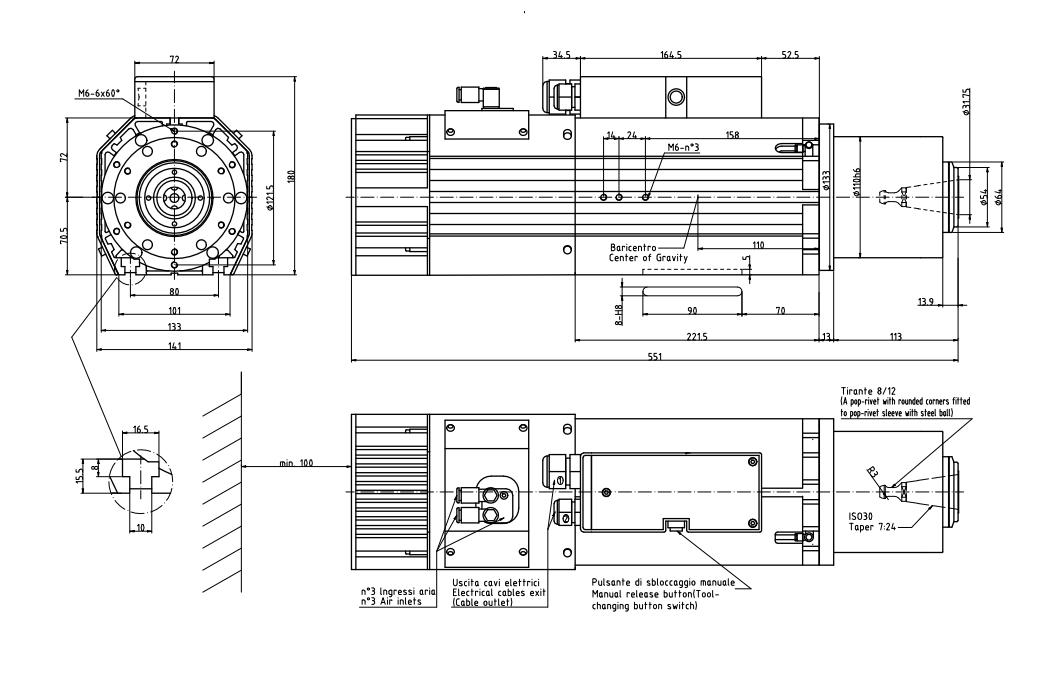

GDL70-24Z/9.0 ISO30 · Long nose dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 32 A; 380 V / 20 A. Match the block or PDF for the winding you intend to order. View the drawing at full size. Choose the PDF labeled for your configuration below.

A candidate when the long-nose arrangement is required

Evaluate this version when ISO30 automatic tooling and the long-nose geometry address a specific machine requirement. Match the actual working speed and production cycle to the documented curve, then review drive output, airflow and mounting. The mechanical reason for choosing the long nose should be visible in the design or replacement evidence, rather than inferred from a preference for a larger overall dimension.

For routing, engraving or milling, include the intended material, tool, holder arrangement, working speed and duty. These facts help assess a candidate; they do not guarantee machining performance from a 9 kW label. A particular feed rate, finish or production rate depends on the machine and cutting conditions. If the application needs sustained output outside the documented duty description, resolve that requirement before selecting this version or comparing it with the S1 water-cooled B configuration.

Retain the nose version throughout the comparison

Begin with the current spindle's full code, nameplate, mounting drawing and photographs of the holder and rear services. Determine whether the current assembly is long nose, short nose or the water-cooled B version. Compare the mount and nose datums, holder retention, winding, drive output, cooling and clamp/release control. A matching base GDL70-24Z/9.0 code does not resolve the mechanical version or the correct operating curve.

The short-nose row below is useful for a geometric comparison, while GDL70-24Z/9.0B addresses a different cooling and duty choice. GDL40.5 uses ISO20 and a lower-output rated point with a separately listed maximum speed. Treat the comparisons as reasons to inspect another configuration, not evidence of accepted interchangeability. If the original unit is older, ask for current availability and apply the same complete checklist to any proposed successor.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDL70-24Z/9.0 ISO30 · Long noseCurrent configuration9 kW at S6-60%, TA20°C24,000 rpm ratedISO30Air-cooledISO30 · Long nose · 551 mm overall
GDL70-24Z/9.0 ISO30 · Short nose9 kW at S6-60%, TA20°C24,000 rpm ratedISO30Air-cooledISO30 · Short nose · 471 mm overall

Compare the same ISO30 base code and S6-60%, TA20°C condition with a 471 mm short-nose assembly instead of 551 mm; verify the drawing datums.

GDL70-24Z/9.0B9 kW at S1, TA20°C24,000 rpm ratedISO30Water-cooled483.5 mm overall

Compare water cooling and S1 at TA20°C with this air-cooled S6-60% version; the B assembly lists 483.5 mm overall.

GDL40.5-ISO20-24Z/2.22.2 kW rated18,000 rpm rated / 24,000 rpm maxISO20Air-cooled372.5 mm overall

Compare air-cooled ISO20 with 2.2 kW at 18,000 rpm rated and 24,000 rpm maximum; both tooling and output requirements change.

Include long nose, winding and duty in the quote

State GDL70-24Z/9.0, ISO30, long nose and the intended 220 V / 32 A or 380 V / 20 A winding. Add quantity, destination country and postal code, required holders or accessories, and any additional documents. Describe the production cycle if the S6-60% condition needs technical discussion. Omitting the nose version can leave two different mechanical configurations under the same base model reference.

When comparing quotations, confirm the same nose version, winding and documented duty before comparing the amount. Check the included accessories and documentation too. Request a quotation for the long-nose version, selected winding, quantity, destination and accessories. CINKR confirms the proposed supply, price and current availability by email. Retain the applicable drawing and power curve with the quotation so the configuration remains clear for purchasing and installation.

  • Winding: 220 V / 32 A or 380 V / 20 A
  • Configuration: ISO30 · Long nose
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Long-nose curves for two separate windings

Two English curve PDFs are offered, labeled for the 380 V and 220 V long-nose windings. Both carry S6-60%, TA20°C applicability. Choose the file for the winding you intend to order and keep its conditions with any power comparison. A curve for the short-nose or water-cooled B version must not silently replace the identified long-nose document.

The full-size installation drawing is available below for the mechanical review. Request any additional CAD, pneumatic or wiring document with the exact nose version and winding. Confirm that the supplied document applies before finalizing the mount or tool-change sequence. Curve information and the outline drawing answer different questions; neither replaces the supplied-unit instructions and the machine's commissioning procedure.

DOWNLOADS

Files for this configuration.

PDF · 122 KB

Voltage, power and torque curves

GDL70-24Z/9.0 · 380 V winding · long nose · S6-60%, TA 20°C

English

Download PDF

PDF · 122 KB

Voltage, power and torque curves

GDL70-24Z/9.0 · 220 V winding · long nose · S6-60%, TA 20°C

English

Download PDF

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDL70-24Z/9.0

Is 9 kW a continuous S1 rating for this version?

The documented condition is 9 kW at 24,000 rpm, S6-60%, TA20°C. Continuous S1 output is not established for this air-cooled long-nose configuration.

How do I identify the long-nose GDL70 version?

Retain “ISO30 · Long nose” with the base model code. This version has a 551 mm overall assembly; the short-nose version lists 471 mm and needs its own drawing review.

Does the 80 mm length difference establish the tool-tip offset?

No. It is the difference between listed overall lengths. Compare the drawing datums, mounting position, holder and tool before inferring a change in tool-tip position.

Which winding curves are available?

The downloads identify 220 V / 32 A and 380 V / 20 A long-nose windings. Choose the matching file and retain its S6-60%, TA20°C conditions.

Is the water-cooled B version equivalent?

GDL70-24Z/9.0B has water cooling, different dimensions and a documented S1 condition at TA20°C. Compare the complete duty, mounting and service requirements before choosing.

What should the inquiry identify?

Include long nose, ISO30, the selected winding, quantity, destination and actual duty. Add the existing drawing, nameplate and connection photos for a replacement review.
