HQD GDF65-24Z/0.8 ER11 spindle motor

0.8 kW ratedER11Air-cooled24,000 rpm ratedØ65 mm245 mm overall

HQD GDF65-24Z/0.8 is an air-cooled manual ER11 spindle rated at 0.8 kW and 24,000 rpm. Compare its 65 mm body, 245 mm assembly and 3 kg weight with the machine. Select 220 V / 3 A or 380 V / 1.6 A, then check the 400 Hz drive capability and cooling path; the downloadable PDF applies to the 220 V winding.

Browse the GDF spindle range →

MODEL SELECTION

Is this the right GDF65-24Z/0.8 configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER11 tooling at the documented 24,000 rpm point.
  • The machine accommodates the 65 mm body and 245 mm assembly with suitable support.
  • The selected winding and applicable air-cooling path can be integrated with the enclosure.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 3 A and 380 V / 1.6 A as separate supplied winding choices.
  • Use the drawing for support surfaces and nose position; overall length does not establish clamp length.
  • The 220 V PDF is winding specific; request applicable information for a 380 V order.

COMPARE ALTERNATIVES

Consider another model when:

  • GDF80/1.5 retains ER11 but changes diameter, output, length and winding currents.
  • GDF80/2.2 changes to ER16; GDF80/2.2B uses ER20 and its own support drawing.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This air-cooled spindle uses ER11 tooling. Power: 0.8 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 65 mm body diameter, 245 mm overall length, 3 kg weight. Winding options: 220 V / 3 A or 380 V / 1.6 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)0.8
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER11
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)65
Overall length (mm)245
Weight (kg)3
Cooling and feedback
CoolingAir-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 3 A
  • 380 V · 1.6 A

0.8 kW at 24,000 rpm with ER11 tooling

The documented rated point is 0.8 kW at 24,000 rpm, with 400 Hz listed. Keep the point with the exact GDF65-24Z/0.8 model. The adjacent GDF80/1.5 retains ER11 but changes output, body diameter and electrical pairs, so the choice also concerns mounting and drive requirements rather than a power label alone.

Describe the tool and working speeds along with the actual load cycle. The rated figures do not establish full output at every lower speed. Ask for applicable operating information if sustained operation away from the rated point is decisive. The tool projection, machine stiffness and cooling installation remain part of the process assessment even when the headline output and speed appear suitable.

Keep the selected winding with its applicable documentation

The documented supplied winding choices are 220 V / 3 A and 380 V / 1.6 A. Select one complete pair. A list of alternatives does not establish that one supplied spindle accepts both voltages. Review the VFD's motor output separately from its input supply, and identify the proposed drive model if existing machine equipment will be retained.

Check output voltage, usable output current and 400 Hz capability. Use the supplied-unit nameplate and applicable drive instructions for motor parameters and protection. The downloadable file below applies to the 220 V winding, so request applicable 380 V information when ordering that configuration. Do not use a similarly sized spindle's current or a file's general model heading to override its stated winding applicability.

Match the cutter to the ER11 collet and nose

The tooling configuration is manual ER11. Use the collet's marked gripping range to select it for the actual shank. Confirm the nut and nose hardware against the supplied spindle, especially where an existing accessory is to be reused. ER11 is a tooling-family designation, not one accepted shank diameter or a complete specification for every accessory thread.

Check wrench access, nut clearance and cutter projection in the mounted position. Moving to GDF80/2.2 or its B-suffix version changes the tooling family to ER16 or ER20. That change requires a tooling review alongside the mount and drive checks. If automatic magazine changes are needed, evaluate a suitable ATC spindle and its machine integration separately; this manual ER11 model does not establish an automatic release system.

Review the 65 mm body and 245 mm assembly

The verified body diameter is 65 mm, overall assembly length 245 mm and listed weight 3 kg. Use the installation drawing to identify permissible support surfaces and the nose references. The overall dimension is not a clamp-length specification. Check the actual bracket and support location rather than inferring a complete mounting interface from the 65 mm diameter alone.

Include tool projection, rear clearance, cable routing and service access in the machine layout. GDF80 models use an 80 mm body and different assembly lengths, so a power change cannot be assumed to fit the existing support. If replacing a smaller spindle, provide both drawings and the current mount so the comparison locates the support and nose in the machine's working envelope.

Preserve the air path in the actual enclosure

Air cooling is the documented method. Review the supplied-unit cooling arrangement, relevant openings and enclosure layout with the proposed duty. The 0.8 kW rating does not provide a universal thermal setting or minimum clearance. Describe any confined installation so the cooling review considers the actual support, guards and surrounding equipment.

Keep the applicable air path and maintenance access available when placing the bracket and routing the motor cable. Account for the work environment and service instructions rather than assuming that a compact air-cooled spindle needs no cooling assessment. A water-cooled machine being adapted to this model has a different cooling architecture, and removal of water hoses does not by itself resolve the new enclosure and airflow requirements.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Allow unobstructed cooling airflow and confirm any fan wiring.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

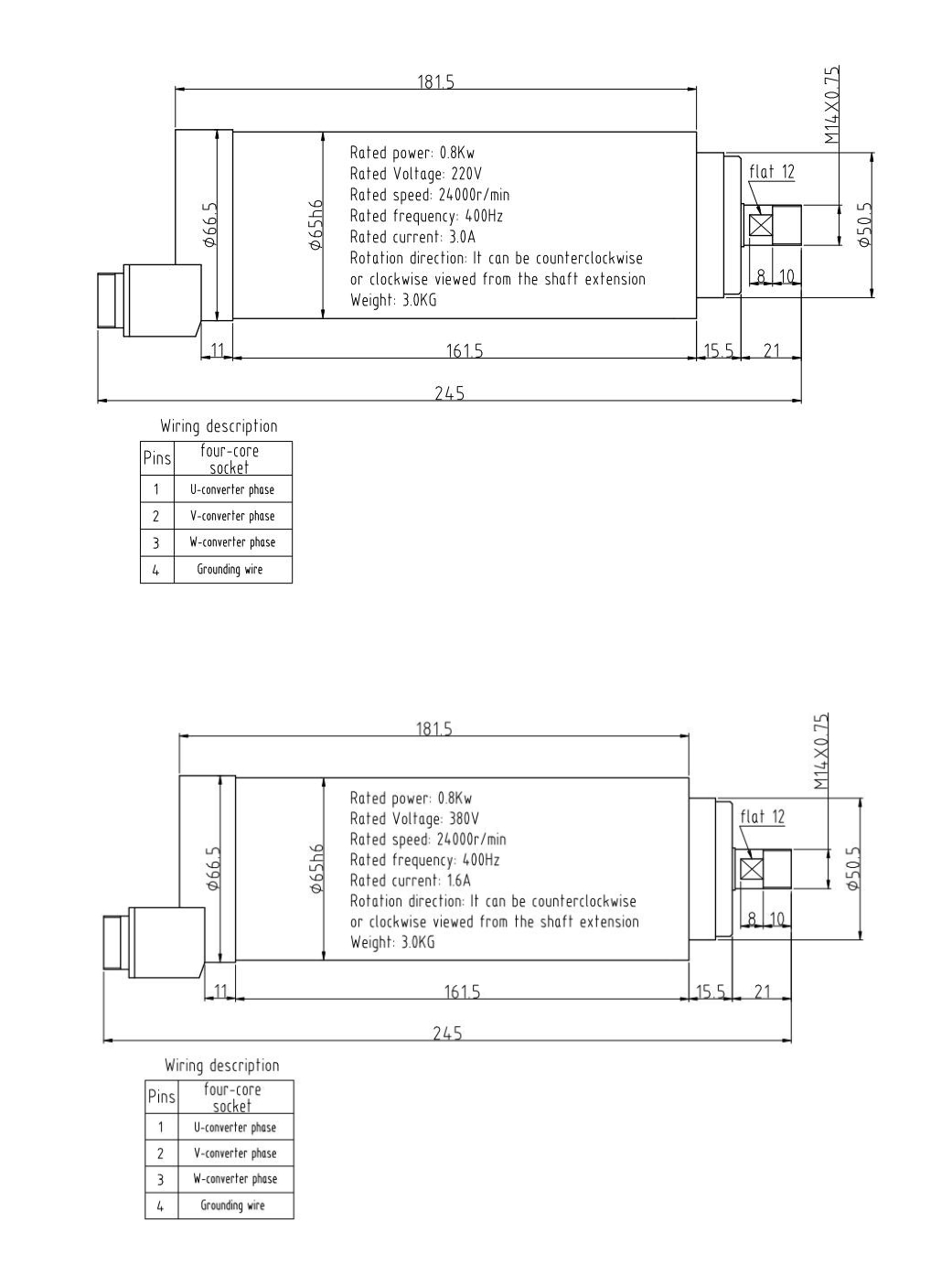

GDF65-24Z/0.8 dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 3 A; 380 V / 1.6 A. Match the block or PDF for the winding you intend to order. View the drawing at full size. Choose the PDF labeled for your configuration below.

Evaluate the compact ER11 arrangement conditionally

GDF65-24Z/0.8 is a candidate when manual ER11 tooling, the documented operating point and a 65 mm body fit the machine. Begin with cutter and working speed, then check winding, drive, support and airflow. A larger GDF80 may be worth comparing if process requirements change, but its output advantage does not preserve the smaller body's mounting arrangement.

For engraving or milling, provide material, cutter geometry, shank diameter, projection and load cycle. Those conditions support a suitability assessment; the model specifications alone do not promise feed rate or finish. Include machine stiffness and enclosure details when they constrain performance or cooling. The cutter, support and operating cycle need to be considered together with the electrical pair.

Keep the smaller body and winding evidence in the comparison

Send the current model code, nameplate, mounting drawing and clear nose and connection photos. Compare body diameter, support surfaces, nose datum, 245 mm assembly and ER11 hardware, followed by the winding, drive output and cooling path. Matching ER11 or the 24,000 rpm label narrows the comparison but leaves the mount and electrical configuration open.

GDF80/1.5 shares ER11 while changing diameter, length, output and currents. The 2.2 kW GDF80 models also change the tooling family and assembly. These alternatives identify specific design differences rather than approved substitutions. For an older spindle, request current availability and retain the complete mechanical and electrical checklist when discussing a proposed successor.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDF65-24Z/0.8Current configuration0.8 kW rated24,000 rpm ratedER11Air-cooledØ65 mm · 245 mm overall
GDF80-24Z/1.51.5 kW rated24,000 rpm ratedER11Air-cooledØ80 mm · 256.5 mm overall

GDF80/1.5 retains ER11 and 24,000 rpm but changes the body from 65 mm to 80 mm and assembly from 245 mm to 256.5 mm, with different rated output and winding currents. Check support and the drive along with the cutter requirement.

GDF80-24Z/2.22.2 kW rated24,000 rpm ratedER16Air-cooledØ80 mm · 263.5 mm overall

GDF80/2.2 uses ER16, an 80 mm body and a 263.5 mm assembly instead of ER11, 65 mm and 245 mm here. Compare tooling, output, electrical pairs and support before considering the larger configuration.

GDF80-24Z/2.2B2.2 kW rated24,000 rpm ratedER20Air-cooledØ80 mm · 269.5 mm overall · 125 mm clamp

GDF80/2.2B changes to ER20 and an 80 mm body, with a 269.5 mm assembly and 125 mm clamp region. Compare its exact support and winding pairs with this smaller ER11 assembly; shared air cooling and rated speed do not establish a replacement.

Specify the winding and any additional file needs

Request GDF65-24Z/0.8 with 220 V / 3 A or 380 V / 1.6 A, quantity and destination country with postal code. List collets, nut, accessories and document requirements. Add the current drive and mounting evidence for replacement. A request for a small air-cooled ER11 spindle leaves the exact body and electrical pair unresolved.

Compare quotations for the same winding and included scope. Confirm accessory applicability and outstanding support or cooling questions before finalizing installation. CINKR confirms proposed configuration and current availability by email. Retain the exact drawing and winding information with the quote, including any extra 380 V documents requested, so purchasing and installation use the same supplied configuration.

  • Winding: 220 V / 3 A or 380 V / 1.6 A
  • Configuration: GDF65-24Z/0.8
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

The downloadable file applies to 220 V

The PDF below contains dimensions, specifications and wiring for GDF65-24Z/0.8 with the 220 V winding. Read the applicability label before using its electrical details. The page also lists a separate 380 V option; that listing does not change the file's stated applicability. Request the corresponding additional information when it is needed for a 380 V installation.

Use the full-size drawing for the body, support and nose references. Confirm any additional PDF or CAD file against the complete model and selected winding. The supplied-unit label and service instructions address different questions from the outline, while the machine and drive procedures guide commissioning. State the unresolved mounting, cooling or electrical issue when requesting another document.

DOWNLOADS

Files for this configuration.

PDF · 583 KB

Dimensions, specifications and wiring

GDF65-24Z/0.8 · 220 V winding

English

Download PDF

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDF65-24Z/0.8

Which winding pairs are listed?

The documented choices are 220 V / 3 A and 380 V / 1.6 A. Choose one complete supplied configuration and retain it in the drive review.

Does the downloadable PDF cover the 380 V option?

Its applicability label specifies 220 V. Request applicable additional information for the 380 V configuration rather than extending that file's electrical details.

Is this a 65 mm or 80 mm body?

This model has a documented 65 mm body. The related GDF80 models use an 80 mm body and require their own support comparison.

Can the 245 mm overall dimension be treated as clamp length?

No. Use the drawing to locate the permitted support surfaces and nose references; overall length alone does not specify available support.

Does moving to a 2.2 kW GDF80 retain ER11?

The listed GDF80/2.2 uses ER16 and GDF80/2.2B uses ER20. Review tooling, mounting and electrical requirements together.

What should a replacement quotation include?

Send the exact model, winding, quantity, destination and accessories, plus the current nameplate, support, nose, connection and drive evidence.

REQUEST A QUOTE

Request a quote for GDF65-24Z/0.8

Include the winding, quantity and installation details for this configuration. Unknown technical details can be left blank.

Useful details to have ready
  • Exact code and readable nameplate
  • Mounting dimensions and available clearance
  • Tool interface and required speed
  • Drive output, cooling and ATC connections

Attach photographs or drawings in your email application.

Machine and technical details (optional)
Review your inquiry
Include your spindle model, machine requirements and questions in your email.
Open email

Open your email application to review and send the inquiry, or copy the text into a message to info@cinkr.com. Quotes and availability are confirmed by email.
