HQD GDL40.5-ISO20-24Z/2.2 ISO20 ATC spindle

2.2 kW ratedISO20Air-cooled18,000 rpm rated / 24,000 rpm max372.5 mm overall

HQD GDL40.5-ISO20-24Z/2.2 is an air-cooled ISO20 ATC spindle with a 2.2 kW rated point at 18,000 rpm. Its maximum speed is separately listed as 24,000 rpm. Compare that distinction, the 220 V / 7.8 A winding and the 372.5 mm assembly with the machine's tooling, cooling airflow and control requirements.

Browse the GDL spindle range →

MODEL SELECTION

Is this the right GDL40.5-ISO20-24Z/2.2 configuration?

BEST FIT

Choose this configuration if:

  • The machine is designed for ISO20 automatic tooling and the documented rated operating point.
  • The 372.5 mm overall assembly and 8.9 kg spindle can be accommodated with the required mounting arrangement.
  • The installation can provide cooling airflow, release air and the electrical services required by the supplied unit.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 18,000 rpm / 300 Hz rated separate from 24,000 rpm / 400 Hz maximum.
  • The spindle winding is 220 V / 7.8 A; 24 V DC auxiliary fan and sensor connections are separate services.
  • Check holder retention, clamp/release sensing and rear clearance on the exact GDL40.5 drawing.

COMPARE ALTERNATIVES

Consider another model when:

  • GDL80-20-24Z/2.2B also uses ISO20 but is water cooled and rated at 24,000 rpm.
  • GDL100 changes to ISO25, while GDL110 changes to BT30; their mounts and tool-change interfaces need separate checks.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

The drawing specifies 2.2 kW at 18,000 rpm and 300 Hz, with a maximum of 24,000 rpm at 400 Hz. Rated torque is 1.17 N·m and weight is 8.9 kg. Overall assembly length is 372.5 mm.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)2.2
Rated torque (N·m)1.17
Rated speed (rpm)18,000
Maximum speed (rpm)24,000
Tooling and mounting
Tool interfaceISO20
Tool changeAutomatic tool change
Electrical
Spindle winding (V)220
Rated current (A)7.8
Rated frequency (Hz)300
Maximum frequency (Hz)400
Dimensions and weight
Overall length (mm)372.5
Weight (kg)8.9
Cooling and feedback
CoolingAir-cooled

Rated and maximum speed answer different questions

The drawing separates 2.2 kW at 18,000 rpm and 300 Hz from a maximum speed of 24,000 rpm at 400 Hz. Preserve those two operating descriptions when selecting the spindle and configuring the drive. The “24Z” characters in the model name are not a reason to relabel 24,000 rpm as the rated point. The verified torque is 1.17 N·m; keep it with the documented motor information rather than assuming one constant output throughout an unspecified range.

Describe the production cycle's working speeds in the inquiry. Running near the rated point, occasionally commanding the listed maximum and expecting sustained cutting output at that maximum are different requirements. The maximum-speed entry does not itself establish a continuous full-power duty at 24,000 rpm. Ask for the operating information needed for the actual cycle before accepting a drive or spindle proposal based only on the larger speed number.

Separate the spindle winding from 24 V auxiliaries

The spindle winding is documented as 220 V / 7.8 A. Check the VFD's motor output against that pair and the required frequency capability. The drive's mains input is a separate specification. If the machine already has a drive, provide its exact model, output current and frequency limit so the motor check can be made from actual equipment information rather than the drive's nominal kW label alone.

The drawing also identifies 24 V DC auxiliary connections for the fan and sensors. These do not describe an alternative spindle winding, and they must not be entered as the motor voltage in the VFD. Plan the auxiliary supply and controller connections alongside the motor drive. Confirm the supplied-unit connection assignments and sensor requirements before wiring; the presence of a 24 V service does not establish every signal's polarity, current requirement or control behavior.

The rated and maximum frequencies are useful drive checks, but they do not replace commissioning instructions. Set motor information and protection from the supplied spindle label and the applicable drive procedure. State any intended change to the working speed or existing control arrangement before ordering so the quotation discussion can identify which requirements are confirmed and which still need technical information.

ISO20 tooling and clamp-state control

GDL40.5 uses ISO20 automatic tooling. Compare the actual holders, retention arrangement, release movement and magazine clearance with the spindle drawing. ISO20 identifies the taper family; the complete ATC installation still depends on hardware and control details. The water-cooled GDL80 comparison shares the ISO20 interface, but that does not establish identical dimensions, release connections or the same controller wiring.

Obtain the supplied-unit pneumatic and sensor information before setting up the tool-change sequence. The controller must be able to confirm the required states before rotation, release and magazine movement. Treat the fan supply, sensor supply and spindle drive as distinct services during the electrical review. Do not reuse an air-pressure setting or release timing from another spindle without confirming that it applies to this assembly.

Review the 372.5 mm assembly and mounting form

The verified overall length is 372.5 mm and the listed weight is 8.9 kg. Use the drawing to identify the mounting arrangement, spindle nose position and rear connection envelope. The characters “40.5” in the model name are not, by themselves, a complete clamp specification. A mount should be checked from the drawing rather than sized by decoding an abbreviated product name.

Space is needed for holder movement and services as well as the spindle itself. Compare the complete assembly with the machine's axis travel and tool-magazine position, then inspect the routing for release air, auxiliary wiring and motor cable. An apparently compact overall length does not confirm a fit if the nose reference or rear connector position differs from the current spindle. Include the machine mounting drawing or clear photographs if the original dimensions are unavailable.

Air cooling and auxiliary fan service

This configuration is air cooled, so the installation must preserve the cooling-air path. Check the fan connection and keep intake and exhaust areas clear in the proposed mount and enclosure. A water circuit is not the cooling requirement for this model. Equally, simply omitting water hoses is insufficient: the fan's auxiliary service and the surrounding airflow need to be considered as part of the installation.

Describe any enclosure, extraction arrangement or dust exposure around the spindle. Ask for the supplied-unit cooling and service information instead of assuming a universal airflow value. The 24 V DC fan connection belongs in the auxiliary electrical plan, separate from the 220 V motor winding. For a replacement from a water-cooled ISO20 spindle, review both the changed cooling method and the mechanical and control interfaces rather than treating the shared taper as a complete match.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Confirm pneumatic requirements and the release/clamp sequence for your machine.
  • Verify fan and sensor wiring separately from the spindle winding.
  • Use the dimensional PDF for installation checks. Include the exact configuration in requests for additional drawings.
Read the installation guide →

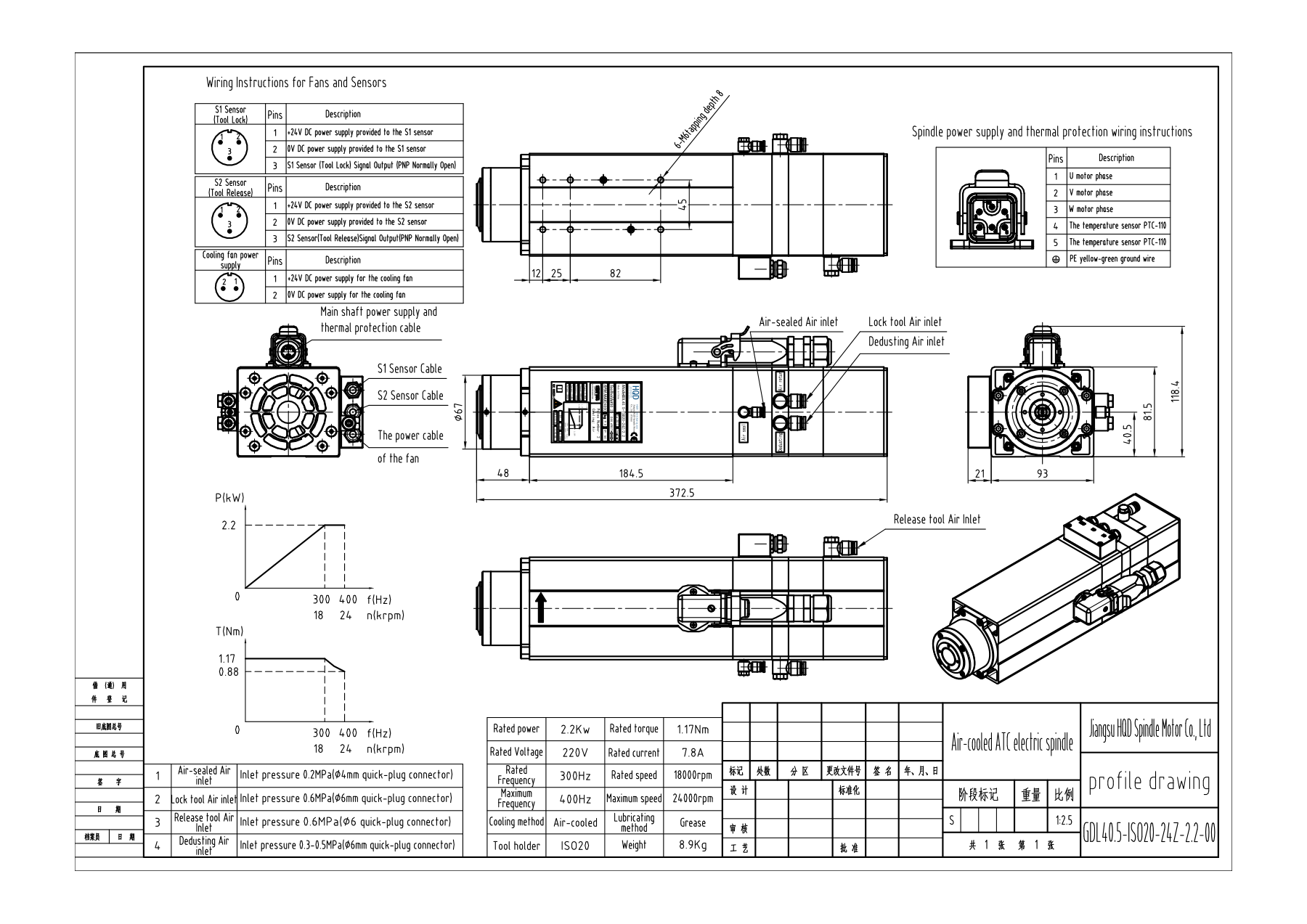

GDL40.5-ISO20-24Z/2.2 dimensions and specifications drawing
Installation drawing. View the drawing at full size. Choose the PDF labeled for your configuration below.

An air-cooled ISO20 candidate with a defined rated point

Evaluate GDL40.5 when the machine calls for ISO20 ATC and can integrate the documented air-cooled assembly. The rated 18,000 rpm point should be compared with the intended tools and operation, while the 24,000 rpm maximum should remain a separate check. Those distinctions help decide whether this configuration or the water-cooled, 24,000 rpm GDL80 deserves closer investigation.

For routing, engraving or milling, include the material, tool geometry, holder arrangement, working speeds and duty. Material names alone cannot establish suitability or output. The spindle facts support a selection discussion, but a feed rate, surface finish or production capacity depends on the complete machine and process. Include the enclosure and fan-service arrangement too, because an otherwise suitable electrical and tooling match can still leave the air-cooling installation unresolved.

Compare the auxiliary services as well as the motor

Provide the existing spindle's nameplate, exact model, mounting drawing, holder details and connection photographs. Compare overall length and nose position, then check the 220 V / 7.8 A winding, rated/maximum frequency, release arrangement and sensors. Identify how the fan and sensor services will be supplied. A replacement review that only compares motor voltage can miss the distinct 24 V auxiliary connections needed by this configuration.

The related GDL80-20-24Z/2.2B has ISO20 and 2.2 kW, but water cooling and a different documented speed-frequency point. GDL100 changes to ISO25 and GDL110 to BT30. Each is a useful comparison for a changed requirement; none is an accepted substitute solely because it is an ATC spindle. If the original installation is older, ask for current availability and compare any proposed successor against the complete mounting, tooling, drive, auxiliary and controller checklist.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDL40.5-ISO20-24Z/2.2Current configuration2.2 kW rated18,000 rpm rated / 24,000 rpm maxISO20Air-cooled372.5 mm overall
GDL80-20-24Z/2.2B2.2 kW rated24,000 rpm ratedISO20Water-cooledØ80 mm · 335 mm overall · 98 mm clamp

Retain ISO20 and 2.2 kW in the comparison while changing to water cooling and a 24,000 rpm rated point at 800 Hz.

GDL100-25-24Z/2.52.5 kW rated24,000 rpm ratedISO25Water-cooledØ100 mm · 130 mm clamp

Compare water-cooled ISO25 at 2.5 kW and 24,000 rpm; tooling and services change from this air-cooled ISO20.

GDL110-30-18Z/3.23.2 kW rated18,000 rpm ratedBT30Water-cooledØ110 mm · 132 mm clamp

Compare water-cooled BT30 at 3.2 kW and 18,000 rpm; the interface and cooling differ even though the rated speed matches.

State the operating point and auxiliary requirements

Request the full GDL40.5-ISO20-24Z/2.2 code, quantity and destination country with postal code. Include the intended working speeds and identify the available spindle drive and auxiliary supply. List any holders, accessories or connection documents required. For a replacement, describe whether the previous spindle was air or water cooled so the quotation discussion can address the changed installation services.

Compare quotation scope with the exact configuration in view. A request for “2.2 kW ISO20 ATC, 24,000 rpm” can conceal the important distinction between this model's rated and maximum speeds. CINKR confirms the proposed configuration, price and availability by email after reviewing the requested quantity, destination and supply scope. Keep the confirmed operating description and technical drawing with the quotation, along with any unresolved fan, sensor or release connection questions that must be settled before commissioning.

  • Winding: confirm the supplied-unit electrical specification
  • Configuration: GDL40.5-ISO20-24Z/2.2
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Read the rated/max and auxiliary labels on the drawing

Open the installation drawing at full size to inspect its rated-speed, maximum-speed and connection labels. Use it to distinguish the motor winding from auxiliary services and to compare the 372.5 mm assembly with the machine. If additional installation, wiring or CAD files are needed, request them by the full model code rather than using a drawing for the water-cooled GDL80 or another ISO20 spindle.

Only files identified for this configuration should be used to finalize the installation. The drawing helps establish the mechanical and electrical questions, while the supplied-unit instructions and machine control procedure are needed for commissioning. Keep the confirmed documentation with the quotation so a later purchasing or installation discussion does not lose the rated/max distinction or the separate fan and sensor requirements.

DOWNLOADS

Files for this configuration.

PDF · 681 KB

Dimensions, specifications, wiring and performance curves

GDL40.5-ISO20-24Z/2.2 · 220 V spindle; separate 24 V DC fan/sensors

English technical labels; Chinese title block

Document number: GDL40.5-ISO20-24Z-2.2-00

Download PDF

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDL40.5-ISO20-24Z/2.2

Is 24,000 rpm the rated speed?

No. The documented rated point is 18,000 rpm at 300 Hz; 24,000 rpm at 400 Hz is separately listed as the maximum. Do not treat the maximum as a continuous full-power rating.

Does this spindle run from 24 V DC?

The motor winding is 220 V / 7.8 A. The 24 V DC fan and sensor connections are auxiliary services and must be checked separately from the VFD motor output.

Is water cooling required?

This configuration is air cooled. Preserve its airflow path and confirm the fan service and installation requirements for the supplied unit.

Does 40.5 identify the complete mounting specification?

Use the actual drawing. The model name alone does not establish every mounting dimension or support surface; check nose position, mounting form and the 372.5 mm overall assembly.

How does it differ from GDL80-20-24Z/2.2B?

Both use ISO20 and have 2.2 kW listed, but GDL80 is water cooled and rated at 24,000 rpm with different electrical and mounting facts. Compare the complete configurations.

What should I include in a quote request?

State the full model, quantity, destination, working speeds, drive and auxiliary supply, plus required holders or documents. Add existing spindle and connection evidence for a replacement.
