HQD GDZ-27 ER20 spindle motor

4.5 kW ratedER20Water-cooled24,000 rpm ratedØ100 mm333.5 mm overall

HQD GDZ-27 is a water-cooled manual ER20 spindle rated at 4.5 kW and 24,000 rpm. Check its 100 mm body, 158 mm clamp region, 333.5 mm assembly and 14 kg weight against the machine. Select 220 V / 16 A or 380 V / 9 A, then review the 400 Hz drive; GDZ-27-2 has a separate 30,000 rpm point.

Browse the GDZ spindle range →

MODEL SELECTION

Is this the right GDZ-27 configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER20 tooling at the documented 4.5 kW / 24,000 rpm point.
  • The mount supports the 100 mm body and specified 158 mm clamp region.
  • The selected winding and supplied-unit water circuit can be integrated with the machine.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 16 A and 380 V / 9 A as separate complete supplied pairs.
  • Retain 24,000 rpm and 400 Hz; the -2 model has its own 30,000 rpm / 500 Hz point.
  • Check the 333.5 mm assembly, 14 kg weight, support position and nose datum.

COMPARE ALTERNATIVES

Consider another model when:

  • GDZ-27-2 shares headline body dimensions but changes rated speed and frequency.
  • GDZ-24-1C changes output and motor architecture; GDZ-24-2 changes diameter and winding choices.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER20 tooling. Power: 4.5 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 100 mm body diameter, 158 mm clamping length, 333.5 mm overall length, 14 kg weight. Winding options: 220 V / 16 A or 380 V / 9 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)4.5
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)100
Overall length (mm)333.5
Clamping length (mm)158
Weight (kg)14
Cooling and feedback
CoolingWater-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 16 A
  • 380 V · 9 A

4.5 kW at the 24,000 rpm point

The documented rated point is 4.5 kW at 24,000 rpm with 400 Hz. Keep those figures with the unsuffixed GDZ-27 code. GDZ-27-2 shares the power and headline outline but lists 30,000 rpm and 500 Hz. A shared body or rated output therefore does not identify the same operating configuration.

Describe cutter, actual working speeds and load cycle when choosing the spindle. The rated point does not establish full output at every lower speed. Request applicable operating information if sustained work elsewhere is decisive. Tool projection, support stiffness and cooling remain part of assessment even when the 4.5 kW point appears suitable. Compare the exact working requirement before selecting the faster -2 version rather than treating speed as an automatic upgrade.

Keep the selected pair with 400 Hz

The documented winding choices are 220 V / 16 A and 380 V / 9 A. Select one complete pair and keep it with GDZ-27 in the quote. These describe separate supplied motor configurations rather than one unit automatically accepting both voltages. Review VFD input supply separately from usable motor-output voltage and current.

Check the actual drive model, output voltage, usable current and 400 Hz capability. Use the supplied-unit nameplate and applicable drive instructions for parameters and protection. GDZ-27-2 lists 380 V / 9 A at 500 Hz, so a shared pair does not make its frequency or speed data applicable here. GDZ-24-1C's four-pole 800 Hz specification also remains separate despite the common 100 mm body and ER20 family.

Verify ER20 tooling for the actual working speed

This model uses manual ER20 tooling. Match the cutter shank to the chosen collet's marked gripping range, then confirm nut and nose hardware against the supplied unit. ER20 identifies the family rather than one accepted shank diameter or a complete accessory-thread specification. Include existing accessories when a tooling set must be retained.

Review the complete tool assembly's applicability to the intended working speed, along with wrench access, nut clearance and cutter projection. The spindle rating alone does not approve the tooling assembly for a faster -2 configuration. If automatic magazine changes are required, assess a suitable ATC spindle and its release services, support and machine controls separately. This manual ER20 model does not establish an automatic release system.

Locate the 158 mm support on the longer assembly

The verified dimensions are a 100 mm body, 158 mm clamp region and 333.5 mm overall assembly, with 14 kg listed weight. Use the exact drawing to locate support surfaces and nose references. The full assembly length is not available clamp length. Compare support position and tool projection with the actual bracket and relevant machine travel.

Review rear fittings, cable and hose access and service clearance. GDZ-27-2 shares the headline dimensions, but its actual drawing and electrical specification still need comparison. GDZ-24-1C lists a shorter 303.5 mm assembly and 138 mm support, while GDZ-24-2 also changes body diameter to 105 mm. Compare both exact outlines before adapting a mount or retaining a machine envelope.

Match water connections and circuit to the intended duty

Water cooling is the documented method. Review supplied-unit fittings and applicable circuit requirements with the working duty and cooling equipment. The 4.5 kW rating does not specify a universal flow, pump or temperature setting. Include existing circuit information if a machine installation will be retained rather than assuming a common water-cooling description establishes suitable capacity and connections.

Route hoses and motor cable while retaining support and rear access through machine movement. Confirm extra service details against the supplied drawing and instructions. Another GDZ model's fitting or pressure specification does not establish applicability here. Keep cooling with the bracket and enclosure review so inspection and maintenance remain practical around the 158 mm support and longer assembly.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

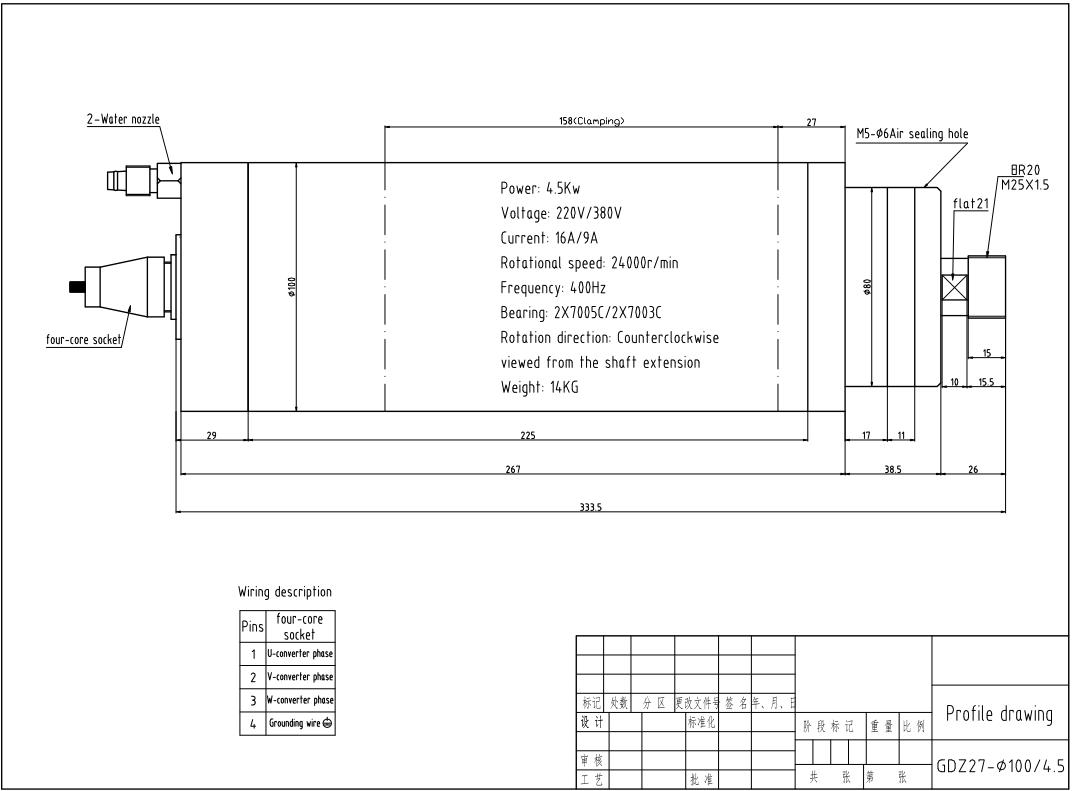

GDZ-27 dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 16 A; 380 V / 9 A. Match the block or PDF for the winding you intend to order. View the drawing at full size.

Assess the working load with support and cooling

GDZ-27 is a candidate when manual ER20 tooling, water cooling and the documented 4.5 kW / 24,000 rpm point fit the process, and the machine supports the 100 mm body. Begin with cutter and working speeds, then review winding, drive, mount and cooling. A longer assembly and listed weight must be considered alongside output when adapting a smaller GDZ installation.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. These conditions support a suitability discussion. The motor and outline figures alone cannot promise feed rate or finish. Include bracket, drive and circuit constraints so the assessment considers the complete installation rather than treating the higher power label as a guaranteed performance improvement.

Retain the 24,000 rpm identity and longer support

Send the existing code, nameplate, support drawing and clear nose and connection photos. Compare the 100 mm body, 158 mm support, 333.5 mm assembly and nose datum, followed by ER20 hardware, selected winding, 400 Hz drive output and water circuit. Keep the unsuffixed model visible when GDZ-27-2 is being considered.

The -2 model changes rated speed and frequency despite sharing headline mechanical figures. GDZ-24-1C changes output, support and motor architecture; GDZ-24-2 changes diameter and electrical pairs. These alternatives identify checks rather than accepted substitutions. For an older unit, confirm current availability and apply the complete checklist to a successor, retaining exact drawing and actual supplied-nameplate evidence rather than selecting by one shared dimension.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDZ-27Current configuration4.5 kW rated24,000 rpm ratedER20Water-cooledØ100 mm · 333.5 mm overall · 158 mm clamp
GDZ-27-24.5 kW rated30,000 rpm ratedER20Water-cooledØ100 mm · 333.5 mm overall · 158 mm clamp

GDZ-27-2 shares headline body, overall and clamp dimensions but lists 30,000 rpm / 500 Hz and 380 V / 9 A. Compare tooling and drive with this 24,000 rpm / 400 Hz model and its separate winding choices.

GDZ-24-1C3.7 kW rated24,000 rpm ratedER20Water-cooledØ100 mm · 303.5 mm overall · 138 mm clamp

GDZ-24-1C uses the same nominal 100 mm body but changes to 3.7 kW, four poles and 800 Hz, with a shorter 303.5 mm assembly and 138 mm support. Compare motor architecture and mount together.

GDZ-24-23.2 kW rated24,000 rpm ratedER20Water-cooledØ105 mm · 303.5 mm overall · 138 mm clamp

GDZ-24-2 changes to a 105 mm body, 3.2 kW and 303.5 mm assembly with 138 mm support. Check the complete winding pairs and actual bracket before moving between these different power and outline configurations.

Specify the winding and 24,000 rpm assembly

Request GDZ-27 with 220 V / 16 A or 380 V / 9 A, quantity and destination country with postal code. List collets, nut, accessories and extra file needs. Add existing mount, VFD and cooling evidence for replacement. A request for a “4.5 kW GDZ27 spindle” leaves the 24,000 rpm and 30,000 rpm versions unclear.

Compare quotations for the same complete model, winding and included scope. Confirm accessory applicability and outstanding support or connection questions before finalizing installation. CINKR confirms proposed configuration and current availability by email. Retain the exact drawing and electrical pair with the quote so purchasing and commissioning refer to the same 24,000 rpm, 158 mm-support assembly.

  • Winding: 220 V / 16 A or 380 V / 9 A
  • Configuration: GDZ-27
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the GDZ-27 drawing and selected winding

Open the full-size installation drawing below to inspect support surfaces, nose geometry and connection layout. Request additional PDF, CAD or wiring information by complete GDZ-27 code and selected winding. A -2 file does not establish this model's electrical applicability merely because power, diameter and headline lengths match.

Confirm extra documents against the supplied configuration before using them for support or drive parameters. The outline, actual nameplate and service instructions address different installation questions, while drive and machine procedures guide commissioning. Describe the unresolved mounting, cooling or electrical issue when requesting another file so the technical response addresses the actual requirement.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDZ-27

Which winding pairs are documented?

Select 220 V / 16 A or 380 V / 9 A as a complete supplied configuration and keep it with GDZ-27 in the quotation and VFD review.

Is this the 30,000 rpm model?

GDZ-27 lists 24,000 rpm and 400 Hz. GDZ-27-2 lists 30,000 rpm and 500 Hz; retain the full code and motor data.

What is the clamp region?

It is 158 mm on a 100 mm body. Locate it on the exact drawing rather than treating the 333.5 mm assembly as available support.

Do shared dimensions prove a -2 replacement?

Compare actual support and nose geometry, tooling, rated speed, frequency, electrical specification and cooling using both applicable drawings.

Can a smaller GDZ mount be retained based on diameter?

Compare support length, nose datum, overall space, listed weight, connections and machine travel. The 100 mm diameter is only one installation condition.

What should a replacement quote include?

Send the exact model, winding, quantity, destination and accessories, plus current nameplate, support, nose, connections, VFD and cooling evidence.
