HQD GDF80-24Z/2.2 ER16 spindle motor

2.2 kW ratedER16Air-cooled24,000 rpm ratedØ80 mm263.5 mm overall

HQD GDF80-24Z/2.2 is an air-cooled manual ER16 spindle rated at 2.2 kW and 24,000 rpm. Its ER16 nose and 263.5 mm assembly distinguish it from the ER20 B-suffix version. Compare the 80 mm body and support drawing with the machine, then choose 220 V / 7.6 A or 380 V / 4.4 A; the PDF below applies to 220 V.

Browse the GDF spindle range →

MODEL SELECTION

Is this the right GDF80-24Z/2.2 configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER16 tooling at the documented 24,000 rpm point.
  • The mount accepts the 80 mm body and the exact support arrangement on this drawing.
  • The selected winding and air-cooling path can be accommodated by the machine.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 7.6 A and 380 V / 4.4 A as complete separate winding pairs.
  • Check 400 Hz, the 263.5 mm assembly and nose position against the actual machine.
  • This is the ER16 version; the ER20 B-suffix assembly and its 125 mm clamp region are separate facts.

COMPARE ALTERNATIVES

Consider another model when:

  • GDF80/2.2B uses ER20 and a 269.5 mm assembly with a documented 125 mm clamp region.
  • GDF80/1.5 and GDF65/0.8 use ER11 with different output, length and winding pairs.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This air-cooled spindle uses ER16 tooling. Power: 2.2 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 80 mm body diameter, 263.5 mm overall length. Winding options: 220 V / 7.6 A or 380 V / 4.4 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)2.2
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER16
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)80
Overall length (mm)263.5
Cooling and feedback
CoolingAir-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 7.6 A
  • 380 V · 4.4 A

2.2 kW at 24,000 rpm with the ER16 nose

The documented rated point is 2.2 kW at 24,000 rpm, with 400 Hz listed. Retain the complete GDF80-24Z/2.2 code and ER16 description when selecting the assembly. The B-suffix version shares those motor figures and body diameter but changes the tool interface and overall length. A power-and-speed match therefore does not identify the same spindle nose or mounting arrangement.

Describe the actual working speeds and load cycle alongside the cutter. The rated point does not establish full output at every lower speed. Ask for applicable operating information if sustained work elsewhere in the speed region is decisive. The cutter, projection, machine stiffness and cooling installation remain part of selection even when 2.2 kW and 24,000 rpm match the old unit's headline data.

Keep 7.6 A with 220 V and 4.4 A with 380 V

The documented supplied choices are 220 V / 7.6 A and 380 V / 4.4 A. Select one complete pair and retain it with the exact ER16 model in the quotation. The choices describe separate winding configurations rather than one unit automatically accepting both voltages. The VFD's input supply is a different check from its usable motor-output voltage and current.

Check the proposed drive model, output voltage, output current and 400 Hz capability. Use the supplied-unit label and applicable drive instructions for parameters and protection. The downloadable PDF below applies to 220 V; request applicable 380 V information if needed. Although the B-suffix version lists the same winding pairs, its support and tooling drawing remains separate from this ER16 assembly.

Select ER16 accessories for the actual cutter

This model uses manual ER16 tooling. Match the cutter shank to the selected collet's marked gripping range, then confirm nut and nose hardware against the supplied spindle. ER16 is a tooling-family designation rather than one shank diameter or a complete accessory-thread specification. Include reused accessory details when an existing tooling set must be retained.

GDF80-24Z/2.2B uses ER20, while the 1.5 kW GDF80 uses ER11. Moving between these models needs a tooling review alongside electrical and mounting checks. Check wrench access, nut clearance and cutter projection with the spindle installed. If automatic magazine changes are required, evaluate a suitable ATC spindle and its release, support and controls separately from this manual ER16 configuration.

Use the ER16 drawing and 263.5 mm assembly

The verified body diameter is 80 mm and overall assembly length 263.5 mm. Use the exact installation drawing to locate support surfaces and nose references. Overall length does not specify clamp length. The B-suffix model's 125 mm clamp region belongs to that configuration and must not be applied here solely because the diameter and power match.

Compare the bracket, support location, nose datum, tool projection and rear clearance in the actual machine. Include cable routing and service access through movement. The B-suffix assembly lists 269.5 mm overall, while GDF80/1.5 lists 256.5 mm and another nose. Review both exact drawings before changing configurations; the shared 80 mm diameter is only one of the mechanical selection conditions.

Check airflow with the proposed bracket and guards

Air cooling is the documented method. Review the supplied cooling arrangement and enclosure with the intended working duty. Keep the applicable air path and service access available. A 2.2 kW rating does not establish a universal clearance or thermal setting, so provide any confined-machine details that limit support position or cooling.

Check how brackets, guards and nearby equipment affect relevant openings. Use the supplied service instructions and account for the working environment. Converting a water-cooled installation to this model involves a new cooling assessment, not only removal of hoses. Route the motor cable while preserving support, cooling and tooling access so installation and later maintenance can use the appropriate spaces.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Allow unobstructed cooling airflow and confirm any fan wiring.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

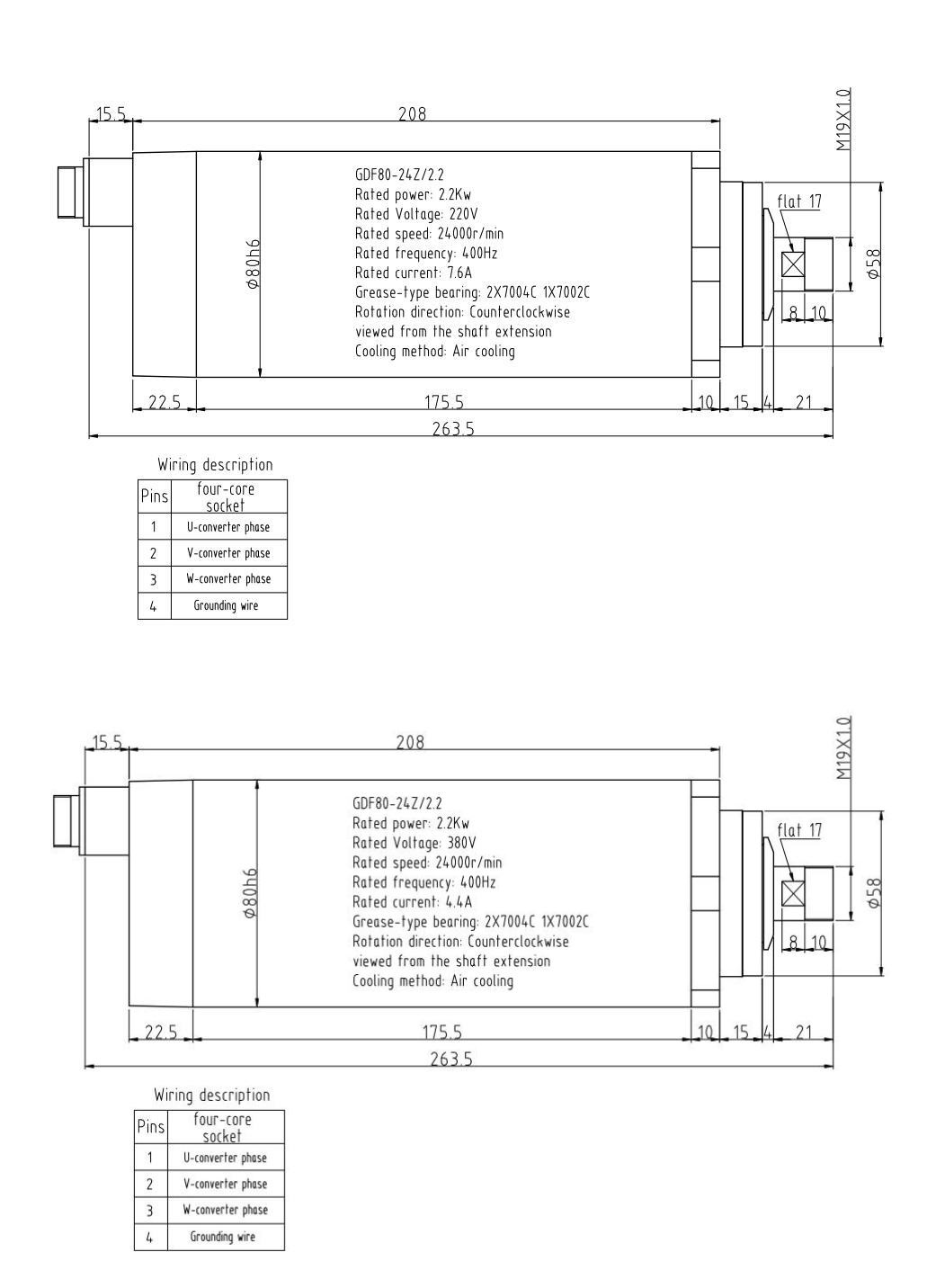

GDF80-24Z/2.2 dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 7.6 A; 380 V / 4.4 A. Match the block or PDF for the winding you intend to order. View the drawing at full size. Choose the PDF labeled for your configuration below.

Assess ER16 and the actual working cycle

GDF80-24Z/2.2 is a candidate when manual ER16 tooling, air cooling and the documented operating point fit the process, and the machine supports the 80 mm body. Begin with the cutter and working speeds, then check the winding, drive, support and airflow. If another tooling family is required, compare the corresponding GDF model with its own nose and outline rather than choosing solely by power.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. Those conditions support a suitability discussion. The motor and outline figures do not independently establish feed rate or surface finish. Include enclosure and bracket details where they constrain cooling or mounting, so the technical review considers the actual machine rather than only the nameplate.

Keep the ER16 and B-suffix assemblies separate

Send the existing code, nameplate, mount drawing and clear nose and connection photos. Compare support surfaces, nose datum, the 263.5 mm assembly and ER16 hardware, followed by winding, drive output and cooling path. A matching 80 mm body and 2.2 kW rating leaves several consequential installation and tooling checks open.

The B-suffix model changes to ER20 and a 269.5 mm assembly with its own documented clamp region. The 1.5 kW GDF80 and 0.8 kW GDF65 use ER11 and different electrical pairs and lengths. Treat these as comparison candidates rather than accepted substitutes. For an older unit, request current availability and apply the complete checklist to any proposed successor, including exact drawing and supplied-winding evidence.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDF80-24Z/2.2Current configuration2.2 kW rated24,000 rpm ratedER16Air-cooledØ80 mm · 263.5 mm overall
GDF80-24Z/2.2B2.2 kW rated24,000 rpm ratedER20Air-cooledØ80 mm · 269.5 mm overall · 125 mm clamp

The B-suffix version retains the rated point and winding pairs but changes ER16 to ER20 and assembly length from 263.5 mm to 269.5 mm. Its 125 mm clamp region belongs to that drawing; compare both support and nose arrangements.

GDF80-24Z/1.51.5 kW rated24,000 rpm ratedER11Air-cooledØ80 mm · 256.5 mm overall

GDF80/1.5 retains an 80 mm body but uses ER11, a 256.5 mm assembly and different winding currents. Compare cutter, output and the actual support drawing rather than treating body diameter as the whole installation.

GDF65-24Z/0.80.8 kW rated24,000 rpm ratedER11Air-cooledØ65 mm · 245 mm overall

GDF65/0.8 uses ER11, a 65 mm body and a 245 mm assembly with different output and winding pairs. Compare tooling, mounting and drive requirements if a smaller air-cooled configuration is being considered.

State the ER16 model without adding the B suffix

Request GDF80-24Z/2.2 with 220 V / 7.6 A or 380 V / 4.4 A, quantity and destination country with postal code. List collets, nut, accessories and additional files needed. Include the current bracket and drive evidence for replacement. A request for “GDF80 2.2 kW” leaves the ER16 and ER20 B-suffix versions unclear.

Compare quotations for the same model, winding and included scope. Confirm accessory applicability and outstanding support or cooling issues before finalizing installation. CINKR confirms proposed configuration and current availability by email. Keep the ER16 drawing and selected winding information with the quote so purchasing and installation refer to the same assembly, including any additional 380 V documentation requested.

  • Winding: 220 V / 7.6 A or 380 V / 4.4 A
  • Configuration: GDF80-24Z/2.2
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

The PDF is labeled for the 220 V ER16 configuration

The downloadable PDF contains dimensions, specifications and wiring for GDF80-24Z/2.2 with the 220 V winding. Read its applicability label before using electrical details. The separately specified 380 V winding option alone does not extend that file's stated scope. Request applicable additional information for the selected supplied configuration when needed.

Use the full-size drawing to review support surfaces, nose references and connection layout. Confirm extra PDF or CAD files against the exact model and winding rather than accepting a general GDF80 heading. The outline, supplied-unit label and service instructions answer different questions, while the drive and machine procedures guide commissioning. State the unresolved installation issue when requesting another document.

DOWNLOADS

Files for this configuration.

PDF · 585 KB

Dimensions, specifications and wiring

GDF80-24Z/2.2 · 220 V winding

English

Download PDF

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDF80-24Z/2.2

Is this the ER20 B-suffix version?

This model uses manual ER16. GDF80-24Z/2.2B uses ER20 and a different overall assembly and support drawing.

Which winding pairs are listed?

Select 220 V / 7.6 A or 380 V / 4.4 A as a complete supplied configuration and retain it in the quotation and VFD review.

Does the PDF cover the 380 V winding?

Its applicability label specifies 220 V. Request applicable 380 V information when needed for the selected configuration.

Can the B-version's 125 mm clamp length be used here?

That dimension belongs to GDF80-24Z/2.2B. Use this model's exact drawing to locate its support surfaces instead of transferring the dimension.

Does a shared 80 mm diameter establish replacement compatibility?

Compare support location, nose datum, tooling, assembly space, winding, drive and cooling using both exact drawings.

What should a replacement quote include?

State the exact ER16 model, winding, quantity, destination and accessories, plus the existing nameplate, mount, nose, connection and drive evidence.
