HQD GDZ-23 ER20 spindle motor

2.2 kW ratedER20Water-cooled24,000 rpm ratedØ80 mm268.5 mm overall

HQD GDZ-23 is a water-cooled manual ER20 spindle rated at 2.2 kW and 24,000 rpm. Compare its 80 mm body, 120 mm clamp region and 268.5 mm assembly with the machine. Select 220 V / 8 A or 380 V / 4.4 A, then review the 400 Hz drive, 6 kg weight and applicable drawing/PDF.

Browse the GDZ spindle range →

MODEL SELECTION

Is this the right GDZ-23 configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER20 tooling at the documented 2.2 kW / 24,000 rpm point.
  • The mount supports the 80 mm body and specified 120 mm clamp region.
  • The selected winding and water circuit can be integrated with the machine.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 8 A and 380 V / 4.4 A as separate complete winding choices.
  • Check the 268.5 mm assembly, 6 kg weight, 400 Hz drive and nose datum.
  • GDZ-23-1 changes diameter and assembly; GDZ-23-2 is shorter and needs its own support drawing.

COMPARE ALTERNATIVES

Consider another model when:

  • GDZ-23-2 retains an 80 mm body and ER20 but lists a 252 mm assembly.
  • GDZ-23-1 uses an 85 mm body; GDZ-24-3 changes body, support and electrical pairs.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

The drawing specifies 2.2 kW, 24,000 rpm and 400 Hz. Body diameter is 80 mm, clamping length is 120 mm and weight is 6 kg. Winding configurations are 220 V / 8 A and 380 V / 4.4 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)2.2
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)80
Overall length (mm)268.5
Clamping length (mm)120
Weight (kg)6
Cooling and feedback
CoolingWater-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 8 A
  • 380 V · 4.4 A

Keep the 2.2 kW point with the unsuffixed GDZ-23

The documented point is 2.2 kW at 24,000 rpm with 400 Hz. Retain the complete GDZ-23 code when selecting the assembly. GDZ-23-1 and -2 share the headline motor point and winding pairs but have different outlines, so a shortened family description does not identify the required support or nose position.

Describe actual working speeds, cutter and load cycle before choosing the unit. The rated point does not establish full output at every lower speed. Request applicable operating information if sustained work elsewhere matters. Tool projection, machine stiffness and cooling remain part of assessment even when the motor figures match an old unit. GDZ-24-3's different currents and body also require a separate selection rather than a power-only comparison.

Select one pair from the paired electrical specifications

The documented winding choices are 220 V / 8 A and 380 V / 4.4 A. Select one complete pair and keep it with the model in the quote. The downloadable PDF identifies both paired specifications; their presence does not establish automatic dual-voltage operation of one supplied unit. Drive input supply and motor-output capability remain separate checks.

Check the VFD model, output voltage, usable output current and 400 Hz capability. Use the actual supplied nameplate and applicable drive instructions for parameters and protection. Keep the two currents paired with their voltages when reading the PDF. GDZ-24-3 is also 2.2 kW but lists different currents, so its motor settings must not be substituted based on rated output or the shared ER20 family.

Review manual ER20 hardware and tool projection

This model uses manual ER20 tooling. Select the collet from its marked gripping range and the actual cutter shank, then verify nut and nose hardware for the supplied unit. ER20 identifies a family rather than one shank diameter or a complete accessory-thread specification. Include reused accessories in the fit discussion instead of assuming that all ER20 spindle noses share identical hardware.

Check wrench access, nut clearance and projection with the spindle located in the 120 mm support region. The same family on another GDZ does not establish the same installed nose position. If automatic magazine changes are required, assess a suitable ATC spindle with its release services, mounting and controls separately. This manual ER20 configuration does not provide an automatic release system solely through a tooling-family match.

Locate the 120 mm support on the 268.5 mm assembly

The verified dimensions are an 80 mm body, 120 mm clamp region and 268.5 mm overall assembly, with 6 kg listed weight. Use the drawing to locate support surfaces and nose references. The full assembly length is not available clamping length. Match the support location and tool projection to the actual bracket and relevant machine travel.

Review rear fittings, hose and cable access and service clearance. GDZ-23-2 uses the same nominal diameter but a shorter 252 mm assembly, while GDZ-23-1 uses an 85 mm body and 270.5 mm assembly. Compare both exact drawings for a proposed change. The shared motor point and winding pairs narrow electrical selection but cannot establish that the support and nose remain in the same position.

Confirm water fittings and circuit requirements

Water cooling is the documented method. Review supplied-unit connections and applicable circuit requirements with the intended duty and proposed equipment. The 2.2 kW rating does not provide a universal flow, pump or temperature setting. Include existing circuit details when reusing a machine installation rather than inferring suitability from a common water-cooling description.

Route hoses and the motor cable while retaining support and connection access through machine movement. Confirm additional service details against the supplied drawing and instructions. Another GDZ's fitting or pressure data do not establish the requirement here. Keep cooling with the mount and enclosure review so inspection and maintenance remain practical around the 120 mm support and rear connection areas.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Confirm the exact model suffix and body diameter.
  • Verify the cooling circuit and selected winding before installation.
  • Use the outline drawing to check the complete installation length.
Read the installation guide →

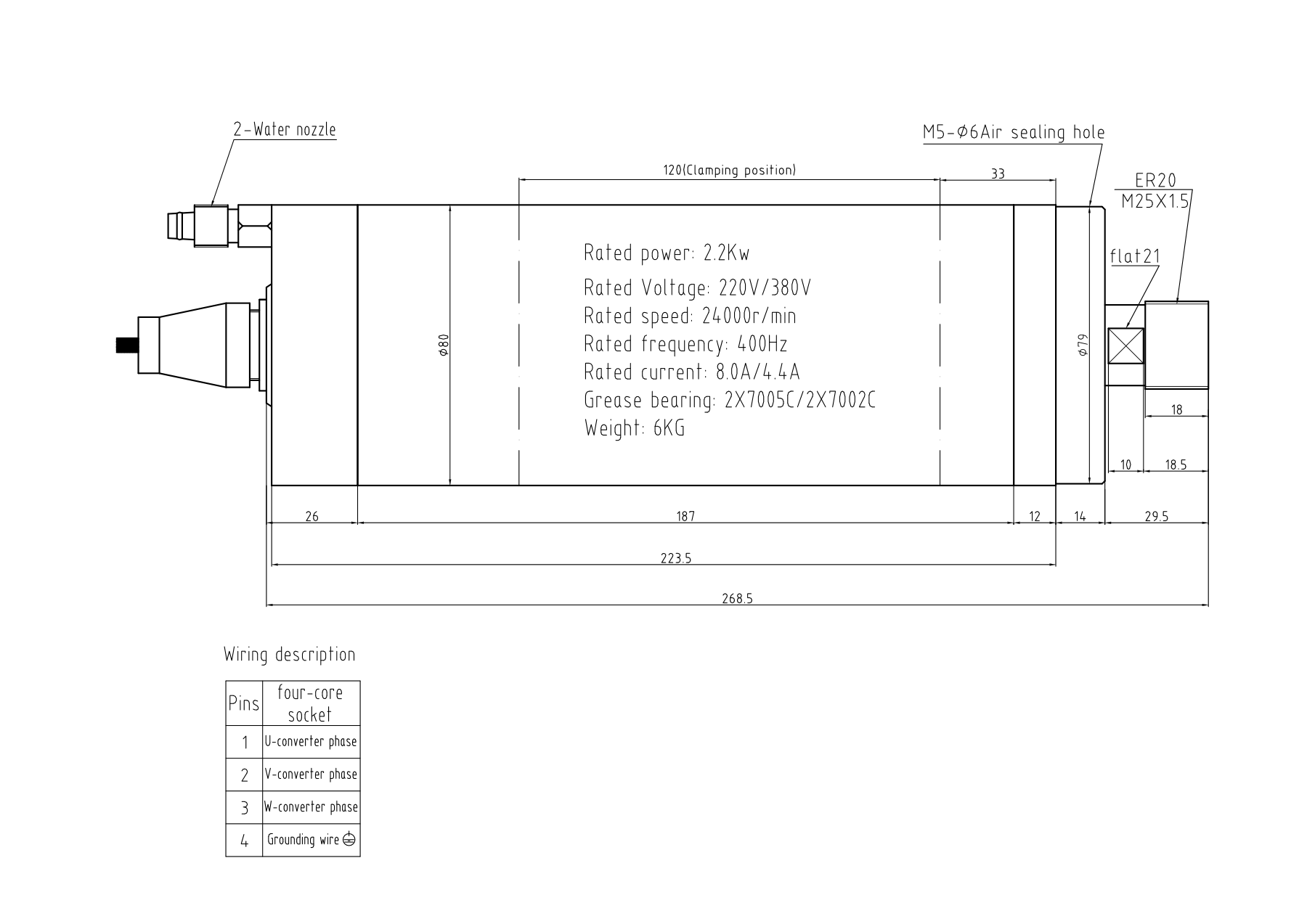

GDZ-23 dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 8 A; 380 V / 4.4 A. Match the block or PDF for the winding you intend to order. View the drawing at full size. Choose the PDF labeled for your configuration below.

Assess ER20 against the actual working cycle

GDZ-23 is a candidate when manual ER20 tooling, water cooling and the documented rated point fit the process, and the machine supports its 80 mm body. Begin with cutter and working speeds, then review winding, drive, support and cooling. A different assembly or body requirement may lead to the -1 or -2 comparison despite shared motor figures.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. These conditions support a suitability discussion; the motor and outline figures alone cannot promise feed rate or finish. Include bracket and circuit constraints so the technical review considers the actual installation rather than treating a 2.2 kW rating or matching voltage as a complete performance assessment.

Use the complete code and support drawing

Send the existing nameplate, model code, mount drawing and clear nose and connection photos. Compare the 80 mm body, 120 mm support region, 268.5 mm assembly and nose datum, followed by ER20 hardware, selected winding, VFD output and water circuit. Keep the unsuffixed GDZ-23 identity visible when the -1 and -2 assemblies are being considered.

The -1 model changes diameter, length and listed weight, while the -2 model changes assembly length and mass with its own support drawing. GDZ-24-3 changes body and electrical pairs. These alternatives identify checks rather than accepted substitutions. For an older unit, confirm current availability and apply the same complete checklist to a successor, retaining exact drawing and supplied-nameplate evidence.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDZ-23Current configuration2.2 kW rated24,000 rpm ratedER20Water-cooledØ80 mm · 268.5 mm overall · 120 mm clamp
GDZ-23-22.2 kW rated24,000 rpm ratedER20Water-cooledØ80 mm · 252 mm overall

GDZ-23-2 shares rated output, ER20, an 80 mm body and winding pairs but lists a shorter 252 mm assembly and 5.5 kg weight. Compare support and nose location using its own drawing rather than transferring this model’s 120 mm clamp dimension.

GDZ-23-12.2 kW rated24,000 rpm ratedER20Water-cooledØ85 mm · 270.5 mm overall · 120 mm clamp

GDZ-23-1 shares the motor point, ER20 and winding pairs but uses an 85 mm body and 270.5 mm assembly instead of 80 mm and 268.5 mm here. Compare the actual bracket and nose position.

GDZ-24-32.2 kW rated24,000 rpm ratedER20Water-cooledØ100 mm · 288.5 mm overall · 120 mm clamp

GDZ-24-3 also uses 2.2 kW and ER20 but changes to a 100 mm body and 288.5 mm assembly, with 220 V / 9 A or 380 V / 5 A. Review mount and drive differences together.

Specify the selected winding and unsuffixed assembly

Request GDZ-23 with 220 V / 8 A or 380 V / 4.4 A, quantity and destination country with postal code. List collets, nut, accessories and extra file needs. Add current mount, VFD and cooling evidence for replacement. A request for a “GDZ-23-family spindle” leaves several body and assembly configurations unclear despite shared electrical options.

Compare quotations for the same complete model, winding and included scope. Confirm accessory applicability and unresolved support or connection issues before finalizing installation. CINKR confirms proposed configuration and current availability by email. Retain the exact drawing, selected pair and applicable PDF with the quote so purchasing and installation refer to the same 120 mm-support assembly.

  • Winding: 220 V / 8 A or 380 V / 4.4 A
  • Configuration: GDZ-23
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Read the paired winding information with the exact drawing

The PDF below contains dimensions, specifications and wiring for GDZ-23 and identifies the paired 220 V / 8 A and 380 V / 4.4 A winding specifications. Select the pair applicable to the supplied unit. The file does not establish the outline or support of GDZ-23-1 or -2 simply because their motor figures are similar.

Use the full-size drawing to locate the support and nose references. Request additional CAD or service information with the complete model and chosen winding. The outline, actual nameplate and service instructions answer different questions, while drive and machine procedures guide commissioning. Describe the unresolved support, cooling or electrical issue when requesting another document so the response addresses the actual installation.

DOWNLOADS

Files for this configuration.

PDF · 101 KB

Dimensions, specifications and wiring

GDZ-23 · paired 220 V/8 A and 380 V/4.4 A windings

English

Download PDF

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDZ-23

Which winding choices are documented?

Select 220 V / 8 A or 380 V / 4.4 A as a complete supplied pair. The PDF identifies both pairs; it does not establish automatic dual-voltage operation.

What is the clamp region?

It is 120 mm on an 80 mm body. Use its location on the drawing rather than treating the 268.5 mm assembly as available support.

Does GDZ-23-1 use the same diameter?

It uses an 85 mm body and 270.5 mm assembly. Compare support and nose position even though output, tooling and winding pairs are shared.

Is GDZ-23-2 the same outline?

It lists a shorter 252 mm assembly and 5.5 kg weight. Use its own support drawing rather than applying the unsuffixed model's clamp dimensions.

Can GDZ-24-3 use the same currents?

That model has its own electrical pairs and body dimensions. Shared 2.2 kW and ER20 labels do not establish interchangeable motor parameters.

What belongs in a replacement quote?

Send the exact model, winding, quantity, destination and accessories, plus existing nameplate, support, nose, connections, VFD and cooling evidence.
