HQD GDK125-9-15Z/5.5-11 ER32 spindle motor

5.5 kW ratedER32Water-cooled9,000–15,000 rpmØ125 mm405 mm overall

HQD GDK125-9-15Z/5.5-11 is a water-cooled ER32 spindle with a 9,000–15,000 rpm operating range and 5.5 kW rated output. Its original graph also shows an 11 kW line with S1/S6-20%, TA20°C conditions. Compare the working cycle, 294–380 V U/f relationship and 125 mm body before specifying the motor and drive.

Browse the GDK spindle range →

MODEL SELECTION

Is this the right GDK125-9-15Z/5.5-11 configuration?

BEST FIT

Choose this configuration if:

  • The process requires the documented 9,000–15,000 rpm range with manual ER32 tooling.
  • The mount supports a 125 mm body over the 190 mm clamp region and accommodates the 405 mm assembly.
  • The VFD and water circuit can be assessed with the operating graph and intended production cycle.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 5.5 kW rated separate from the 11 kW curve level and S1/S6-20%, TA20°C notes.
  • Check the 450–750 Hz range, 14 A and 294–380 V U/f relationship; endpoints are not selectable windings.
  • Review the 31 kg assembly, support region, nose and nut clearance, cooling and front-end service requirements.

COMPARE ALTERNATIVES

Consider another model when:

  • GDK125-12-24Z/7.5 changes the range to 12,000–24,000 rpm and lists a different voltage-frequency relationship.
  • GDK125-30Z/7.5 has a 30,000 rpm point and 1,000 Hz requirement; GDK105-21Z/3.5 uses ER20 and a smaller body.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER32 tooling. Power: 5.5 kW rated. Speed: 9,000–15,000 rpm. Installation dimensions and weight: 125 mm body diameter, 190 mm clamping length, 405 mm overall length, 31 kg weight.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)5.5
Operating range (rpm)9,000–15,000
Tooling and mounting
Tool interfaceER32
Tool changeManual tool change
Electrical
Rated current (A)14
Frequency range (Hz)450–750
Curve voltage endpoints (V)294–380
Dimensions and weight
Body diameter (mm)125
Overall length (mm)405
Clamping length (mm)190
Weight (kg)31
Cooling and feedback
CoolingWater-cooled

5.5 kW rated and the separate 11 kW line

The reviewed rated output is 5.5 kW. The original graph shows separate 5.5 kW and 11 kW power lines across the identified 9,000–15,000 rpm region and carries S1/S6-20%, TA20°C and water-cooling notes. Keep the graph and its duty conditions together. The “5.5-11” characters do not establish an unconditional continuous 11 kW rating, and they are not two independently selectable spindle options.

State the normal working speed and production load cycle in the inquiry. A requirement for sustained cutting and one involving a different intermittent load pattern need the actual duty information to be assessed. If selection depends on the higher curve line, resolve its applicability before accepting the spindle for that process. Do not compare a bare 11 kW model-code number with a continuous rating on another unit while dropping the associated temperature and cooling conditions.

The listed range is lower than the 12,000–24,000 rpm GDK125 configuration and the 30,000 rpm GDK125 point model. That is a meaningful operating choice, not evidence that one model offers every capability of the others. Compare the required tools and working speeds first, then the relevant curve, drive and installation. A higher speed or power headline cannot settle a process centered on a different operating region.

294–380 V is the curve relationship

The U/f graph identifies 294 V at 450 Hz / 9,000 rpm and 380 V at 750 Hz / 15,000 rpm. These are operating-curve points for the identified motor, not selectable 294 V and 380 V windings. The reviewed current is 14 A. Check voltage behavior, frequency and current together with the proposed VFD's output capability, keeping the drive's mains input supply as a separate specification.

Provide the exact drive model and output information if it will be reused. Its nominal power designation does not alone establish the required frequency range or suitable motor-output relationship. The curve and supplied-unit label should remain with the drive review, and commissioning must follow the applicable drive instructions. Do not enter a printed endpoint as a universal motor voltage without considering the complete documented configuration.

No independent winding choices are established by the endpoint range. If the machine needs another electrical arrangement, state the requirement and request confirmation of the proposed spindle/drive combination. Retain the full GDK125-9-15Z/5.5-11 code in drawings and quotation discussions. The other 125 mm GDKs have different speed and frequency descriptions even when a voltage or current value appears similar.

ER32 tooling for a manual-change installation

This spindle uses manual ER32 collet tooling. Choose the actual collet from the cutter's shank and the collet's marked gripping range. Check the nose, collet nut and access needed to change tools in the mounted position. ER32 identifies a tooling family; it does not establish one shank diameter, every nut thread or clearance dimension. Confirm accessories for the exact supplied assembly before reusing tooling hardware from another ER32 spindle.

The tool interface is different from a GDL automatic taper-and-release installation. If a magazine-driven tool change is required, that requirement needs a separate architecture and control review. For this manual spindle, include wrench access and tool projection with the machine envelope. The larger body and rated output do not remove the need to match tooling, retention and the actual working-speed requirement.

Support the 125 mm body over the correct region

The verified dimensions are 125 mm body diameter, 190 mm clamping length and 405 mm overall length, with 31 kg listed weight. Compare the drawing's support surfaces and reference points with the machine mount. The clamp region describes a mounting check; the overall length describes the complete envelope. They are not interchangeable, and the total length alone does not locate the spindle nose or establish a suitable support arrangement.

The 12,000–24,000 rpm GDK125 lists a 404.5 mm assembly and 190 mm clamp region, but similar dimensions do not settle electrical or nose compatibility. The 30,000 rpm model has a separately documented 150 mm clamp region and reference lengths. Keep exact drawings beside one another when comparing. Review rear fittings, service access, collet-nut clearance and moving-axis capacity with the assembly weight and intended tools included.

Water cooling belongs with the duty assessment

Water cooling is explicitly stated on the original graph. Confirm the supplied spindle's circuit requirements and connections with the intended load cycle and proposed equipment. Neither the 5.5 kW rated entry nor the 11 kW curve level specifies a universal coolant flow, temperature or pump setting. Provide existing circuit details if reusing equipment, rather than accepting it solely because the previous spindle was also water cooled.

Review any front air-seal service and its requirements for the exact unit. A pressure value documented on the 30,000 rpm GDK125 does not automatically apply to this range configuration. Cooling and air sealing need separate checks, including connection access and routing throughout the machine movement. Include photographs of the nose and rear fittings where the old installation documents are incomplete so the supply discussion can address actual connection differences.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

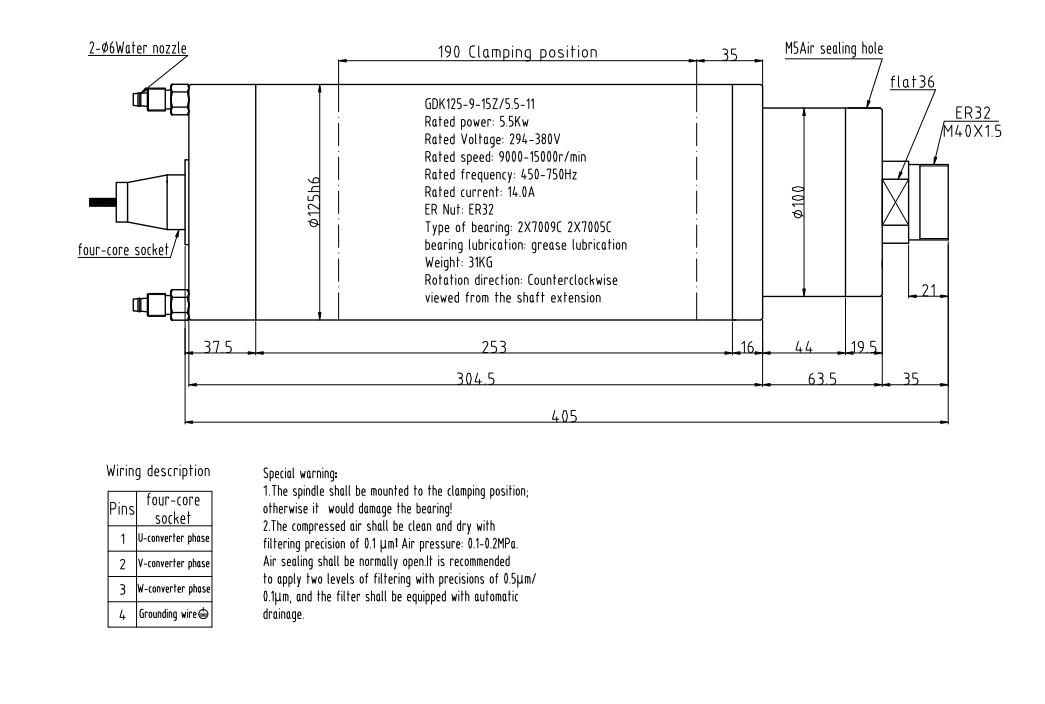

GDK125-9-15Z/5.5-11 dimensions and specifications drawing
Installation drawing. View the drawing at full size.

Evaluate the lower range and actual load cycle

This configuration is a candidate when manual ER32 tooling and the 9,000–15,000 rpm region match the process requirement. Connect that choice to the identified operating graph and intended duty before assessing drive output and cooling. The model should not be selected as a generic 11 kW upgrade without considering whether the working point and machine layout support the documented configuration.

For engraving or milling, include material, cutter geometry, shank size, normal speeds, load cycle and machine stiffness. These inputs support a conditional selection discussion. Feed rate, surface finish and material-removal capacity depend on the tooling, machine stiffness and cutting conditions as well as spindle output. If the intended tools require a different speed region or interface, compare the appropriate GDK configuration on its own facts instead of assuming that this spindle covers the full range of the family.

A similar 125 mm mount is only one part of the check

Start with the old spindle's complete code, nameplate, mounting drawing and nose/connection photos. Compare the 125 mm body, 190 mm support region, 405 mm complete assembly and nose datum, then review nut hardware, U/f behavior, current, drive output and cooling. Include the intended duty in the inquiry. A matching body diameter or similar total length does not establish equivalent output or electrical configuration.

The 7.5 kW range model changes the operating region and voltage relationship, while the 30,000 rpm model changes frequency and support dimensions. GDK105-21Z/3.5 uses ER20 and a 105 mm body. Read these as meaningful comparison reasons, not accepted substitutions. For an older unit, ask for availability and apply the same complete mechanical, electrical, tooling and service checklist to any proposed successor.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDK125-9-15Z/5.5-11Current configuration5.5 kW rated9,000–15,000 rpmER32Water-cooledØ125 mm · 405 mm overall · 190 mm clamp
GDK125-12-24Z/7.57.5 kW rated12,000–24,000 rpmER32Water-cooledØ125 mm · 404.5 mm overall · 190 mm clamp

Retain ER32 and a 125 mm body while changing to 7.5 kW rated and a 12,000–24,000 rpm range; the U/f relationship differs from this 5.5 kW rated model.

GDK125-30Z/7.57.5 kW rated30,000 rpm ratedER32Water-cooledØ125 mm · 150 mm clamp

Compare 7.5 kW at 30,000 rpm with a 1,000 Hz requirement and 150 mm clamp region, rather than this 9,000–15,000 rpm range and 190 mm support region.

GDK105-21Z/3.53.5 kW rated21,000 rpm ratedER20Water-cooledØ105 mm · 312 mm overall

Compare ER20, 3.5 kW at 21,000 rpm and a 105 mm body against this ER32, 125 mm range configuration.

Request the range model without dropping the duty context

Include GDK125-9-15Z/5.5-11, quantity and destination country with postal code. Describe the working speeds, production cycle, drive and cooling equipment, and list required collets, accessories or additional documents. A request for an “11 kW GDK125” leaves the rated output, duty conditions and separate 7.5 kW configurations unresolved. Keep the full range code with the inquiry.

Compare quotations for the same spindle configuration and supply scope. Check tooling, technical documents and accessories, and record any electrical or cooling requirement that needs confirmation. Request a quotation for the exact range model, required tooling, documents, quantity and destination. CINKR confirms the proposed configuration, price and availability by email. Retain the agreed outline and operating information with the quotation so purchasing does not lose the duty and U/f distinctions needed for installation.

  • Winding: confirm the supplied-unit electrical specification
  • Configuration: GDK125-9-15Z/5.5-11
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Keep the curve and mounting reference associated

Use the full-size installation drawing below for the body, clamp region, complete length and connection locations. Ask for the matching voltage, power and torque graph by the exact GDK125-9-15Z/5.5-11 code when it is needed for the drive and duty discussion. The graph's S1/S6-20%, TA20°C and water-cooling notes must remain with the separate power lines.

Additional CAD or connection documents should be checked for applicability before they are used to finalize the machine. A file for another 125 mm GDK may describe a different operating range, clamp region or nose arrangement. Keep the supplied-unit label, identified drawing and applicable graph with the same quotation, while using the machine and drive procedures for commissioning. This preserves the distinction between dimensional fit and the actual motor-output requirements.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDK125-9-15Z/5.5-11

Is 11 kW the continuous rated value?

The reviewed rated output is 5.5 kW. The original graph has a separate 11 kW line with S1/S6-20%, TA20°C and water-cooling notes; retain those conditions instead of claiming unconditional continuous 11 kW.

Are 294 V and 380 V winding choices?

They are endpoints of the documented U/f relationship, associated with 450 Hz / 9,000 rpm and 750 Hz / 15,000 rpm. They do not establish independent winding or mains-input choices.

What should the drive check include?

Compare the full voltage-frequency relationship, 14 A current, intended duty and VFD output capability. Keep the drive input supply separate and use the supplied-unit information for commissioning.

Can a mount for GDK125-12-24Z/7.5 prove compatibility?

Similar diameter and clamp length are useful starting points, but nose datums, tooling hardware, electrical curves and cooling still need review against both exact drawings.

Does the 30,000 rpm model's air-seal pressure apply here?

Do not transfer it without confirmation. Review the supplied-unit front-end service requirements and connection details for this exact range configuration.

What makes the quote request complete?

Include the full range code, quantity, destination, working cycle, drive, cooling and tooling requirements. For replacement, add the current nameplate, mounting drawing and connection photographs.
