HQD GDL100-25-24Z/2.5 ISO25 ATC spindle

2.5 kW ratedISO25Water-cooled24,000 rpm ratedØ100 mm

HQD GDL100-25-24Z/2.5 is a water-cooled ISO25 ATC spindle rated at 2.5 kW and 24,000 rpm. It is a candidate for a machine designed around ISO25 tooling and a 100 mm spindle body. Check the 220 V / 9.2 A or 380 V / 5.5 A winding, the clamp region and the rear tool-release assembly before ordering.

Browse the GDL spindle range →

MODEL SELECTION

Is this the right GDL100-25-24Z/2.5 configuration?

BEST FIT

Choose this configuration if:

  • The machine uses ISO25 holders and has an automatic tool-change system suited to this spindle's retention arrangement.
  • A 100 mm body and 130 mm clamping length match the proposed mounting design.
  • Water cooling and a VFD capable of the selected winding and 400 Hz operating point can be provided.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 9.2 A and 380 V / 5.5 A as separate winding pairs.
  • Check the 393 mm body reference and 41.5 mm rear projection against their drawing datums.
  • Confirm pneumatic release, clamp sensing, controller interlocks and holder clearance for the actual assembly.

COMPARE ALTERNATIVES

Consider another model when:

  • GDL80-20-24Z/2.2B changes the tooling to ISO20 and reduces the body diameter to 80 mm.
  • GDL110 and GDL120 use BT30; selecting either requires a tooling and installation review rather than only a power comparison.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ISO25 tooling. Power: 2.5 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 100 mm body diameter, 130 mm clamping length, 18 kg weight. Winding options: 220 V / 9.2 A or 380 V / 5.5 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)2.5
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceISO25
Tool changeAutomatic tool change
Electrical
Frequency (Hz)400
Poles2
Dimensions and weight
Body diameter (mm)100
Clamping length (mm)130
Body reference length (mm)393
Rear projection (mm)41.5
Weight (kg)18
Cooling and feedback
CoolingWater-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 9.2 A
  • 380 V · 5.5 A

Match the 24,000 rpm and 400 Hz operating point

The GDL100 drawing identifies 2.5 kW, 24,000 rpm, 400 Hz and two poles. Use that combination when checking the drive. A spindle's operating frequency is a motor output requirement; it is different from the mains frequency feeding a VFD. A drive that accepts the available machine supply still needs to provide the correct output for this spindle. Include its output frequency limit and current capability when requesting the electrical check.

The 24,000 rpm rating also deserves attention when comparing the nearby GDL110. That BT30 model has an 18,000 rpm operating point and a different frequency and pole count. Sharing the GDL family does not make the drive setup interchangeable. If the intended operation runs substantially below the listed rated speed, describe the actual speed and cutting duty. The 2.5 kW headline does not, by itself, establish available output throughout an assumed speed range.

Specify the winding before selecting the drive

The documented winding options are 220 V / 9.2 A and 380 V / 5.5 A. Choose one complete pair. They do not mean that the same supplied spindle can simply be connected to either output voltage. The winding selector can carry your choice into the inquiry, and the matching drawing should remain with it. If the old spindle's label is unclear, include a photograph and the existing drive information instead of choosing a voltage from the machine supply alone.

Compare drive output current as well as voltage, power designation and frequency capability. For example, a quotation described only as “2.5 kW ISO25” leaves the winding unresolved even when the mechanical interface sounds correct. Ask for the proposed configuration to be stated explicitly. Before commissioning, use the supplied-unit nameplate and the drive's own setup instructions to establish motor data and protection settings; a drawing for the alternate winding is not the correct basis for those settings.

ISO25 is the start of the ATC check

ISO25 distinguishes this model from the ISO20 GDL80 and the BT30 GDL110/GDL120. Retain that interface distinction when comparing holders, tool magazines and spindle proposals. Check the holder's retention hardware, engagement and available insertion space against the complete GDL100 installation. A shared automatic-tool-change description does not establish compatibility between different tapers, and a shared taper alone does not resolve the release mechanism or sensor interfaces.

The rear assembly participates in tool release, so its pneumatic connections and clearance need to be included in the mounting review. Request the supplied-unit release and clamp-state information, then compare it with the machine controller's inputs, outputs and tool-change sequence. Establish which states must be confirmed before rotation and magazine movement. The specifications here do not provide a universal release pressure, wiring polarity or timing; those details must be checked for the exact assembly rather than copied from another GDL.

Read the body reference and rear projection separately

The verified drawing gives a 100 mm body diameter, 130 mm clamping length, 393 mm body reference length and 41.5 mm rear projection. The body reference and projection are separately labeled dimensions. Do not add them and present the result as a verified overall length without checking the drawing datums. Compare each labeled span with the machine drawing so that the rear cylinder and the nose position are considered correctly.

The listed weight is 18 kg. Include that assembly in the mount and moving-axis review, together with the intended holder and connection routing. The body diameter is useful for an initial clamp comparison, but it cannot establish the location or suitability of every support surface. Check the drawing's clamp region and leave room for the rear connections and servicing. A mount built for an 80 mm or 110 mm GDL will require its own mechanical assessment even when the tool-change layout looks familiar.

Plan water connections around the rear ATC assembly

This GDL100 configuration uses water cooling. Confirm the supplied spindle's hose fittings and operating requirements before selecting the cooling equipment or reusing an existing circuit. Neither the 2.5 kW rating nor the ISO25 interface provides a universal coolant flow or temperature. Include the existing cooling equipment, proposed hose route and intended duty in the inquiry so the circuit can be assessed with the spindle configuration.

Route hoses with the rear release mechanism and electrical connections in view. Check access during installation and throughout the machine's movement, including any bend or tension introduced by the moving axis. Cooling compatibility and tool-release compatibility are separate checks: providing water does not resolve the air or control requirements. For a replacement, photographs of the current connection area help show what needs to remain accessible and what may need to be changed before the spindle is fitted.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

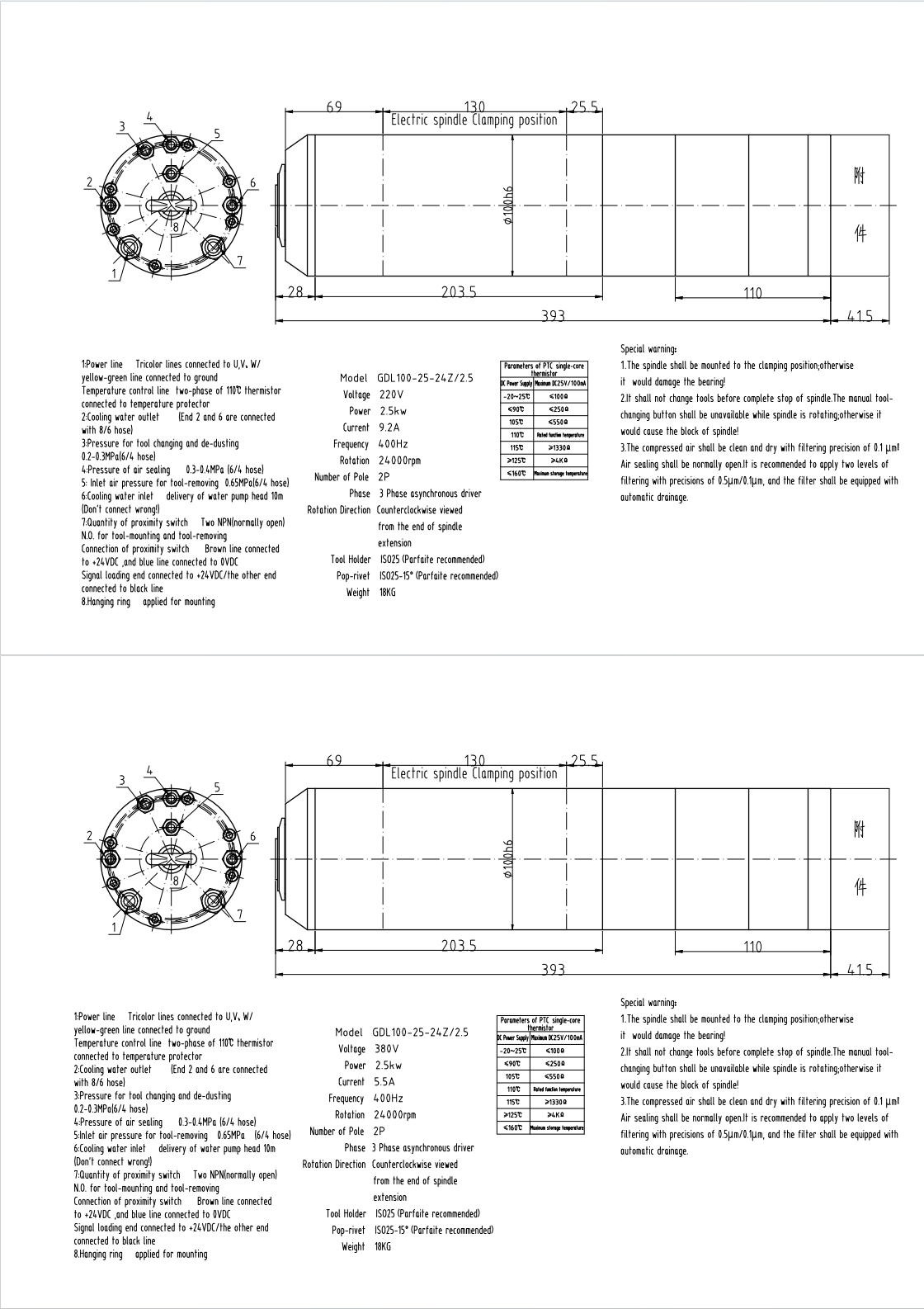

GDL100-25-24Z/2.5 dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 9.2 A; 380 V / 5.5 A. Match the block or PDF for the winding you intend to order. View the drawing at full size.

Evaluate it for an ISO25 machine at the required speed

GDL100-25-24Z/2.5 is most usefully assessed when the machine design already calls for ISO25 automatic tooling, water cooling and the documented high-speed operating point. Work outward from those requirements to the winding and mounting dimensions. For a new design, compare the intended holders and production sequence before finalizing the mount; for an existing machine, keep the current spindle drawing beside this one and review the complete interface.

An operation described only as woodworking, engraving or milling does not establish a suitable spindle. Include the material, tool geometry, shank arrangement, working speed and cutting duty. The 2.5 kW rating is one selection input alongside machine stiffness, holder suitability and drive capability. CINKR can discuss the configuration from that context, while any specific feed rate, finish or material-removal result needs evidence from the actual tooling and machine rather than an assumption based on the series name.

Compare the ISO25 assembly, not only its power

For a replacement, provide the current model code, nameplate, mounting drawing and photographs of the nose and rear connections. Compare the 100 mm body and 130 mm clamp region first, then the drawing datums, holder retention, winding, cooling and release control. Keep unresolved connection details in the inquiry. A matching 2.5 kW value does not confirm that the replacement can occupy the same mounting position or run on the same drive settings.

The alternatives below expose useful differences. GDL80-20-24Z/2.2B is an ISO20 installation with an 80 mm body. GDL110 changes to BT30 and 18,000 rpm; GDL120 also uses BT30 but operates at 24,000 rpm with different output and dimensions. These comparisons help identify which requirement would change. They are not approved substitutions. If this is an older installation, request current availability and evaluate any proposed successor against the same mechanical, electrical and control checklist.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDL100-25-24Z/2.5Current configuration2.5 kW rated24,000 rpm ratedISO25Water-cooledØ100 mm · 130 mm clamp
GDL110-30-18Z/3.23.2 kW rated18,000 rpm ratedBT30Water-cooledØ110 mm · 132 mm clamp

Compare BT30 at 18,000 rpm with this ISO25 at 24,000 rpm; the GDL110 also changes the body to 110 mm.

GDL80-20-24Z/2.2B2.2 kW rated24,000 rpm ratedISO20Water-cooledØ80 mm · 335 mm overall · 98 mm clamp

Compare the smaller, water-cooled ISO20 assembly: 80 mm body and 335 mm overall versus this ISO25 installation.

GDL120-30-24Z/5.55.5 kW rated24,000 rpm ratedBT30Water-cooledØ120 mm · 496.5 mm overall · 136 mm clamp

Compare BT30 and 5.5 kW at 24,000 rpm with ISO25 and 2.5 kW; check the larger 120 mm body and complete GDL120 drawing.

Identify the ISO25 supply you want quoted

A useful GDL100 quotation starts with the full GDL100-25-24Z/2.5 code and the intended winding. Add quantity, destination country and postal code, then list the holders, accessories and documents required. Describe the machine if the release sequence, cooling or mounting details still need checking. This allows the email discussion to identify the proposed spindle and the supply scope instead of relying on an abbreviated model reference.

When comparing quotations, check whether both include the same voltage/current pair and the same accessories. A price for an unspecified ISO25 spindle leaves important differences unresolved. Send the exact model, selected winding, quantity, destination and accessory requirements for a quotation. CINKR confirms the proposed configuration, price and current availability by email. Retain the confirmed drawing and configuration with the quotation, especially if purchasing another unit for an older machine whose original documentation is incomplete.

  • Winding: 220 V / 9.2 A or 380 V / 5.5 A
  • Configuration: GDL100-25-24Z/2.5
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Choose the 220 V or 380 V drawing deliberately

View the full-size installation drawing for mounting dimensions and connection locations. For additional PDF or CAD files, request GDL100-25-24Z/2.5 with the selected 220 V / 9.2 A or 380 V / 5.5 A winding. Confirm the document applies to that winding before using its electrical data, and retain the matching file with the quotation. Keep the selected voltage and current together in the drive review and purchase specification.

Open the full-size installation drawing to inspect the separate body reference and rear projection. If another format, CAD file or connection document is needed, request it for the exact model and winding. The presence of a drawing for a related GDL does not establish that it applies to this assembly. Additional documents should be checked against the supplied unit before they are used to finalize the machine's installation or commissioning procedure.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDL100-25-24Z/2.5

Is this spindle ISO20 or ISO25?

GDL100-25-24Z/2.5 uses ISO25. GDL80-20-24Z/2.2B is the ISO20 comparison. Check holder retention and release details as well as the taper before selecting an ATC assembly.

Which current belongs to each winding?

The documented pairs are 220 V / 9.2 A and 380 V / 5.5 A. Keep the chosen pair together in the inquiry, drawing selection and VFD check.

Can I use 434.5 mm as its overall length?

The drawing labels a 393 mm body reference and a 41.5 mm rear projection separately. Read their datums on the drawing instead of turning their sum into an unverified overall dimension.

Does a 400 Hz drive setting apply to every GDL?

No. This model's documented point is 24,000 rpm at 400 Hz with two poles. Other GDL models have different pole counts and frequency requirements.

What should I send for a replacement check?

Include the full current model, nameplate, mount drawing, ISO25 holder details and rear connection photos. The winding, clamp region, cooling, release mechanism and controller signals all need comparison.

How is availability confirmed?

Request a quotation with the model, winding, quantity and destination. CINKR confirms the proposed supply and current availability by email, including additional drawings or accessories requested.
