GDL SERIES · ATC

HQD GDL80-20-24Z/2.2B ISO20 ATC spindle

2.2 kW ratedISO20Water-cooled24,000 rpm ratedØ80 mm335 mm overall

HQD GDL80-20-24Z/2.2B is a water-cooled ISO20 ATC spindle rated at 2.2 kW and 24,000 rpm. Its 80 mm body, 98 mm clamp region and 335 mm overall assembly provide concrete dimensions for a compact tooling installation. Check the 220 V / 7.6 A winding, 800 Hz drive requirement and complete release interface before ordering.

Browse the GDL spindle range →

MODEL SELECTION

Is this the right GDL80-20-24Z/2.2B configuration?

BEST FIT

Choose this configuration if:

  • The machine uses ISO20 automatic tooling and the documented 24,000 rpm operating point.
  • The mount matches the 80 mm body and can support the 98 mm clamping region.
  • Water cooling, a suitable high-frequency drive and the required ATC air and control services can be provided.

CHECK BEFORE ORDERING

Confirm these details first:

  • Check the 220 V / 7.6 A motor winding with the 800 Hz, four-pole operating information.
  • Review the 335 mm assembly, 9 kg weight, nose reference and rear connector clearance from the drawing.
  • Confirm retention hardware, release movement, clamp sensing and controller interlocks for the supplied unit.

COMPARE ALTERNATIVES

Consider another model when:

  • GDL40.5 also uses ISO20 and lists 2.2 kW, but is air cooled with 18,000 rpm rated and 24,000 rpm maximum.
  • GDL100 uses ISO25 and GDL110 uses BT30, changing tooling and mounting as well as electrical requirements.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ISO20 tooling. Power: 2.2 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 80 mm body diameter, 98 mm clamping length, 335 mm overall length, 9 kg weight.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)2.2
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceISO20
Tool changeAutomatic tool change
Electrical
Spindle winding (V)220
Rated current (A)7.6
Frequency (Hz)800
Poles4
Dimensions and weight
Body diameter (mm)80
Overall length (mm)335
Clamping length (mm)98
Weight (kg)9
Cooling and feedback
CoolingWater-cooled

24,000 rpm rated with an 800 Hz motor requirement

The verified operating point for GDL80-20-24Z/2.2B is 2.2 kW at 24,000 rpm, with 800 Hz and four poles listed. Keep those values together when checking the drive. The frequency is a motor-output requirement and differs from the mains frequency supplying the VFD. A drive that accepts the available supply still needs the output capability appropriate to this spindle.

The air-cooled GDL40.5 comparison has a different operating description: 18,000 rpm rated at 300 Hz and 24,000 rpm maximum at 400 Hz. Both list 2.2 kW and ISO20, but those similarities do not make their speed-frequency setup interchangeable. If the intended operation uses sustained lower speeds, describe that cycle and obtain the relevant operating information rather than assuming that the rated power applies at every command below 24,000 rpm.

Check 220 V and 7.6 A as a complete pair

The reviewed GDL80 configuration lists a 220 V / 7.6 A winding. Compare the proposed VFD output voltage, current and frequency capability with that motor information. Keep the drive's input supply as a separate check. A nominal 2.2 kW drive description leaves the output frequency and current unresolved, so provide the exact drive model and specifications when asking whether existing equipment can be reused.

A 380 V winding is not established by the reviewed configuration here. If the machine requires a different electrical arrangement, request confirmation rather than transferring another GDL model's winding choices to this one. Use the supplied spindle nameplate and applicable drive instructions when entering motor data and protection settings. The 7.8 A value of the GDL40.5 is a separate configuration and must not replace this GDL80's 7.6 A figure.

Before ordering, identify whether a voltage in the discussion refers to the machine supply, drive input or spindle output. That distinction makes the quotation and installation review more precise. A suitable mechanical and tooling fit can still leave the drive unresolved, especially when the old machine used a different pole count or a lower output-frequency limit despite having a similar power designation.

ISO20 holder retention and release connections

ISO20 gives a defined taper to compare with the machine's holders, but the complete ATC installation also depends on retention hardware, release travel and magazine geometry. Review the actual holders and spindle nose reference against the drawing. The shared ISO20 designation on GDL40.5 is useful for comparison; it does not establish identical retention hardware, sensor wiring or release connections.

Request the supplied-unit pneumatic and electrical connection information, then compare it with the machine controller. Establish the clamp and release states that must be confirmed before rotation and magazine movement. Pressure settings, signal polarity and timing should follow the exact assembly and control arrangement. If orientation or another feedback-dependent function is required, state it explicitly rather than assuming it is included because the spindle supports automatic tool change.

80 mm body, 98 mm clamp region, 335 mm assembly

The body diameter, clamping length and overall assembly length answer different mounting questions. Check the 80 mm body against the clamp, identify the documented 98 mm support region, and compare the 335 mm complete assembly with nose and rear clearance. Use the drawing to locate the relevant datums and support surfaces. The total length is not a permitted clamping length and does not independently place the spindle nose in the machine.

The listed spindle weight is 9 kg. Include the assembly in the moving-axis and mounting review together with the intended holder and service routes. Check clearance during holder insertion and withdrawal, not only when the spindle is stationary. A compact body can still require changes to the magazine position, water hoses or rear connector access. Compare the existing mount and complete spindle drawing before accepting the installation.

Water cooling for the compact ISO20 assembly

This B configuration is water cooled. Confirm the supplied spindle's fittings, hose arrangement and operating requirements with the proposed circuit. The 2.2 kW rating does not specify a universal coolant flow, temperature or pump setting. Provide the cooling equipment details and actual duty so the installation discussion can address the complete arrangement instead of assuming that any small-spindle circuit is suitable.

Plan the water route with release air, sensor wiring and motor cable. Check access for assembly and servicing and ensure that services remain clear throughout the machine movement. Moving from the air-cooled GDL40.5 to this spindle introduces a water-circuit requirement even though ISO20 and 2.2 kW are retained. Moving from another water-cooled spindle still needs confirmation of connections and operating requirements rather than only matching the cooling label.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

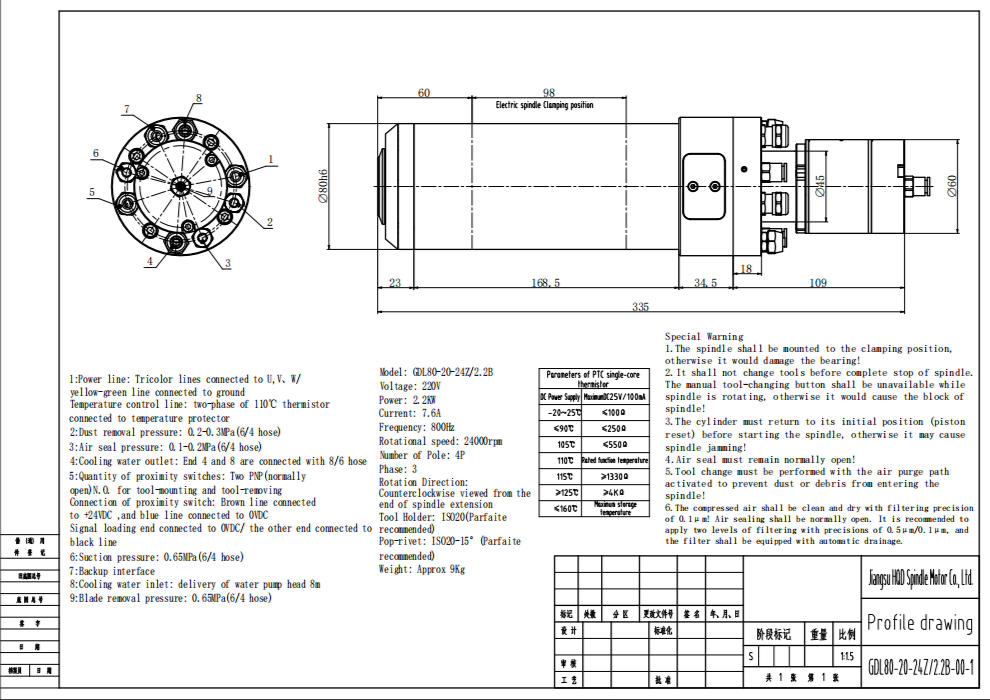

GDL80-20-24Z/2.2B dimensions and specifications drawing
Installation drawing. View the drawing at full size.

Choose from the ISO20 layout and working-speed requirement

GDL80-20-24Z/2.2B is a candidate for a machine designed around water-cooled ISO20 ATC and the documented 24,000 rpm point. Its body, clamp and complete-length facts allow a concrete mounting comparison. Begin with the required holders and working speed, then check the drive, cooling circuit and tool-change services. This sequence keeps the compact dimensions from becoming the only reason for choosing the spindle.

For routing, engraving or milling, include material, tool geometry, holder arrangement, working-speed requirement and cutting duty. The specifications support a configuration assessment; they do not guarantee feed rate, finish or production capacity for every ISO20 machine. Machine stiffness, tooling and cutting conditions also affect the result. Share the actual operation and any feedback requirement so the technical discussion can identify the remaining information needed before selection.

Compare the compact assembly as a complete system

Provide the current spindle's full code, readable nameplate, mounting drawing and photographs of tooling and rear connections. Compare the 80 mm body, 98 mm clamp region, nose reference and 335 mm overall assembly, then check the winding, drive output, water circuit, retention hardware and clamp/release control. A matching ISO20 taper or 2.2 kW value does not establish a complete installation match.

GDL40.5 is a useful ISO20 comparison for a different cooling method and rated/max operating description. GDL100 changes to ISO25 and a 100 mm body; GDL110 changes to BT30 and 18,000 rpm. Use those rows to identify which requirement would change, then inspect the relevant drawings. If the old spindle is no longer readily available, ask CINKR to confirm current supply and review any proposed alternative with the same mechanical, electrical and control checklist.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDL80-20-24Z/2.2BCurrent configuration2.2 kW rated24,000 rpm ratedISO20Water-cooledØ80 mm · 335 mm overall · 98 mm clamp
GDL40.5-ISO20-24Z/2.22.2 kW rated18,000 rpm rated / 24,000 rpm maxISO20Air-cooled372.5 mm overall

Retain ISO20 and 2.2 kW in the comparison while changing to air cooling, 18,000 rpm rated and 24,000 rpm maximum.

GDL100-25-24Z/2.52.5 kW rated24,000 rpm ratedISO25Water-cooledØ100 mm · 130 mm clamp

Compare ISO25 in a 100 mm water-cooled body with this 80 mm ISO20 assembly, including separate winding choices.

GDL110-30-18Z/3.23.2 kW rated18,000 rpm ratedBT30Water-cooledØ110 mm · 132 mm clamp

Compare BT30 at 3.2 kW and 18,000 rpm in a 110 mm body; tooling, operating point and mounting change.

Request the exact B configuration and supply scope

Include GDL80-20-24Z/2.2B, the documented 220 V / 7.6 A winding, quantity and destination country with postal code. List any holders, accessories or additional documents required. Describe the existing spindle and cooling equipment if this is a replacement. Keeping the B suffix and water-cooling requirement visible helps prevent a general request for a 2.2 kW ISO20 spindle from mixing different assemblies.

When comparing quotations, check the exact model, motor configuration and accessories rather than only the amount. Identify which installation questions remain unresolved, such as release connections, holder retention or water fittings. CINKR confirms the proposed configuration and current availability by email. Retain the agreed drawing and supply scope with the quotation so the installation team can work from the same configuration that was requested.

  • Winding: confirm the supplied-unit electrical specification
  • Configuration: GDL80-20-24Z/2.2B
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the installation drawing for this ISO20 model

The full-size installation drawing below is the available dimensional reference for this GDL80 configuration. Inspect the clamp region, nose position and rear connection area against the machine. No separate PDF or CAD download is offered unless it is identified for this unit. If another format is required, request it with the exact model and intended installation rather than substituting a file for another ISO20 spindle.

An additional document needs an applicability check before it is used to finalize mounting, wiring or the tool-change sequence. Keep the confirmed document with the quotation and supplied-unit information. The drawing supports mechanical comparison, while the spindle label, connection instructions and machine drive/control procedures are needed for commissioning. Sharing the existing machine evidence helps identify which further documents would answer the unresolved questions.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDL80-20-24Z/2.2B

Is this the same operating point as GDL40.5?

No. GDL80 is rated at 24,000 rpm with 800 Hz and four poles listed. GDL40.5 is rated at 18,000 rpm and separately lists 24,000 rpm maximum with different frequency information.

Which motor current is documented?

This configuration lists 220 V / 7.6 A. Keep that pair with the model and drive check; the 7.8 A value on GDL40.5 belongs to a different spindle.

What dimensions should I compare first?

Check the 80 mm body, 98 mm clamp region and 335 mm overall assembly from their drawing references. Then review nose position, holder movement, rear services and the 9 kg assembly.

Does ISO20 confirm the existing ATC connections?

ISO20 identifies the taper. Retention hardware, release travel, clamp sensing, air connections and controller interlocks still need comparison for the complete installation.

Is a PDF available for this model?

The full-size installation drawing is provided. Request any additional PDF, CAD or connection document by exact GDL80-20-24Z/2.2B configuration and confirm applicability before use.

What should I send for a quotation?

Include the exact model, quantity, destination and required holders or documents. For a replacement, add the existing nameplate, mounting drawing, connection photos and cooling/drive details.
