HQD GDZ-23-1 ER20 spindle motor

2.2 kW ratedER20Water-cooled24,000 rpm ratedØ85 mm270.5 mm overall

HQD GDZ-23-1 is a water-cooled manual ER20 spindle rated at 2.2 kW and 24,000 rpm. Its 85 mm body, 120 mm clamp region and 270.5 mm assembly distinguish it from the 80 mm GDZ-23 variants. Choose 220 V / 8 A or 380 V / 4.4 A, then check the 400 Hz drive, 7 kg weight and exact support drawing.

Browse the GDZ spindle range →

MODEL SELECTION

Is this the right GDZ-23-1 configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER20 tooling at the documented 2.2 kW / 24,000 rpm point.
  • The mount supports an 85 mm body and specified 120 mm clamp region.
  • The selected winding and supplied-unit water connections can be integrated with the machine.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 8 A and 380 V / 4.4 A as separate supplied winding pairs.
  • Retain the -1 code and 85 mm diameter when comparing the 80 mm GDZ-23 variants.
  • Check 270.5 mm overall, 7 kg weight, nose datum and 400 Hz drive capability.

COMPARE ALTERNATIVES

Consider another model when:

  • GDZ-23 uses an 80 mm body and a 268.5 mm assembly with shared motor figures.
  • GDZ-23-2 is an 80 mm, 252 mm assembly; GDZ-24-3 changes to 100 mm and different winding pairs.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER20 tooling. Power: 2.2 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 85 mm body diameter, 120 mm clamping length, 270.5 mm overall length, 7 kg weight. Winding options: 220 V / 8 A or 380 V / 4.4 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)2.2
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)85
Overall length (mm)270.5
Clamping length (mm)120
Weight (kg)7
Cooling and feedback
CoolingWater-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 8 A
  • 380 V · 4.4 A

The -1 configuration retains 2.2 kW but changes the body

The documented rated point is 2.2 kW at 24,000 rpm with 400 Hz. Keep the -1 code and 85 mm configuration with those figures. GDZ-23 and -2 share the point and electrical pairs, but neither establishes the same support or installed nose position. Selecting from motor data alone can leave the required body architecture unresolved.

Describe cutter, actual working speeds and load cycle when discussing suitability. The rated point does not establish full output at every lower speed. Ask for applicable operating information if sustained work elsewhere matters. Mount stiffness, tool projection and cooling remain part of assessment even where motor figures match the existing spindle. GDZ-24-3 also shares nominal output but changes both body and electrical specifications.

Keep the complete winding pair with GDZ-23-1

The documented choices are 220 V / 8 A and 380 V / 4.4 A. Select one complete pair and retain the -1 model in the quotation. They describe separate supplied configurations rather than one unit automatically accepting both voltages. Review the VFD's motor-output capability separately from its input supply and identify the drive model when existing equipment will be reused.

Check usable output current, voltage and 400 Hz capability. Use the supplied-unit nameplate and applicable drive instructions for motor parameters and protection. A related GDZ-23 PDF has its own stated model applicability; request additional -1 information where needed instead of extending the outline by analogy. GDZ-24-3's different current pairs must remain separate even though ER20 and rated output are shared.

Review manual ER20 hardware on the -1 nose

The tooling configuration is manual ER20. Match the cutter shank to the chosen collet's marked gripping range, then confirm nut and nose hardware for the supplied unit. ER20 identifies a family, not a complete accessory-thread specification or a single shank diameter. Include reused accessory details if existing tooling must be retained in the new installation.

Check wrench access, nut clearance and cutter projection with the spindle in its proposed 120 mm support region. Common ER20 tooling on another GDZ does not establish the same installed nose location. If automatic magazine changes are required, assess a suitable ATC spindle and its release services, support and controls separately. This manual -1 assembly does not provide an automatic release system solely through a tooling-family match.

Use the 85 mm body and 270.5 mm outline

The verified dimensions are an 85 mm body, 120 mm clamp region and 270.5 mm overall assembly, with 7 kg listed weight. Locate permitted support surfaces and nose references on the exact drawing. The full assembly length is not available clamp length. Compare the bracket and support position rather than assuming that an existing 80 mm fixture accommodates the -1 body.

Review rear fittings, cable and hose access, tool projection and relevant axis travel. The unsuffixed GDZ-23 has an 80 mm body and 268.5 mm assembly, while -2 is shorter at 252 mm. Compare both exact drawings for a proposed change. Sharing motor figures and a nominal clamp length with GDZ-23 still leaves actual diameter, support position and nose datum to be assessed.

Match the supplied water circuit to the duty

Water cooling is the documented method. Review fitting layout and applicable circuit requirements with the intended duty and cooling equipment. The 2.2 kW rating does not specify a universal flow, pump or temperature setting. Provide existing cooling details if a machine's installation is to be retained rather than assuming all water-cooled GDZ connections are identical.

Route hoses and the motor cable while retaining support and connection access through machine movement. Confirm extra service requirements against the supplied drawing and instructions. Another model's fitting or pressure specification does not establish applicability here. Keep cooling with the bracket and enclosure review so inspection and maintenance remain practical around the 85 mm body and its support region.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

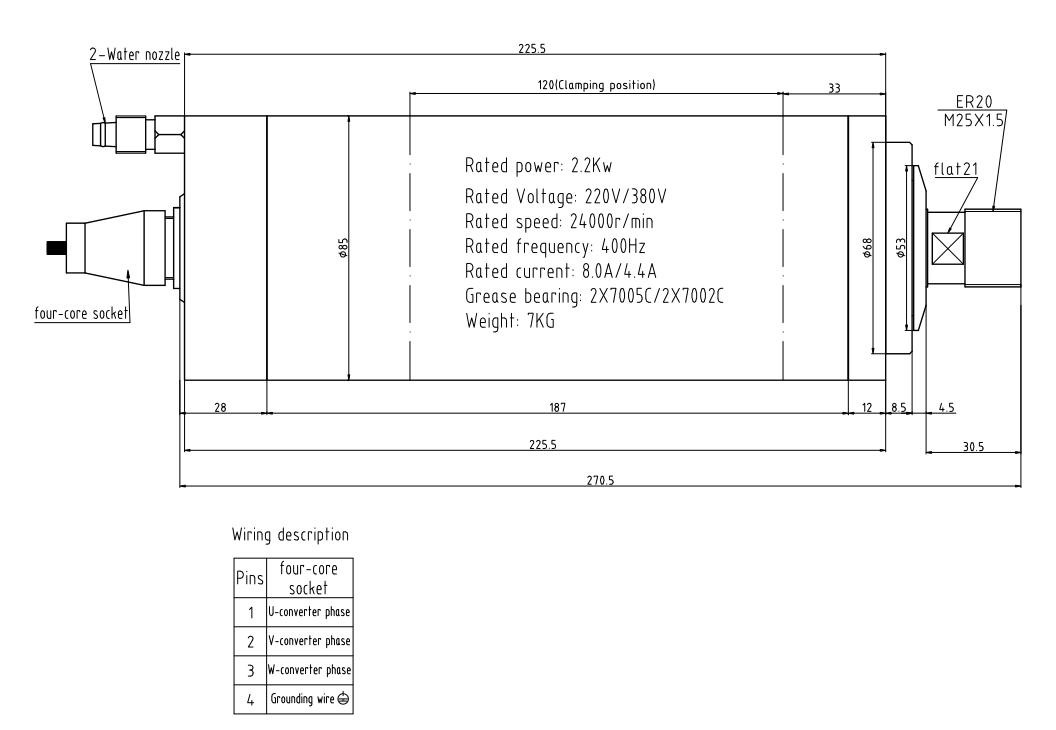

GDZ-23-1 dimensions and specifications drawing
