HQD GDZ-24-1C ER20 spindle motor

3.7 kW ratedER20Water-cooled24,000 rpm ratedØ100 mm303.5 mm overall

HQD GDZ-24-1C is a four-pole water-cooled manual ER20 spindle rated at 3.7 kW and 24,000 rpm, with 380 V / 8 A and 800 Hz documented. Check its 100 mm body, 138 mm clamp region and 303.5 mm assembly against the mount. Retain the four-pole and 800 Hz specification when selecting the drive.

Browse the GDZ spindle range →

MODEL SELECTION

Is this the right GDZ-24-1C configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER20 tooling at the documented 3.7 kW / 24,000 rpm point.
  • The machine supports the 100 mm body and specified 138 mm clamp region.
  • The drive and water circuit can support the documented four-pole, 800 Hz configuration.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 380 V / 8 A, four poles and 800 Hz together in the electrical review.
  • Check the 303.5 mm assembly, 11.5 kg weight and exact support/nose drawing.
  • The 400 Hz and 500 Hz GDZ comparisons do not establish this model's motor settings.

COMPARE ALTERNATIVES

Consider another model when:

  • GDZ-27 uses 4.5 kW at 24,000 rpm with 400 Hz and a longer support arrangement.
  • GDZ-27-2 uses a 30,000 rpm / 500 Hz point; GDZ-24-2 changes body and winding choices.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER20 tooling. Power: 3.7 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 100 mm body diameter, 138 mm clamping length, 303.5 mm overall length, 11.5 kg weight.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)3.7
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Electrical
Spindle winding (V)380
Rated current (A)8
Frequency (Hz)800
Poles4
Dimensions and weight
Body diameter (mm)100
Overall length (mm)303.5
Clamping length (mm)138
Weight (kg)11.5
Cooling and feedback
CoolingWater-cooled

Four poles and 800 Hz belong to the 24,000 rpm point

The documented point is 3.7 kW at 24,000 rpm with four poles and 800 Hz. Keep those facts together when choosing the drive. Other GDZ models can list the same rated speed at 400 Hz; their motor data are not a template for this four-pole configuration. A speed label alone therefore leaves a material electrical distinction unresolved.

Describe the cutter, actual working speeds and load cycle before choosing the unit. The rated point does not establish full output at every lower speed. Ask for applicable operating information if sustained work elsewhere matters. Tool projection, support stiffness and cooling remain part of assessment. Retain the four-pole specification in that discussion so a similar body or ER20 nose does not silently change the operating information used for selection.

Verify the documented 380 V / 8 A and 800 Hz requirement

This configuration lists 380 V / 8 A and 800 Hz. Keep the pair and pole count with the exact GDZ-24-1C code. They do not establish a 220 V option or interchangeable 400 Hz motor data. Review VFD input supply separately from its output, and identify the actual drive model when existing equipment will be retained.

Check usable output voltage, current and frequency capability against the supplied-unit nameplate. Use applicable drive instructions for motor parameters and protection. The GDZ-27 and GDZ-24-2 comparisons list different frequencies and electrical configurations despite similar rated speed. Confirm the complete motor specification before commissioning rather than copying settings from another spindle solely because the diameter or power range appears close.

Review manual ER20 hardware at the required working speed

The tooling configuration is manual ER20. Match the cutter shank to the selected collet's marked gripping range, then confirm nut and nose hardware for the supplied spindle. ER20 is a family designation rather than a complete accessory-thread specification or a single shank diameter. Include reused accessories and their applicability when retaining an existing tooling set.

Check wrench access, nut clearance and projection with the spindle in its support. Assess the complete tool assembly for the actual working speed rather than using the spindle rating as a tooling approval. If automatic magazine changes are required, evaluate a suitable ATC spindle with its release services, mounting and controls separately. This manual four-pole ER20 model does not establish an automatic release system.

Use the 138 mm support region on the 100 mm body

The verified dimensions are a 100 mm body, 138 mm clamp region and 303.5 mm overall assembly, with 11.5 kg listed weight. Locate support surfaces and nose references on the exact drawing. The full assembly length is not available clamp length. Compare actual support position and tool projection with the bracket and relevant machine travel.

Review rear fittings, cable and hose access and service clearance. GDZ-24-2 shares the 303.5 mm overall and 138 mm clamp figures but uses a 105 mm body and different weight. GDZ-27 variants use a longer 333.5 mm assembly and 158 mm clamp region. Compare both exact drawings before changing models; a common overall or diameter label does not establish identical support and nose geometry.

Match the supplied water circuit to the duty

Water cooling is the documented method. Review supplied-unit fittings and applicable circuit requirements with the intended duty and proposed equipment. The 3.7 kW rating does not specify a universal flow, pump or temperature setting. Include existing cooling details when reusing a machine installation rather than assuming a related water-cooled GDZ establishes identical connections.

Route hoses and motor cable while retaining support and rear access through machine movement. Confirm extra service details against the supplied drawing and instructions. Another model's fitting or pressure specification does not establish applicability here. Keep cooling with the bracket and enclosure review so inspection and maintenance remain practical around the 138 mm support and connection areas.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

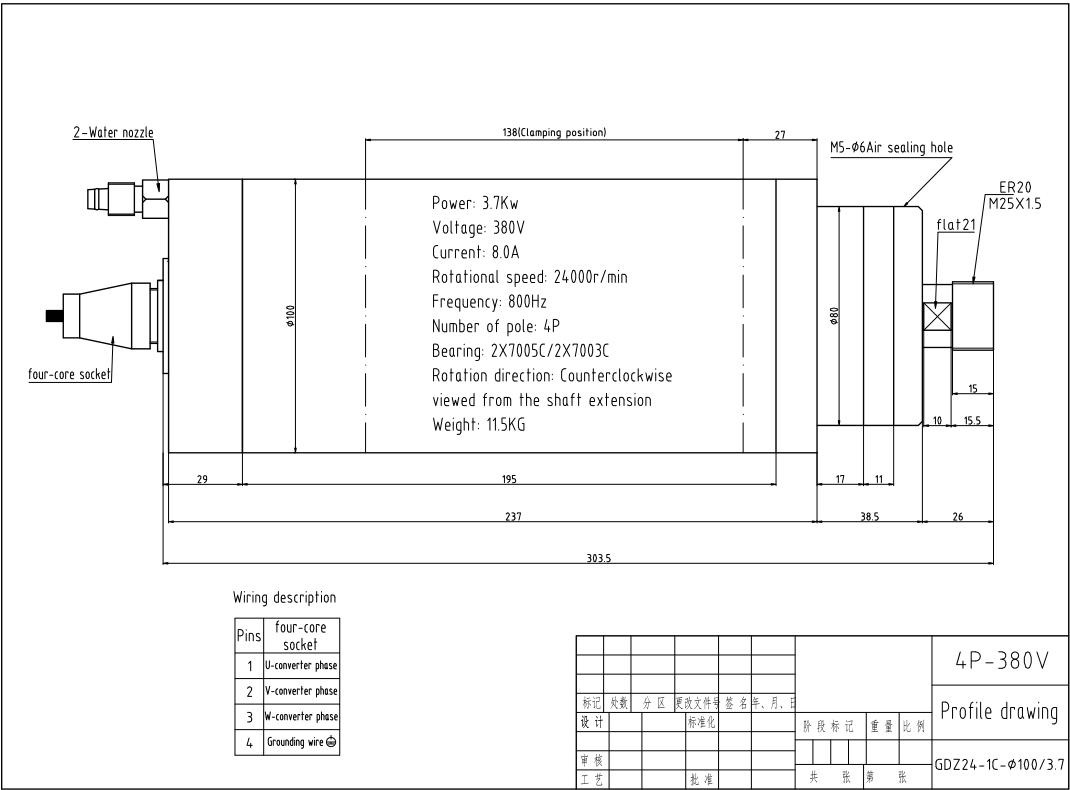

GDZ-24-1C dimensions and specifications drawing
