HQD GDZ-26-1 ER11B spindle motor

0.8 kW ratedER11BWater-cooled24,000 rpm ratedØ62 mm188.5 mm overall

HQD GDZ-26-1 is a compact water-cooled manual ER11B spindle with a documented 0.8 kW, 24,000 rpm point and 220 V specification. Compare its 62 mm body, 188.5 mm assembly and 2.5 kg weight with the mount. Confirm the supplied-unit current before selecting the drive: the drawing and nameplate photo show different current markings.

Browse the GDZ spindle range →

MODEL SELECTION

Is this the right GDZ-26-1 configuration?

BEST FIT

Choose this configuration if:

  • The process uses the documented manual ER11B configuration and 24,000 rpm point.
  • The machine supports a 62 mm body and accommodates the compact 188.5 mm assembly.
  • The actual supplied-unit electrical data can be confirmed with the drive and water circuit.

CHECK BEFORE ORDERING

Confirm these details first:

  • The drawing lists 5 A while the nameplate photo shows 3.5 A; confirm the supplied current before drive sizing.
  • The drawing and specification table support 0.8 kW, but the photo labels power as 0.8 W; obtain the applicable nameplate.
  • Keep 220 V, 400 Hz and the exact ER11B support/nose drawing with the configuration discussion.

COMPARE ALTERNATIVES

Consider another model when:

  • GDZ-18-2 also uses ER11B but changes to a 65 mm body and a 224 mm assembly.
  • GDZ-26-3 at 24,000 rpm uses ER11 and another rated output; GDZ-18 changes body, nose and assembly.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER11B tooling. Power: 0.8 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 62 mm body diameter, 188.5 mm overall length, 2.5 kg weight.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)0.8
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER11B
Tool changeManual tool change
Electrical
Spindle winding (V)220
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)62
Overall length (mm)188.5
Weight (kg)2.5
Cooling and feedback
CoolingWater-cooled

Keep the documented 0.8 kW point with the applicable nameplate

The drawing and specification table give 0.8 kW at 24,000 rpm, with 400 Hz listed. The nameplate photo labels power as 0.8 W. Keep that discrepancy visible when confirming the supplied unit rather than treating the photo's unit as a second established power configuration. Request the applicable nameplate and electrical specification before installation.

Describe the cutter, working speeds and load cycle when discussing suitability. The documented rated point does not establish full output at every lower speed. Ask for applicable operating information if sustained work away from that point matters. Tool projection, support and cooling remain part of the assessment, and the supplied-unit electrical confirmation must be resolved before the drive settings are finalized.

Confirm current rather than choosing between conflicting markings

The documented voltage is 220 V, but the current evidence is inconsistent: the drawing lists 5 A and the nameplate photo shows 3.5 A. Neither is presented here as a confirmed supplied-unit current. Request the applicable electrical specification and clear nameplate for the proposed unit before sizing the drive or assigning motor parameters.

Identify the VFD model and review its output voltage, usable current and 400 Hz capability after that confirmation. Keep motor-output requirements separate from drive input supply. The 3.5 A on GDZ-18-2 is a fact for that model, not a way to resolve this unit's conflicting markings. Use the actual supplied-unit information and applicable drive instructions for parameters and protection; a common 0.8 kW label is insufficient evidence.

Retain ER11B and inspect the actual nose hardware

The documented tooling designation is manual ER11B. Keep the complete designation in the accessory request and use the exact nose drawing when confirming collet and nut applicability. Match the cutter shank to the chosen collet's marked gripping range. The designation is not a complete specification for every thread or reused accessory, so include existing hardware details if it must be retained.

Check wrench access, nut clearance and cutter projection in the mounted position. GDZ-26-3 at 24,000 rpm uses ER11, so its nose should not be substituted merely because the body is also 62 mm. If automatic magazine changes are required, evaluate a suitable ATC spindle and its release, mounting and machine controls separately. This manual ER11B model does not establish an automatic release system.

Review the compact 62 mm and 188.5 mm envelope

The verified body diameter is 62 mm, overall assembly 188.5 mm and listed weight 2.5 kg. Use the exact installation drawing to locate permitted support surfaces and nose references. Overall length is not available clamp length. A compact envelope still requires the support location and tool projection to match the machine rather than choosing a bracket from diameter alone.

Check rear fittings, cable and hose access, service clearance and relevant axis travel. GDZ-18-2 uses a 65 mm body and 224 mm assembly. The 24,000 rpm GDZ-26-3 retains a 62 mm body but lists 237 mm overall and its own 100 mm clamp region. That clamp dimension belongs to the other model and should not be transferred to this shorter ER11B assembly.

Confirm the water circuit for the compact unit

Water cooling is the documented method. Review supplied-unit fitting and circuit requirements with the proposed equipment and intended duty. The 0.8 kW figure does not specify a universal flow, temperature or pump setting. Include existing cooling details if the machine's circuit will be reused, alongside the unresolved supplied-unit electrical information.

Plan hose and cable routing while preserving support and connection access through machine movement. Use applicable service instructions for the supplied configuration. Another compact GDZ model's fittings or pressure data do not establish the same requirement here. Keep the cooling review with the support and enclosure discussion so inspection and maintenance remain practical around the short assembly.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

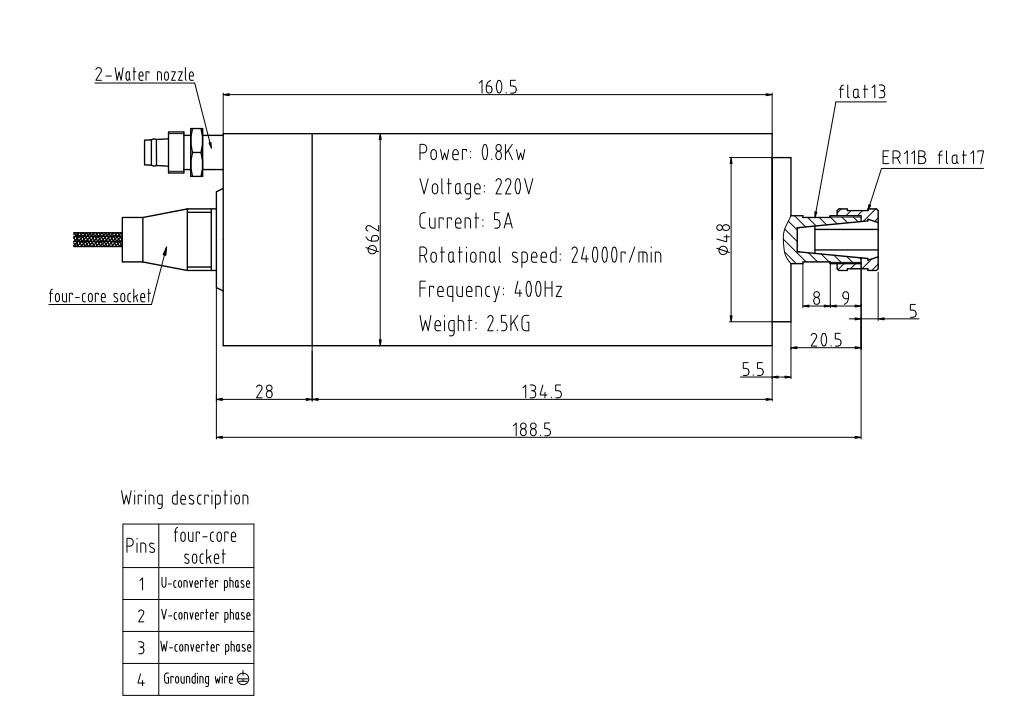

GDZ-26-1 dimensions and specifications drawing
Installation drawing. View the drawing at full size. Current differs between drawing and nameplate; confirm the supplied-unit value before sizing the drive.

Assess the compact ER11B configuration after electrical confirmation

GDZ-26-1 is a candidate when manual ER11B tooling, water cooling and the documented operating point fit the process, and the machine accommodates its 62 mm body. Begin with cutter and working speed, then assess support, cooling and the confirmed supplied-unit electrical data. The compact dimensions do not remove the need to resolve the current markings for the actual drive installation.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. Those conditions support a suitability discussion. The motor and outline figures alone cannot promise feed rate or surface finish. Include bracket and circuit constraints, as well as nameplate evidence, so the review considers the actual machine and unit rather than only a nominal power label.

Compare the short assembly and resolve the nameplate discrepancy

Send the current code, clear nameplate, support drawing and nose and connection photos. Compare the 62 mm body, support surfaces, 188.5 mm assembly and nose datum, followed by ER11B hardware, actual electrical specification, VFD output and water circuit. A shared 0.8 kW or tooling designation leaves the support and electrical evidence unresolved.

GDZ-18-2 changes diameter and assembly length and has its own 220 V / 3.5 A specification. GDZ-26-3 at 24,000 rpm and GDZ-18 use ER11 with other rated points and outlines. These comparisons identify checks rather than accepted substitutions. For an older unit, confirm availability and apply the full checklist to a successor; retain supplied-unit evidence instead of resolving the current conflict by similarity.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDZ-26-1Current configuration0.8 kW rated24,000 rpm ratedER11BWater-cooledØ62 mm · 188.5 mm overall
GDZ-18-20.8 kW rated24,000 rpm ratedER11BWater-cooledØ65 mm · 224 mm overall

GDZ-18-2 retains ER11B and a documented 0.8 kW point but uses a 65 mm body, 224 mm assembly and its own 220 V / 3.5 A. That current does not resolve this model’s conflicting supplied-unit markings.

GDZ-26-3 24,000 rpm configuration1.2 kW rated24,000 rpm ratedER11Water-cooled24,000 rpm configuration · Ø62 mm · 237 mm overall · 100 mm clamp

The 24,000 rpm GDZ-26-3 shares a 62 mm body but uses ER11, a 1.2 kW point and 237 mm assembly with a 100 mm clamp region. Compare the speed-qualified configuration and nose; do not transfer its support length here.

GDZ-181.5 kW rated24,000 rpm ratedER11Water-cooledØ65 mm · 235.5 mm overall

GDZ-18 changes to a 65 mm body, ER11 and a 1.5 kW point, with a 235.5 mm assembly. Compare its support and electrical specification separately from this compact ER11B model’s unresolved current markings.

Include the supplied-unit electrical confirmation in the request

Request GDZ-26-1 with the documented 220 V configuration, quantity and destination country with postal code. Ask for the applicable nameplate and electrical specification to resolve the current and power-unit markings. List collets, nut, accessories and additional files needed. Include the existing mount, VFD and cooling information for replacement.

Compare quotations for the same exact model and included scope, with outstanding electrical confirmation visible. Confirm accessory applicability and support or connection details before installation is finalized. CINKR confirms proposed configuration and current availability by email. Keep the applicable nameplate and drawing with the quote so purchasing and commissioning refer to the same supplied unit rather than different source markings.

  • Winding: confirm the supplied-unit electrical specification
  • Configuration: GDZ-26-1
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Review the drawing alongside the supplied-unit nameplate

Open the full-size installation drawing below for support surfaces, nose geometry and connection layout. Request additional PDF, CAD or wiring information by exact GDZ-26-1 code. Include the electrical question in the request: the drawing and photo differ on current, and the power-unit label on the photo needs clarification against the documented 0.8 kW point.

Confirm an extra file's applicability before using it for support or drive settings. The outline does not replace a clear applicable nameplate, and a related model's document cannot resolve this discrepancy by analogy. Supplied service information and the drive and machine procedures guide installation and commissioning. State the unresolved issue so the additional document request addresses the actual electrical or mechanical question.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDZ-26-1

Which motor current should be used?

Confirm the motor current for the supplied unit before sizing the drive. The drawing lists 5 A, while the nameplate photo shows 3.5 A. Obtain the applicable electrical specification and a readable nameplate to resolve the discrepancy.

Why is the model described as 0.8 kW?

The drawing and specification table support 0.8 kW, while the photo labels power as 0.8 W. Obtain the applicable nameplate and electrical specification before installation.

Does GDZ-18-2 resolve the current question?

Its 220 V / 3.5 A belongs to GDZ-18-2. Similar output and ER11B tooling cannot settle the GDZ-26-1 supplied-unit markings.

Can GDZ-26-3's 100 mm clamp region be used here?

That dimension belongs to the 24,000 rpm GDZ-26-3. Use this model's drawing to locate support on its 188.5 mm assembly.

Is this the same ER11 nose as GDZ-26-3?

This model is designated ER11B. Retain that designation and the exact nose drawing when checking accessories and tooling access.

What should a quotation request include?

Send the exact model, quantity, destination and accessories, request applicable nameplate and electrical data, and add current mount, drive, cooling and connection evidence for replacement.
