HQD GDF46-18Z/2.2 Base mount · ER20 spindle motor

2.2 kW ratedER20Air-cooled18,000 rpm rated288.5 mm overall

Base mount

HQD GDF46-18Z/2.2 Base Mount is an air-cooled manual ER20 spindle rated at 2.2 kW and 18,000 rpm. The Base Mount description identifies this fixing arrangement separately from the same-code Housing Mount version. Check the 288.5 mm assembly, 7 kg weight and base drawing, then choose 220 V / 7.8 A or 380 V / 4.4 A.

Browse the GDF spindle range →

MODEL SELECTION

Is this the right GDF46-18Z/2.2 configuration?

BEST FIT

Choose this configuration if:

  • The machine uses the base fixing arrangement shown in this configuration's drawing.
  • Manual ER20 tooling and the documented 2.2 kW / 18,000 rpm point match the process.
  • The selected winding and air-cooling path can be integrated with the machine.

CHECK BEFORE ORDERING

Confirm these details first:

  • Include Base Mount with the shared GDF46-18Z/2.2 code in every drawing and quote request.
  • Select 220 V / 7.8 A or 380 V / 4.4 A and use the corresponding base-mount PDF.
  • Check the base interfaces, 288.5 mm assembly, 7 kg weight and 300 Hz drive capability.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

The base-mount drawing specifies 2.2 kW, 18,000 rpm, 300 Hz, ER20 and 7 kg. Overall length is 288.5 mm.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)2.2
Rated speed (rpm)18,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Mountingbase mount
Electrical
Frequency (Hz)300
Dimensions and weight
Overall length (mm)288.5
Weight (kg)7
Cooling and feedback
CoolingAir-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 7.8 A
  • 380 V · 4.4 A

2.2 kW at 18,000 rpm with base fixing

The documented rated point is 2.2 kW at 18,000 rpm, with 300 Hz listed. Keep these figures with the Base Mount configuration. The Housing Mount version shares the printed GDF46-18Z/2.2 code and rated point, but its fixing arrangement needs its own drawing. A model-code match alone is insufficient to select the assembly needed by the machine.

Describe the intended working speed and load cycle before choosing the spindle. The rated point does not establish full 2.2 kW output at every lower speed. Ask for applicable operating information when sustained operation elsewhere in the speed region is decisive. Compare the process and tooling with the adjacent 24,000 rpm GDF80 model instead of assuming that shared power makes the working points equivalent.

Use the PDF matching the selected winding

The documented winding choices are 220 V / 7.8 A and 380 V / 4.4 A. They represent separate supplied configurations. Select one complete pair, then use the corresponding base-mount PDF below. The two files are labeled by applicability so the electrical choice remains visible in the drawing, quotation and drive discussion.

Check the drive's motor-output voltage, usable output current and 300 Hz capability separately from its input supply. Include the VFD model when existing equipment will be reused. Use the supplied-unit nameplate and applicable drive instructions for motor parameters and protection. A supplied spindle is not established as accepting both voltage choices, and this model's 7.8 A at 220 V should not be replaced with another 2.2 kW spindle's current.

Check manual ER20 hardware in the base-mounted position

This is a manual ER20 spindle. Choose the collet using its marked gripping range and the actual tool shank, then confirm nut and nose hardware against the supplied assembly. ER20 identifies the tooling family; it does not specify every accessory thread or prove that an existing nut from another model fits.

Check wrench access, nut clearance and cutter projection with the base fixed to the machine. A matching tooling family does not settle the space available around the nose. If automatic magazine changes are required, evaluate a suitable ATC spindle and the required release services, mounting and controls separately. The Base Mount description identifies support architecture and does not imply an automatic release system.

Use the Base Mount interfaces rather than the housing drawing

The documented overall assembly is 288.5 mm, with 7 kg listed weight. Locate the base fixing surfaces, hole geometry and nose references on this configuration's drawing. Compare those interfaces with the machine. An overall length match does not establish compatible mounting, and the shared printed model code does not make the Housing Mount drawing applicable to a base installation.

Review support rigidity, fastener access, rear clearance and tool projection. Include relevant axis travel and cable routing in the machine layout. The 1.5 kW Base Mount version lists a shorter 258.5 mm assembly and 6 kg, so a power change still requires the fixing and envelope comparison. Keep the exact base-mount diagram with the quotation when an existing fixture must be retained.

Retain the documented air-cooled arrangement

This configuration is air cooled. Review the supplied cooling arrangement and enclosure layout so the applicable air path and service access remain available. The 2.2 kW rating does not establish a universal clearance or thermal setting. Provide working duty and enclosure details if cooling or the surrounding machine space limits selection.

Check how the base bracket, guards and nearby equipment affect the relevant openings and maintenance access. Treat the work environment and supplied service instructions as part of the cooling review. Installing an air-cooled spindle involves more than removing water hoses from a previous arrangement. Confirm the actual cooling method with the applicable model documents rather than applying a conflicting description from a similarly titled listing.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the bolted base and its mounting holes; the housing-mount version has a different structure.
  • Choose the winding that matches the drive output, then check its rated current.
  • Request installation files specifically for the base-mount structure.
Read the installation guide →

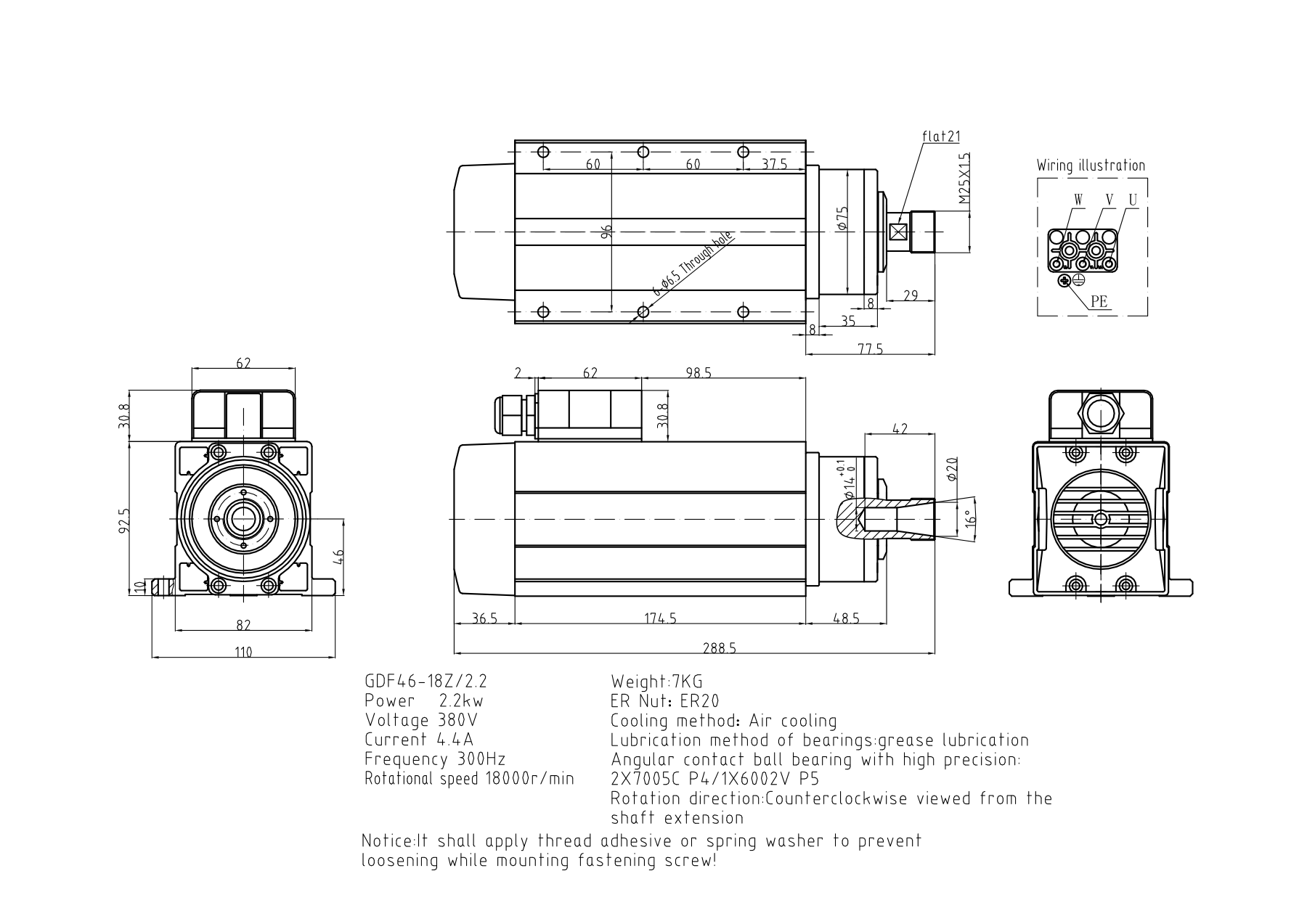

GDF46-18Z/2.2 Base mount dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 7.8 A; 380 V / 4.4 A. Match the block or PDF for the winding you intend to order. View the drawing at full size. Choose the PDF labeled for your configuration below.

Choose from the process and fixing architecture

GDF46-18Z/2.2 Base Mount is a candidate when the process uses manual ER20 tooling and the documented 18,000 rpm point, and the machine supports the base interfaces. Begin with cutter and working speed, then assess winding, drive, fixing and airflow. A process needing a different working point or support arrangement may lead to another comparison even when 2.2 kW looks suitable.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. These conditions support a suitability discussion. The motor and outline figures alone do not establish feed rate or surface finish. Include the fixture and enclosure if the assembly must fit an existing machine, so the selection considers the actual support and cooling path.

The shared code does not settle Base Mount versus Housing Mount

Send the existing nameplate, complete model description, fixing drawing and clear nose and connection photos. Compare base surfaces and hole geometry, nose datum, the 288.5 mm envelope, ER20 hardware, selected winding, VFD output and airflow. A replacement inquiry that includes only GDF46-18Z/2.2 leaves the required mounting architecture open.

The Housing Mount version shares rated output, tooling and listed assembly length but requires its own support review. GDF80/2.2B changes body support and rated speed, while the 1.5 kW Base Mount changes output, currents and length. Treat each as a comparison candidate rather than an accepted substitution. For an older unit, confirm current availability and apply the same complete checklist to any proposed successor.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDF46-18Z/2.2 Base mountCurrent configuration2.2 kW rated18,000 rpm ratedER20Air-cooledBase mount · 288.5 mm overall
GDF46-18Z/2.2 Housing Mount2.2 kW rated18,000 rpm ratedER20Air-cooledHousing Mount · 288.5 mm overall

Housing Mount shares the printed code, ER20, rated point and 288.5 mm length, but uses a different fixing architecture. Compare the actual support and nose references using both configuration drawings; the Base Mount PDFs retain their own applicability.

GDF80-24Z/2.2B2.2 kW rated24,000 rpm ratedER20Air-cooledØ80 mm · 269.5 mm overall · 125 mm clamp

GDF80/2.2B uses ER20 at 24,000 rpm / 400 Hz with an 80 mm body and 125 mm clamp region. Compare that support and 269.5 mm assembly with this 18,000 rpm / 300 Hz base configuration; the 220 V currents also differ.

GDF46-18Z/1.5 Base Mount1.5 kW rated18,000 rpm ratedER20Air-cooledBase Mount · 258.5 mm overall

The 1.5 kW Base Mount lists a 258.5 mm assembly and 6 kg instead of 288.5 mm and 7 kg here. Compare output, complete winding pairs and the fixing geometry before retaining an existing base.

Keep mounting and winding in the quotation scope

Request GDF46-18Z/2.2 Base Mount with 220 V / 7.8 A or 380 V / 4.4 A, quantity and destination country with postal code. List collets, nut, accessories and extra document needs. Add the existing drive and fixing evidence for a replacement. The mounting description belongs in the request because the printed model code is shared with Housing Mount.

Compare quotations for the same winding, mounting arrangement and included scope. Confirm accessory applicability and outstanding fixing or cooling questions before installation is finalized. CINKR confirms proposed configuration and current availability by email. Retain the matching winding-specific PDF and Base Mount drawing with the quotation so the purchasing and installation teams refer to the same assembly.

  • Winding: 220 V / 7.8 A or 380 V / 4.4 A
  • Configuration: Base mount
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Two PDFs apply to Base Mount and separate windings

The downloads below contain dimensions, specifications and wiring for the 380 V and 220 V base-mount configurations. Select the applicability label matching the supplied winding rather than choosing solely by filename or printed model code. The files do not establish Housing Mount dimensions or wiring applicability for another assembly.

Use the full-size drawing to review fixing surfaces and nose references. Request additional CAD or service information with the Base Mount description and selected winding. A document's applicability, nameplate and machine/drive instructions address different parts of installation. State the unresolved fixing, connection or operating question when requesting another file, and keep the configuration visible throughout that discussion.

DOWNLOADS

Files for this configuration.

PDF · 195 KB

Dimensions, specifications and wiring

GDF46-18Z/2.2 · 380 V winding · base mount only

English

Download PDF

PDF · 195 KB

Dimensions, specifications and wiring

GDF46-18Z/2.2 · 220 V winding · base mount only

English

Download PDF

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDF46-18Z/2.2

Why is Base Mount included after the printed code?

GDF46-18Z/2.2 also has a Housing Mount configuration. The mounting description identifies the fixing architecture required for the drawing and quotation.

Which PDF should be selected?

Choose the base-mount PDF whose applicability label matches 220 V / 7.8 A or 380 V / 4.4 A. Both files remain specific to Base Mount.

Is the cooling method water cooling?

This configuration is documented as air cooled. Review its applicable air path and service instructions with the machine enclosure.

Do the winding choices mean one spindle accepts both voltages?

They describe separate supplied configurations. Choose one complete pair and check the VFD output and supplied-unit nameplate.

Does matching the 288.5 mm length prove a Housing Mount replacement?

No. Compare actual support interfaces, fastener arrangement, nose position, tooling, winding and cooling even when the overall length matches.

What should a quotation request include?

State the full model with Base Mount, winding, quantity, destination and accessory needs. Add current fixing, nameplate, drive and cooling evidence for replacement.
