HQD GDK105-9-21Z/2.2-5.0 ER20 spindle motor

2.2 kW ratedER20Water-cooled9,000–21,000 rpmØ105 mm344 mm overall

HQD GDK105-9-21Z/2.2-5.0 is a water-cooled ER20 spindle with a 9,000–21,000 rpm operating range and 2.2 kW rated output. The model's 5.0 kW number belongs with the separate curve and its duty conditions. Compare the 105 mm body, 155 mm clamp region and 249–380 V U/f relationship with the actual machine and VFD.

Browse the GDK spindle range →

MODEL SELECTION

Is this the right GDK105-9-21Z/2.2-5.0 configuration?

BEST FIT

Choose this configuration if:

  • The process needs the documented 9,000–21,000 rpm range with manual ER20 tooling.
  • The mount can support a 105 mm body over the 155 mm clamp region and accommodate the 344 mm assembly.
  • The drive and water circuit can be checked against the actual operating curve and production cycle.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 2.2 kW rated separate from the 5.0 kW curve level and its S1/S6-20%, TA20°C notes.
  • 249–380 V is a curve relationship; do not specify its endpoints as separate winding options.
  • Check 150–350 Hz, 6 A, 15.5 kg and the exact nose, cooling and service connections.

COMPARE ALTERNATIVES

Consider another model when:

  • GDK100-12-24Z/2.2-4.4 starts at 12,000 rpm and ends at 24,000 rpm, with a different frequency relationship.
  • GDK105-21Z/3.5 is a separate 21,000 rpm configuration with winding choices; GDK100-24Z/3.2 changes body and rated point.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER20 tooling. Power: 2.2 kW rated. Speed: 9,000–21,000 rpm. Installation dimensions and weight: 105 mm body diameter, 155 mm clamping length, 344 mm overall length, 15.5 kg weight.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)2.2
Operating range (rpm)9,000–21,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Electrical
Rated current (A)6
Frequency range (Hz)150–350
Curve voltage endpoints (V)249–380
Dimensions and weight
Body diameter (mm)105
Overall length (mm)344
Clamping length (mm)155
Weight (kg)15.5
Cooling and feedback
CoolingWater-cooled

A 9,000–21,000 rpm range with two curve levels

The reviewed rated output is 2.2 kW, and the documented speed range is 9,000–21,000 rpm. The original power and torque graph displays 2.2 kW and 5.0 kW lines and carries S1/S6-20%, TA20°C and water-cooling notes. Keep those conditions attached to the graph. The “2.2-5.0” model characters do not establish continuous 5.0 kW output or two separate orderable power configurations.

Describe the working speeds and load cycle the process actually needs. The range is useful when the operation needs a lower starting point than the GDK100 range model, but it does not by itself guarantee cutting output at every speed and duty. If selection depends on the higher line, ask for the applicable supplied-unit operating information and assess the intended cycle with it. Compare rated and conditioned values on the same basis rather than using the larger code number alone.

249–380 V follows the operating curve

The original U/f graph shows 249 V at 150 Hz / 9,000 rpm and 380 V at 350 Hz / 21,000 rpm. These are points in the documented voltage-frequency relationship, not independently selectable windings. The reviewed current is 6 A. Keep voltage behavior, frequency, current and duty together when checking a drive instead of treating “249–380 V” as a mains supply range.

The proposed VFD needs the appropriate motor-output capability, while its input supply is considered separately. Provide the drive model and output specifications if it is already installed. Check whether its configuration can support the required relationship and operating range, not merely whether its nominal kW designation matches one number in the spindle code. Use the supplied-unit label, applicable curve and drive instructions when establishing motor data and protection settings.

GDK105-21Z/3.5 has separate 220 V / 380 V winding pairs, but those choices cannot be copied to this range model. If a different electrical arrangement is required, state it as a requirement to be confirmed. Retain the full “9-21Z/2.2-5.0” code with the quotation and documents so the two 105 mm GDK configurations remain distinguishable throughout purchasing and installation.

ER20 tooling with manual changes

This configuration uses manual ER20 collet tooling. Match the actual cutter shank to the selected collet's marked gripping range, and check the nut and nose arrangement against the supplied spindle. ER20 names a collet family rather than a single supported shank diameter or universal nose thread. Verify the accessory details before reusing a nut or collet arrangement from another spindle with the same ER designation.

Review tool projection, nut clearance and wrench access in the intended machine position. This manual spindle is not the ISO/BT automatic tool-change architecture used by GDL. If automatic tool changes are essential, that requirement needs a separate spindle and machine-integration choice. For this ER20 installation, tooling should be considered alongside the actual working speed, cutting load and mount rather than selected only from the larger power number in the model name.

The 105 mm body is only one mounting dimension

The documented body diameter is 105 mm, clamping length 155 mm and overall length 344 mm. The listed weight is 15.5 kg. Check the drawing references for the support region, nose position and rear fittings. The overall length is not a permitted support length, and a 105 mm clamp fit does not independently establish where the tool will sit relative to the machine's work and clearance envelope.

GDK105-21Z/3.5 also uses a 105 mm body, but lists a 312 mm assembly and different electrical information. Compare the complete drawings before expecting a shared mount or nose position. Include holder/tool projection and rear service routing in the check, with enough access for fitting and inspection. A replacement review should retain the actual weight and mount arrangement rather than assume that the shared diameter makes the assemblies mechanically equivalent.

Keep cooling with the documented duty

Water cooling is part of this configuration and is explicitly named on the original operating graph. Confirm the supplied spindle's cooling connections and requirements against the proposed circuit and load cycle. Neither the 2.2 kW rated entry nor the 5.0 kW curve line provides a universal coolant flow, temperature or pump setting. Include the existing equipment details if the circuit is intended to be reused.

Check the connection area and any front-end air-seal service shown for the supplied unit. Do not import pressure values or hose sizes from another GDK without confirming them. Air sealing and water cooling serve different purposes and need separate connection checks. Route hoses and cables with the rear fittings, permitted support region and machine movement in view, and provide photos where the old documentation is incomplete.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

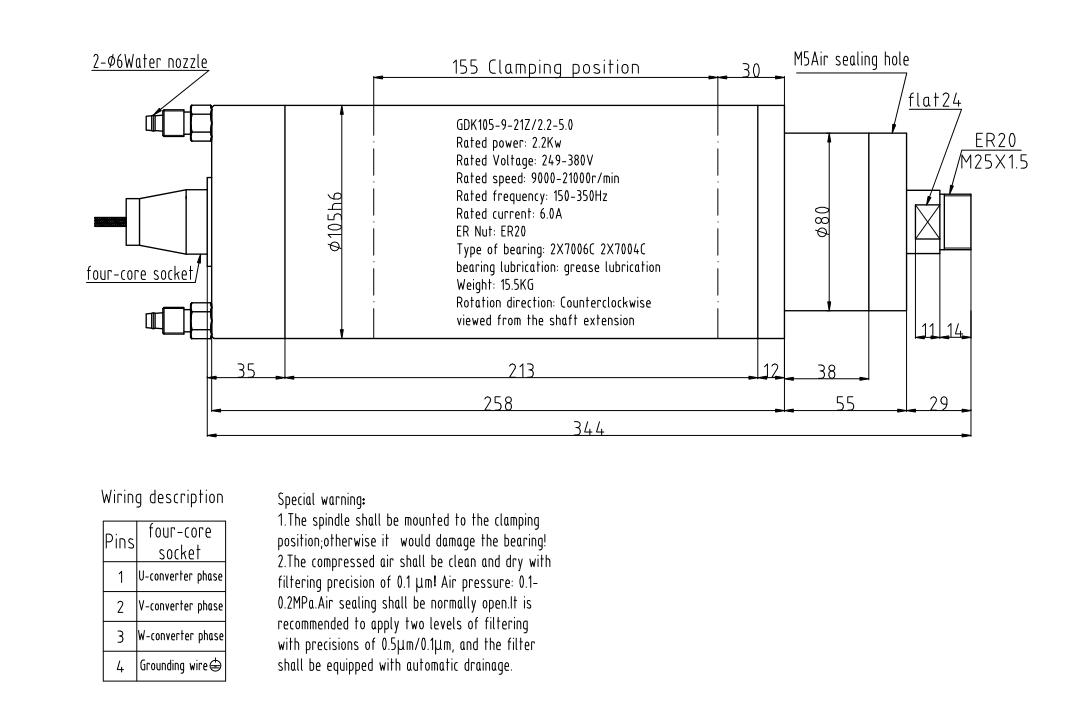

GDK105-9-21Z/2.2-5.0 dimensions and specifications drawing
Installation drawing. View the drawing at full size.

Start with the lower working-speed requirement

Evaluate this range model when the operation calls for manual ER20 tooling and a working range beginning at 9,000 rpm. Compare the actual cutting cycle with the identified graph and duty conditions, then assess drive output, water cooling and mounting. The lower starting point is a reason to investigate this configuration rather than proof that it delivers the same output as every other GDK at that speed.

For engraving or milling, include material, cutter geometry, shank size, normal speed and duty, together with the machine's stiffness and available drive. The product facts support a conditional selection discussion, not guaranteed feed rate or finish. If the process needs the higher curve output for extended periods, resolve its operating conditions before selecting the spindle. A power range printed in the model code is insufficient evidence of machining capacity.

Compare the complete range model with the old unit

Provide the existing spindle's code, nameplate, mount drawing and photographs of the nose and services. Compare the 105 mm body, 155 mm support region, 344 mm assembly and nose datum, then review tooling hardware, U/f behavior, drive output and cooling. Keep the intended load cycle in the discussion. An apparent ER20 and body-diameter match does not resolve a different operating curve or supplied-unit connection arrangement.

The comparison with GDK100-12-24Z/2.2-4.4 changes the range to 12,000–24,000 rpm and the body to 100 mm. GDK105-21Z/3.5 has a different output and winding description, while GDK100-24Z/3.2 changes body and rated point. Those are reasons to inspect separate drawings, not accepted substitutions. Ask for current availability for an older unit and apply the same complete checklist to any proposed successor.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDK105-9-21Z/2.2-5.0Current configuration2.2 kW rated9,000–21,000 rpmER20Water-cooledØ105 mm · 344 mm overall · 155 mm clamp
GDK100-12-24Z/2.2-4.42.2 kW rated12,000–24,000 rpmER20Water-cooledØ100 mm · 295 mm overall · 140 mm clamp

Compare a 12,000–24,000 rpm range and 100 mm body against this 9,000–21,000 rpm range and 105 mm body; the frequency relationships also differ.

GDK105-21Z/3.53.5 kW rated21,000 rpm ratedER20Water-cooledØ105 mm · 312 mm overall

Retain a 105 mm body in the comparison but change to 3.5 kW at 21,000 rpm, separate winding pairs and a 312 mm assembly instead of 344 mm.

GDK100-24Z/3.23.2 kW rated24,000 rpm ratedER20Water-cooledØ100 mm · 295 mm overall · 140 mm clamp

Compare 3.2 kW at 24,000 rpm in a 100 mm body with this lower-starting range model; check the GDK100 supplied nose and electrical pair separately.

State the range code and working cycle

Request GDK105-9-21Z/2.2-5.0 with quantity, destination country and postal code. Include the working speeds, load cycle, existing drive and required tooling or documents. Do not request a selectable “249 V winding” from the curve endpoint. If the supply or drive arrangement needs to differ from the documented configuration, describe the requirement so it can be checked before ordering.

Compare quotation scope with the exact range model in view. A request for “GDK105 5 kW” leaves both the rated/duty distinction and the separate 3.5 kW fixed-point model unclear. CINKR confirms configuration and current availability by email. Retain the agreed drawing and applicable curve with the quotation, including any unresolved drive, cooling or accessory detail that must be settled for the machine installation.

  • Winding: confirm the supplied-unit electrical specification
  • Configuration: GDK105-9-21Z/2.2-5.0
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Request the matching range-model curve if needed

The full-size installation drawing below is the dimensional reference for the listed configuration. Use it to inspect the support region, nose and connection area. Ask for the matching GDK105-9-21Z/2.2-5.0 operating curve or additional document with the exact model code. A graph for another 105 mm spindle may show different speed, voltage and power relationships and must not silently replace it.

Confirm applicability before using additional CAD, curve or connection documents to finalize the installation. Keep the supplied-unit label, mounting drawing and applicable operating information associated with the same quotation. They answer different parts of the check: dimensions do not establish the drive relationship, and the power graph does not establish every mounting or tooling detail. The machine's own drive and control procedures are still needed for commissioning.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDK105-9-21Z/2.2-5.0

Is 5.0 kW the continuous rated output?

The reviewed rated output is 2.2 kW. The original graph shows a separate 5.0 kW line with S1/S6-20%, TA20°C and water-cooling notes; do not turn it into an unconditional continuous claim.

What does 249–380 V mean?

It is the voltage-frequency curve relationship, with 249 V at 150 Hz / 9,000 rpm and 380 V at 350 Hz / 21,000 rpm. These are not separate winding choices or the drive's input supply range.

Is GDK105-21Z/3.5 the same spindle?

No. It is a separate 3.5 kW, 21,000 rpm configuration with winding pairs and a 312 mm assembly. This range model lists 344 mm overall and 155 mm clamping length.

Which tool shanks can ER20 grip?

Use the marked gripping range of the actual ER20 collet selected for the cutter. ER20 is a family designation, not one tool diameter; check the nut and spindle-nose details too.

What should a replacement review compare?

Check the complete drawing, support region, nose hardware, weight, working range, U/f behavior, drive output and cooling. A shared 105 mm body or ER20 interface is insufficient on its own.

How should I request a quotation?

Include the full range model, quantity, destination, working cycle and drive information. List tooling and document requirements, and provide the old spindle evidence for a replacement.
