HQD GDZ-18 ER11 spindle motor

1.5 kW ratedER11Water-cooled24,000 rpm ratedØ65 mm235.5 mm overall

HQD GDZ-18 is a water-cooled manual ER11 spindle rated at 1.5 kW and 24,000 rpm, with 220 V / 5 A documented. Check its 65 mm body, 235.5 mm assembly and 4.5 kg weight against the mount. Keep the ER11 nose distinct from GDZ-18B and review the 400 Hz drive output and water connections.

Browse the GDZ spindle range →

MODEL SELECTION

Is this the right GDZ-18 configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER11 tooling at the documented 1.5 kW / 24,000 rpm point.
  • The machine accommodates a 65 mm body and 235.5 mm assembly with suitable support.
  • The drive and cooling installation support the documented 220 V / 5 A configuration.

CHECK BEFORE ORDERING

Confirm these details first:

  • The listed electrical specification is 220 V / 5 A; a 380 V choice is not established here.
  • Use the drawing for support surfaces and nose references rather than inferring clamp length from overall length.
  • GDZ-18B uses ER16; GDZ-18-2 is an ER11B configuration with different output and length.

COMPARE ALTERNATIVES

Consider another model when:

  • GDZ-26-3 at 24,000 rpm uses a 62 mm body and its own 100 mm clamp region.
  • GDZ-18B changes tooling to ER16; GDZ-18-2 changes to ER11B and a 0.8 kW rated point.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER11 tooling. Power: 1.5 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 65 mm body diameter, 235.5 mm overall length, 4.5 kg weight.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)1.5
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER11
Tool changeManual tool change
Electrical
Spindle winding (V)220
Rated current (A)5
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)65
Overall length (mm)235.5
Weight (kg)4.5
Cooling and feedback
CoolingWater-cooled

1.5 kW at 24,000 rpm on the ER11 GDZ-18

The documented rated point is 1.5 kW at 24,000 rpm, with 400 Hz listed. Keep those figures with the complete GDZ-18 code and ER11 configuration. GDZ-18B shares power and rated speed but changes tooling and assembly length, while GDZ-18-2 has another output. Similar names therefore require the complete code and nose to remain visible in the selection.

Describe the actual working speeds, cutter and load cycle before choosing the spindle. The rated point does not establish full output throughout an assumed lower-speed range. Ask for applicable operating information when sustained operation elsewhere is important. Tool projection, mounting stiffness and the cooling installation remain part of the process assessment even after the 1.5 kW motor point appears suitable.

Review the documented 220 V / 5 A specification

This configuration lists 220 V and 5 A. Keep both values with GDZ-18 when checking the drive and requesting the unit. They do not establish a 380 V alternative or automatic dual-voltage operation. The VFD input supply and motor-output capability are separate checks, so identify the proposed drive model if existing equipment is to be retained.

Review usable output voltage, current and 400 Hz capability. Use the supplied-unit nameplate and applicable drive instructions for motor data and protection. GDZ-18-2 has a different current and rated output despite sharing a 65 mm body, while GDZ-26-3 has its own configuration limitation. Do not substitute another model's electrical data for this unit merely because an ER family or body diameter is similar.

Retain the ER11 nose in tooling discussions

The tooling configuration is manual ER11. Match the cutter shank to the selected collet's marked gripping range, then verify the nut and nose hardware for the supplied spindle. ER11 is a tooling family rather than one accepted shank diameter or a complete accessory-thread specification. Include existing accessory details if a tooling set needs to be retained.

GDZ-18B uses ER16, so losing the B distinction can change tooling despite matching the 1.5 kW point. GDZ-18-2 carries the ER11B designation and needs its own accessory applicability check. Review wrench access, nut clearance and projection in the installed position. If automatic magazine changes are required, assess a suitable ATC spindle and its release, mounting and controls separately from this manual ER11 model.

Compare the 65 mm support and 235.5 mm assembly

The verified body diameter is 65 mm, overall assembly 235.5 mm and listed weight 4.5 kg. Locate the support surfaces and nose references on the exact installation drawing. Overall length does not specify available clamp length. A bracket that accepts 65 mm still needs a comparison of where the support falls relative to the nose and connections.

Check tool projection, rear clearance, cable and hose access and relevant axis travel. GDZ-18B lists a 254.5 mm assembly, while GDZ-18-2 lists 224 mm and another nose. The 24,000 rpm GDZ-26-3 uses a 62 mm body. Compare both exact drawings for a proposed change so the machine layout retains the actual support and working envelope, rather than only the headline diameter.

Check the water circuit for the supplied configuration

Water cooling is the documented method. Review fitting layout and applicable circuit requirements with the intended duty and cooling equipment. The 1.5 kW rating does not specify a universal flow, pump or temperature setting. Include existing circuit details if a machine's cooling system will be reused rather than assuming that a common water-cooling label settles suitability.

Route hoses and the motor cable while preserving support and connection access through machine movement. Confirm additional service details against the supplied-unit drawing and instructions. Another GDZ model's fitting or pressure information does not establish this configuration's requirement. Keep the cooling review with the mount and enclosure discussion so inspection and maintenance remain practical in the installed position.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

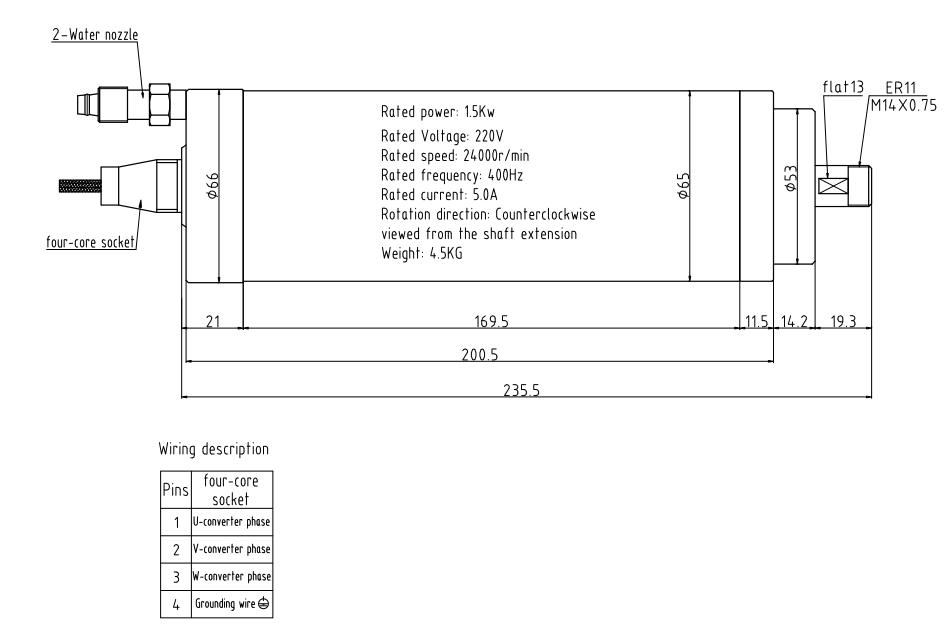

GDZ-18 dimensions and specifications drawing
Installation drawing. View the drawing at full size.

Evaluate the ER11 process and actual cycle

GDZ-18 is a candidate when manual ER11 tooling, water cooling and the documented operating point fit the process, and the machine supports its 65 mm body. Begin with cutter and working speed, then review drive output, support and cooling. If another tooling family or output is required, compare the appropriate exact model rather than inferring an upgrade from a similar code.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. Those conditions support a suitability discussion. The motor and outline figures alone cannot promise feed rate or surface finish. Include mounting and circuit constraints so the review considers the actual installation instead of treating a 220 V match as a complete performance assessment.

Distinguish GDZ-18, GDZ-18B and GDZ-18-2

Send the existing code, nameplate, support drawing and clear nose and connection photos. Compare the 65 mm body, support surfaces, 235.5 mm assembly and nose datum, followed by ER11 hardware, 220 V / 5 A, VFD output and the water circuit. The full code and actual nose are necessary evidence when a similarly named unit is being considered.

GDZ-18B shares rated power and body diameter but changes ER11 to ER16 and lists another support and length. GDZ-18-2 changes output, current and nose designation; GDZ-26-3 changes body diameter and retains its 24,000 rpm qualifier. These comparisons identify questions rather than accepted substitutions. For an older unit, confirm availability and apply the same checklist to a proposed successor.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDZ-18Current configuration1.5 kW rated24,000 rpm ratedER11Water-cooledØ65 mm · 235.5 mm overall
GDZ-26-3 24,000 rpm configuration1.2 kW rated24,000 rpm ratedER11Water-cooled24,000 rpm configuration · Ø62 mm · 237 mm overall · 100 mm clamp

The 24,000 rpm GDZ-26-3 uses ER11 at 1.2 kW with a 62 mm body, 237 mm assembly and 100 mm clamp region. Compare support and operating configuration with this 65 mm, 1.5 kW model.

GDZ-18B1.5 kW rated24,000 rpm ratedER16Water-cooledØ65 mm · 254.5 mm overall · 110 mm clamp

GDZ-18B shares 1.5 kW, a 65 mm body and 220 V / 5 A but changes ER11 to ER16 and assembly length from 235.5 mm to 254.5 mm. Check the nose and its documented 110 mm support region.

GDZ-18-20.8 kW rated24,000 rpm ratedER11BWater-cooledØ65 mm · 224 mm overall

GDZ-18-2 changes to 0.8 kW, ER11B and 220 V / 3.5 A, with a 224 mm assembly. A shared 65 mm diameter does not settle tooling, support or electrical requirements.

Specify the non-B ER11 configuration

Request GDZ-18 with its documented 220 V / 5 A specification, quantity and destination country with postal code. List collets, nut, accessories and additional files required. Add the current mount, VFD and cooling information for replacement. A request described only as a GDZ-18-family spindle leaves several output and tooling configurations unclear.

Compare quotations for the same complete model and included scope. Confirm accessory applicability and outstanding support or connection questions before finalizing installation. CINKR confirms proposed configuration and current availability by email. Keep the exact drawing and electrical information with the quotation so purchasing and installation refer to the same 1.5 kW ER11 assembly.

  • Winding: confirm the supplied-unit electrical specification
  • Configuration: GDZ-18
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the GDZ-18 drawing for support and connections

Open the full-size installation drawing below for support surfaces, nose geometry and connection layout. Request additional PDF, CAD or wiring information by complete GDZ-18 code and electrical specification. A file for the B or -2 version is not automatically applicable even when rated speed, cooling or body diameter is shared.

Confirm extra files against the supplied configuration before using them to adapt support or set drive parameters. The outline, nameplate and service instructions address different installation questions, while the drive and machine procedures guide commissioning. Identify the unresolved mounting, cooling or electrical issue when requesting another document so the technical discussion can address the actual requirement.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDZ-18

Which voltage and current are documented for GDZ-18?

The listed specification is 220 V / 5 A. Keep it with the exact model in the quote and drive review; a 380 V alternative is not established here.

Does GDZ-18B use the same tooling?

GDZ-18 uses ER11; GDZ-18B uses ER16 and another assembly length. Compare the exact nose and support drawings before changing configurations.

Is GDZ-18-2 the same 1.5 kW model?

GDZ-18-2 lists 0.8 kW, ER11B, 220 V / 3.5 A and a 224 mm assembly. Keep its full code and facts separate.

Can the 235.5 mm dimension be used as clamp length?

It is the overall assembly dimension. Locate the permitted support surfaces and nose references on the exact drawing.

Does matching 65 mm diameter prove a replacement?

Compare support location, nose datum, tooling, assembly, electrical output and water connections using both applicable drawings.

What belongs in a replacement quote?

Send the exact model, electrical specification, quantity, destination, accessories and file needs, plus nameplate, mount, nose, connections, drive and cooling evidence.
