HQD GDZ-24-2 ER20 spindle motor

3.2 kW ratedER20Water-cooled24,000 rpm ratedØ105 mm303.5 mm overall

HQD GDZ-24-2 is a water-cooled manual ER20 spindle rated at 3.2 kW and 24,000 rpm. Check its 105 mm body, 138 mm clamp region, 303.5 mm assembly and 12.5 kg weight against the machine. Select 220 V / 12 A or 380 V / 7 A, then review the 400 Hz drive and exact support/nose drawing.

Browse the GDZ spindle range →

MODEL SELECTION

Is this the right GDZ-24-2 configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER20 tooling at the documented 3.2 kW / 24,000 rpm point.
  • The machine supports a 105 mm body and specified 138 mm clamp region.
  • The selected winding and supplied-unit water circuit can be integrated with the machine.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 12 A and 380 V / 7 A as separate complete supplied pairs.
  • The 400 Hz specification belongs to this model; GDZ-24-1C has separate four-pole / 800 Hz data.
  • Check the 303.5 mm assembly, 12.5 kg weight, support location and nose datum.

COMPARE ALTERNATIVES

Consider another model when:

  • GDZ-24-1C shares overall and clamp lengths but uses a 100 mm body and different motor data.
  • GDZ-24-3 uses 2.2 kW and a shorter assembly; GDZ-27 changes output, body and support.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER20 tooling. Power: 3.2 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 105 mm body diameter, 138 mm clamping length, 303.5 mm overall length, 12.5 kg weight. Winding options: 220 V / 12 A or 380 V / 7 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)3.2
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)105
Overall length (mm)303.5
Clamping length (mm)138
Weight (kg)12.5
Cooling and feedback
CoolingWater-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 12 A
  • 380 V · 7 A

3.2 kW at 24,000 rpm on the 105 mm model

The documented rated point is 3.2 kW at 24,000 rpm with 400 Hz. Keep those figures with GDZ-24-2 and its 105 mm body. GDZ-24-1C shares some outline dimensions but has a different output, pole specification and frequency, so a common assembly length or rated speed does not establish the same motor configuration.

Describe cutter, actual working speeds and load cycle when discussing suitability. The rated point does not establish full output at every lower speed. Request applicable operating information if sustained work elsewhere is decisive. Tool projection, support stiffness and the water circuit remain part of assessment even where 3.2 kW appears suitable. Changing to GDZ-27 also requires its longer support and electrical pairs to be reviewed.

Keep 12 A with 220 V and 7 A with 380 V

The documented supplied options are 220 V / 12 A and 380 V / 7 A. Choose one complete pair and retain it with the exact model in the quotation. They describe separate motor configurations rather than one supplied unit automatically accepting both voltages. Review drive input supply separately from usable motor-output voltage and current.

Check the VFD model, output voltage, usable output current and 400 Hz capability. Use the supplied-unit nameplate and applicable drive instructions for parameters and protection. Do not copy the four-pole 800 Hz data from GDZ-24-1C or currents from GDZ-24-3 based on family naming. The actual pair and frequency need to remain together through the drive and replacement assessment.

Review manual ER20 hardware and mounted access

The tooling configuration is manual ER20. Match the cutter shank to the collet's marked gripping range, then verify nut and nose hardware for the supplied unit. ER20 identifies a family rather than a complete accessory-thread specification or one accepted shank size. Include reused accessories when retaining an existing tooling set.

Check wrench access, nut clearance and projection with the spindle in its support region. Shared ER20 tooling on another GDZ does not establish the same installed nose position. If automatic magazine changes are required, evaluate a suitable ATC spindle with its release services, support and controls separately. This manual ER20 configuration does not establish an automatic release system through the tooling-family label alone.

Use the 105 mm body with its 138 mm support

The verified dimensions are a 105 mm body, 138 mm clamp region and 303.5 mm overall assembly, with 12.5 kg listed weight. Locate permitted support surfaces and nose references on the exact drawing. The full assembly length is not available clamp length. A bracket intended for a 100 mm spindle needs a separate assessment before this wider body can be considered.

Review rear fittings, cable and hose access, projection and relevant axis travel. GDZ-24-1C shares overall and clamp lengths but uses a 100 mm body and another weight. GDZ-24-3 is shorter, while GDZ-27 has a 333.5 mm assembly and 158 mm support. Compare both exact drawings for a proposed change; matching selected dimensions still leaves actual support and nose geometry unresolved.

Confirm the supplied-unit water circuit and access

Water cooling is the documented method. Review fittings and applicable circuit requirements with the intended duty and proposed equipment. The 3.2 kW rating does not specify a universal flow, pump or temperature setting. Provide existing cooling information when reusing a machine installation rather than assuming a shared water-cooling label establishes the same connection arrangement.

Route hoses and motor cable while retaining support and rear access through machine movement. Confirm extra service requirements against the supplied drawing and instructions. Another GDZ model's fitting or pressure data do not establish applicability here. Keep cooling with the bracket and enclosure review so inspection and maintenance remain practical around the 105 mm body and 138 mm support region.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

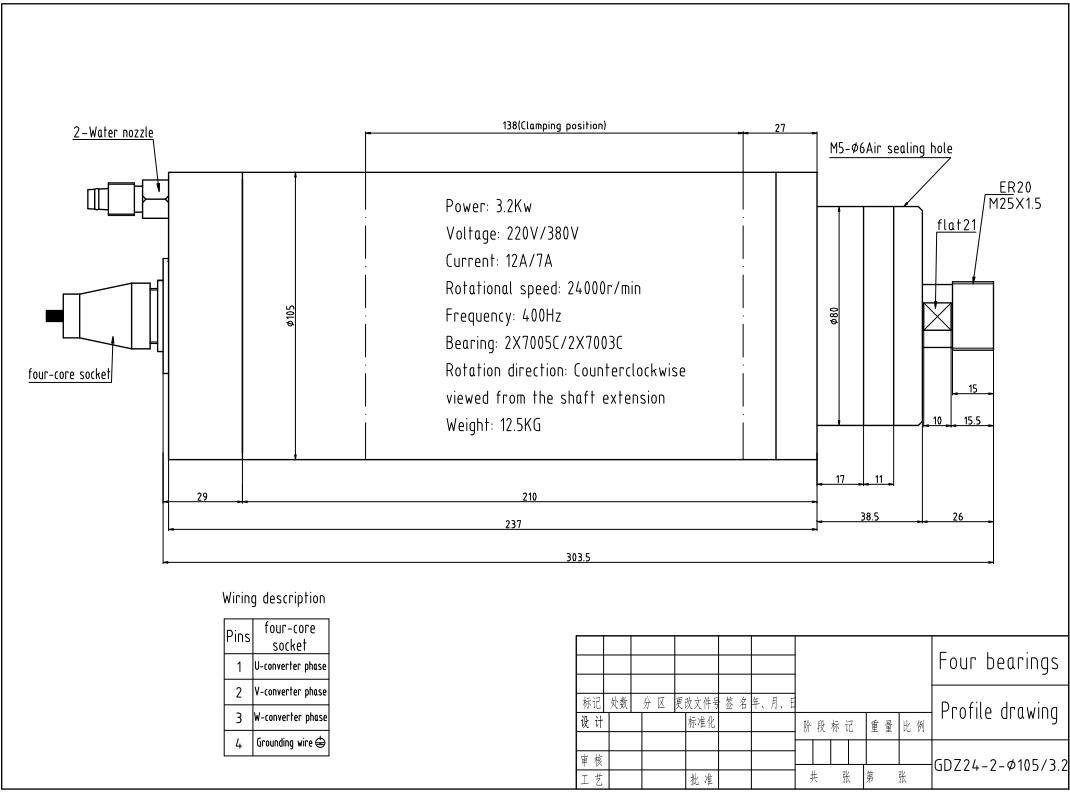

GDZ-24-2 dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 12 A; 380 V / 7 A. Match the block or PDF for the winding you intend to order. View the drawing at full size.

Assess the process with the wider body and winding

GDZ-24-2 is a candidate when manual ER20 tooling, water cooling and the documented point fit the process, and the machine supports its 105 mm body. Begin with cutter and working speeds, then review winding, drive, mount and cooling. A machine designed around a 100 mm spindle needs its own support assessment before selecting this wider configuration.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. These conditions support a suitability discussion; the motor and outline figures alone cannot promise feed rate or finish. Include bracket, circuit and drive constraints so the technical review considers the complete installation instead of treating rated output or a common ER20 family as a performance result.

Compare body diameter even where outline lengths match

Send the existing code, nameplate, support drawing and clear nose and connection photos. Compare the 105 mm body, 138 mm support, 303.5 mm assembly and nose datum, followed by ER20 hardware, winding, VFD output and water circuit. Keep the complete -2 code visible when other GDZ24 assemblies are being considered.

GDZ-24-1C changes diameter and motor architecture despite sharing length figures. GDZ-24-3 changes power, length, support and currents; GDZ-27 changes output and uses a longer assembly. These alternatives identify checks rather than accepted substitutions. For an older unit, confirm current availability and apply the full checklist to a successor, retaining exact drawing and supplied-nameplate evidence rather than selecting by one matching dimension.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDZ-24-2Current configuration3.2 kW rated24,000 rpm ratedER20Water-cooledØ105 mm · 303.5 mm overall · 138 mm clamp
GDZ-24-1C3.7 kW rated24,000 rpm ratedER20Water-cooledØ100 mm · 303.5 mm overall · 138 mm clamp

GDZ-24-1C shares overall and clamp lengths but uses a 100 mm body and 3.7 kW, four-pole / 800 Hz specification. Compare diameter and complete motor data with this 105 mm / 400 Hz configuration.

GDZ-24-32.2 kW rated24,000 rpm ratedER20Water-cooledØ100 mm · 288.5 mm overall · 120 mm clamp

GDZ-24-3 changes to 2.2 kW, a 100 mm body, 288.5 mm assembly and 120 mm clamp region with different winding currents. Compare working requirements, support and the drive before changing output.

GDZ-274.5 kW rated24,000 rpm ratedER20Water-cooledØ100 mm · 333.5 mm overall · 158 mm clamp

GDZ-27 uses 4.5 kW with a 100 mm body, 333.5 mm assembly and 158 mm clamp region. Compare its electrical pairs and longer support with this wider 105 mm model.

Specify the 105 mm model and complete winding pair

Request GDZ-24-2 with 220 V / 12 A or 380 V / 7 A, quantity and destination country with postal code. List collets, nut, accessories and extra file needs. Add the existing mount, VFD and cooling evidence for replacement. A request for a “GDZ24 ER20 spindle” leaves body size, rated point and motor data unclear.

Compare quotations for the same complete model, winding and included scope. Confirm accessory applicability and unresolved support or connection questions before finalizing installation. CINKR confirms proposed configuration and current availability by email. Retain the exact drawing and selected electrical pair with the quote so purchasing and installation refer to the same 105 mm assembly.

  • Winding: 220 V / 12 A or 380 V / 7 A
  • Configuration: GDZ-24-2
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the -2 drawing and request winding-specific extra files

Open the full-size installation drawing below for support surfaces, nose geometry and connection layout. Request additional PDF, CAD or wiring information by complete GDZ-24-2 code and selected winding. Another GDZ24 drawing is not automatically applicable even where overall or clamp lengths match.

Confirm extra files against the supplied configuration before using them for support or drive parameters. The outline, actual nameplate and service instructions address different questions, while the machine and drive procedures guide commissioning. Describe the unresolved mounting, cooling or electrical issue when requesting another document so the technical response addresses the actual installation requirement.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDZ-24-2

Which winding pairs are documented?

Select 220 V / 12 A or 380 V / 7 A as a complete supplied configuration and keep it with GDZ-24-2 in the quote and VFD review.

Is the body 100 mm or 105 mm?

GDZ-24-2 has a documented 105 mm body. Compare the actual bracket and support surfaces before considering a mount intended for another diameter.

What is the clamp region?

It is 138 mm. Use its location on the drawing rather than treating the 303.5 mm assembly as available support.

Does it use GDZ-24-1C's 800 Hz motor data?

This model lists 400 Hz and its own winding pairs. The -1C four-pole / 800 Hz configuration remains separate.

Do matching overall and clamp lengths prove a -1C replacement?

Compare body diameter, support and nose geometry, motor specification, drive and cooling using both exact drawings. Selected matching lengths do not settle the full installation.

What should a replacement quote include?

Send the complete -2 model, winding, quantity, destination and accessories, plus current nameplate, support, nose, connections, drive and cooling evidence.
