HQD GDZ-23-2 ER20 spindle motor

2.2 kW ratedER20Water-cooled24,000 rpm ratedØ80 mm252 mm overall

HQD GDZ-23-2 is a water-cooled manual ER20 spindle rated at 2.2 kW and 24,000 rpm. Its 80 mm body, 252 mm assembly and 5.5 kg weight distinguish its outline from GDZ-23 and GDZ-23-1. Select 220 V / 8 A or 380 V / 4.4 A, then check the 400 Hz drive and exact support and nose drawing.

Browse the GDZ spindle range →

MODEL SELECTION

Is this the right GDZ-23-2 configuration?

BEST FIT

Choose this configuration if:

  • The process uses manual ER20 tooling at the documented 2.2 kW / 24,000 rpm point.
  • The machine supports the 80 mm body and the actual support surfaces on this drawing.
  • The selected winding and water circuit can be integrated with the machine.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep 220 V / 8 A and 380 V / 4.4 A as separate complete winding choices.
  • Retain the -2 code and 252 mm assembly in mounting and quotation discussions.
  • The 120 mm clamp region on GDZ-23 is not a dimension to transfer to this model.

COMPARE ALTERNATIVES

Consider another model when:

  • GDZ-23 uses the same nominal body and motor point but a 268.5 mm assembly.
  • GDZ-23-1 changes to an 85 mm body; GDZ-24-3 changes body, outline and current pairs.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER20 tooling. Power: 2.2 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 80 mm body diameter, 252 mm overall length, 5.5 kg weight. Winding options: 220 V / 8 A or 380 V / 4.4 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)2.2
Rated speed (rpm)24,000
Tooling and mounting
Tool interfaceER20
Tool changeManual tool change
Electrical
Frequency (Hz)400
Dimensions and weight
Body diameter (mm)80
Overall length (mm)252
Weight (kg)5.5
Cooling and feedback
CoolingWater-cooled

Winding options

Match the voltage and current of the winding you intend to order.

  • 220 V · 8 A
  • 380 V · 4.4 A

Shared motor figures with a shorter -2 assembly

The documented point is 2.2 kW at 24,000 rpm with 400 Hz. Keep the -2 model code attached to those figures. The GDZ-23 family shares motor data and winding pairs while changing outlines, so the shorter assembly must be selected using its own support and nose drawing rather than a generic power-and-speed description.

Describe the cutter, actual working speeds and load cycle before choosing the unit. The rated point does not establish full output at every lower speed. Request applicable operating information if sustained work elsewhere matters. Tool projection, machine stiffness and cooling remain part of suitability, even when the motor figures match the existing spindle. A shorter overall envelope alone does not prove the installed nose or support will remain compatible.

Retain the pair and exact -2 identity

The supplied winding choices are 220 V / 8 A and 380 V / 4.4 A. Select one complete pair and keep it with GDZ-23-2 in the quotation. They describe separate configurations rather than a unit automatically accepting both voltages. Check VFD input supply separately from the usable voltage and current available at its motor output.

Review the drive model, output voltage, usable current and 400 Hz capability. Use the actual supplied-unit nameplate and applicable drive instructions for parameters and protection. A related GDZ-23 file has its own applicability and does not establish the -2 outline. GDZ-24-3 also lists 2.2 kW but has different current pairs, so the shared output cannot justify copying its settings into this installation.

Confirm ER20 hardware on the shorter assembly

This model uses manual ER20 tooling. Select the collet from its marked gripping range and the actual tool shank, then verify the nut and nose hardware against the supplied spindle. ER20 identifies a family rather than one shank size or a complete accessory-thread specification. Include existing accessories if a tooling set must be retained.

Check wrench access, nut clearance and cutter projection after locating the -2 spindle in the proposed support. A shorter assembly does not establish where the installed nose will fall relative to the bracket. If automatic magazine changes are required, evaluate a suitable ATC spindle with its release, mounting and machine controls separately. This manual ER20 configuration does not establish an automatic release system through the tooling label.

Use the 252 mm outline without borrowing a clamp dimension

The verified body diameter is 80 mm, overall assembly 252 mm and listed weight 5.5 kg. Use the exact drawing to identify permitted support surfaces and nose references. Overall length is not available clamp length, and the 120 mm clamp region documented on GDZ-23 belongs to that model. A shared diameter does not establish the same support position.

Review rear fittings, cable and hose routing, tool projection and relevant machine travel. GDZ-23 lists a 268.5 mm assembly and -1 lists 270.5 mm with an 85 mm body. Compare both exact drawings for a proposed change. The matching motor point and winding pairs can narrow electrical selection while the actual mechanical and service-access comparison remains necessary.

Match water connections and access to the short outline

Water cooling is the documented method. Review supplied-unit fittings and applicable circuit requirements with the intended duty and proposed equipment. The 2.2 kW rating does not specify a universal pump, flow or temperature setting. Provide existing circuit information if reusing a machine installation rather than assuming a shared GDZ family establishes identical connections.

Route hoses and motor cable while preserving support and rear access through machine movement. Confirm extra service details against the supplied-unit drawing and instructions. A shorter assembly does not remove cooling or maintenance requirements, and another model's pressure or fitting data do not establish this unit's specification. Keep the cooling review with the actual bracket and enclosure layout.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

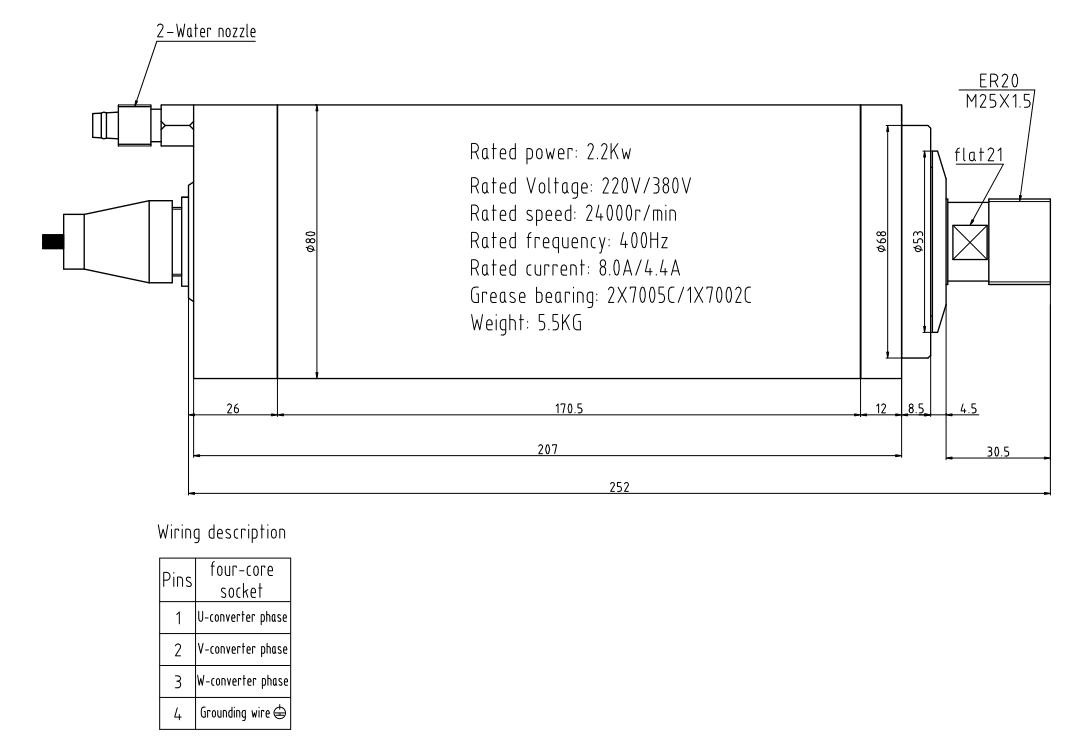

GDZ-23-2 dimensions and specifications drawing
Installation drawing · winding labels: 220 V / 8 A; 380 V / 4.4 A. Match the block or PDF for the winding you intend to order. View the drawing at full size.

Assess the cutter and support rather than length alone

GDZ-23-2 is a candidate when manual ER20 tooling, water cooling and the documented rated point fit the process, and the machine supports its 80 mm body. Begin with cutter and working speed, then assess winding, drive, support and cooling. The short outline may matter to an installation, but the support location and nose datum still require its exact drawing.

For engraving or milling, provide material, cutter geometry, shank diameter, projection, load cycle and machine stiffness. These conditions support a suitability discussion; the motor and outline figures alone cannot promise feed rate or finish. Include bracket and circuit constraints so the assessment considers the actual installation rather than treating a common 2.2 kW point or compact length as a complete performance result.

Compare support position on both exact outlines

Send the current code, nameplate, support drawing and clear nose and connection photos. Compare the 80 mm body, permitted support surfaces, 252 mm assembly and nose datum, followed by ER20 hardware, winding, VFD output and water circuit. Keep the -2 suffix visible so another GDZ-23-family outline does not silently take its place in the inquiry.

GDZ-23 changes length and listed weight with its own 120 mm support region; -1 changes to an 85 mm body and longer assembly. GDZ-24-3 changes body and electrical pairs as well as outline. These alternatives identify checks rather than accepted substitutions. For an older unit, confirm current availability and apply the full checklist to a successor, retaining drawing and supplied-nameplate evidence.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDZ-23-2Current configuration2.2 kW rated24,000 rpm ratedER20Water-cooledØ80 mm · 252 mm overall
GDZ-232.2 kW rated24,000 rpm ratedER20Water-cooledØ80 mm · 268.5 mm overall · 120 mm clamp

GDZ-23 shares the 80 mm body and motor figures but lists a 268.5 mm assembly and its own 120 mm clamp region. Compare both outlines instead of transferring that support dimension to this 252 mm assembly.

GDZ-23-12.2 kW rated24,000 rpm ratedER20Water-cooledØ85 mm · 270.5 mm overall · 120 mm clamp

GDZ-23-1 changes to an 85 mm body and 270.5 mm assembly despite shared motor and winding figures. Compare support and nose position alongside the body-diameter change.

GDZ-24-32.2 kW rated24,000 rpm ratedER20Water-cooledØ100 mm · 288.5 mm overall · 120 mm clamp

GDZ-24-3 retains the nominal 2.2 kW and ER20 but changes to a 100 mm body, 288.5 mm assembly and different winding currents. Check the mount and drive with each exact configuration.

State the -2 outline and selected winding

Request GDZ-23-2 with 220 V / 8 A or 380 V / 4.4 A, quantity and destination country with postal code. List collets, nut, accessories and extra document needs. Add the current mount, VFD and cooling evidence for replacement. A “GDZ-23 2.2 kW” request leaves several body and assembly variants unclear despite shared motor figures.

Compare quotations for the same exact model, winding and included scope. Confirm accessory applicability and unresolved support or connection questions before finalizing installation. CINKR confirms proposed configuration and current availability by email. Retain the exact -2 drawing and selected electrical pair with the quote so purchasing and installation refer to the same shorter assembly.

  • Winding: 220 V / 8 A or 380 V / 4.4 A
  • Configuration: GDZ-23-2
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the -2 drawing and request applicable extra documents

Open the full-size installation drawing below to inspect support surfaces, nose geometry and connection layout. Request extra PDF, CAD or wiring information by complete GDZ-23-2 code and selected winding. The unsuffixed model's PDF does not establish this outline or support merely because output, speed and winding pairs match.

Confirm additional files against the supplied configuration before using them for support or drive settings. The outline, actual nameplate and service instructions address different questions, while machine and drive procedures guide commissioning. State the unresolved mounting, cooling or electrical issue when requesting another document so the technical response can address the actual requirement.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDZ-23-2

What is different about the -2 assembly?

GDZ-23-2 lists an 80 mm body, 252 mm overall assembly and 5.5 kg weight. Use its own support and nose drawing when comparing GDZ-23 variants.

Which winding pairs are documented?

Select 220 V / 8 A or 380 V / 4.4 A as a complete supplied configuration and keep the -2 code with the quotation and drive review.

Can GDZ-23's 120 mm clamp length be used here?

That dimension belongs to the unsuffixed model. Locate the -2 support surfaces on its exact drawing instead of transferring the value.

Does shared ER20 and 80 mm diameter prove a replacement?

Compare support position, nose datum, assembly space, electrical output, water connections and tooling using both exact outlines.

Can the unsuffixed GDZ-23 PDF establish this outline?

Keep the file with its stated applicability. Use the -2 drawing and request applicable extra information for the selected supplied configuration.

What belongs in a replacement quote?

Send the complete -2 model, winding, quantity, destination and accessories, plus current nameplate, support, nose, connections, drive and cooling evidence.
