HQD GDK110-9-18Z/2.2-4.4 ER25 spindle motor

2.2 kW ratedER25Water-cooled9,000–18,000 rpmØ110 mm352.5 mm overall

HQD GDK110-9-18Z/2.2-4.4 combines manual ER25 tooling with a water-cooled 9,000–18,000 rpm operating range. The rated output is 2.2 kW; the separate 4.4 kW curve line must retain its duty conditions. Check the 110 mm body, 155 mm support region and 249–380 V U/f relationship against the actual machine and drive.

Browse the GDK spindle range →

MODEL SELECTION

Is this the right GDK110-9-18Z/2.2-4.4 configuration?

BEST FIT

Choose this configuration if:

  • The intended cutting cycle calls for the documented lower working-speed range and manual ER25 tooling.
  • The mounting arrangement can support a 110 mm body over the 155 mm clamp region.
  • The drive and water circuit can be assessed with the actual operating curve and duty.

CHECK BEFORE ORDERING

Confirm these details first:

  • Keep the 2.2 kW rated entry separate from the 4.4 kW curve line and S1/S6-20%, TA20°C notes.
  • 249–380 V describes a U/f relationship, not two selectable windings or an input-supply range.
  • Check the 352.5 mm assembly, 16 kg weight, nose hardware and cooling connections from the drawing.

COMPARE ALTERNATIVES

Consider another model when:

  • GDK105-9-21Z/2.2-5.0 changes to ER20 and a 9,000–21,000 rpm range.
  • GDK100-12-24Z/2.2-4.4 starts at 12,000 rpm; GDK105-21Z/3.5 has a separate fixed-point and winding description.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses ER25 tooling. Power: 2.2 kW rated. Speed: 9,000–18,000 rpm. Installation dimensions and weight: 110 mm body diameter, 155 mm clamping length, 352.5 mm overall length, 16 kg weight.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)2.2
Operating range (rpm)9,000–18,000
Tooling and mounting
Tool interfaceER25
Tool changeManual tool change
Electrical
Rated current (A)6
Frequency range (Hz)150–300
Curve voltage endpoints (V)249–380
Dimensions and weight
Body diameter (mm)110
Overall length (mm)352.5
Clamping length (mm)155
Weight (kg)16
Cooling and feedback
CoolingWater-cooled

A lower range with separate rated and conditioned output

The documented range is 9,000–18,000 rpm and the reviewed rated output is 2.2 kW. The original graph shows both 2.2 kW and 4.4 kW power lines with S1/S6-20%, TA20°C and water-cooling notes. Keep the conditions with the graph; the larger number in the code does not establish unconditional continuous 4.4 kW output. It also does not identify a second orderable motor that can be chosen simply by selecting that number.

Describe the normal cutting speeds and load cycle. The lower starting point can be a reason to investigate this model, but output at the intended working point still needs the applicable curve and duty information. Comparing a bare 4.4 kW headline with another unit's continuous rating would omit a material selection condition. If sustained output is central to the process, resolve that requirement before accepting the proposed spindle.

Read the 249–380 V relationship with 150–300 Hz

The original U/f graph identifies 249 V at 150 Hz / 9,000 rpm and 380 V at 300 Hz / 18,000 rpm. These are points on the documented relationship. They are not independently selectable winding voltages, and they do not describe the VFD's incoming supply. The reviewed current is 6 A. Compare the complete relationship and duty with the drive's output capability.

Include the exact VFD model, output current and frequency capability if existing equipment will be retained. The nominal kW label alone cannot establish a suitable output relationship. Use the supplied-unit nameplate, applicable curve and drive instructions when entering motor data and protection settings. If another electrical arrangement is needed, state it as a requirement to be confirmed; do not import 220 V / 380 V winding choices from a different GDK configuration.

ER25 changes the tooling comparison

This configuration uses manual ER25 collet tooling. Match the actual cutter shank to the selected collet's marked gripping range, then check the nut, nose arrangement, tool projection and wrench access. ER25 is a collet family, not one shank size or a universal nut thread. A spindle using ER20 may suit a different tooling requirement even where power and cooling are similar.

Retain the exact interface during a replacement discussion. Reusing an ER20 nut or tooling arrangement needs a separate check rather than an assumption from the GDK name. This is also a manual-change configuration, without the taper-and-release architecture of GDL ATC. If automated magazine changes are required, investigate that architecture and its control interfaces instead of treating ER25 as an ATC accessory choice.

110 mm body, 155 mm support region

The verified dimensions are a 110 mm body, 155 mm clamping length and 352.5 mm overall assembly, with 16 kg listed weight. Use the drawing to locate support surfaces and nose references. The overall length concerns the envelope and is not a usable clamping length. A larger diameter than the GDK105 does not establish more permitted support or the same nose position.

Compare the complete mount and service layout with the machine's travel. Include collet-nut clearance, access for changing tools, rear fittings and the intended tool projection. The assembly weight belongs in the moving-axis and support review. If the old mount is based on a 100 mm or 105 mm spindle, the changed diameter and reference points need their own assessment before the new unit is fitted.

Water cooling with the published duty context

Water cooling is explicitly stated on the original operating graph. Confirm the supplied spindle's fittings and operating requirements against the proposed equipment and cutting cycle. Neither power line gives a universal coolant flow, temperature or pump capacity. Provide the existing circuit information if it will be reused so suitability can be assessed from real equipment.

Review any front-end air-seal connection and its requirements for this supplied unit. Do not transfer a pressure value from another GDK without confirming applicability. Cooling and air sealing are different services. Route hoses and motor cable with the support region, rear fittings and axis movement in view, retaining access for fitting and inspection.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
Read the installation guide →

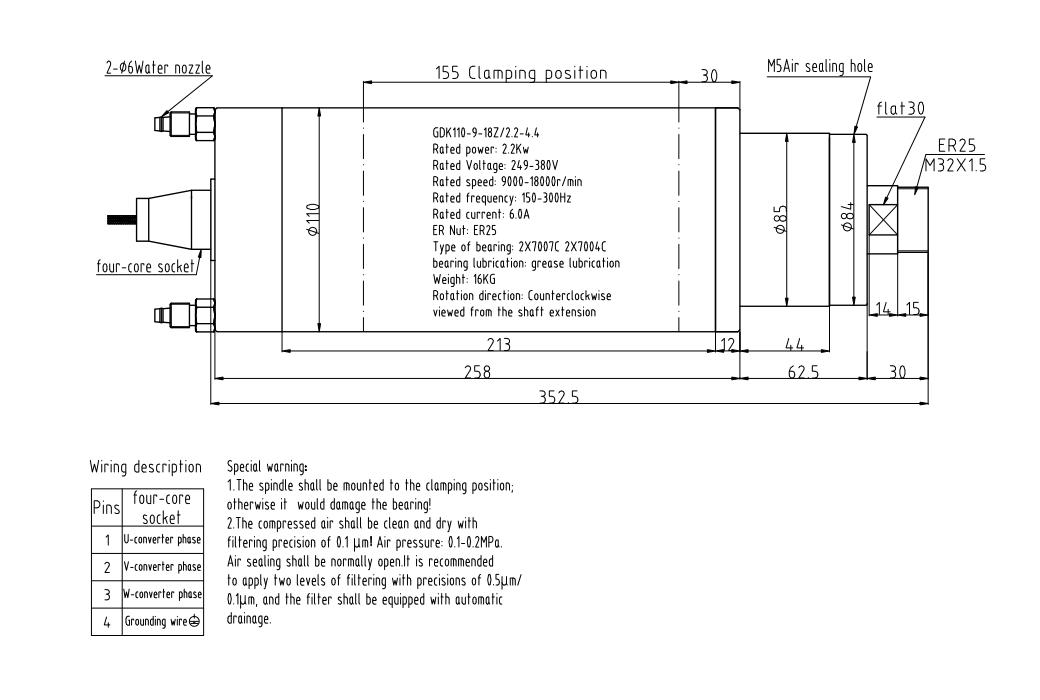

GDK110-9-18Z/2.2-4.4 dimensions and specifications drawing
Installation drawing. View the drawing at full size.

Choose around ER25 and the actual working region

Evaluate this model when ER25 manual tooling and a working range beginning at 9,000 rpm address the process requirement. Connect that choice to the operating graph and duty, then check drive output, water cooling and mounting. The ER20 range models below are useful comparisons when tooling or speed needs differ, but they require separate curves and dimensions.

For engraving or milling, include material, cutter geometry, shank size, working speed, load cycle and machine stiffness. Those inputs support a conditional assessment rather than guaranteed feed rate or finish. A higher power-code number cannot establish machining capacity by itself. If selection depends on the higher curve line, the actual duty and cooling arrangement must be considered before ordering.

Keep interface and curve differences visible

Provide the existing spindle's full code, nameplate, mounting drawing and photographs of nose hardware and connections. Compare body, support length, nose datum, complete assembly, ER tooling and nut fit, then the U/f relationship, drive and water circuit. Retain the intended load cycle in the inquiry. A similar rated output cannot resolve the changed diameter or tooling interface.

GDK105-9-21Z/2.2-5.0 uses ER20 with a higher range endpoint and 105 mm body. GDK100-12-24Z/2.2-4.4 starts at 12,000 rpm, while GDK105-21Z/3.5 has a fixed-point and separate winding pairs. These are comparison reasons, not approved substitutions. For an older unit, request availability and assess any proposed successor with the same complete checklist.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDK110-9-18Z/2.2-4.4Current configuration2.2 kW rated9,000–18,000 rpmER25Water-cooledØ110 mm · 352.5 mm overall · 155 mm clamp
GDK105-9-21Z/2.2-5.02.2 kW rated9,000–21,000 rpmER20Water-cooledØ105 mm · 344 mm overall · 155 mm clamp

Compare ER25 and a 110 mm body here with ER20 and 105 mm on GDK105. Their 155 mm clamp regions match in length, but the 9,000–18,000 and 9,000–21,000 rpm curves require separate operating and nose-position checks.

GDK100-12-24Z/2.2-4.42.2 kW rated12,000–24,000 rpmER20Water-cooledØ100 mm · 295 mm overall · 140 mm clamp

GDK100 uses ER20, a 100 mm body and a 140 mm clamp region, with a 12,000–24,000 rpm curve instead of 9,000–18,000 rpm. Compare the required cutter, working region and mount before considering a change.

GDK105-21Z/3.53.5 kW rated21,000 rpm ratedER20Water-cooledØ105 mm · 312 mm overall

The fixed-point GDK105 is rated at 3.5 kW and 21,000 rpm with ER20 and separate 220 V / 380 V windings. Compare that configuration with this ER25 range model using the actual duty, drive and 110 mm support requirement.

Quote the range model and ER25 requirement

State GDK110-9-18Z/2.2-4.4, quantity and destination country with postal code. Include working speeds, duty, existing drive and required ER25 accessories or documents. Do not ask for a “249 V winding” from the curve endpoint. Describe an alternative electrical requirement explicitly so the motor and drive proposal can be checked together.

Compare quotations for the same configuration and included scope. “GDK110 4.4 kW” leaves the rated/duty distinction unresolved. CINKR confirms proposed supply and current availability by email. Keep the applicable drawing and operating information with the quotation, including any unresolved tooling, service or drive detail that must be settled for installation.

  • Winding: confirm the supplied-unit electrical specification
  • Configuration: GDK110-9-18Z/2.2-4.4
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Associate the range curve with the exact drawing

The full-size installation drawing below supports the body, support-region and connection review. Request the matching operating curve or additional CAD document by GDK110-9-18Z/2.2-4.4. The graph's two power lines and S1/S6-20%, TA20°C notes belong to this configuration and should stay with any output comparison.

A curve for another range model may show different frequency and voltage relationships despite a similar power code. Confirm document applicability before fixing motor settings, accessories or mounting. Retain the supplied-unit label and applicable drive procedure for commissioning; the outline and operating graph answer complementary questions rather than replacing the machine's own instructions.
