HQD GDL125-40-12Z/7.5 BT40 ATC spindle

7.5 kW ratedBT40Water-cooled12,000 rpm ratedØ125 mm618 mm overall

Evaluate HQD GDL125-40-12Z/7.5 for a machine designed for BT40 automatic tooling and a 7.5 kW operating point at 12,000 rpm. This water-cooled assembly has a 125 mm body and 618 mm overall length. Its 380 V / 16.5 A winding, rear clearance and optional encoder signal must be checked with the drive and controller.

Browse the GDL spindle range →

MODEL SELECTION

Is this the right GDL125-40-12Z/7.5 configuration?

BEST FIT

Choose this configuration if:

  • The machine uses BT40 holders, retention hardware and a tool magazine designed for the proposed assembly.
  • The mount and moving axis can accommodate a 125 mm body, 172 mm clamp region and 35 kg spindle.
  • The process calls for the documented 12,000 rpm point, with water cooling and a suitable 380 V spindle drive.

CHECK BEFORE ORDERING

Confirm these details first:

  • Check 380 V / 16.5 A and the 600 Hz, six-pole operating information together.
  • Review the full 618 mm length, rear connections and holder movement against the machine envelope.
  • Specify whether an encoder is required and whether the controller accepts 1Vpp sine or TTL square signals.

COMPARE ALTERNATIVES

Consider another model when:

  • GDL120 uses BT30 and a 24,000 rpm operating point; it changes tooling, speed and installation dimensions.
  • GDL70-24Z/9.0B uses ISO30 and a duty-defined 9 kW point, so compare its interface and duty rather than only the power number.
Selection and installation topics

SPECIFICATIONS

Read the operating conditions.

This water-cooled spindle uses BT40 tooling. Power: 7.5 kW rated. Speed: 12,000 rpm rated. Installation dimensions and weight: 125 mm body diameter, 172 mm clamping length, 618 mm overall length, 35 kg weight. Winding options: 380 V / 16.5 A.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

Output and duty
Rated power (kW)7.5
Rated speed (rpm)12,000
Tooling and mounting
Tool interfaceBT40
Tool changeAutomatic tool change
Electrical
Frequency (Hz)600
Poles6
Dimensions and weight
Body diameter (mm)125
Overall length (mm)618
Clamping length (mm)172
Weight (kg)35
Cooling and feedback
CoolingWater-cooled
Optional encoder signals1 Vpp sine / TTL square

Winding options

Match the voltage and current of the winding you intend to order.

  • 380 V · 16.5 A

7.5 kW at 12,000 rpm with six poles

The GDL125 drawing documents 7.5 kW at 12,000 rpm, 600 Hz and six poles. That operating point distinguishes it from the higher-speed BT30 and ISO30 models listed below. Keep frequency, pole count and rated speed together when checking the drive. The 600 Hz motor output requirement does not describe the incoming mains frequency, and the drive needs to support the selected spindle's output voltage and current as well as its frequency.

Begin with the operation's required working speed. A 24,000 rpm spindle with a similar or larger power designation is not automatically a better match for a process centered on a different speed and tool arrangement. The rating here does not establish full power at every lower commanded speed. If the duty includes prolonged low-speed cutting, describe the actual cycle and ask for the relevant operating information before selecting the spindle or drive from the headline alone.

Check the 380 V motor output and current

The documented winding is 380 V / 16.5 A. Treat those as motor values, separate from the VFD's input supply. Confirm that the proposed drive can provide the required output voltage, current and 600 Hz capability. A drive described only by its kW rating leaves the electrical check incomplete. Include its model and output specifications if it will be reused from an existing machine.

The listed configuration does not establish a 220 V winding option for this spindle. If a different electrical supply is needed, request confirmation rather than borrowing an option from GDL110 or GDL120. Use the supplied-unit label and applicable drive instructions before entering motor data. Keep any requested change visible in the quotation so the mechanical model name does not conceal a different electrical configuration.

BT40 tooling and the optional feedback choice

This model uses BT40. Check the holders, retention hardware, release movement and magazine arrangement for that interface. Moving from a BT30 spindle changes more than the taper name: the holder and tool-change installation need their own dimensional and control review. Compare the complete GDL125 drawing with the machine's tooling layout before establishing the nose position or expecting the existing magazine to work with the larger assembly.

Optional encoder signals are documented as 1Vpp sine and TTL square. “Optional” does not mean that both are fitted or that an encoder is included as standard. Identify the feedback required by the controller, its accepted signal type and the machine function that depends on it. State that choice explicitly in the inquiry and obtain confirmation of the supplied configuration. A speed command from the VFD is not evidence that spindle orientation feedback has been provided.

The clamp and release sequence also needs the supplied-unit pneumatic and sensor details. Request the connection information, then compare it with the controller inputs, outputs and interlocks. Confirm the states required before rotation and tool-magazine movement. Neither the BT40 label nor the optional encoder list provides a universal release pressure, wiring diagram or timing sequence for this machine; those settings must follow the actual assembly and control arrangement.

A 618 mm assembly needs a complete envelope review

The verified dimensions are a 125 mm body, 172 mm clamping length and 618 mm overall assembly, with a listed weight of 35 kg. These values serve different checks. The diameter concerns the mount, the clamp region concerns support, and the overall length concerns the combined nose and rear envelope. Use the drawing to identify reference points and permitted mounting surfaces rather than assuming the whole cylindrical body is available for clamping.

Compare rear clearance, connector access and hose routing with the machine at its relevant positions. The installation must also accommodate BT40 holder insertion and withdrawal, the intended tool projection and the magazine's movement. An available 618 mm static space alone does not establish clearance throughout the tool-change cycle. The assembly weight belongs in the moving-axis and support review, together with holders and services, before a replacement or new mount is finalized.

Integrate water cooling with the larger assembly

GDL125-40-12Z/7.5 is water cooled. Confirm the cooling connections and operating requirements for the supplied spindle before choosing equipment or accepting an existing water circuit. The 7.5 kW rating does not specify a universal flow, coolant temperature or pump capacity. Provide the proposed cooling equipment and actual duty so those questions can be addressed with the correct configuration.

Arrange the hoses alongside the rear release and feedback connections. Check access for installation and servicing, and verify that the route remains clear as the axis and tool-change mechanism move. A water-cooled replacement still needs a connection review even when the old spindle also used a water circuit. Include photos of that circuit and the rear connection area if the mount or cooling equipment is intended to be reused.

INSTALLATION CHECKS

Match the whole assembly.

Use the drawing for this exact configuration to check mounting, clearances and connection locations.

  • Check the water circuit and the connector details shown in the drawing.
  • Match the drive to the selected winding’s voltage and current.
Read the installation guide →

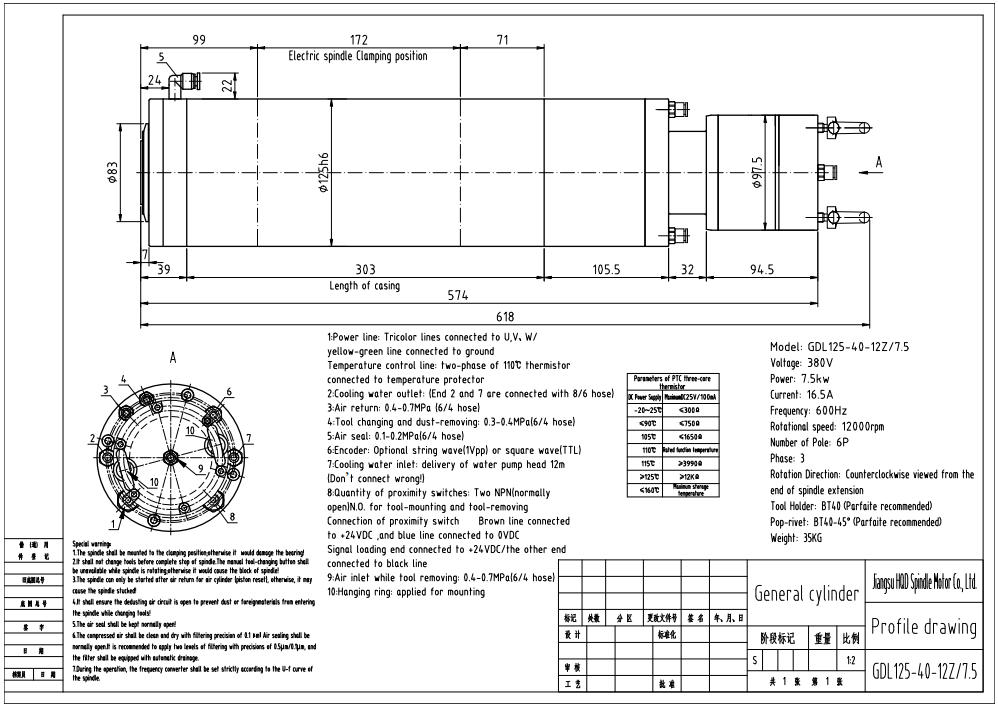

GDL125-40-12Z/7.5 dimensions and specifications drawing
Installation drawing. View the drawing at full size.

Evaluate a BT40 installation at its actual cutting speed

For a machine that calls for BT40 automatic tooling, water cooling and the documented 12,000 rpm point, this model provides a defined spindle candidate. Selection should connect the required tool and holder arrangement to the working speed, drive output and machine envelope. Those checks are more informative than choosing the largest power number among unrelated taper interfaces.

Material suitability remains a machine and process question. For wood, aluminum or another material, include tool geometry, cutting operation, required speed, duty and machine stiffness. The product facts do not promise a particular feed rate or surface finish. If the process requires orientation or another feedback-dependent function, include that requirement with the cutting information so the optional encoder choice can be checked before the quotation is accepted.

BT40 does not establish the same mount or control

Collect the current spindle nameplate, full model, mounting drawing, holder details and rear connection photos. Compare diameter, clamp region, nose position and complete length with the GDL125, then check winding, drive output, water connections, retention hardware and release sensing. The old encoder signal, if any, must also be compared with the requested optional signal. A shared BT40 taper is not enough to resolve these mechanical and electrical differences.

GDL120 and GDL110 are BT30 comparisons with different output, speed and assembly dimensions. GDL70-24Z/9.0B changes to ISO30 and documents a different duty-conditioned operating point. Use each comparison to identify a design choice; do not treat the rows as accepted replacements. If the current spindle is an older version, ask for availability and retain the same checklist when reviewing any proposed successor or changed configuration.

COMPARE RELATED SPINDLES

Compare the installation differences.

These models illustrate different interfaces and installation requirements. Check each drawing before choosing.

Swipe or scroll across to see all columns.

Use the left and right arrow keys to scroll this table.

ModelPower / dutySpeedInterfaceCoolingKey difference
GDL125-40-12Z/7.5Current configuration7.5 kW rated12,000 rpm ratedBT40Water-cooledØ125 mm · 618 mm overall · 172 mm clamp
GDL120-30-24Z/5.55.5 kW rated24,000 rpm ratedBT30Water-cooledØ120 mm · 496.5 mm overall · 136 mm clamp

Compare BT30 at 24,000 rpm with BT40 at 12,000 rpm; the GDL120 also has a smaller 120 mm body.

GDL70-24Z/9.0B9 kW at S1, TA20°C24,000 rpm ratedISO30Water-cooled483.5 mm overall

Compare water-cooled ISO30 with 9 kW at 24,000 rpm, S1, TA20°C; its 483.5 mm assembly and duty point differ from this BT40 installation.

GDL110-30-18Z/3.23.2 kW rated18,000 rpm ratedBT30Water-cooledØ110 mm · 132 mm clamp

Compare BT30 at 3.2 kW and 18,000 rpm with this 7.5 kW, 12,000 rpm BT40 assembly.

Quote the BT40 assembly and encoder scope

Include GDL125-40-12Z/7.5, the 380 V / 16.5 A winding, quantity and destination country with postal code. State whether the quotation should include an encoder and the signal type required. List holders, accessories and additional documents separately so the supply scope is clear. A request that only says “7.5 kW ATC” can omit the BT40 interface or a feedback requirement that affects the installation.

When comparing quotations, verify the model, electrical configuration, encoder scope and included accessories before comparing the amount. CINKR confirms configuration and current availability by email, including any requested options that need checking. Keep the agreed drawing and feedback choice with the quotation. This is particularly useful when replacing a spindle whose control requirements are known to the machine owner but are not visible from the abbreviated model on an old label.

  • Winding: 380 V / 16.5 A
  • Configuration: GDL125-40-12Z/7.5
  • Quantity, destination country and postal code
  • Required tooling, accessories and technical documents
Request a Quote

Use the drawing to check the full BT40 assembly

The outline drawing available below applies to the documented GDL125-40-12Z/7.5 configuration. Open it at full size to review the 618 mm overall dimension, 172 mm clamp region and rear assembly. Use the electrical block with the supplied-unit winding information and the drive review; do not substitute a drawing for a smaller GDL merely because both are water cooled.

Request any additional encoder, pneumatic, wiring or CAD document with the exact model and required option. The outline drawing supports an installation comparison, while the supplied-unit instructions and machine procedures are needed for commissioning. Confirm that an additional document covers the proposed configuration before using it to fix connector details, control signals or the machine's final tool-change sequence.

DOWNLOADS

Files for this configuration.

View the installation drawing for dimensions and connections. Ask CINKR for any additional documents you need.

For CAD or additional installation drawings, include the exact model and configuration in your inquiry.

MODEL QUESTIONS

Questions about GDL125-40-12Z/7.5

Does this spindle use BT30?

GDL125-40-12Z/7.5 uses BT40. GDL110 and GDL120 are the separate BT30 comparisons; moving between them requires a holder, retention and magazine review.

Is 24,000 rpm the rated point?

The documented rated point is 12,000 rpm at 600 Hz with six poles. Do not transfer a higher speed from another GDL model into this configuration.

Which encoder signal is standard?

The documentation lists 1Vpp sine and TTL square as optional signals. Specify the controller requirement and confirm the actual supplied encoder configuration before ordering.

Is a 220 V winding listed?

The reviewed configuration lists 380 V / 16.5 A. A different winding needs confirmation; the 220 V option on another GDL does not establish it for this model.

What dimensions should the mounting review include?

Check the 125 mm body, 172 mm clamp region, 618 mm overall length, 35 kg assembly and rear connection clearance, together with holder movement and tool-magazine geometry.

What should be included in the quote request?

State the exact model, winding, quantity, destination, required encoder signal and accessories. Add the existing spindle documents and connections if this is a replacement.

REQUEST A QUOTE

Request a quote for GDL125-40-12Z/7.5
